LT1204CN#PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LT1204CN#PBF

LT1204CN#PBF: DescriptionAnalog Multiplexer/Amp Single 4:1 16-Pin PDIP N Tube; File Size259KB，20 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LT1204CN#PBF Overview

Analog Multiplexer/Amp Single 4:1 16-Pin PDIP N Tube

LT1204CN#PBF Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Type	Analog Multiplexer/Amp
Configuration	Single 4:1
Multiplexer Architecture	4:1
Number of Channels per Chip	1
Number of Inputs per Chip	4
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Maximum Turn-On Time (ns)	200@±15V
Maximum Turn-Off Time (ns)	100@±15V
Maximum Frequency (25°C) @ Vcc (MHz)	95.6@±15V\|90.2@±12V\|68.2@±5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±12\|±9
Maximum Dual Supply Voltage (V)	±15
Typical Supply Current (mA)	19@±15V@0C to 70C
Maximum Supply Current (mA)	24@±15V@0C to 70C
Maximum Low Level Output Current (mA)	35
Maximum High Level Output Current (mA)	125
Power Supply Type	Dual
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Commercial
Packaging	Tube
Pin Count	16
Standard Package Name	DIP
Supplier Package	PDIP N
Mounting	Through Hole
Package Height	3.3
Package Length	19.56(Max)
Package Width	6.48
PCB changed	16
Lead Shape	Through Hole

Preview

Download Datasheet

View All

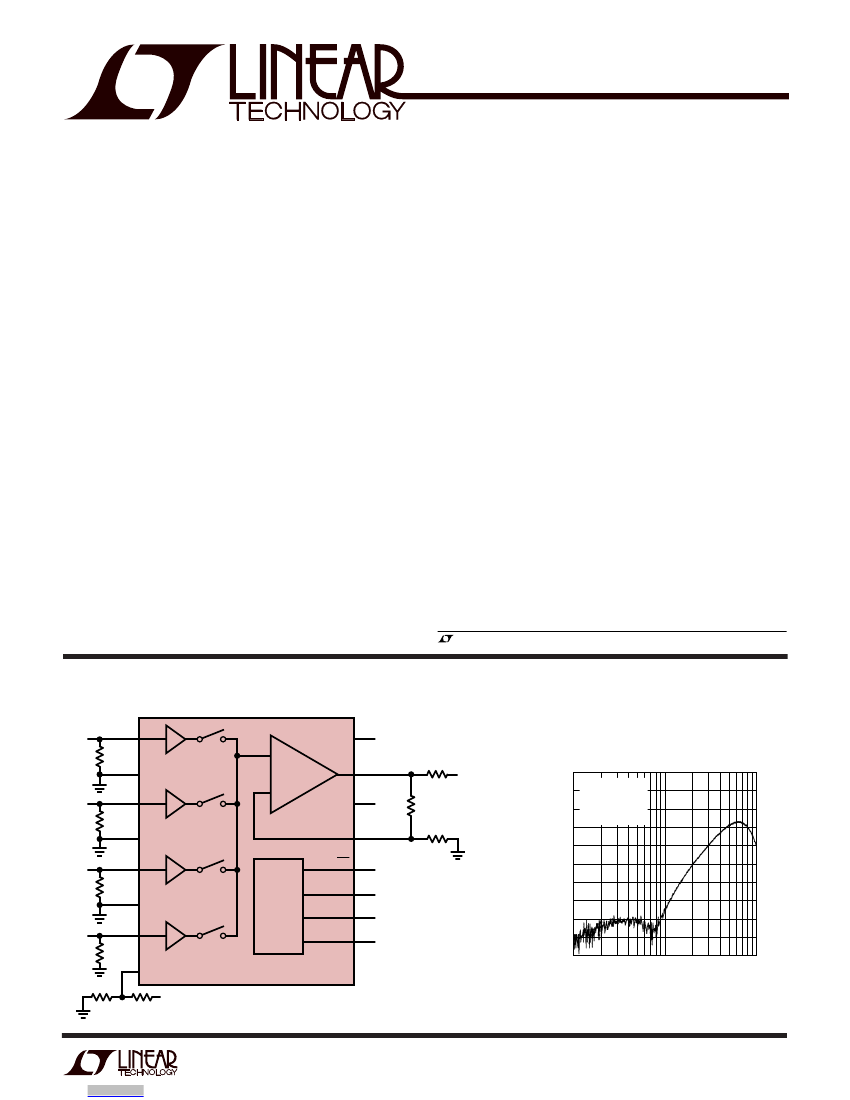

LT1204

4-Input Video Multiplexer

with 75MHz Current

Feedback Amplifier

DESCRIPTIO

The LT

1204 is a 4-input video multiplexer designed to

drive 75Ω cables and easily expand into larger routing

systems. Wide bandwidth, high slew rate, and low differ-

ential gain and phase make the LT1204 ideal for broadcast

quality signal routing. Channel separation and disable

isolation are greater than 90dB up to 10MHz. The channel-

to-channel output switching transient is only 40mV

P-P

with a 50ns duration, making the transition imperceptible

on high quality monitors.

A unique feature of the LT1204 is its ability to expand into

larger routing matrices. This is accomplished by a patent

pending circuit that bootstraps the feedback resistors in

the disable condition, raising the true output impedance of

the circuit. The effect of this feature is to eliminate cable

misterminations in large systems.

The large input and output signal levels supported by the

LT1204 when operated on

±15V

supplies make it ideal for

general purpose analog signal selection and multiplexing.

A shutdown feature reduces the supply current to 1.5mA.

, LTC and LT are registered trademarks of Linear Technology Corporation.

FEATURES

0.1dB Gain Flatness > 30MHz

Channel Separation at 10MHz: 90dB

40mV Switching Transient, Input Referred

– 3dB Bandwidth, A

= 2, R

= 150Ω: 75MHz

Channel-to-Channel Switching Time: 120ns

Easy to Expand for More Inputs

Large Input Range:

0.04% Differential Gain, R

= 150Ω

0.06° Differential Phase, R

= 150Ω

High Slew Rate: 1000V/µs

Output Swing, R

= 400Ω:

±13V

Wide Supply Range:

±5V

±15V

APPLICATI

Broadcast Quality Video Multiplexing

Large Matrix Routing

Medical Imaging

Large Amplitude Signal Multiplexing

Programmable Gain Amplifiers

TYPICAL APPLICATI

IN0

75Ω

REF

–15V

6.8k

8.2k

GND

IN3

GND

IN2

GND

IN1

IN0

15V

75Ω

OUT

–20

CFA

–

ALL HOSTILE CROSSTALK (dB)

IN1

–

–15V

–40

FB 13

S/D 12

ENABLE 11

LOGIC

A1 10

A0 9

–60

IN2

–80

–100

IN3

–120

LT1204

1204 TA01

All Hostile Crosstalk

Surface Mount PCB Measurements

±15V

IN 0

= GND

IN 1,2,3

= 0dBm

= 100Ω

FREQUENCY (MHz)

100

1204 TA02

LT1204CN#PBF Related Products

	LT1204CN#PBF	LT1204CSW#PBF	LT1204CSW#TR	LT1204CSW#TRPBF	LT1204CSW
Description	Analog Multiplexer/Amp Single 4:1 16-Pin PDIP N Tube	Analog Multiplexer/Amp Single 4:1 16-Pin SOIC W Tube	Analog Multiplexer/Amp Single 4:1 16-Pin SOIC W T/R	Analog Multiplexer/Amp Single 4:1 16-Pin SOIC W T/R	Analog Multiplexer/Amp Single 4:1 16-Pin SOIC W
EU restricts the use of certain hazardous substances	Compliant	Compliant	Not Compliant	Compliant	Not Compliant
ECCN (US)	EAR99	EAR99	EAR99	EAR99	EAR99
Part Status	Active	Active	Unconfirmed	Active	Unconfirmed
Type	Analog Multiplexer/Amp	Analog Multiplexer/Amp	Analog Multiplexer/Amp	Analog Multiplexer/Amp	Analog Multiplexer/Amp
Configuration	Single 4:1	Single 4:1	Single 4:1	Single 4:1	Single 4:1
Multiplexer Architecture	4:1	4:1	4:1	4:1	4:1
Number of Channels per Chip	1	1	1	1	1
Number of Inputs per Chip	4	4	4	4	4
Number of Outputs per Chip	1	1	1	1	1
Chip Enable Signals	Yes	Yes	Yes	Yes	Yes
Maximum Turn-On Time (ns)	200@±15V	200@±15V	200@±15V	200@±15V	200@±15V
Maximum Turn-Off Time (ns)	100@±15V	100@±15V	100@±15V	100@±15V	100@±15V
Maximum Frequency (25°C) @ Vcc (MHz)	95.6@±15V\|90.2@±12V\|68.2@±5V	68.2@±5V\|90.2@±12V\|95.6@±15V	95.6@±15V\|90.2@±12V\|68.2@±5V	95.6@±15V\|90.2@±12V\|68.2@±5V	95.6@±15V\|90.2@±12V\|68.2@±5V
Input Signal Type	Single	Single	Single	Single	Single
Output Signal Type	Single	Single	Single	Single	Single
Minimum Dual Supply Voltage (V)	±5	±5	±5	±5	±5
Typical Dual Supply Voltage (V)	±12\|±9	±12\|±9	±9\|±12	±9\|±12	±9\|±12
Maximum Dual Supply Voltage (V)	±15	±15	±15	±15	±15
Typical Supply Current (mA)	19@±15V@0C to 70C	19@±15V@0C to 70C	19@±15V@0C to 70C	19@±15V@0C to 70C	19@±15V@0C to 70C
Maximum Supply Current (mA)	24@±15V@0C to 70C	24@±15V@0C to 70C	24@±15V@0C to 70C	24@±15V@0C to 70C	24@±15V@0C to 70C
Maximum Low Level Output Current (mA)	35	35	35	35	35
Maximum High Level Output Current (mA)	125	125	125	125	125
Power Supply Type	Dual	Dual	Dual	Dual	Dual
Minimum Operating Temperature (°C)	-40	-40	-40	-40	-40
Maximum Operating Temperature (°C)	85	85	85	85	85
Supplier Temperature Grade	Commercial	Commercial	Commercial	Commercial	Commercial
Pin Count	16	16	16	16	16
Standard Package Name	DIP	SOP	SOP	SOP	SOP
Supplier Package	PDIP N	SOIC W	SOIC W	SOIC W	SOIC W
Mounting	Through Hole	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package Height	3.3	2.34(Max)	2.34(Max)	2.34(Max)	2.34(Max)
Package Length	19.56(Max)	10.49(Max)	10.49(Max)	10.49(Max)	10.49(Max)
Package Width	6.48	7.6(Max)	7.6(Max)	7.6(Max)	7.6(Max)
PCB changed	16	16	16	16	16
Lead Shape	Through Hole	Gull-wing	Gull-wing	Gull-wing	Gull-wing
HTS	8542.39.00.01	8542.39.00.01	8542.39.00.01	8542.39.00.01	-
Packaging	Tube	Tube	Tape and Reel	Tape and Reel	-
