LT1611CS5#TRMPBF datasheet, PDF

Datasheet> All Categories > LT1611CS5#TRMPBF

LT1611CS5#TRMPBF: DescriptionConv DC-DC 0.9V to 10V Inv Single-Out -5V 0.15A 5-Pin TSOT-23 T/R; File Size255KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Download user manual Parametric Compare View All

LT1611CS5#TRMPBF Overview

Conv DC-DC 0.9V to 10V Inv Single-Out -5V 0.15A 5-Pin TSOT-23 T/R

LT1611CS5#TRMPBF Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Type	Inverting
Output Type	Fixed
Switching Frequency (kHz)	1800
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	-5
Maximum Output Current (A)	0.15
Minimum Input Voltage (V)	0.9
Maximum Input Voltage (V)	10
Operating Supply Voltage (V)	0.9 to 10
Typical Switch Current (A)	0.8
Typical Quiescent Current (uA)	3000
Minimum Operating Temperature (°C)	0
Maximum Operating Temperature (°C)	70
Supplier Temperature Grade	Commercial
Packaging	Tape and Reel
Pin Count	5
Standard Package Name	SOT
Supplier Package	TSOT-23
Mounting	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	5
Lead Shape	Gull-wing

User Manual

【User Guides】DC936A - Demo Manual

Preview

Download Datasheet

View All

LT1611

Inverting 1.4MHz Switching

Regulator in SOT-23

FEATURES

DESCRIPTIO

Very Low Noise: 1mV

P–P

Output Ripple

– 5V at 150mA from a 5V Input

Better Regulation Than a Charge Pump

Effective Output Impedance: 0.14Ω

Uses Tiny Capacitors and Inductors

Internally Compensated

Fixed Frequency 1.4MHz Operation

Low Shutdown Current: <1µA

Low V

CESAT

Switch: 300mV at 300mA

Tiny 5-Lead SOT-23 Package

The LT

1611 is the industry’s first inverting 5-lead SOT-23

current mode DC/DC converter. Intended for use in small,

low power applications, it operates from an input voltage

as low as 1.1V and switches at 1.4MHz, allowing the use

of tiny, low cost capacitors and inductors 2mm or less in

height. Its small size and high switching frequency enable

the complete DC/DC converter function to consume less

than 0.25 square inches of PC board area. Capable of

generating – 5V at 150mA from a 5V supply or – 5V at

100mA from a 3V supply, the LT1611 replaces nonregulated

“charge pump” solutions in many applications.

The LT1611 operates in a dual inductor inverting topology

which filters the input side as well as the output side of the

DC/DC converter. Fixed frequency switching ensures a

clean output free from low frequency noise typically present

with charge pump solutions. No load quiescent current of

the LT1611 is 3mA, while in shutdown quiescent current

drops to 0.5µA. The 36V switch allows V

to V

OUT

differential of up to 33V.

The LT1611 is available in the 5-lead SOT-23 package.

, LTC and LT are registered trademarks of Linear Technology Corporation.

APPLICATIO S

MR Head Bias

Digital Camera CCD Bias

LCD Bias

GaAs FET Bias

Positive-to-Negative Conversion

TYPICAL APPLICATIO

L1A

22µH

1µF

L1B

22µH

LT1611

NFB

GND

10k

29.4k

1200pF

SHDN

22µF

OUT

–5V

150mA

22µF

OUT

20mV/DIV

AC COUPLED

LOAD CURRENT

C1: AVX TAJB226M010

C2: TAIYO YUDEN LMK212BJ105MG

C3: TAIYO YUDEN JMK325BJ226MM (1210 SIZE)

D1: MBR0520

L1: SUMIDA CLS62-220 OR 2× MURATA LQH3C220 (UNCOUPLED)

1611 TA01

150mA

50mA

100µs/DIV

1611 F10

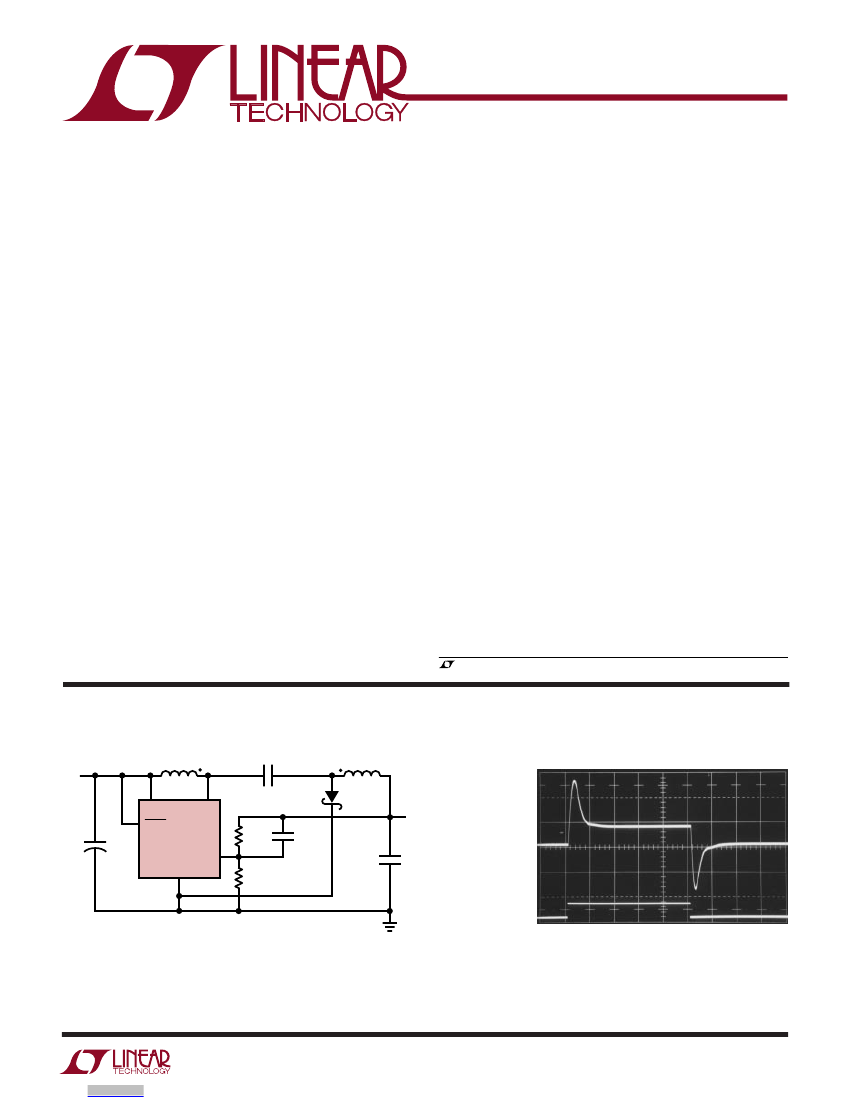

Figure 1. 5V to – 5V, 150mA Low Noise Inverting DC/DC Converter

Transient Response

LT1611CS5#TRMPBF Related Products

	LT1611CS5#TRMPBF	LT1611CS5#PBF	LT1611CS5#TR	LT1611CS5#TRM	LT1611CS5#TRMPBF (CUT REEL)	LT1611CS5#TRPBF
Description	Conv DC-DC 0.9V to 10V Inv Single-Out -5V 0.15A 5-Pin TSOT-23 T/R	Conv DC-DC 0.9V to 10V Inv Single-Out -5V 0.15A 5-Pin TSOT-23 T/R	Conv DC-DC 0.9V to 10V Inv Single-Out -5V 0.15A 5-Pin TSOT-23 T/R	Conv DC-DC 0.9V to 10V Inv Single-Out -5V 0.15A 5-Pin TSOT-23 T/R	Conv DC-DC 0.9V to 10V Inv Single-Out -5V 0.15A 5-Pin TSOT-23 T/R	Conv DC-DC 0.9V to 10V Inv Single-Out -5V 0.15A 5-Pin TSOT-23 T/R
EU restricts the use of certain hazardous substances	Compliant	Compliant	Not Compliant	Not Compliant	Compliant	Compliant
ECCN (US)	EAR99	-	EAR99	EAR99	EAR99	EAR99
Part Status	Active	Unconfirmed	LTB	LTB	Active	Active
Type	Inverting	Inverting	Inverting	Inverting	Inverting	Inverting
Output Type	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Switching Frequency (kHz)	1800	1800	1800	1800	1800	1800
Switching Regulator	Yes	Yes	Yes	Yes	Yes	Yes
Number of Outputs	1	1	1	1	1	1
Output Voltage (V)	-5	-5	-5	-5	-5	-5
Maximum Output Current (A)	0.15	0.15	0.15	0.15	0.15	0.15
Minimum Input Voltage (V)	0.9	0.9	0.9	0.9	0.9	0.9
Maximum Input Voltage (V)	10	10	10	10	10	10
Operating Supply Voltage (V)	0.9 to 10	0.9 to 10	0.9 to 10	0.9 to 10	0.9 to 10	0.9 to 10
Typical Switch Current (A)	0.8	0.8	0.8	0.8	0.8	0.8
Typical Quiescent Current (uA)	3000	3000	3000	3000	3000	3000
Maximum Operating Temperature (°C)	70	70	70	70	70	70
Supplier Temperature Grade	Commercial	Commercial	Commercial	Commercial	Commercial	Commercial
Packaging	Tape and Reel	Tape and Reel	Tape and Reel	Tape and Reel	Tape and Reel	Tape and Reel
Pin Count	5	5	5	5	5	5
Standard Package Name	SOT	SOT	SOT-23	SOT-23	SOT	SOT
Supplier Package	TSOT-23	TSOT-23	TSOT-23	TSOT-23	TSOT-23	TSOT-23
Mounting	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package Height	0.9(Max)	0.9(Max)	0.9(Max)	0.9(Max)	0.9(Max)	0.9(Max)
Package Length	2.9	2.9	2.9	2.9	2.9	2.9
Package Width	1.75(Max)	1.75(Max)	1.75(Max)	1.75(Max)	1.75(Max)	1.75(Max)
PCB changed	5	5	5	5	5	5
Lead Shape	Gull-wing	Gull-wing	Gull-wing	Gull-wing	Gull-wing	Gull-wing
HTS	8542.39.00.01	8542.39.00.01	8542.39.00.01	-	-	8542.39.00.01
