LTC1044CS8: DescriptionCharge Pump INV/STPUP/STPDN -1.5V to -9V/0.75V to 4.5V 8-Pin SOIC N; File Size134KB，2 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Download user manual Parametric Compare View All

LTC1044CS8 Overview

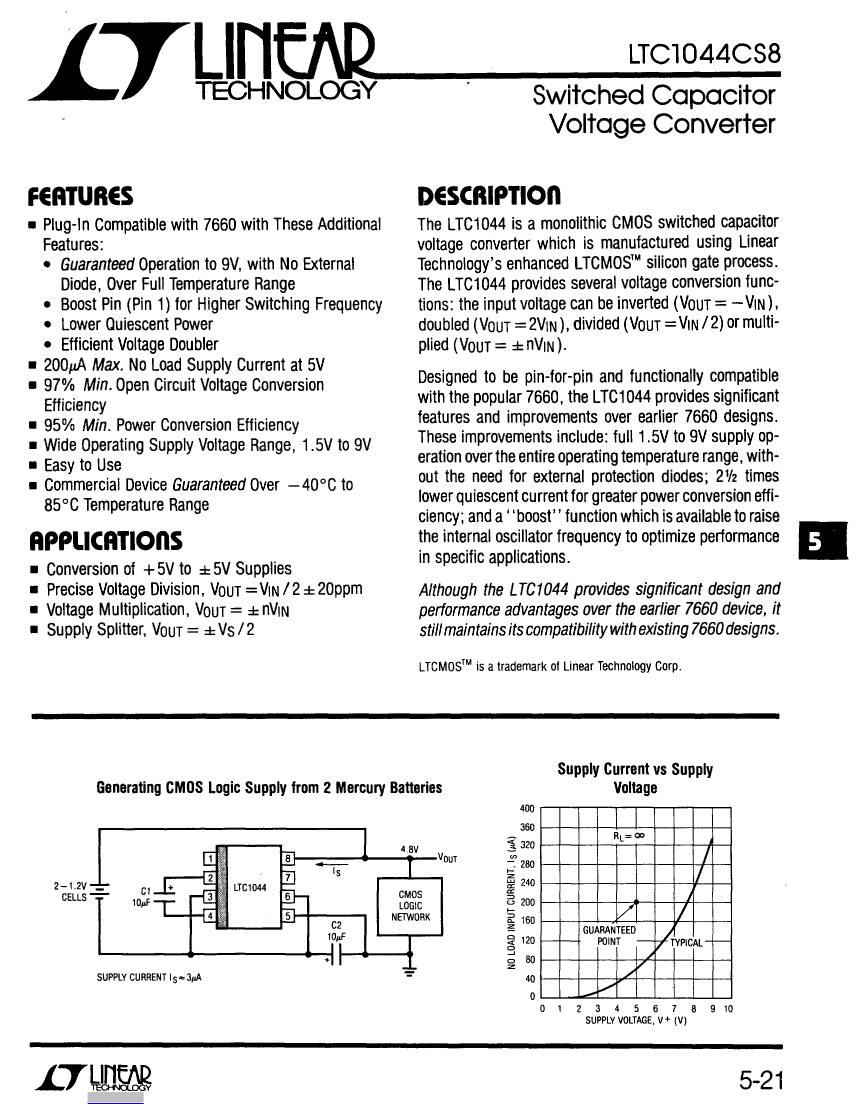

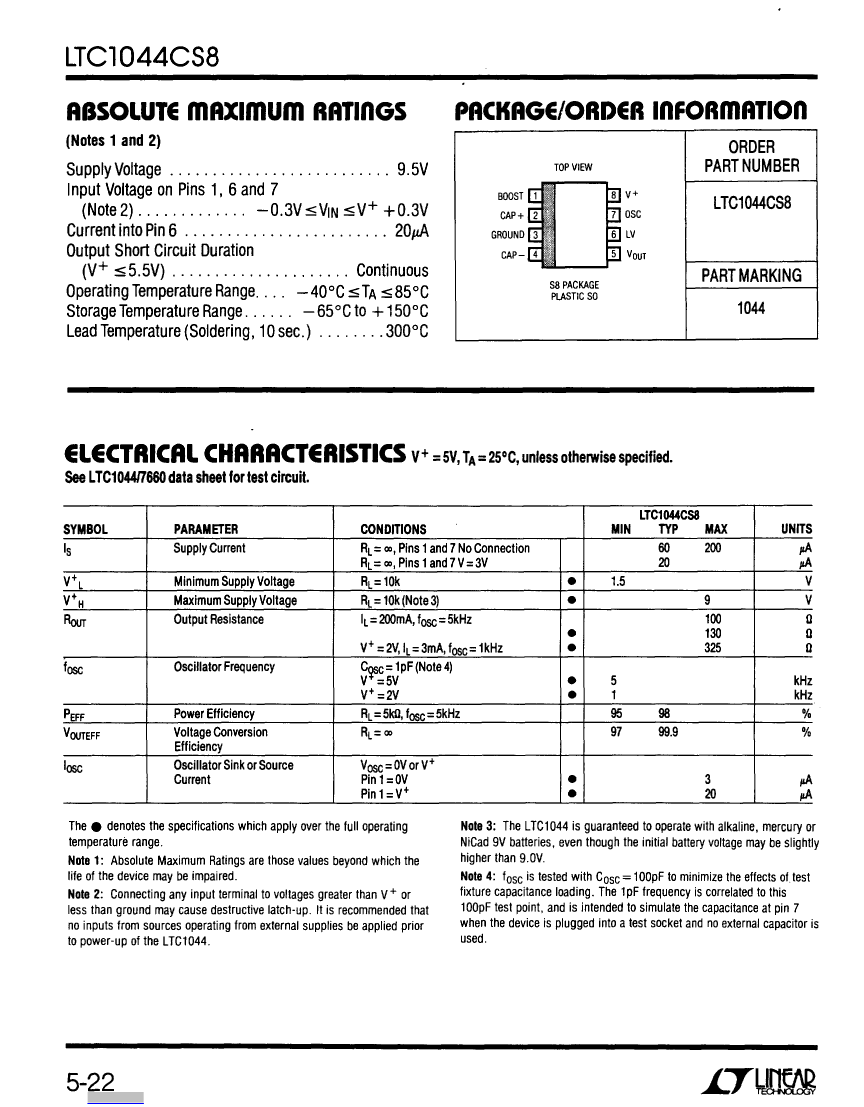

Charge Pump INV/STPUP/STPDN -1.5V to -9V/0.75V to 4.5V 8-Pin SOIC N

LTC1044CS8 Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Function	Inverting/Step Up/Step Down
Output Type	Adjustable
Output Voltage (V)	0.75 to 4.5\|-1.5 to -9
Minimum Operating Supply Voltage (V)	1.5
Maximum Operating Supply Voltage (V)	9
Maximum Supply Current (mA)	0.2
Switching Frequency (kHz)	5(Min)
Efficiency (%)	98(Typ)
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Commercial
Pin Count	8
Standard Package Name	SOP
Supplier Package	SOIC N
Mounting	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.99(Max)
PCB changed	8
Lead Shape	Gull-wing
