LTC1044MH/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LTC1044MH/883

LTC1044MH/883: DescriptionCharge Pump INV/STPUP/STPDN -1.5V to -9V/0.75V to 4.5V 8-Pin TO-5; File Size722KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LTC1044MH/883 Overview

Charge Pump INV/STPUP/STPDN -1.5V to -9V/0.75V to 4.5V 8-Pin TO-5

LTC1044MH/883 Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Function	Inverting/Step Up/Step Down
Output Type	Adjustable
Output Voltage (V)	0.75 to 4.5\|-1.5 to -9
Minimum Operating Supply Voltage (V)	1.5
Maximum Operating Supply Voltage (V)	9
Maximum Supply Current (mA)	0.2
Switching Frequency (kHz)	5(Min)
Efficiency (%)	98(Typ)
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Supplier Temperature Grade	Military
Supplier Package	TO-5
Pin Count	8
Standard Package Name	TO-205-AA
Diameter	9.4(Max)
Mounting	Through Hole
Package Height	4.7(Max)
PCB changed	8
Lead Shape	Through Hole

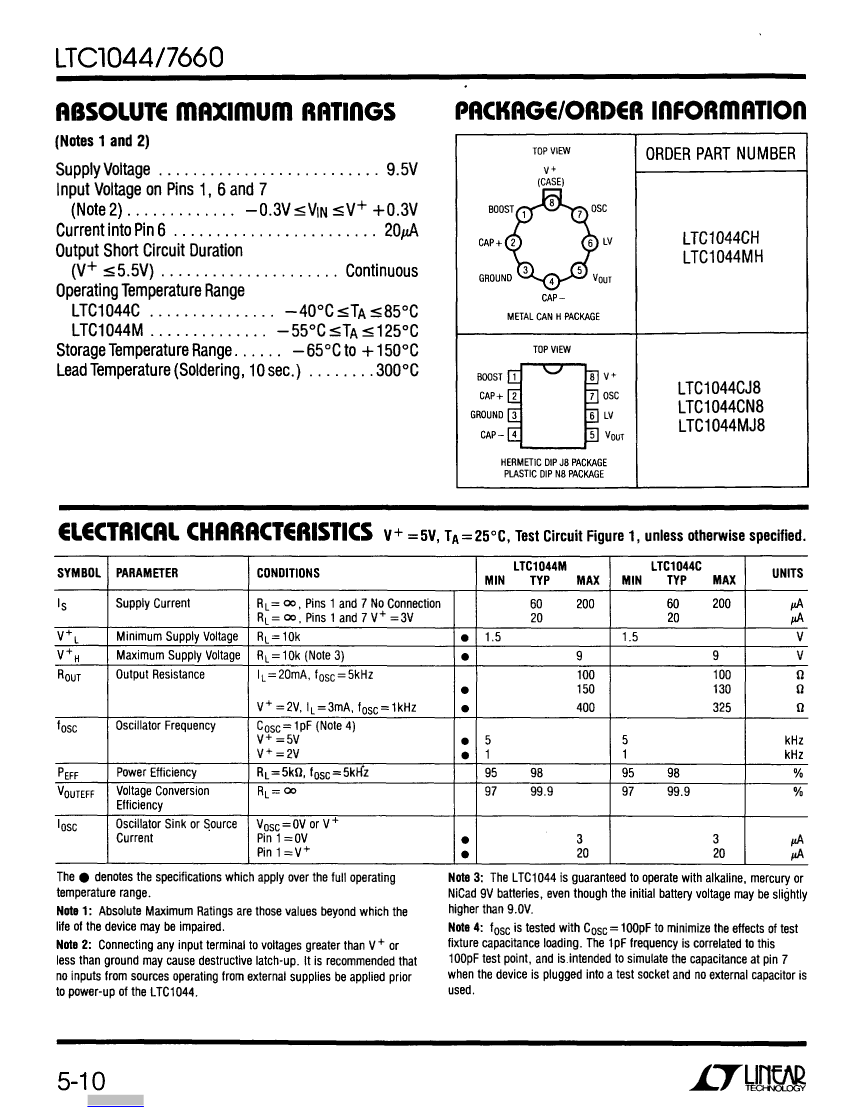

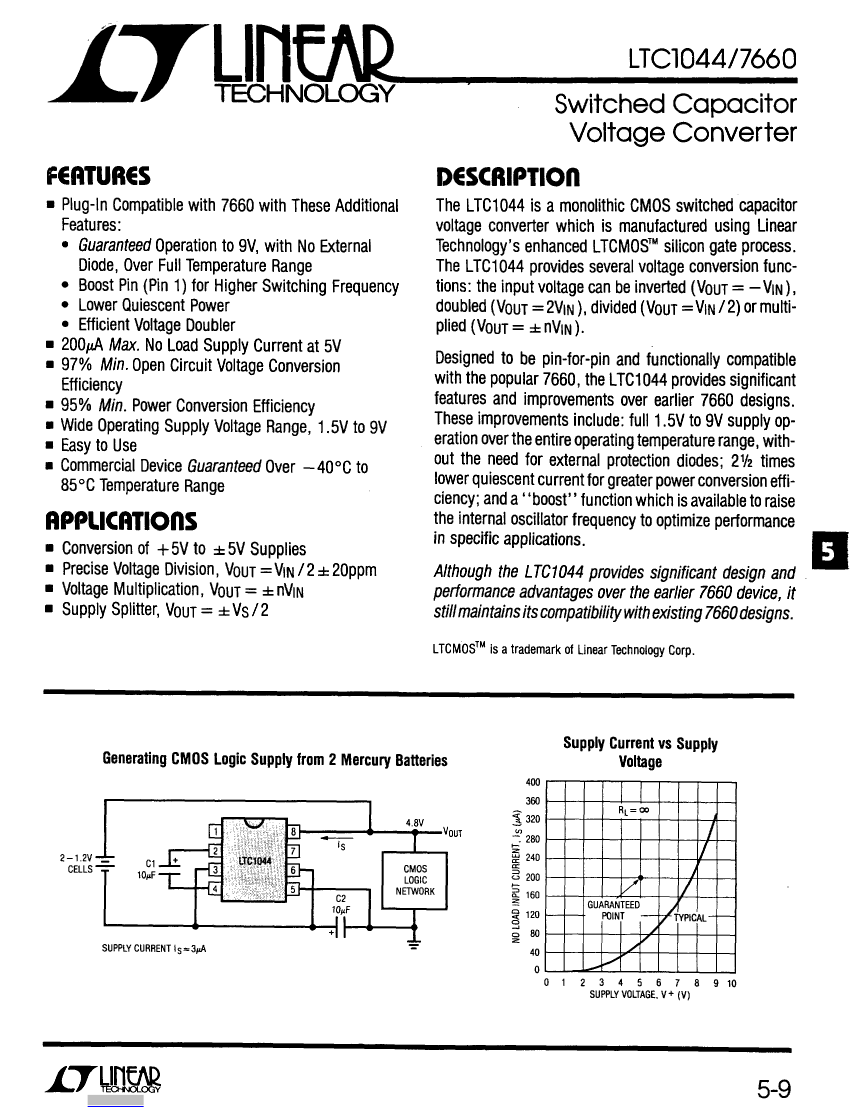

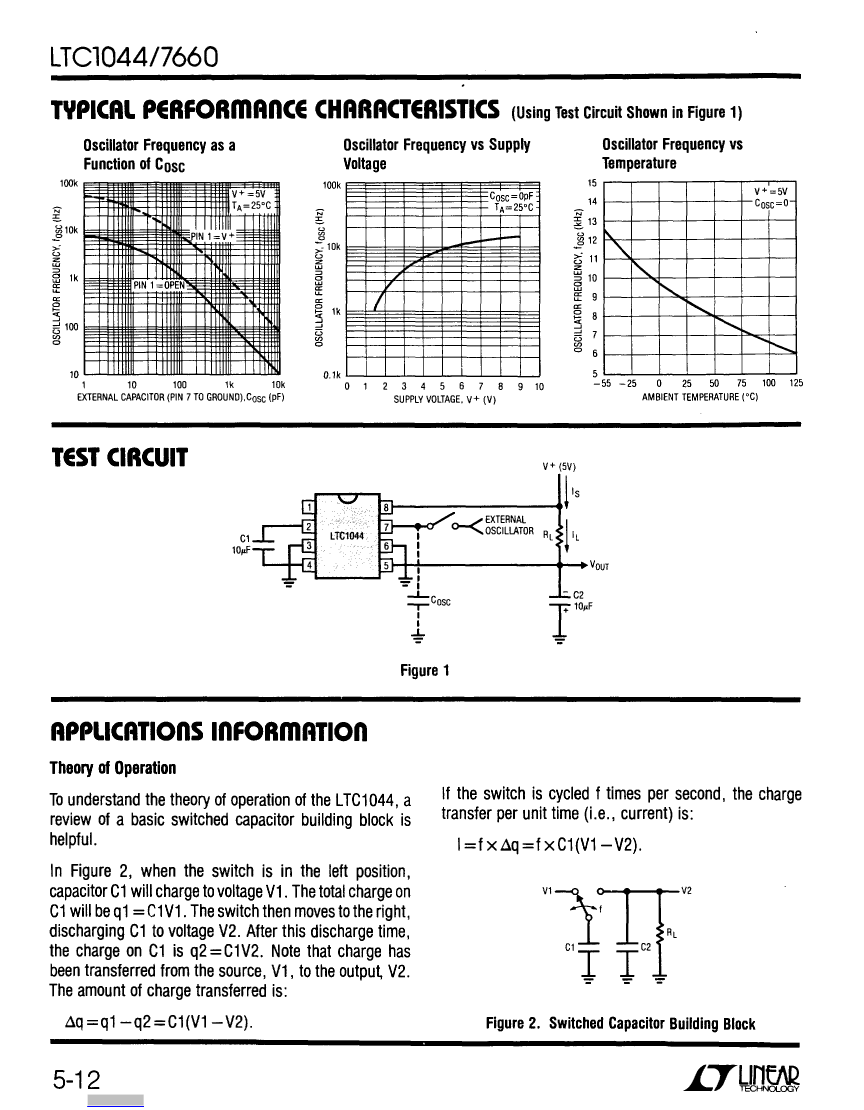

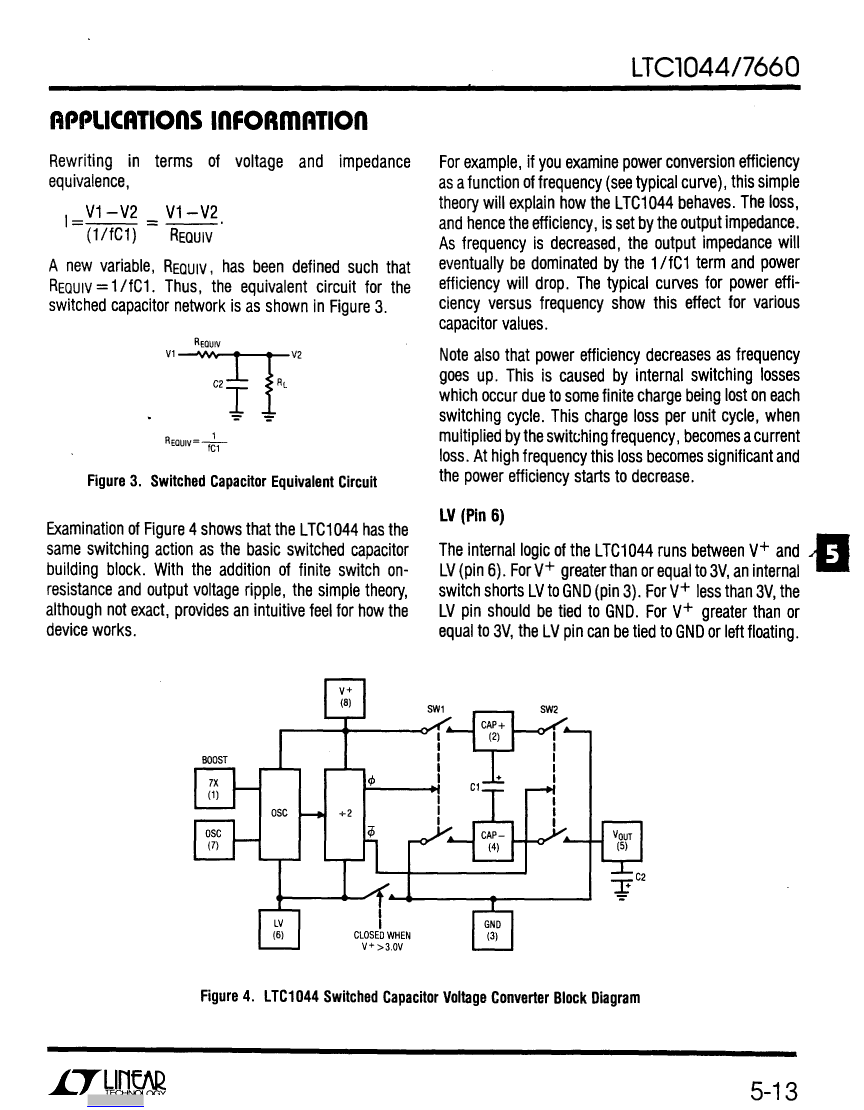

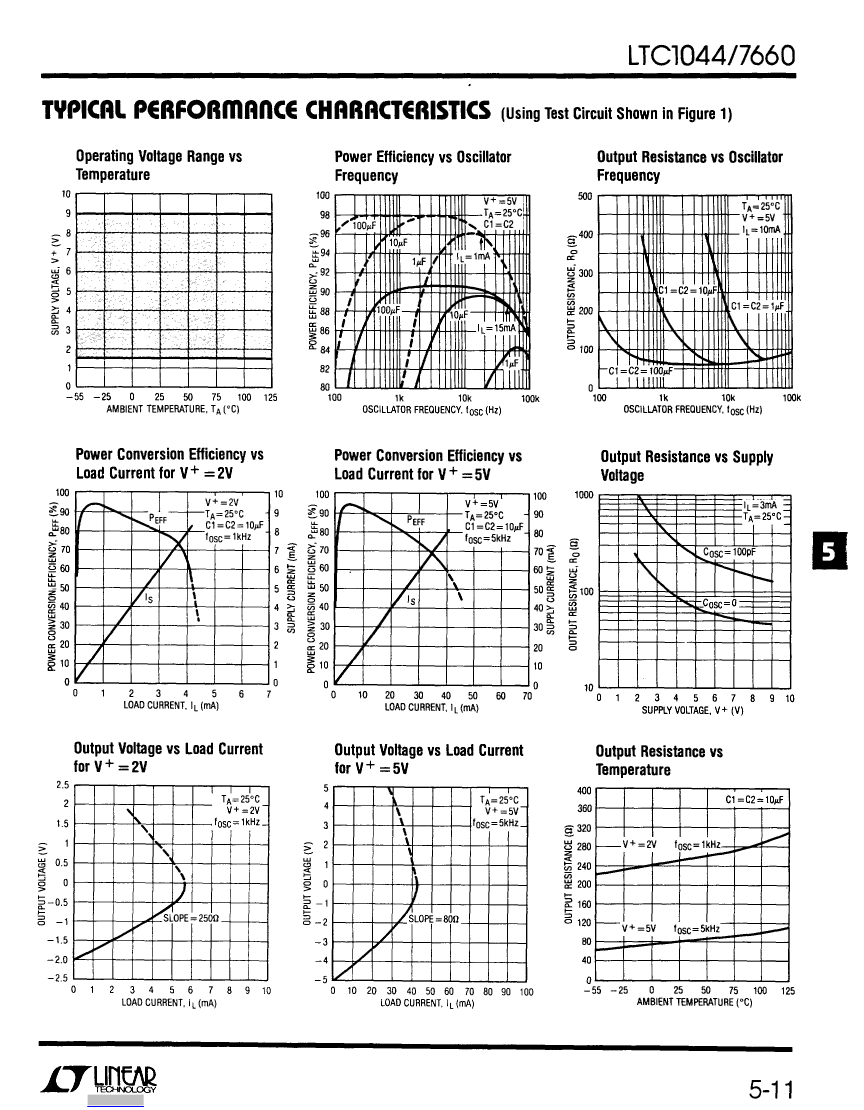

Preview

Download Datasheet

View All

LTC1044MH/883 Related Products

	LTC1044MH/883	LTC1044CJ8	LTC1044CN8#PBF	LTC1044CN8
Description	Charge Pump INV/STPUP/STPDN -1.5V to -9V/0.75V to 4.5V 8-Pin TO-5	Charge Pump INV/STPUP/STPDN -1.5V to -9V/0.75V to 4.5V 8-Pin CDIP N	Charge Pump INV/STPUP/STPDN -1.5V to -9V/0.75V to 4.5V 8-Pin PDIP N Tube	Charge Pump INV/STPUP/STPDN -1.5V to -9V/0.75V to 4.5V 8-Pin PDIP N
EU restricts the use of certain hazardous substances	Not Compliant	Not Compliant	Compliant	Not Compliant
ECCN (US)	EAR99	EAR99	EAR99	EAR99
Part Status	Unconfirmed	Unconfirmed	Active	Unconfirmed
Function	Inverting/Step Up/Step Down	Inverting/Step Up/Step Down	Inverting/Step Up/Step Down	Inverting/Step Up/Step Down
Output Type	Adjustable	Adjustable	Adjustable	Adjustable
Output Voltage (V)	0.75 to 4.5\|-1.5 to -9	-1.5 to -9\|0.75 to 4.5	-1.5 to -9\|0.75 to 4.5	0.75 to 4.5\|-1.5 to -9
Minimum Operating Supply Voltage (V)	1.5	1.5	1.5	1.5
Maximum Operating Supply Voltage (V)	9	9	9	9
Maximum Supply Current (mA)	0.2	0.2	0.2	0.2
Switching Frequency (kHz)	5(Min)	5(Min)	5(Min)	5(Min)
Efficiency (%)	98(Typ)	98(Typ)	98(Typ)	98(Typ)
Minimum Operating Temperature (°C)	-55	-40	-40	-40
Maximum Operating Temperature (°C)	125	85	85	85
Supplier Temperature Grade	Military	Commercial	Commercial	Commercial
Supplier Package	TO-5	CDIP N	PDIP N	PDIP N
Pin Count	8	8	8	8
Standard Package Name	TO-205-AA	DIP	DIP	DIP
Mounting	Through Hole	Through Hole	Through Hole	Through Hole
Package Height	4.7(Max)	3.56(Max)	3.3	3.3
PCB changed	8	8	8	8
Lead Shape	Through Hole	Through Hole	Through Hole	Through Hole
SVHC	Yes	Yes	-	Yes
SVHC Exceeds Threshold	Yes	Yes	-	Yes
Package Length	-	10.29(Max)	10.16(Max)	10.16(Max)
Package Width	-	7.87(Max)	6.48	6.48
