LTC1045CSW#TRPBF datasheet, PDF

Datasheet> All Categories > LTC1045CSW#TRPBF

LTC1045CSW#TRPBF: DescriptionAnalog Switch Hex SPST 20-Pin SOIC W T/R; File Size216KB，20 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LTC1045CSW#TRPBF Overview

Analog Switch Hex SPST 20-Pin SOIC W T/R

LTC1045CSW#TRPBF Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Type	Analog Switch
Configuration	Hex SPST
Switch Architecture	SPST
Number of Channels per Chip	6
Number of Inputs per Chip	6
Number of Outputs per Chip	6
Chip Enable Signals	No
Polarity	Non-Inverting
Input Signal Type	Single
Output Signal Type	Single
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	18
Typical Supply Current (mA)	2.5@5V
Maximum Supply Current (mA)	3.5@5V
Power Supply Type	Single
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Packaging	Tape and Reel
Pin Count	20
Standard Package Name	SOP
Supplier Package	SOIC W
Mounting	Surface Mount
Package Height	2.34(Max)
Package Length	13.01(Max)
Package Width	7.6(Max)
PCB changed	20
Lead Shape	Gull-wing

Preview

Download Datasheet

View All

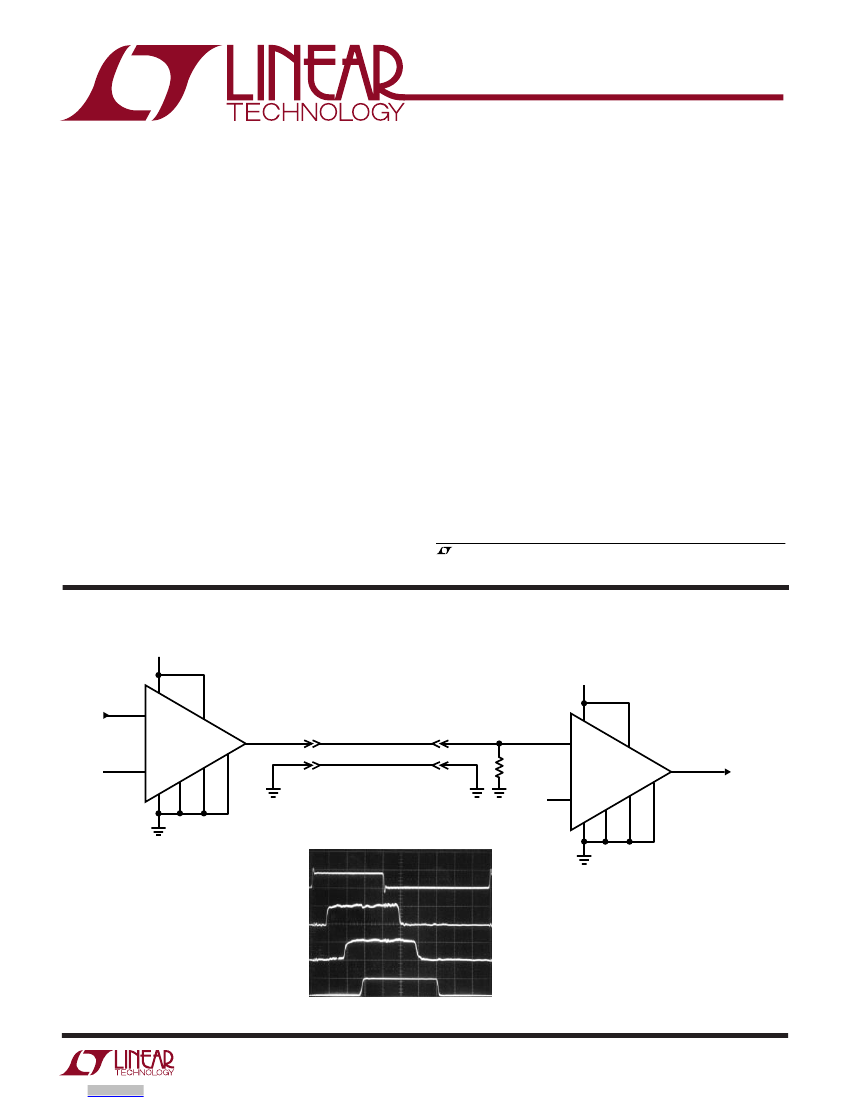

LTC1045

Programmable

Micropower Hex Translator/

Receiver/Driver

FEATURES

DESCRIPTIO

Efficiently Translate Voltage Levels

Internal Hysteresis for Noise Immunity

Output Latches Included

Three-State Outputs

Programmable Power/Speed

Power Can Be Completely Shut Off

±50V

on Inputs with External 100k Limit Resistor

1.2µs Response at 100µA Supply Current

The LTC

1045 is a hex level translator manufactured using

Linear Technology’s enhanced LTCMOS

silicon gate

process. It consists of six high speed comparators with

output latches and three-state capability. Each compara-

tor’s plus input is brought out separately. The minus inputs

of comparators 1 to 4 are tied to V

TRIP1

while 5 and 6 are

tied to V

TRIP2

The I

SET

pin has several functions. When taken to V

the

outputs are latched and power is completely shut off.

Power/speed can be programmed by connecting I

SET

to V

–

through an external resistor.

APPLICATIO S

TTL/CMOS to

±5V

Analog Switch Drive

TTL to CMOS (3V to 15V V

)

ECL to CMOS (3V to 15V V

)

Ground Isolation Buffer

Low Power RS232 Line Receiver

, LTC and LT are registered trademarks of Linear Technology Corporation.

LTCMOS is a trademark of Linear Technology Corporation.

TYPICAL APPLICATIO

TTL IN

XMT IN

Flat Ribbon Cable Driver/Receiver

–

DIS

XMT OUT

66-FT FLAT RIBBON CABLE

= 150Ω

ADJACENT CONDUCTORS

150Ω

RCV IN

DIS

RCV OUT

1.4V

SET

–

0.5V

XMT IN (5V/DIV)

XMT OUT (1V/DIV)

RCV IN (1V/DIV)

RCV OUT (5V/DIV)

100ns/DIV

045 TA01a

–

TTL OUT

SET

1045 TA01

–

1045fc

LTC1045CSW#TRPBF Related Products

	LTC1045CSW#TRPBF	LTC1045CN#PBF	LTC1045CSW#PBF	LTC1045CSW#TR	LTC1045CSW
Description	Analog Switch Hex SPST 20-Pin SOIC W T/R	Analog Switch Hex SPST 20-Pin PDIP N Tube	Analog Switch Hex SPST 20-Pin SOIC W Tube	Analog Switch Hex SPST 20-Pin SOIC W T/R	Analog Switch Hex SPST 20-Pin SOIC W
EU restricts the use of certain hazardous substances	Compliant	Compliant	Compliant	Not Compliant	Not Compliant
ECCN (US)	EAR99	EAR99	EAR99	EAR99	EAR99
Part Status	Active	Active	Active	LTB	Unconfirmed
HTS	8542.39.00.01	8542.39.00.01	8542.39.00.01	8542.39.00.01	8542.39.00.01
Type	Analog Switch	Analog Switch	Analog Switch	Analog Switch	Analog Switch
Configuration	Hex SPST	Hex SPST	Hex SPST	Hex SPST	Hex SPST
Switch Architecture	SPST	SPST	SPST	SPST	SPST
Number of Channels per Chip	6	6	6	6	6
Number of Inputs per Chip	6	6	6	6	6
Number of Outputs per Chip	6	6	6	6	6
Chip Enable Signals	No	No	No	No	No
Polarity	Non-Inverting	Non-Inverting	Non-Inverting	Non-Inverting	Non-Inverting
Input Signal Type	Single	Single	Single	Single	Single
Output Signal Type	Single	Single	Single	Single	Single
Typical Single Supply Voltage (V)	5	5	5	5	5
Maximum Single Supply Voltage (V)	18	18	18	18	18
Typical Supply Current (mA)	2.5@5V	2.5@5V	2.5@5V	2.5@5V	2.5@5V
Maximum Supply Current (mA)	3.5@5V	3.5@5V	3.5@5V	3.5@5V	3.5@5V
Power Supply Type	Single	Single	Single	Single	Single
Minimum Operating Temperature (°C)	-40	-40	-40	-40	-40
Maximum Operating Temperature (°C)	85	85	85	85	85
Pin Count	20	20	20	20	20
Standard Package Name	SOP	DIP	SOP	SOP	SOP
Supplier Package	SOIC W	PDIP N	SOIC W	SOIC W	SOIC W
Mounting	Surface Mount	Through Hole	Surface Mount	Surface Mount	Surface Mount
Package Height	2.34(Max)	3.68(Max)	2.34(Max)	2.34(Max)	2.34(Max)
Package Length	13.01(Max)	26.92(Max)	13.01(Max)	13.01(Max)	13.01(Max)
Package Width	7.6(Max)	6.48	7.6(Max)	7.6(Max)	7.6(Max)
PCB changed	20	20	20	20	20
Lead Shape	Gull-wing	Through Hole	Gull-wing	Gull-wing	Gull-wing
Packaging	Tape and Reel	Tube	Tube	Tape and Reel	-
