LTC1404CS8 datasheet, PDF - EEWORLD Datasheet

LTC1404CS8: Description1-Channel Single ADC SAR 600ksps 12-bit Serial 8-Pin SOIC N; File Size309KB，24 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LTC1404CS8 Overview

1-Channel Single ADC SAR 600ksps 12-bit Serial 8-Pin SOIC N

LTC1404CS8 Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Converter Type	Audio
Architecture	SAR
Resolution	12bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	600ksps
Digital Interface Type	Serial (3-Wire, SPI, Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal\|External
Polarity of Input Voltage	Unipolar\|Bipolar
Voltage Supply Source	Single\|Dual
Input Voltage	4.096V\|±2.048V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Minimum Dual Supply Voltage (V)	-2.45/4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Typical Power Dissipation (mW)	75
Maximum Power Dissipation (mW)	160
Integral Nonlinearity Error	±1LSB
Full Scale Error	±15LSB
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Minimum Operating Temperature (°C)	0
Maximum Operating Temperature (°C)	70
Supplier Temperature Grade	Commercial
Pin Count	8
Standard Package Name	SOP
Supplier Package	SOIC N
Mounting	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.99(Max)
PCB changed	8
Lead Shape	Gull-wing

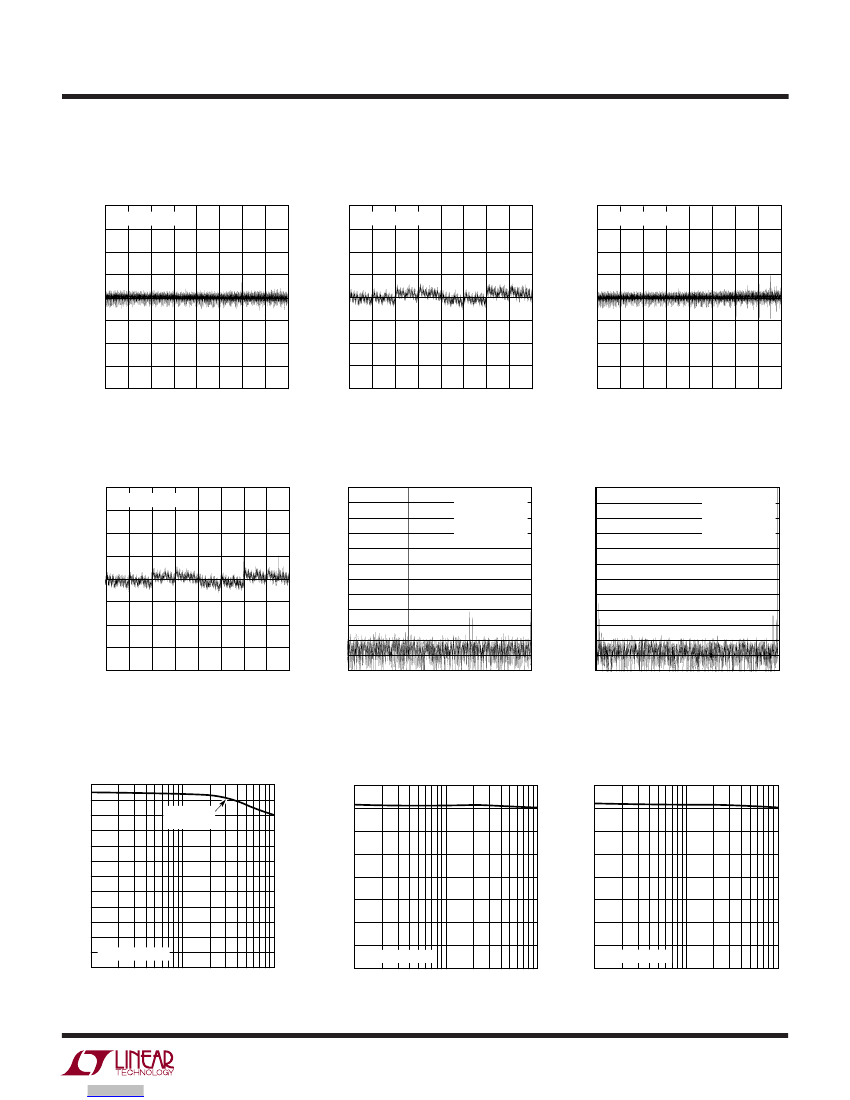

Preview

Download Datasheet

View All

LTC1404

Complete SO-8, 12-Bit,

600ksps ADC with Shutdown

FEATURES

■

DESCRIPTIO

Complete 12-Bit ADC in SO-8

Single Supply 5V or

5V Operation

Sample Rate: 600ksps

Power Dissipation: 75mW (Typ)

72dB S/(N + D) and – 80dB THD at Nyquist

No Missing Codes over Temperature

Nap Mode with Instant Wake-Up: 7.5mW

Sleep Mode: 60µW

High Impedance Analog Input

Input Range (1mV/LSB): 0V to 4.096V or

2.048V

Internal Reference Can Be Overdriven Externally

3-Wire Interface to DSPs and Processors (SPI and

MICROWIRE

Compatible)

The LTC

1404 is a complete 600ksps, 12-bit A/D con-

verter which draws only 75mW from 5V or

5V supplies.

This easy-to-use device comes complete with a 160ns

sample-and-hold and a precision reference. Unipolar and

bipolar conversion modes add to the flexibility of the ADC.

The LTC1404 has two power saving modes: Nap and

Sleep. In Nap mode, it consumes only 7.5mW of power

and can wake up and convert immediately. In the Sleep

mode, it consumes 60µW of power typically. Upon power-

up from Sleep mode, a reference ready (REFRDY) signal

is available in the serial data word to indicate that the

reference has settled and the chip is ready to convert.

The LTC1404 converts 0V to 4.096V unipolar inputs from

a single 5V supply and

±2.048V

bipolar inputs from

±5V

supplies. Maximum DC specs include

±1LSB

INL,

±1LSB

DNL and 45ppm/°C full-scale drift over temperature.

Guaranteed AC performance includes 69dB S/(N + D)

and – 76dB THD at an input frequency of 100kHz over

temperature.

The 3-wire serial port allows compact and efficient data

transfer to a wide range of microprocessors, microcontrollers

and DSPs.

, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective owners.

APPLICATIO S

■

High Speed Data Acquisition

Digital Signal Processing

Multiplexed Data Acquisition Systems

Audio and Telecom Processing

Digital Radio

Spectrum Analysis

Low Power and Battery-Operated Systems

Handheld or Portable Instruments

TYPICAL APPLICATIO

Single 5V Supply, 600kHz, 12-Bit Sampling A/D Converter

Power Consumption vs Sample Rate

100

NORMAL CONVERSION

SUPPLY CURRENT (mA)

10µF*

ANALOG INPUT

(0V TO 4.096V)

REF

OUT

2.43V

10µF

0.1µF

LTC1404

REF

GND

MPU

P1.4

P1.3

P1.2

SERIAL

DATA LINK

LTC1404 • TA01

NAP MODE

BETWEEN CONVERSION

SLEEP MODE

BETWEEN CONVERSION

CONV

CLK

OUT

0.1

0.01

9.6MHz CLOCK

0.001

0.01 0.1

10 100 1k 10k 100k 1M

SAMPLE RATE (Hz)

LTC1404 • TA02

*AVX TPSD106M035R0300

1404fa
