LTC1604ACG datasheet, PDF - EEWORLD Datasheet

LTC1604ACG: Description1-Channel Single ADC SAR 333ksps 16-bit Parallel 36-Pin SSOP; File Size581KB，20 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

LTC1604ACG Overview

1-Channel Single ADC SAR 333ksps 16-bit Parallel 36-Pin SSOP

LTC1604ACG Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	333ksps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended\|Differential
Voltage Reference	External\|Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Dual
Input Voltage	±2.5V
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Typical Power Dissipation (mW)	220
Maximum Power Dissipation (mW)	350
Integral Nonlinearity Error	±2LSB
Full Scale Error	±0.25%FSR
Signal to Noise Ratio	90dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Minimum Operating Temperature (°C)	0
Maximum Operating Temperature (°C)	70
Supplier Temperature Grade	Commercial
Pin Count	36
Standard Package Name	SOP
Supplier Package	SSOP
Mounting	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	13.1(Max)
Package Width	5.6(Max)
PCB changed	36
Lead Shape	Gull-wing

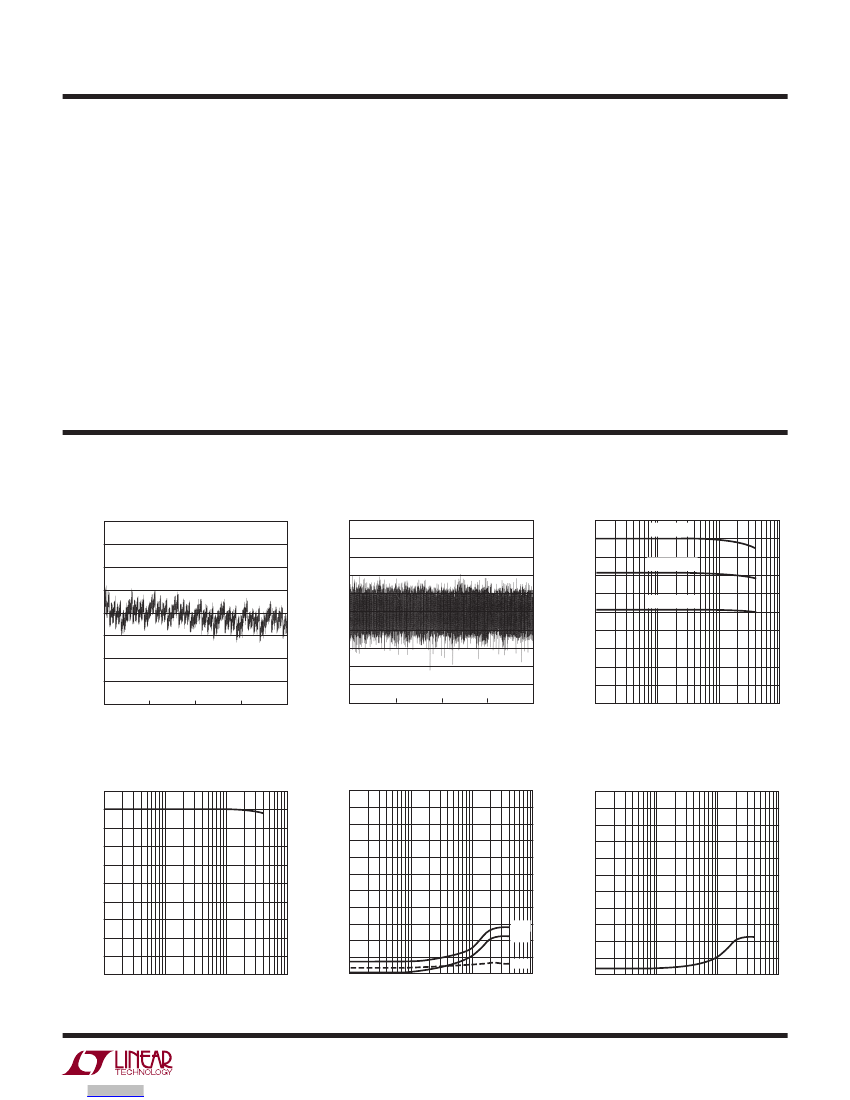

Preview

Download Datasheet

View All

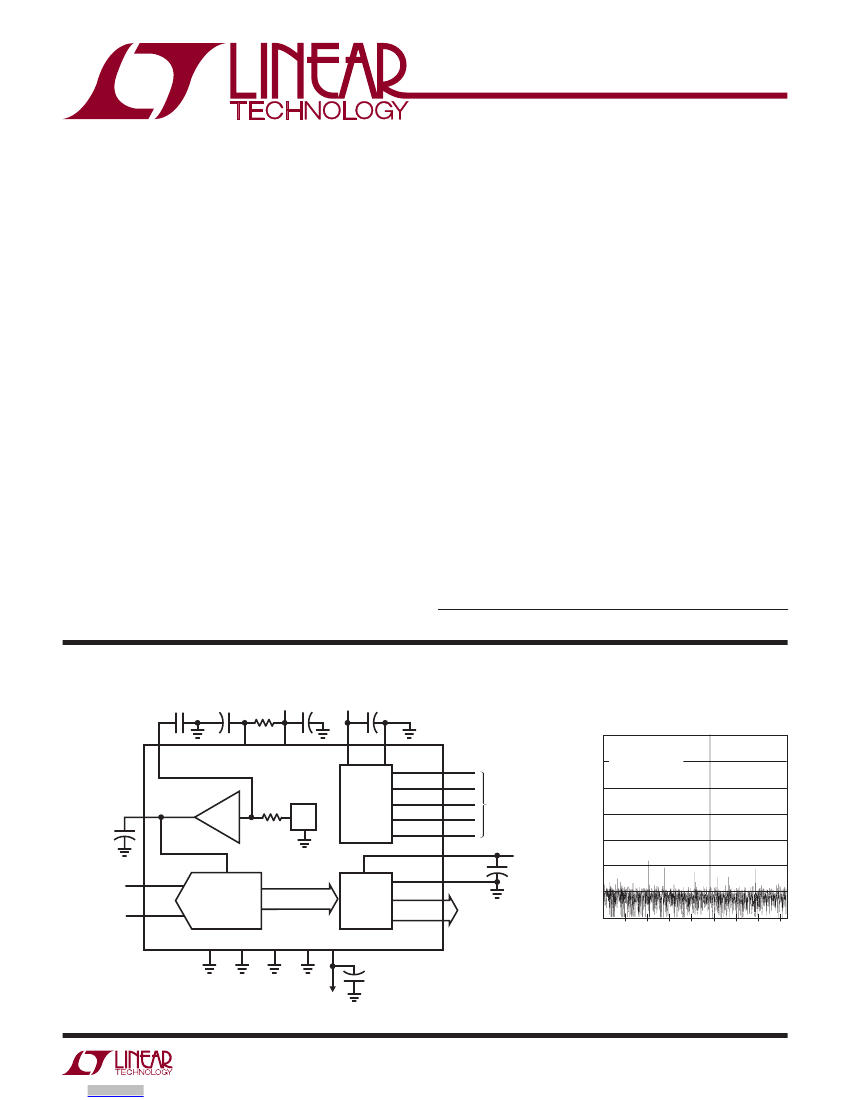

FEATURES

LTC1604

High Speed, 16-Bit, 333ksps

Sampling A/D Converter

with Shutdown

DESCRIPTION

The LTC

1604 is a 333ksps, 16-bit sampling A/D con-

verter that draws only 220mW from ±5V supplies. This

high performance device includes a high dynamic range

sample-and-hold, a precision reference and a high speed

parallel output. Two digitally selectable power shutdown

modes provide power savings for low power systems.

The LTC1604’s full-scale input range is ±2.5V. Outstand-

ing AC performance includes 90dB S/(N+D) and –100dB

THD at a sample rate of 333ksps.

The unique differential input sample-and-hold can acquire

single-ended or differential input signals up to its 15MHz

bandwidth. The 68dB common mode rejection allows

users to eliminate ground loops and common mode noise

by measuring signals differentially from the source.

The ADC has μP compatible,16-bit parallel output port.

There is no pipeline delay in conversion results. A separate

convert start input and a data ready signal (BUSY) ease

connections to FlFOs, DSPs and microprocessors.

LTC and LT are registered trademarks of Linear Technology Corporation.

A Complete, 333ksps 16-Bit ADC

90dB S/(N+D) and –100dB THD (Typ)

Power Dissipation: 220mW (Typ)

No Pipeline Delay

No Missing Codes over Temperature

Nap (7mW) and Sleep (10μW) Shutdown Modes

Operates with Internal 15ppm/°C Reference

or External Reference

True Differential Inputs Reject Common Mode Noise

5MHz Full Power Bandwidth

±2.5V Bipolar Input Range

36-Pin SSOP Package

APPLICATIONS

Telecommunications

Digital Signal Processing

Multiplexed Data Acquisition Systems

High Speed Data Acquisition

Spectrum Analysis

Imaging Systems

TYPICAL APPLICATION

2.2μF

10μF

10Ω

5V 10μF

10μF

LTC1604 4096 Point FFT

DGND

SHDN

CONVST

BUSY

5V OR

10μF

REF

–20

μP

CONTROL

LINES

4 REFCOMP

7.5k

1.75X

47μF

4.375V

2.5V

REF

AMPLITUDE (dB)

CONTROL

LOGIC

AND

TIMING

–40

–60

–80

SAMPLE

= 333kHz

= 100kHz

SINAD = 89dB

THD = –96dB

1 A

IN+

DIFFERENTIAL

ANALOG INPUT

±2.5V

2 A

–

OGND 28

16-BIT

SAMPLING

ADC

AGND

B15 TO B0

OUTPUT

BUFFERS

16-BIT

PARALLEL

BUS

11 TO 26

D15 TO D0

AGND

AGND V

–5V

10μF

–100

–120

–140

100 120 140 160

FREQUENCY (kHz)

1604 TA02

1604 TA01

1604fa
