LTC1655IS8 datasheet, PDF - EEWORLD Datasheet

LTC1655IS8: DescriptionDAC 1-CH 16-bit 8-Pin SOIC N; File Size175KB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LTC1655IS8 Overview

DAC 1-CH 16-bit 8-Pin SOIC N

LTC1655IS8 Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Converter Type	General Purpose
Resolution	16bit
Conversion Rate	750ksps
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	20(Typ)
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	0.3(Typ)
Integral Nonlinearity Error	±20LSB
Full Scale Error	±16LSB
Digital Supply Support	No
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Pin Count	8
Standard Package Name	SOP
Supplier Package	SOIC N
Mounting	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.99(Max)
PCB changed	8
Lead Shape	Gull-wing

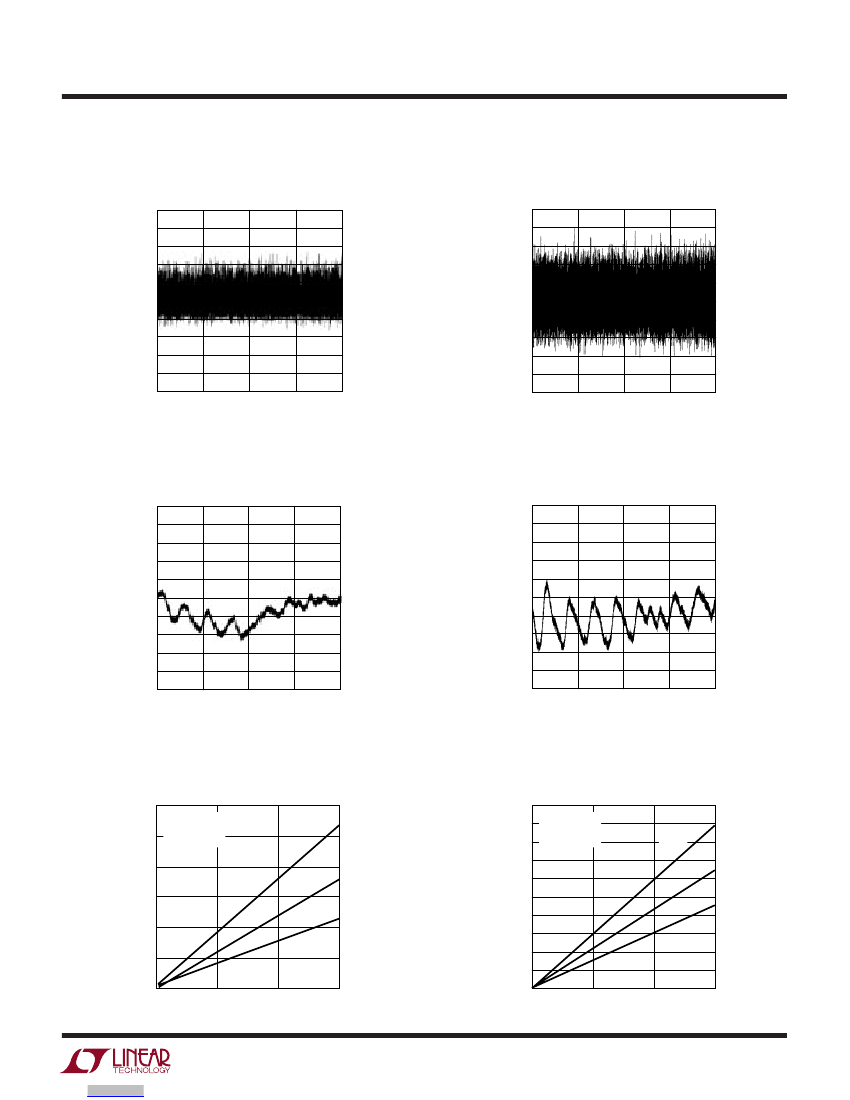

Preview

Download Datasheet

View All

LTC1655/LTC1655L

16-Bit Rail-to-Rail

Micropower DACs in

SO-8 Package

FEATURES

DESCRIPTIO

16-Bit Monotonicity Over Temperature

Deglitched Rail-to-Rail Voltage Output

SO-8 Package

CC(TYP)

: 600µA

Internal Reference: 2.048V (LTC1655)

1.25V (LTC1655L)

Maximum DNL Error:

±1LSB

Settling Time: 20µS to

±1LSB

750kHz Max Update Rate

Power-On Reset to Zero Volts

3-Wire Cascadable Serial Interface

Low Cost

Pin Compatible Upgrade for LTC1451 12-Bit DAC

Family

The LTC

1655/LTC1655L are rail-to-rail voltage output,

16-bit digital-to-analog converters in an SO-8 package.

They include an output buffer and a reference. The 3-wire

serial interface is compatible with SPI/QSPI and

MICROWIRE

protocols. The CLK input has a Schmitt

trigger that allows direct optocoupler interface.

The LTC1655 has an onboard 2.048V reference that can be

overdriven to a higher voltage. The output swings from 0V

to 4.096V when using the internal reference. The typical

power dissipation is 3.0mW on a single 5V supply.

The LTC1655L has an onboard 1.25V reference that can be

overdriven to a higher voltage. The output swings from 0V

to 2.5V when using the internal reference. The typical

power dissipation is 1.8mW on a single 3V supply.

The LTC1655/LTC1655L are pin compatible with Linear

Technology’s 12-bit V

OUT

DAC family, allowing an easy

upgrade path. They are the only buffered 16-bit DACs in

an SO-8 package and they include an onboard reference

for standalone performance.

, LTC and LT are registered trademarks of Linear Technology Corporation.

MICROWIRE is a trademark of National Semiconductor Corporation.

APPLICATIO S

Digital Calibration

Industrial Process Control

Automatic Test Equipment

Cellular Telephones

FU CTIO AL BLOCK DIAGRA

LTC1655: 4.5V TO 5.5V

LTC1655L: 2.7V TO 5.5V

2 D

1 CLK

µP

3 CS/LD

16-BIT

SHIFT

REG

AND

DAC

LATCH

16-BIT

DAC

REF

LTC1655: 2.048V

LTC1655L: 1.25V

REF

Functional Block Diagram: 16-Bit Rail-to-Rail DAC

1.0

0.8

0.6

DNL ERROR (LSB)

0.4

0.2

– 0.2

– 0.4

– 0.6

– 0.8

–

OUT

4 D

OUT

POWER-ON

RESET

GND

1655/55L TA01

OTHER

DACS

– 1.0

16384

32768

CODE

49152

65535

Differential Nonlinearity

vs Input Code

1655/55L TA02

LTC1655IS8 Related Products

	LTC1655IS8	LTC1655CN8	LTC1655CS8	LTC1655IN8	LTC1655LCS8	LTC1655LIS8
Description	DAC 1-CH 16-bit 8-Pin SOIC N	DAC 1-CH 16-bit 8-Pin PDIP N	DAC 1-CH 16-bit 8-Pin SOIC N	DAC 1-CH 16-bit 8-Pin PDIP N	DAC 1-CH 16-bit 8-Pin SOIC N	DAC 1-CH 16-bit 8-Pin SOIC N
EU restricts the use of certain hazardous substances	Not Compliant	Not Compliant	Not Compliant	Not Compliant	Not Compliant	Not Compliant
ECCN (US)	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Part Status	Unconfirmed	Unconfirmed	Unconfirmed	Unconfirmed	Unconfirmed	Unconfirmed
SVHC	Yes	Yes	Yes	Yes	Yes	Yes
SVHC Exceeds Threshold	Yes	Yes	Yes	Yes	Yes	Yes
Converter Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Resolution	16bit	16bit	16bit	16bit	16bit	16bit
Conversion Rate	750ksps	750ksps	750ksps	750ksps	750ksps	750ksps
Number of DAC Channels	1	1	1	1	1	1
Number of Outputs per Chip	1	1	1	1	1	1
Maximum Settling Time (us)	20(Typ)	20(Typ)	20(Typ)	20(Typ)	20(Typ)	20(Typ)
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)	Serial (3-Wire, SPI, QSPI, Microwire)	Serial (3-Wire, SPI, QSPI, Microwire)	Serial (3-Wire, SPI, QSPI, Microwire)	Serial (3-Wire, SPI, QSPI, Microwire)	Serial (3-Wire, SPI, QSPI, Microwire)
Output Type	Voltage	Voltage	Voltage	Voltage	Voltage	Voltage
Output Polarity	Unipolar	Unipolar	Unipolar	Unipolar	Unipolar	Unipolar
Voltage Reference	Internal	Internal	Internal	Internal	Internal	Internal
Minimum Single Supply Voltage (V)	4.5	4.5	4.5	4.5	2.7	2.7
Typical Single Supply Voltage (V)	5	5	5	5	3.3\|5	3.3\|5
Maximum Single Supply Voltage (V)	5.5	5.5	5.5	5.5	5.5	5.5
Power Supply Type	Single	Single	Single	Single	Single	Single
Maximum Power Dissipation (mW)	0.3(Typ)	0.3(Typ)	0.3(Typ)	0.3(Typ)	1.8(Typ)	1.8(Typ)
Integral Nonlinearity Error	±20LSB	±20LSB	±20LSB	±20LSB	±20LSB	±20LSB
Full Scale Error	±16LSB	±16LSB	±16LSB	±16LSB	±16LSB	±16LSB
Digital Supply Support	No	No	No	No	No	No
Maximum Operating Temperature (°C)	85	70	70	85	70	85
Supplier Temperature Grade	Industrial	Commercial	Commercial	Industrial	Commercial	Industrial
Pin Count	8	8	8	8	8	8
Standard Package Name	SOP	DIP	SOP	DIP	SOP	SOP
Supplier Package	SOIC N	PDIP N	SOIC N	PDIP N	SOIC N	SOIC N
Mounting	Surface Mount	Through Hole	Surface Mount	Through Hole	Surface Mount	Surface Mount
Package Height	1.5(Max)	3.3	1.5(Max)	3.3	1.5(Max)	1.5(Max)
Package Length	5(Max)	10.16(Max)	5(Max)	10.16(Max)	5(Max)	5(Max)
Package Width	3.99(Max)	6.48	3.99(Max)	6.48	3.99(Max)	3.99(Max)
PCB changed	8	8	8	8	8	8
Lead Shape	Gull-wing	Through Hole	Gull-wing	Through Hole	Gull-wing	Gull-wing
