LTC2625CGN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> LTC2625CGN

LTC2625CGN: DescriptionDAC 8-CH 12-bit 16-Pin SSOP N; CategoryAnalog mixed-signal IC converter; File Size251KB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Download user manual Parametric View All

LTC2625CGN Overview

DAC 8-CH 12-bit 16-Pin SSOP N

LTC2625CGN Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Converter Type	General Purpose
Resolution	12bit
Number of DAC Channels	8
Number of Outputs per Chip	8
Maximum Settling Time (us)	7(Typ)
Digital Interface Type	Serial (2-Wire, I2C)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3\|5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	6(Typ)
Integral Nonlinearity Error	±4LSB
Full Scale Error	±0.7%FSR
Digital Supply Support	No
Minimum Operating Temperature (°C)	0
Maximum Operating Temperature (°C)	70
Supplier Temperature Grade	Commercial
Pin Count	16
Standard Package Name	SOP
Supplier Package	SSOP N
Mounting	Surface Mount
Package Height	1.5(Max)
Package Length	4.98(Max)
Package Width	3.99(Max)
PCB changed	16
Lead Shape	Gull-wing

User Manual

【User Guides】DC1767A - Demo Manual

Preview

Download Datasheet

View All

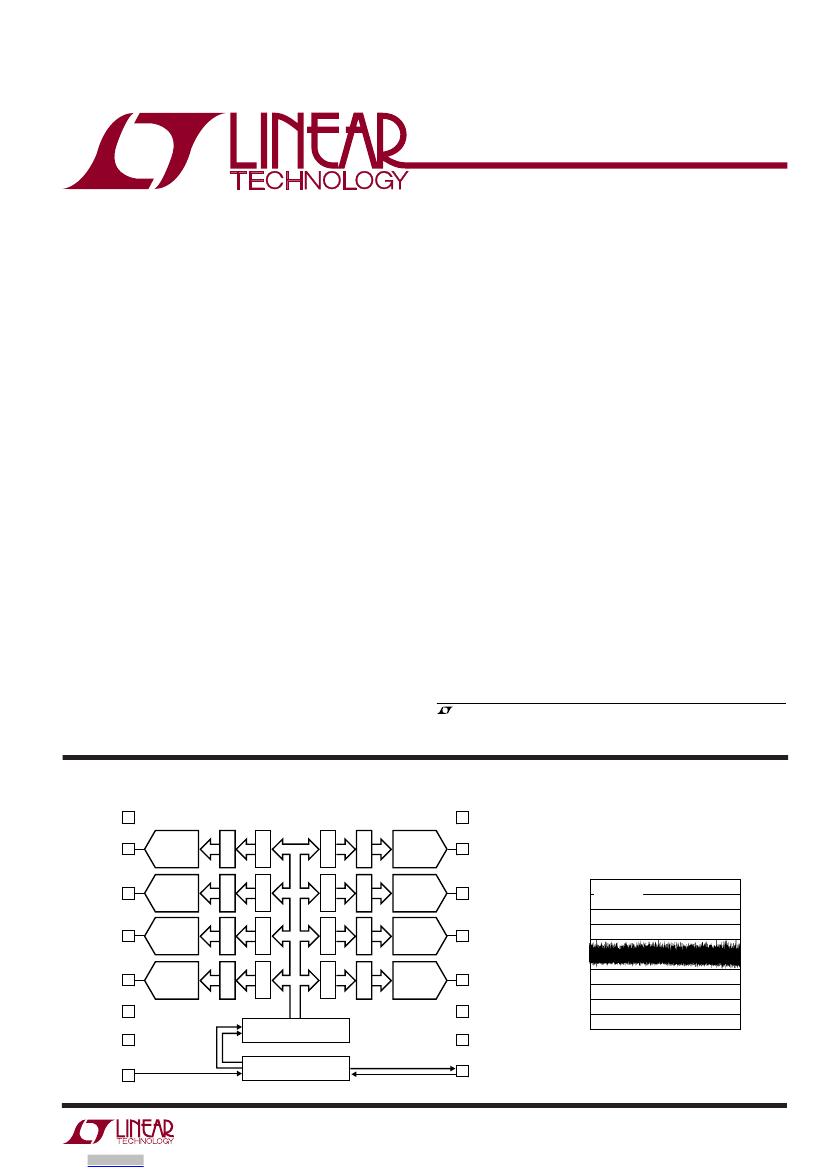

LTC2605/LTC2615/LTC2625

Octal 16-/14-/12-Bit

Rail-to-Rail DACs in 16-Lead SSOP

DESCRIPTIO

The LTC

2605/LTC2615/LTC2625 are octal 16-, 14-

and 12-bit, 2.7V to 5.5V rail-to-rail voltage-output DACs in

16-lead narrow SSOP packages. They have built-in

high performance output buffers and are guaranteed

monotonic.

These parts establish new board-density benchmarks

for 16- and 14-bit DACs and advance performance

standards for output drive, crosstalk and load regulation

in single-supply, voltage-output multiples.

The parts use the 2-wire I

C compatible serial interface.

The LTC2605/LTC2615/LTC2625 operate in both the

standard mode (maximum clock rate of 100kHz) and the

fast mode (maximum clock rate of 400kHz).

The LTC2605/LTC2615/LTC2625 incorporate a power-on

reset circuit. During power-up, the voltage outputs rise

less than 10mV above zero scale; and after power-up, they

stay at zero scale until a valid write and update take place.

The power-on reset circuit resets the LTC2605-1/

LTC2615-1/LTC2625-1 to midscale. The voltage output

stays at midscale until a valid write and update

takes place.

, LTC and LT are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective owners.

FEATURES

■

Smallest Pin-Compatible Octal DACs:

LTC2605: 16 Bits

LTC2615: 14 Bits

LTC2625: 12 Bits

Guaranteed Monotonic Over Temperature

400kHz I

C Interface

Wide 2.7V to 5.5V Supply Range

Low Power Operation: 250µA per DAC at 3V

Individual Channel Power-Down to 1µA, Max

Ultralow Crosstalk Between DACs (<10µV)

High Rail-to-Rail Output Drive (±15mA, Min)

Double-Buffered Digital Inputs

27 Selectable Addresses

LTC2605/LTC2615/LTC2625: Power-On Reset to

Zero Scale

LTC2605-1/LTC2615-1/LTC2625-1: Power-On Reset

to Midscale

Tiny 16-Lead Narrow SSOP Package

APPLICATIO S

■

Mobile Communications

Process Control and Industrial Automation

Instrumentation

Automatic Test Equipment

BLOCK DIAGRA

GND

OUT A

DAC A

16 V

DAC H

15 V

OUT H

OUT B

DAC B

DAC G

14 V

OUT G

DNL (LSB)

OUT C

DAC C

DAC F

13 V

OUT F

OUT D

DAC D

DAC E

12 V

OUT E

REF

32-BIT SHIFT REGISTER

CA0

CA2

CA1

2-WIRE INTERFACE

SCL

2605/15/25 BD

SDA

Differential Nonlinearity (LTC2605)

1.0

0.8

0.6

0.4

0.2

–0.2

–0.4

–0.6

–0.8

–1.0

16384

32768

CODE

49152

65535

2605 G02

= 5V

REF

= 4.096V

2605f
