LTC6101HVAHS5#TRM

Description
SP Amp Current Sense Amp Single 100V 5-Pin TSOT-23 T/R
File Size263KB,22 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric View All

LTC6101HVAHS5#TRM Overview

SP Amp Current Sense Amp Single 100V 5-Pin TSOT-23 T/R

LTC6101HVAHS5#TRM Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesNot Compliant
ECCN (US)EAR99
Part StatusLTB
HTS8542.33.00.01
SVHCYes
SVHC Exceeds ThresholdYes
TypeCurrent Sense Amplifier
Number of Elements per Chip1
Number of Channels per Chip1
Minimum PSRR (dB)110
Typical Output Current (mA)1(Min)@100V
Maximum Input Offset Voltage (mV)0.3@100V
Maximum Operating Supply Voltage (V)100
Maximum Supply Voltage Range (V)>=50
Minimum Single Supply Voltage (V)5
Typical Single Supply Voltage (V)9|12|15|18|24|28
Maximum Single Supply Voltage (V)100
Maximum Input Bias Current (uA)0.17@100V
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)125
Supplier Temperature GradeAutomotive
PackagingTape and Reel
Power Supply TypeSingle
Pin Count5
Standard Package NameSOT-23
Supplier PackageTSOT-23
MountingSurface Mount
Package Height0.9(Max)
Package Length2.9
Package Width1.75(Max)
PCB changed5
Lead ShapeGull-wing
FEATURES
n
LTC6101/LTC6101HV
High Voltage,
High-Side Current Sense
Amplifier in SOT-23
DESCRIPTION
The LTC
®
6101/LTC6101HV are versatile, high voltage, high
side current sense amplifiers. Design flexibility is provided
by the excellent device characteristics; 300μV Max offset
and only 375μA (typical at 60V) of current consumption.
The LTC6101 operates on supplies from 4V to 60V and
LTC6101HV operates on supplies from 5V to 100V.
The LTC6101 monitors current via the voltage across an
external sense resistor (shunt resistor). Internal circuitry
converts input voltage to output current, allowing for a
small sense signal on a high common mode voltage to
be translated into a ground referenced signal. Low DC
offset allows the use of a small shunt resistor and large
gain-setting resistors. As a result, power loss in the shunt
is reduced.
The wide operating supply range and high accuracy make
the LTC6101 ideal for a large array of applications from
automotive to industrial and power management. A maxi-
mum input sense voltage of 500mV allows a wide range
of currents to be monitored. The fast response makes the
LTC6101 the perfect choice for load current warnings and
shutoff protection control. With very low supply current,
the LTC6101 is suitable for power sensitive applications.
The LTC6101 is available in 5-lead SOT-23 and 8-lead
MSOP packages.
n
n
n
n
n
n
n
n
n
n
Supply Range:
5V to 100V, 105V Absolute Maximum (LTC6101HV)
4V to 60V, 70V Absolute Maximum (LTC6101)
Low Offset Voltage: 300μV Max
Fast Response: 1μs Response Time (0V to 2.5V on
a 5V Output Step)
Gain Configurable with 2 Resistors
Low Input Bias Current: 170nA Max
PSRR: 118dB Min
Output Current: 1mA Max
Low Supply Current: 250μA, V
S
= 12V
Specified Temperature Range: –40°C to 125°C
Operating Temperature Range: –55°C to 125°C
Low Profile (1mm) SOT-23 (ThinSOT™) Package
APPLICATIONS
n
n
n
n
Current Shunt Measurement
Battery Monitoring
Remote Sensing
Power Management
L,
LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property
of their respective owners.

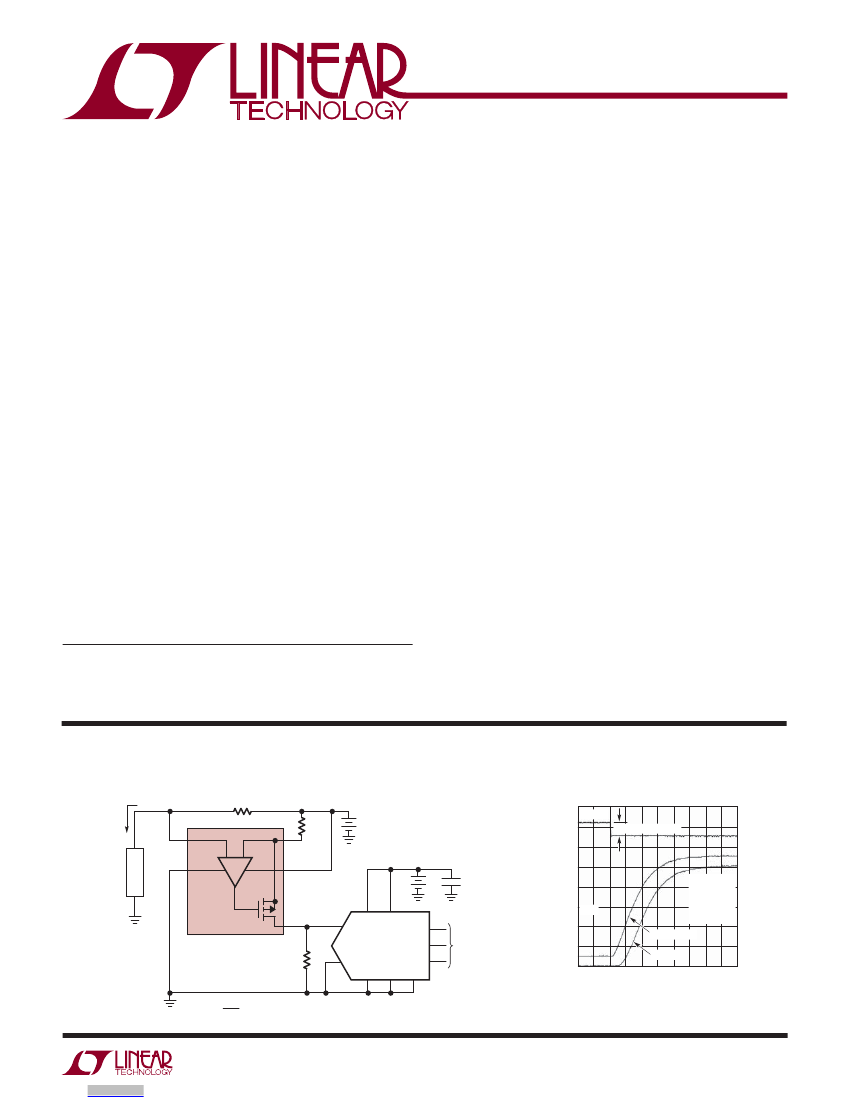

TYPICAL APPLICATION
16-Bit Resolution Unidirectional Output into LTC2433 ADC
I
LOAD
+IN
V
SENSE
Step Response
V
SENSE
ΔV
SENSE
= 100mV
5.5V
5V
+
R
IN
100Ω
–IN
5V TO 105V
L
O
A
D
V
+ –
V
+
5V
1μF
LTC6101HV
OUT
V
OUT
LTC2433-1
TO μP
V
OUT
T
A
= 25°C
V
+
= 12V
R
IN
= 100
R
OUT
= 5k
V
SENSE
+
= V
+
I
OUT
= 100μA
R
OUT
4.99k
0.5V
0V
I
OUT
= 0
500ns/DIV
6101 TA01
6101 TA01b
R
OUT
V
OUT
=
• V
SENSE
= 49.9V
SENSE
R
IN
6101fh
1
