Z8FS040BHH20EG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Z8FS040BHH20EG

Z8FS040BHH20EG: DescriptionMCU 8-bit eZ8 CISC 4KB Flash 3.3V 20-Pin SSOP; File Size199KB，8 Pages; ManufacturerIXYS

Download Datasheet Parametric View All

Z8FS040BHH20EG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z8FS040BHH20EG	-	-	View	Buy Now

Z8FS040BHH20EG Overview

MCU 8-bit eZ8 CISC 4KB Flash 3.3V 20-Pin SSOP

Z8FS040BHH20EG Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
Part Status	Active
HTS	8542.31.00.01
Family Name	Z8
Instruction Set Architecture	CISC
Device Core	eZ8
Core Architecture	Z8
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	8
Program Memory Type	Flash
Program Memory Size	4KB
Programmability	Yes
Interface Type	UART
Number of I/Os	16
No. of Timers	2
Timers Resolution (bit)	16/16
PWM	2
Number of ADCs	Single
ADC Channels	4
USART	0
UART	1
USB	0
SPI	0
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	No
Minimum Operating Supply Voltage (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Maximum Operating Supply Voltage (V)	3.6
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	105
Supplier Package	SSOP
Pin Count	20
Standard Package Name	SOP
Mounting	Surface Mount
PCB changed	20

Preview

Download Datasheet

View All

MOTION CONTROL AND LIGHTING SOLUTIONS

Zilog’s ZMOTION

Detection and Control Family

PB022503-0411

ZMOTION

DETECTION &

CONTROL FAMILY ADVANTAGES



MCU, PIR SENSOR, AND LENS

SOLUTION



MOTION DETECTION ALGORITHMS

BUILT INTO MCU



4 KB FLASH FOR APPLICATION CODE



OPTIMIZED DETECTION

PERFORMANCE AND RELIABILITY



BETTER STABILITY AND SENSITIVITY

THAN TRADITIONAL DESIGNS



NO TEMPERATURE COMPENSATION

REQUIRED



NO NEED TO DEVELOP COMPLEX

MOTION DETECTION SOFTWARE



LARGE SELECTION OF LENSES

AVAILABLE WITH OPTIMIZED SETTINGS

PROVIDED



ZMOTION MCU AVAILABLE

SEPARATELY TO USE WITH YOUR OWN

LENS/PYRO



DIRECT SENSOR INTERFACE

ELIMINATES EXTERNAL COMPONENTS



REDUCED BOM COSTS



COMPLETE YOUR DESIGNS FASTER

Zilog

’s

ZMOTION

Detection and Control Family

Featuring PIR Technology

Superior Motion Detection Solutions Enabling Faster Development Cycles

Overview

Zilog’s ZMOTION

Detection and Control Product Family is a series of high-performance microcontrollers with

integrated motion detection algorithms combined with a selection of lenses and Passive Infrared (PIR) sensors to

fit a wide range of application requirements. Optimized configuration parameters for the ZMOTION

MCU are

provided for each lens/sensor combination ensuring the best possible performance while significantly reducing

development risk and minimizing time to market.

Zilog’s ZMOTION

MCU combines the programmability and rich peripheral set of the Flash-based Z8F042A

Encore! XP

MCU with built-in software-based motion detection algorithms. These motion detection algorithms

comprise the PIR engine and run in the background of the MCU while control and status of the engine is accessed

through a software API (Application Programming Interface). Create your own application-specific software while

taking advantage of Zilog’s Enhanced PIR motion-detection technology.

Optimize the performance of your product by choosing a lens that closely matches your application. Use your own

or select from our family of lenses spanning 360 degree ceiling, 180 degree wall mount, 25 meter long range, and

5 meter short range. API settings are provided to match the PIR engine operation to each of the lens and PIR

sensor combinations provided.

Zilog’s Enhanced PIR motion-detection technology provides a dramatic improvement in both sensitivity and

stability over traditional designs and is scalable to many market segments including Lighting Control, HVAC,

Access Control, Vending, Display, Proximity, Power Management, Occupancy Sensing, and many others.

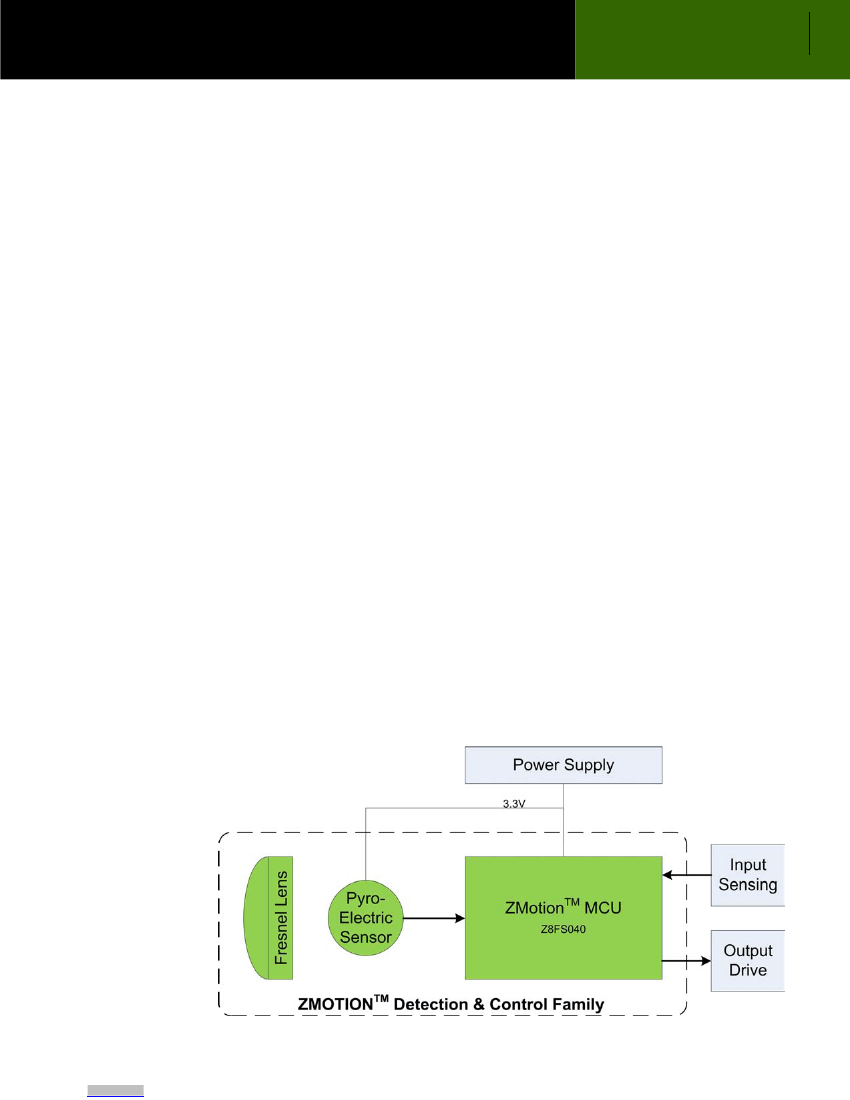

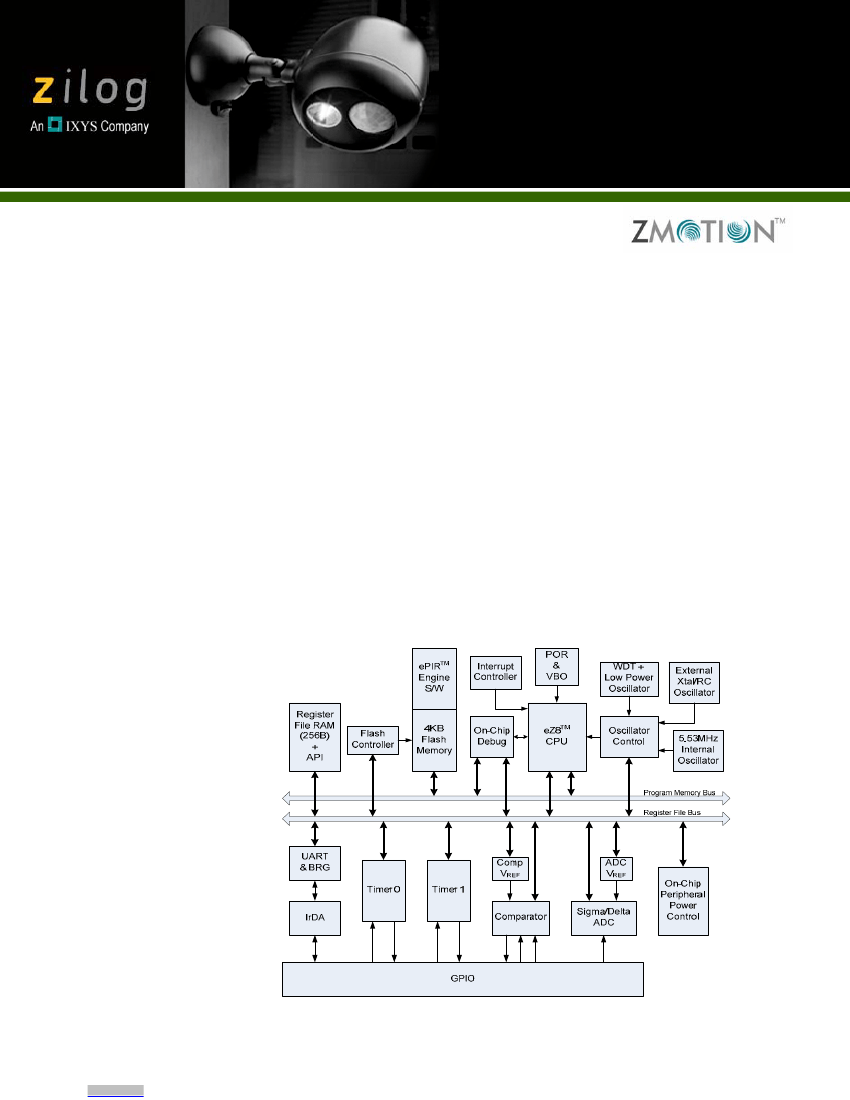

ZMOTION

MCU Block Diagram
