ZICM3588SP0-1-R

Description
802.15.4/ZigBee SOC 2480MHz 250Kbps 33-Pin SMD Module T/R
File Size507KB，20 Pages
ManufacturerCalifornia Eastern Labs
Websitehttp://www.cel.com/
Download Datasheet Parametric Compare View All

ZICM3588SP0-1-R Online Shopping

Suppliers Part Number Price MOQ In stock
ZICM3588SP0-1-R - - View Buy Now

ZICM3588SP0-1-R Overview

802.15.4/ZigBee SOC 2480MHz 250Kbps 33-Pin SMD Module T/R

ZICM3588SP0-1-R Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesCompliant
ECCN (US)5A002.a.1
Part StatusActive
HTS8525.60.10.10
Module/IC ClassificationModule
RAM Size (KB)64
Flash Size (KB)512
Number of Channels16
Internal Antenna TypePCB
Maximum Data Rate (Kbps)250
Minimum Operating Frequency (MHz)2405
Maximum Operating Frequency (MHz)2480
Typical Sensitivity-100dBm
Protocol Stack802.15.4/ZigBee
InterfaceUSB
Maximum Output Power8dBm(Typ)
Minimum Operating Supply Voltage (V)2.1
Typical Operating Supply Voltage (V)3.3
Maximum Operating Supply Voltage (V)3.6
Processing Unit TypeMicrocontroller
Antenna MountingOn Board
ApplicationGrid Markets|Smart Energy|Solar Inverters and Control|Home Automation and Control|Building Automation and Control
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)85
PackagingTape and Reel
Standard Package NameSMD Module
Supplier PackageSMD Module
Pin Count33
MountingSurface Mount
Package Height3.86(Max)
Package Length23.87
Package Width16.63
PCB changed33

Preview

Download Datasheet
PRELIMINARY DATASHEET
MeshConnect
™
EM35x Mini Modules
TM
ZICM35xSP0 and ZICM35xSP2
Ember EM35x Transceiver-Based Modules
Integrated Transceiver Modules for ZigBee
®
/ IEEE 802.15.4

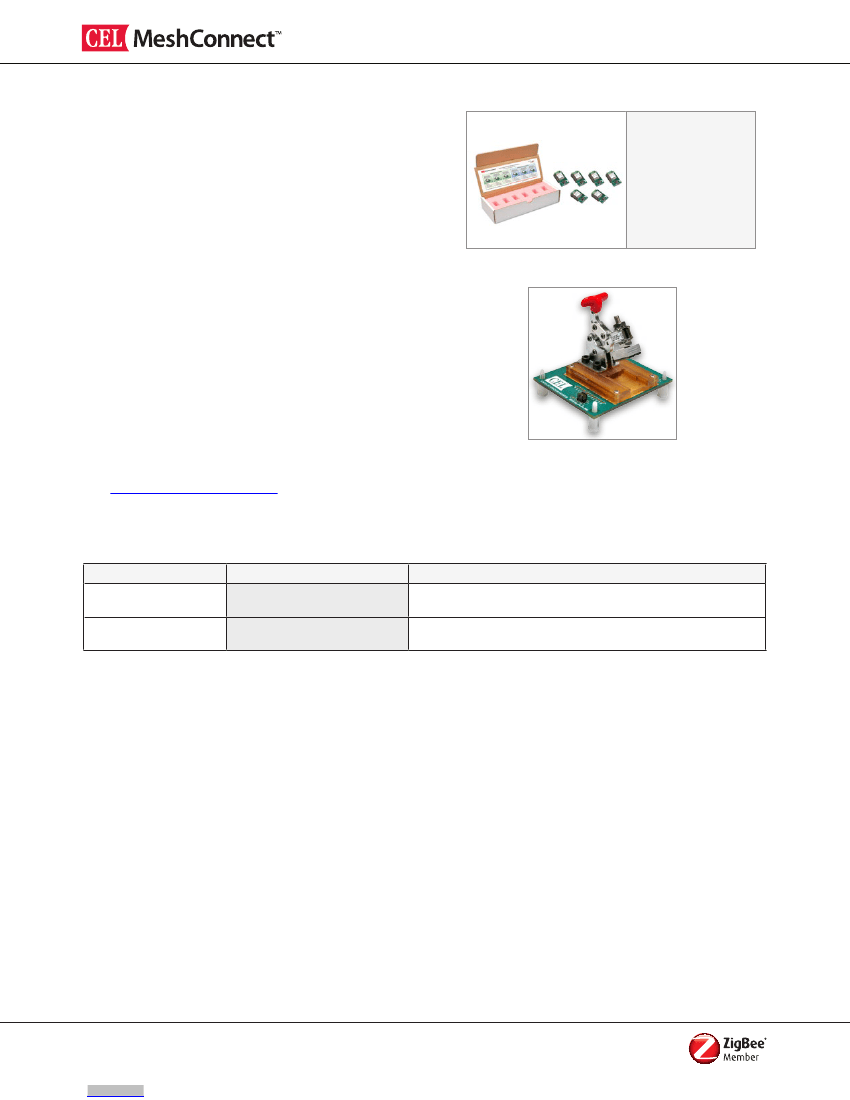

Development Kit Available: ZICM-EM35X-DEV-KIT-3
DESCRIPTION
The MeshConnect
™
EM35x Mini Modules from
California Eastern Laboratories (CEL) combine high
performance RF solutions with the market's premier
ZigBee
®
stack. Available in low and high output
power options (+8 dBm and +20 dBm), these modules
can accommodate variable range and performance
requirements. The tiny module footprint makes them
suitable for a wide range of ZigBee applications. The
MeshConnect EM35x Mini Modules are certified and
qualified, enabling customers to accelerate time to
market by greatly reducing the design and certification
phases of development.
CEL’s
MeshConnect
EM35x
Mini
Modules
(ZICM35xSP0 and ZICM35xSP2) are based on
the Ember EM35x (EM357 and EM358x) ZigBee
compliant System on Chip (SoC) radio ICs. Each IC is
a complete single-chip solution, compliant with ZigBee
specifications and IEEE 802.15.4.
CEL’s EM358x-based Mini Modules (ZICM358xSP0
and ZICM358xSP2) are ideal for customers requiring
Over-the-Air (OTA) programming (such as Smart
Energy or Home Automation) or a larger memory
footprint for complex application control. They also
feature an optional on-board Universal Serial Bus
(USB) 2.0 full-speed peripheral.
MeshConnect
™
Powered by
EM35x Mini Modules
EM357
Ember
®
ZigBee
®
Solutions
• 12 kB SRAM
• 192 kB Flash
KEY FEATURES:
• Up to 23 GPIO Pins
• SPI (Master /Slave),
TWI and UART
• Timers and Serial
• 32-bit ARM
®
Cortex
™
-M3
or
EM358x
• Up to 64kB SRAM
Wire /JTAG Interface
• 5-Channel 14-bit ADC
ZICM35xSP0
Tx: +8 dBm
Rx:
-100 dBm
Link Budget:
+108 dB
• Up to 512kB Flash
(Supports OTA)
• Optional USB
Controller
ZICM35xSP2
+20 dBm
-103 dBm
+123 dB
Data Rate: 250kbps
Advanced Power Management
16 RF Channels
Industry's Premier ZigBee
PRO Stack: EmberZNet PRO
™
•
Mini Footprint:
-
0.940" x 0.655"
(23.9 mm x 16.6 mm)
•
•
•
•
ADDITIONAL FEATURES
•
Antenna Options:
1) Integrated PCB Trace Antenna
2) RF Port for External Antenna
•
Supports Mesh Networks
•
AES Encryption
•
FCC, CE and IC Certifications
•
RoHS Compliant
APPLICATIONS
•
Smart Energy /Grid Markets
-
Thermostats
- In-Home Displays
- Smart Plugs
•
Home Automation and Control
- Energy Management
- Security Devices
- HVAC Control
•
Building Automation
and Control
•
Commercial and Residential
Lighting
-
Fixtures and Control
•
Solar Inverters and Control
•
General ZigBee Wireless
Sensor Networking
This document is subject to change without notice
Document No: 0011-00-07-01-000 (Issue E)
Date Published: March 18, 2014
Page 1

ZICM3588SP0-1-R Related Products

ZICM3588SP0-1-R ZICM357SP0-1-R ZICM357SP0-1C-R ZICM357SP2-1C-R ZICM3588SP0-1C-R ZICM3588SP2-1-R
Description 802.15.4/ZigBee SOC 2480MHz 250Kbps 33-Pin SMD Module T/R 802.15.4/ZigBee SOC 2480MHz 250Kbps 33-Pin SMD Module T/R 802.15.4/ZigBee SOC 2480MHz 250Kbps 33-Pin SMD Module T/R 802.15.4/ZigBee SOC 2480MHz 250Kbps 33-Pin SMD Module T/R 802.15.4/ZigBee SOC 2480MHz 250Kbps 33-Pin SMD Module T/R 802.15.4/ZigBee SOC 2480MHz 250Kbps 33-Pin SMD Module T/R
EU restricts the use of certain hazardous substances Compliant Compliant Compliant Compliant Compliant Compliant
ECCN (US) 5A002.a.1 5A002.a.1 5A002.a.1 5A002.a.1 5A002.a.1 5A002a.1.
Part Status Active Active Active Active Active Active
HTS 8525.60.10.10 8525.60.10.10 8525.60.10.10 8525.60.10.10 8542.31.00.01 8525.60.10.10
Module/IC Classification Module Module Module Module Module Module
RAM Size (KB) 64 12 12 12 64 64
Flash Size (KB) 512 192 192 192 512 512
Number of Channels 16 16 16 16 16 16
Maximum Data Rate (Kbps) 250 250 250 250 250 250
Minimum Operating Frequency (MHz) 2405 2405 2405 2405 2405 2405
Maximum Operating Frequency (MHz) 2480 2480 2480 2480 2480 2480
Typical Sensitivity -100dBm -100dBm -100dBm -103dBm -100dBm -103dBm
Protocol Stack 802.15.4/ZigBee 802.15.4/ZigBee 802.15.4/ZigBee 802.15.4/ZigBee 802.15.4/ZigBee 802.15.4/ZigBee
Maximum Output Power 8dBm(Typ) 8dBm(Typ) 8dBm(Typ) 20dBm(Typ) 8dBm(Typ) 20dBm(Typ)
Minimum Operating Supply Voltage (V) 2.1 2.1 2.1 2.1 2.1 2.1
Typical Operating Supply Voltage (V) 3.3 3.3 3.3 3.3 3.3 3.3
Maximum Operating Supply Voltage (V) 3.6 3.6 3.6 3.6 3.6 3.6
Processing Unit Type Microcontroller Microcontroller Microcontroller Microcontroller Microcontroller Microcontroller
Antenna Mounting On Board On Board External External External On Board
Application Grid Markets|Smart Energy|Solar Inverters and Control|Home Automation and Control|Building Automation and Control Smart Energy|Grid Markets|Building Automation and Control|Home Automation and Control|Solar Inverters and Control Smart Energy|Grid Markets|Building Automation and Control|Home Automation and Control|Solar Inverters and Control Home Automation and Control|Solar Inverters and Control|Grid Markets|Smart Energy|Building Automation and Control Smart Energy|Grid Markets|Building Automation and Control|Home Automation and Control|Solar Inverters and Control Home Automation and Control|Building Automation and Control|Grid Markets|Smart Energy|Solar Inverters and Control
Minimum Operating Temperature (°C) -40 -40 -40 -40 -40 -40
Maximum Operating Temperature (°C) 85 85 85 85 85 85
Packaging Tape and Reel Tape and Reel Tape and Reel Tape and Reel Tape and Reel Tape and Reel
Standard Package Name SMD Module SMD Module SMD Module SMD Module SMD Module SMD Module
Supplier Package SMD Module SMD Module SMD Module SMD Module SMD Module SMD Module
Pin Count 33 33 33 33 33 33
Mounting Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package Height 3.86(Max) 3.86(Max) 3.86(Max) 3.86(Max) 3.86(Max) 3.86(Max)
Package Length 23.87 23.87 23.87 23.87 23.87 23.87
Package Width 16.63 16.63 16.63 16.63 16.63 16.63
PCB changed 33 33 33 33 33 33
