ZXRE160AET5TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Voltage reference> ZXRE160AET5TA

ZXRE160AET5TA: DescriptionV-Ref Adjustable 0.2V to 18V 15mA 5-Pin TSOT-25 T/R; CategoryVoltage reference; File Size423KB，15 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

ZXRE160AET5TA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZXRE160AET5TA	-	-	View	Buy Now

ZXRE160AET5TA Overview

V-Ref Adjustable 0.2V to 18V 15mA 5-Pin TSOT-25 T/R

ZXRE160AET5TA Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Reference Type	Adjustable
Topology	Series
Initial Accuracy	0.5%
Output Voltage (V)	0.2 to 18
Maximum Input Voltage (V)	20
Maximum Output Current (mA)	15
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Packaging	Tape and Reel
Supplier Package	TSOT-25
Pin Count	5
Standard Package Name	SOT-23
Mounting	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.6
PCB changed	5
Lead Shape	Gull-wing

Preview

Download Datasheet

View All

A Product Line of

Diodes Incorporated

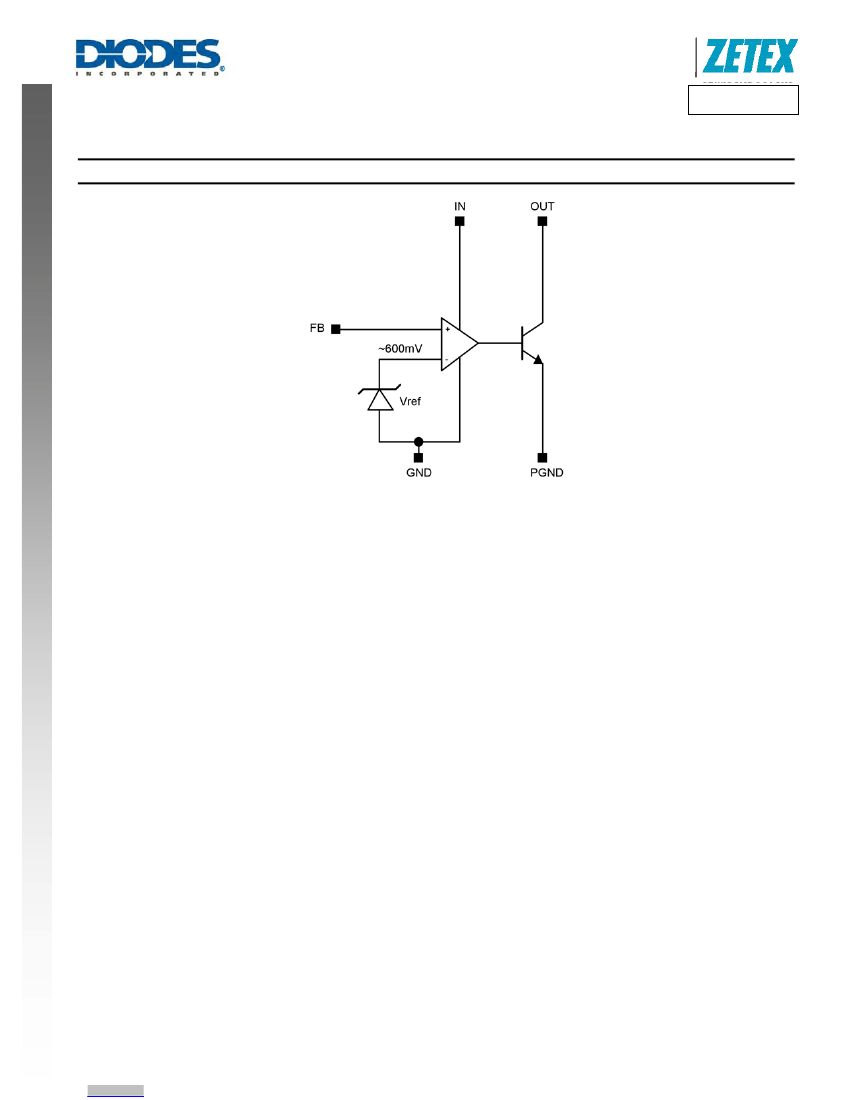

ZXRE160

0.6V ENHANCED ADJUSTABLE PRECISION SHUNT REGULATOR

Description

The ZXRE160 is a 5-terminal adjustable shunt regulator offering

excellent temperature stability and output

handling capability. This

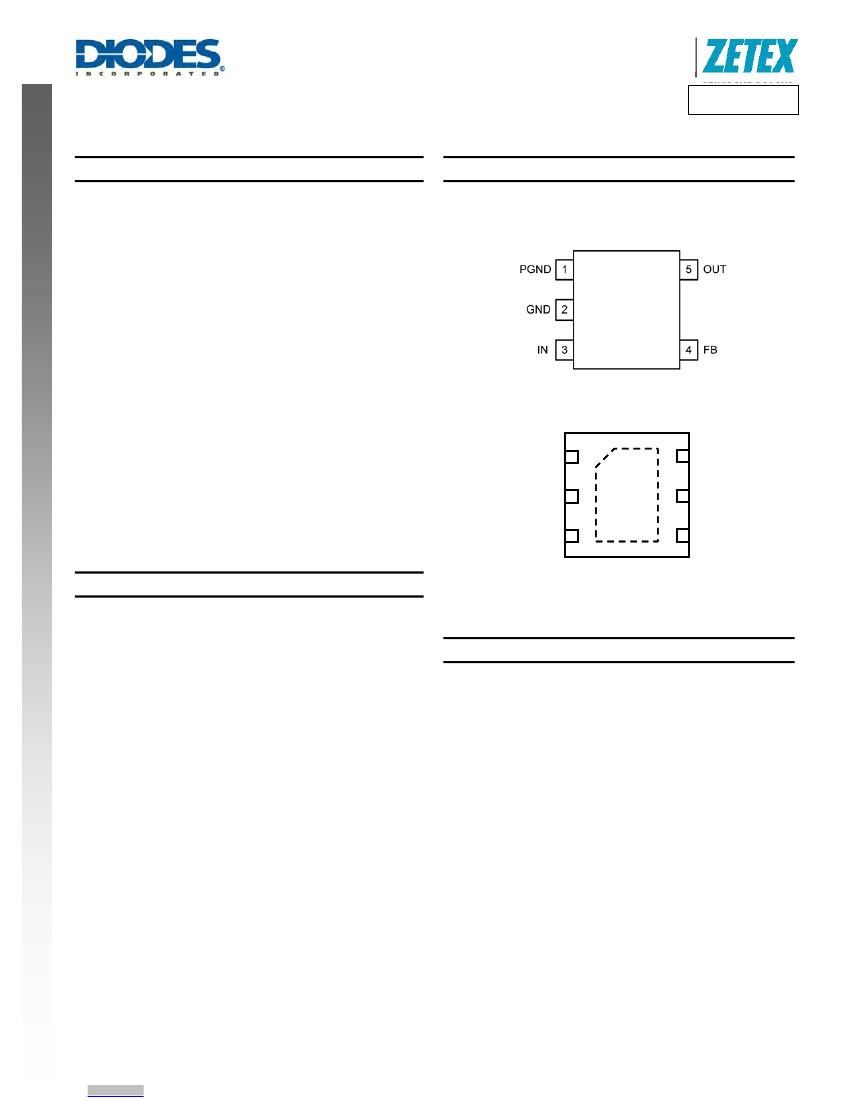

Pin Assignments

ZXRE160_H5 (SC70/SOT353) and

ZXRE160_ET5 (TSOT25)

Top view

device offers an enhancement to the ZXRE060 part for use in a

comparator mode applications.

NEW PRODUCT

In shunt regulator mode, the ZXRE160 simplifies the design of

isolated low voltage DC-DC regulators. With its low 0.6V FB pin, it can

control the regulation of rails as low 0.6V. This makes the part ideal

for state of the art microprocessor, DSP and PLD core voltage

POL converters.

The device open-collector output can operate from 0.2V to 18V and

regulated output voltage can be set by selection of two external

divider resistors. Separating the input from the open collector output

enables the ZXRE160 to be used to make low-cost low drop-out

regulators operating at low input voltages.

The ZXRE160 is available in two grades with initial tolerances of 0.5%

and 1% for the A and standard grades respectively. It is available in

space saving low profile 5 pin SC70/SOT353, thin TSOT25 and very

small DFN1520 packages.

OUT

ZXRE160_FT4 (X2-DFN1520-6)

Top view

PGND

N/C

GND

Features

•

Low reference voltage (V

= 0.6V)

-40°C to +125°C temperature range

Reference voltage tolerance at +25°C

0.5% ZXRE160A

ZXRE160

Exposed flag floating or

connect to GND

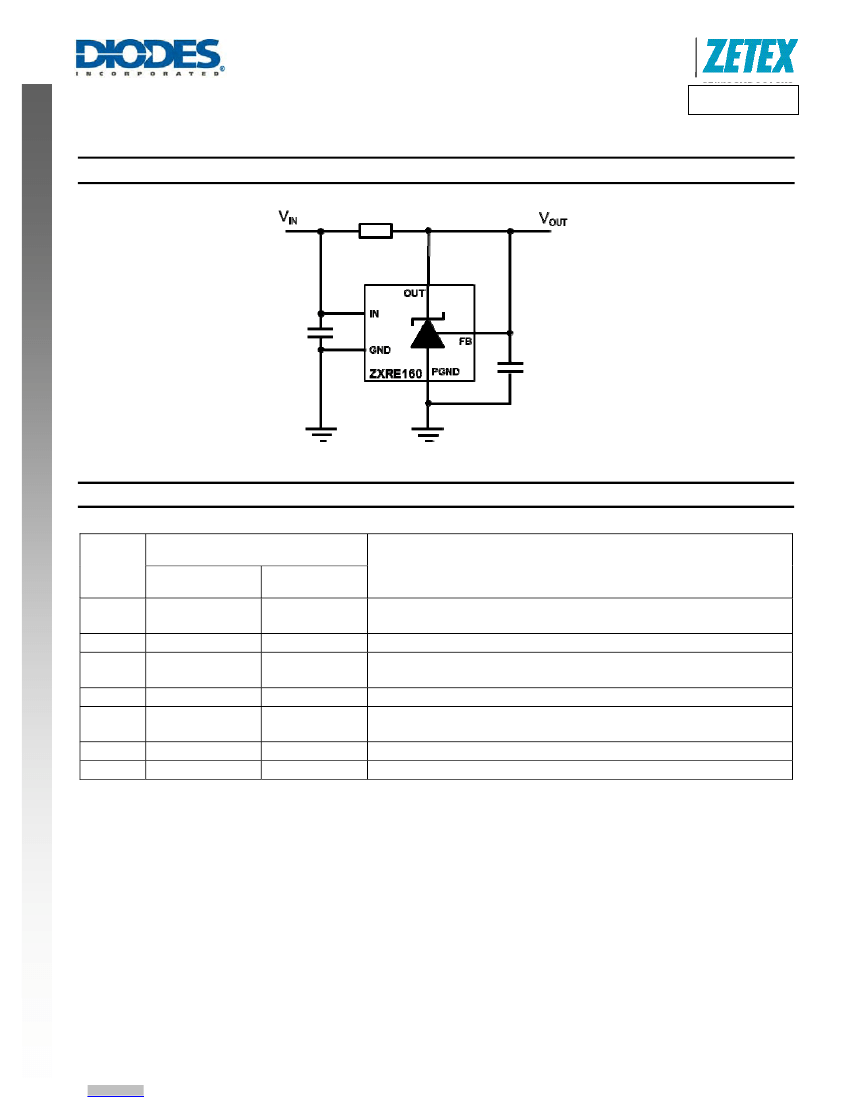

Applications

•

Isolated DC-DC converters

Core voltage POL

Low Voltage Low-Dropout linear regulators

Shunt regulators

Adjustable voltage reference

Typical temperature drift

<4 mV (0°C to +70°C)

<6 mV (-40°C to +85°C)

<12mV (-40°C to +125°C)

0.2V to 18V open-collector output

High power supply rejection

(>45dB at 300kHz)

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

ZXRE160

Document number: DS35688 Rev. 2 - 2

1 of 15

www.diodes.com

June 2012
