DXC324-160B-.01 datasheet, PDF

DXC324-160B-.01: DescriptionIC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch , 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size319KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

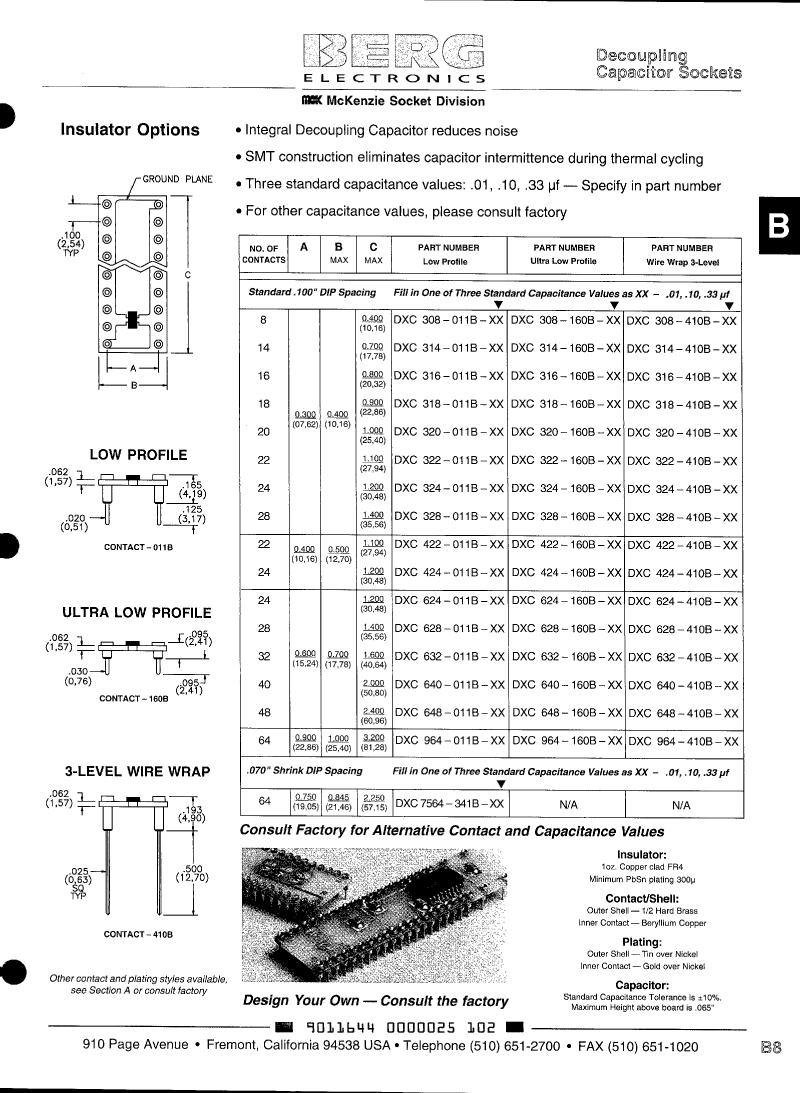

DXC324-160B-.01 Overview

IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch , 0.3inch Row Spacing, Solder

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.4 inch
subject depth	0.095 inch
body length	1.2 inch

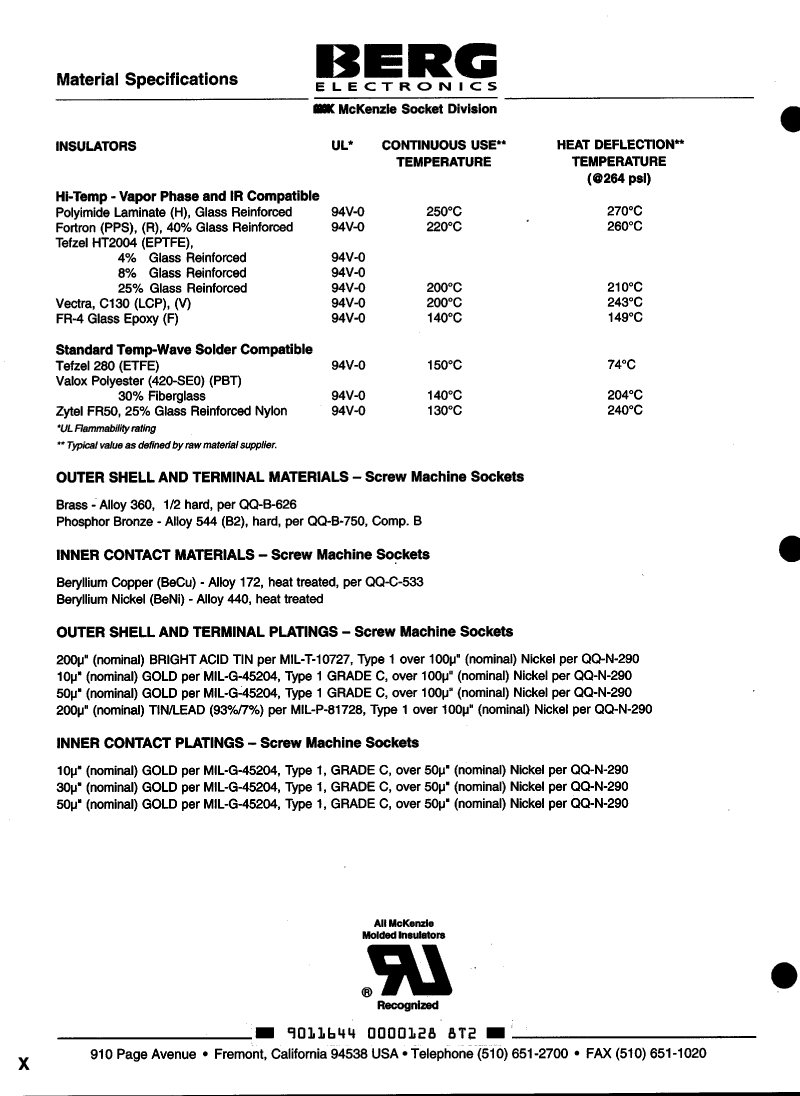

Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact material	BE-CU
Contact style	RND PIN-SKT

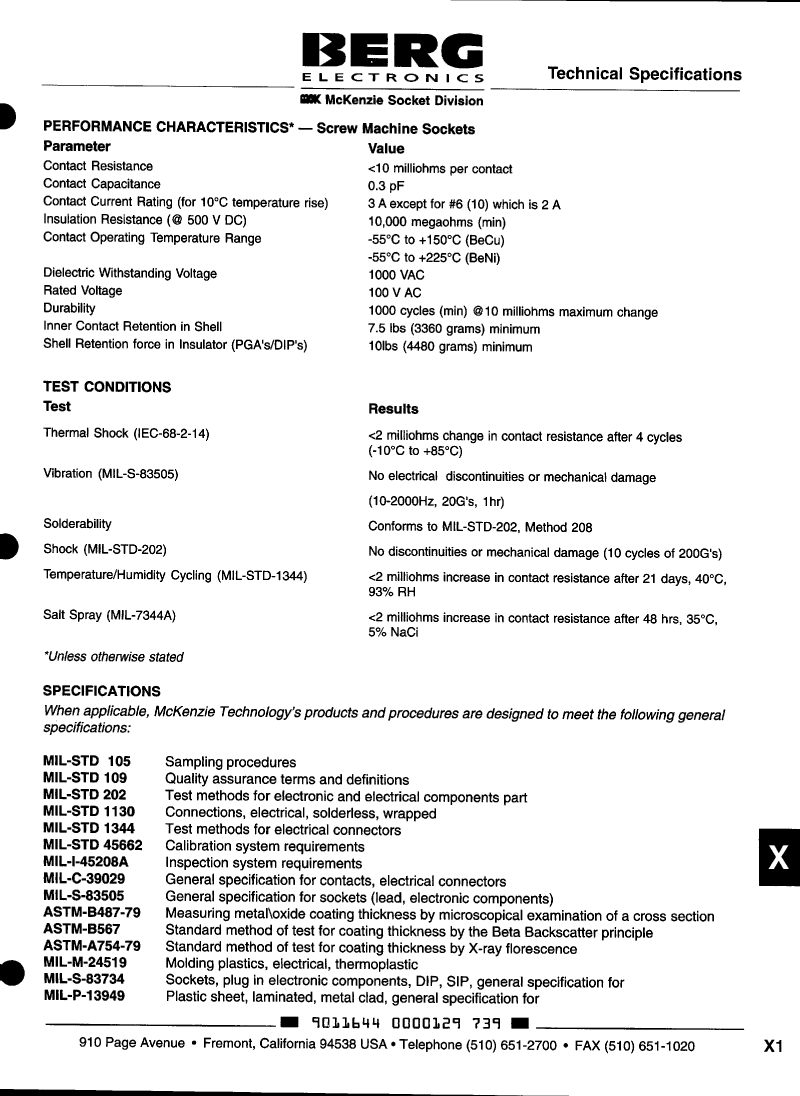

current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP24
Dielectric withstand voltage	1000VAC V
Shell material	FR-4 EPOXY GLASS
Insulation resistance	10000000000 Ω
Manufacturer's serial number	DXC
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	24
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
