5-1437255-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-1437255-6

5-1437255-6: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,GUIDE SLOT; CategoryThe connector The connector; File Size432KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

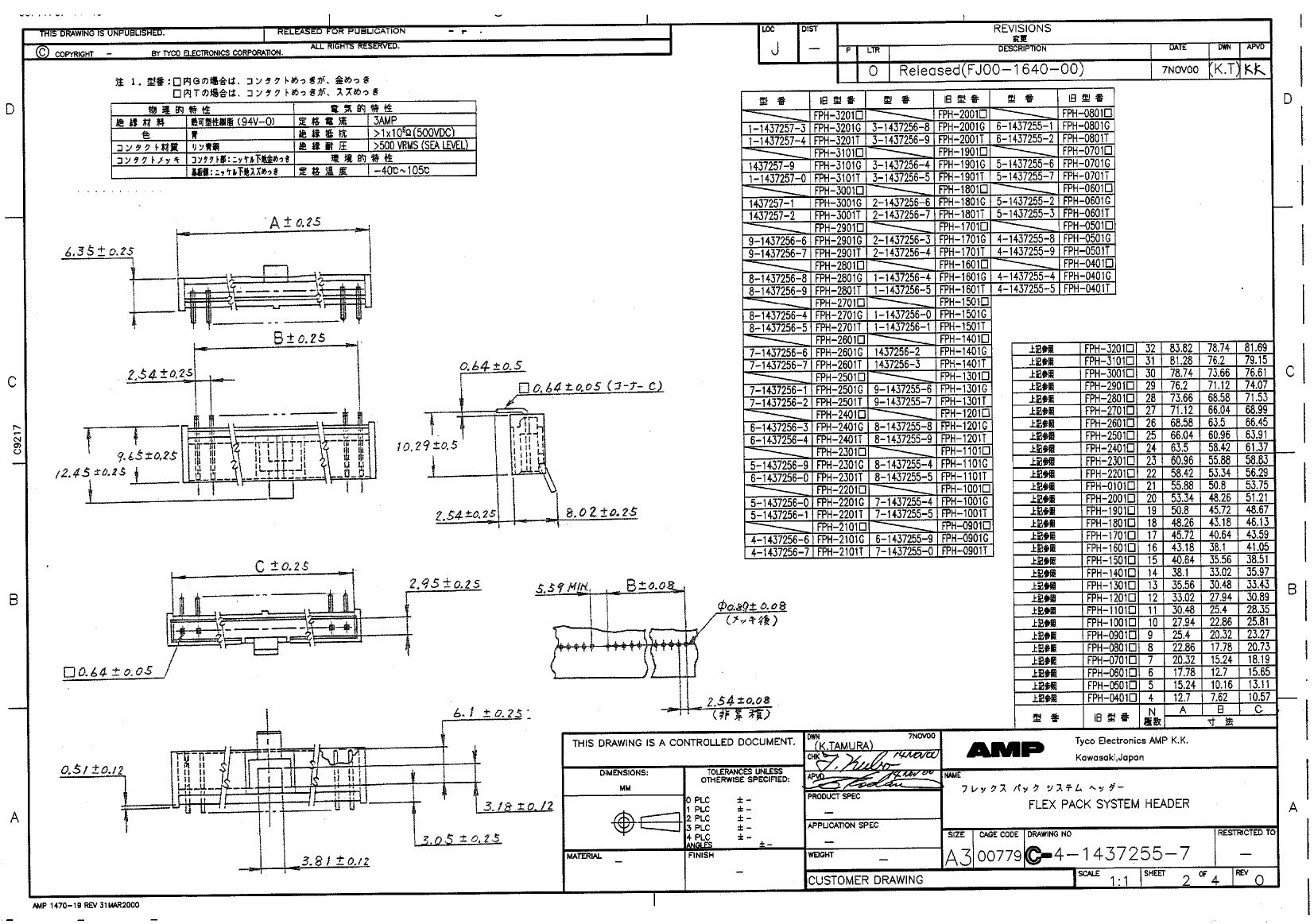

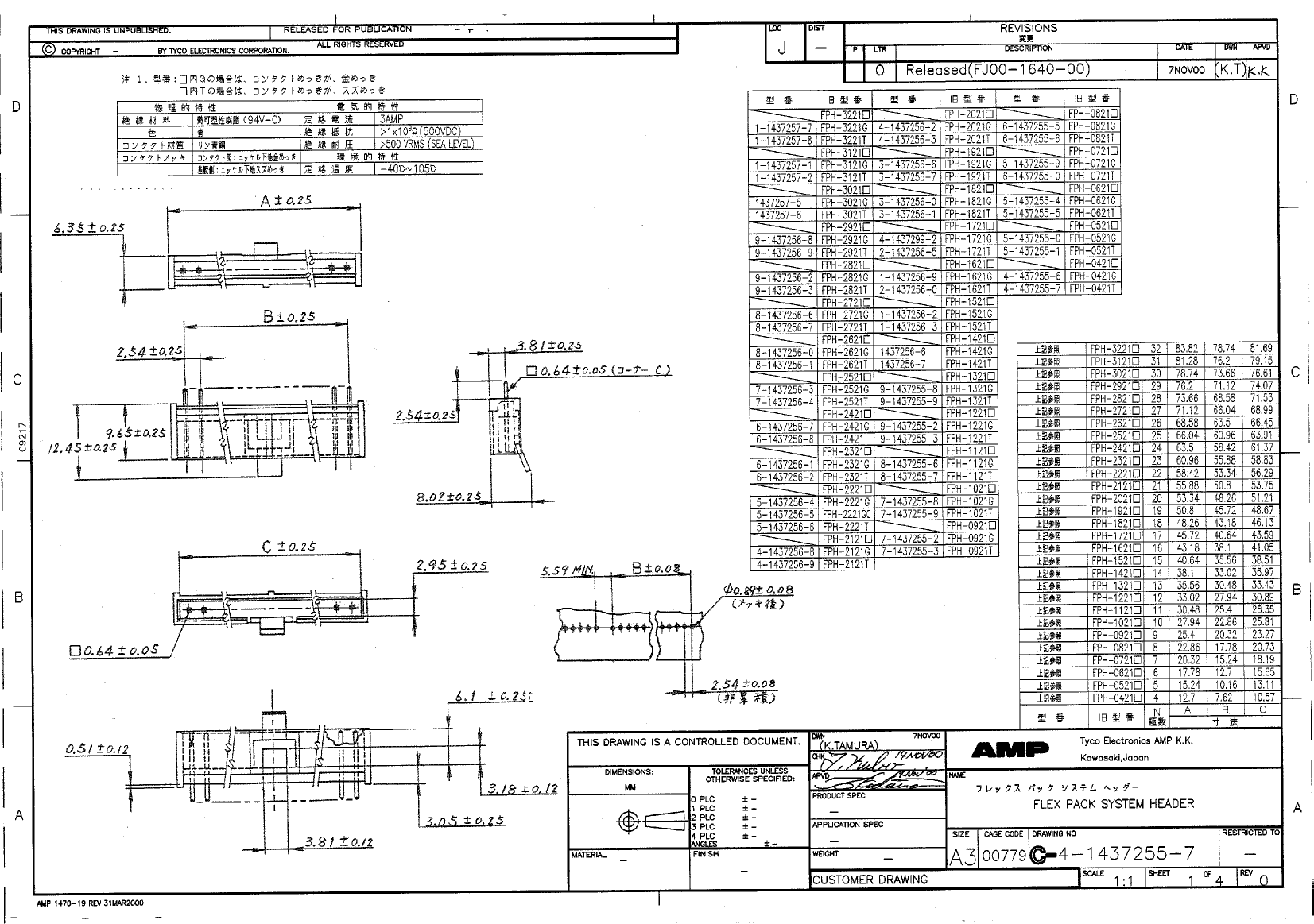

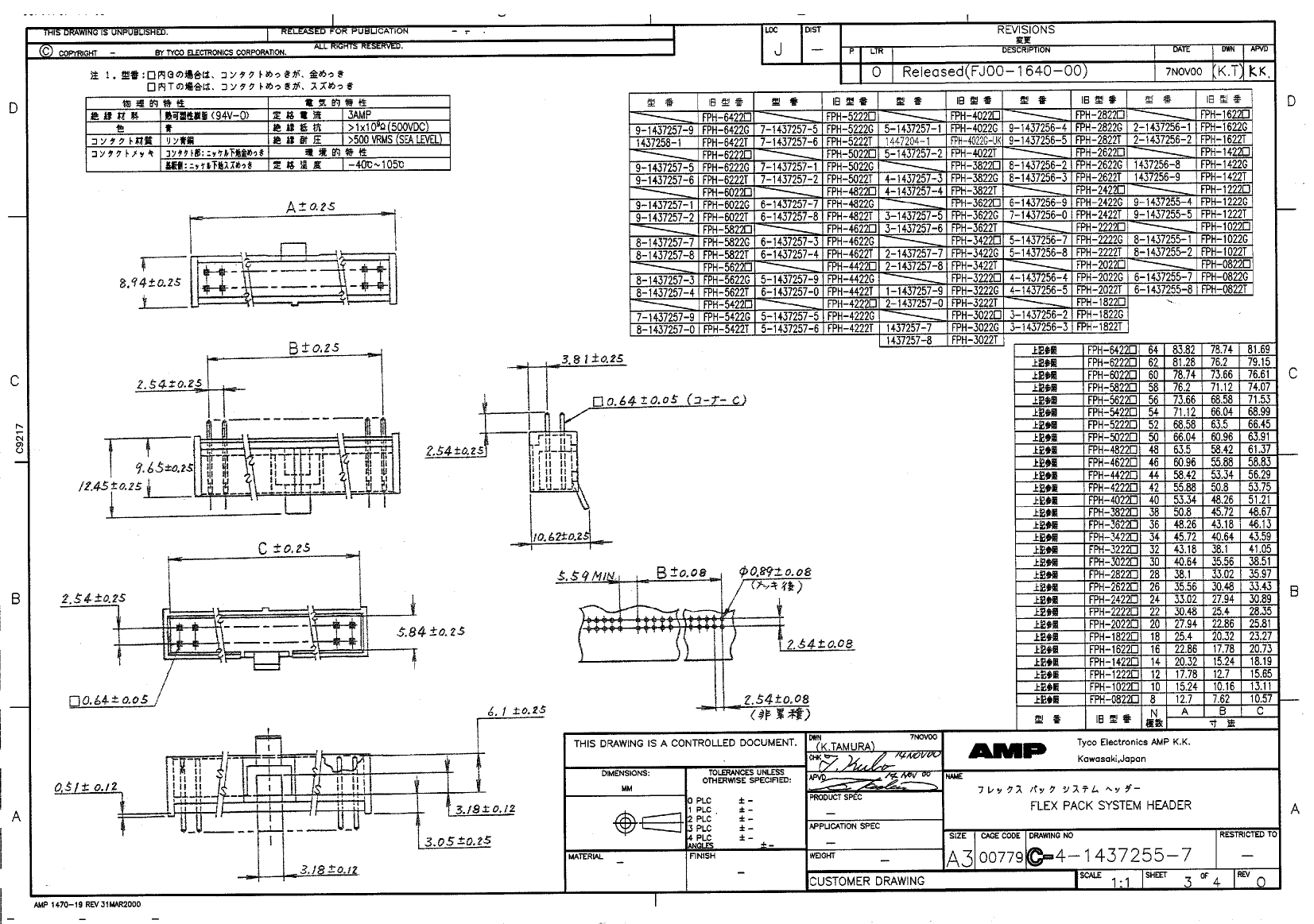

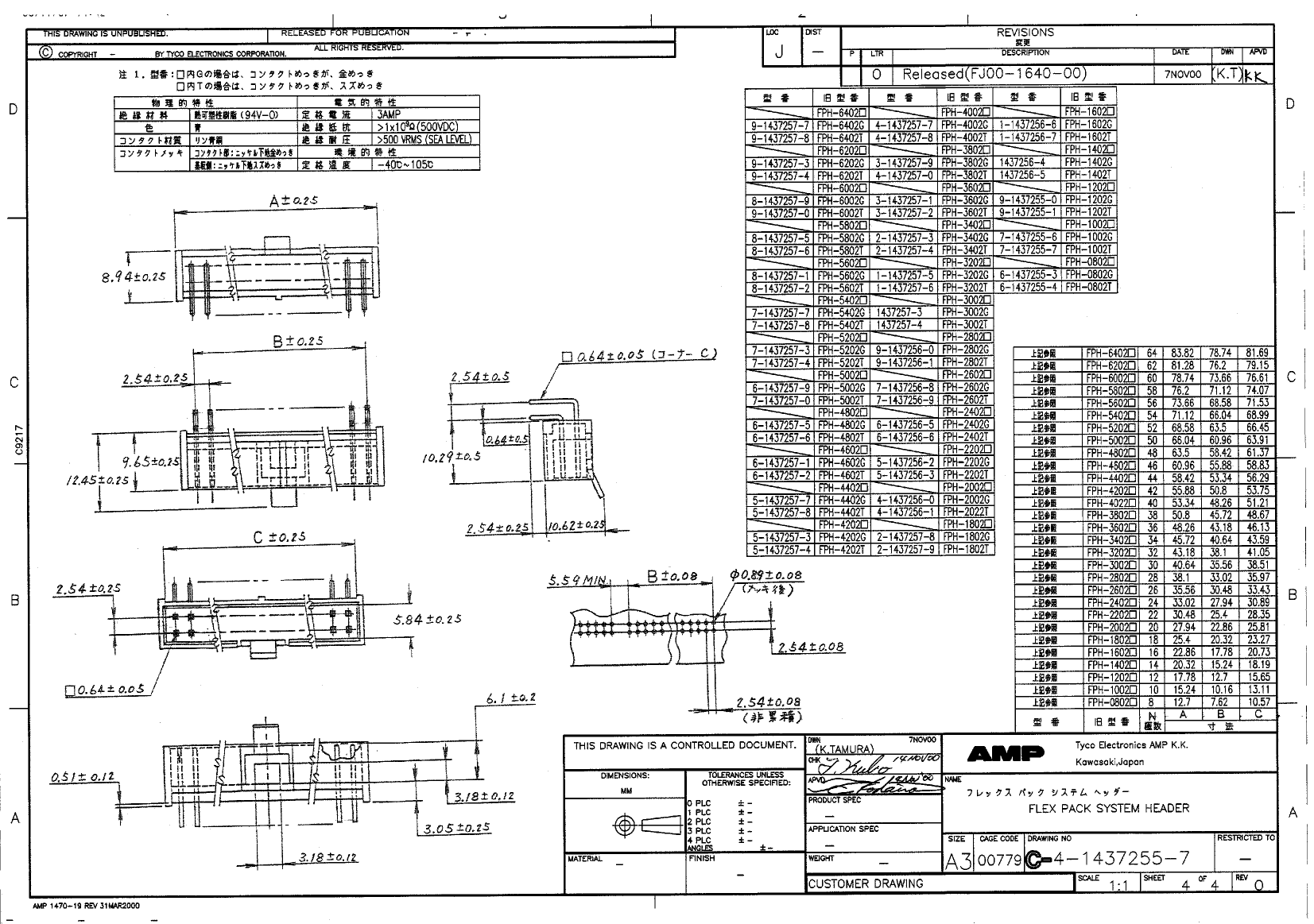

5-1437255-6 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,GUIDE SLOT

5-1437255-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	not_compliant
ECCN code	EAR99
body width	0.25 inch
subject depth	0.405 inch
body length	2.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1437255
Plug contact pitch	0.1 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

5-1437255-6 Related Products

	5-1437255-6	9-1437255-6	5-1437257-1	1-1437256-7	4-1437256-3	4-1437257-3	1-1437256-2	1437256-3
Description	HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,GUIDE SLOT	HEADER CONNECTOR,PCB MNT,RECEPT,13 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,GUIDE SLOT	HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT	HEADER CONNECTOR,PCB MNT,RECEPT,16 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,GUIDE SLOT	HEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT	HEADER CONNECTOR,PCB MNT,RECEPT,38 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT	HEADER CONNECTOR,PCB MNT,RECEPT,15 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT	HEADER CONNECTOR,PCB MNT,RECEPT,14 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,GUIDE SLOT
Reach Compliance Code	not_compliant	compliant	unknown	unknown	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.25 inch	0.25 inch	0.352 inch	0.352 inch	0.25 inch	0.352 inch	0.25 inch	0.25 inch
subject depth	0.405 inch	0.405 inch	0.38 inch	0.505 inch	0.38 inch	0.38 inch	0.38 inch	0.405 inch
body length	2.3 inch	1.4 inch	2.1 inch	0.9 inch	2.1 inch	2 inch	1.6 inch	1.5 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	1437255	1437255	1437257	1437256	1437256	1437257	1437256	1437256
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	2	2	1	2	1	1
Number of rows loaded	1	1	2	2	1	2	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	22	13	40	16	20	38	15	14
Is it Rohs certified?	incompatible	incompatible	-	-	incompatible	incompatible	incompatible	-
