Surface Mount Resistor Network
FEATURES
•
•
•
•
•
•
•
•
•
•
Medium Body Design
Surface Mount Gull Wing Design
Low Profile, Board to Network Clearance – 0.0075” ±0.0025”
Solid Ceramic Construction
No Internal Dendrite Growth
Meets EIA PDP-100 SOGN-0002 Outline
Application Specific Circuits are Available
Compatible with Solder Reflow Process
Tape and Reel Packaging or Slide Packs
RoHS Compliant in Accordance with EU Directive 2005/95/EC
- Lead-Free Termination Finish
- Exemption 5 for Pb in glass material and resistor elements
Series 768

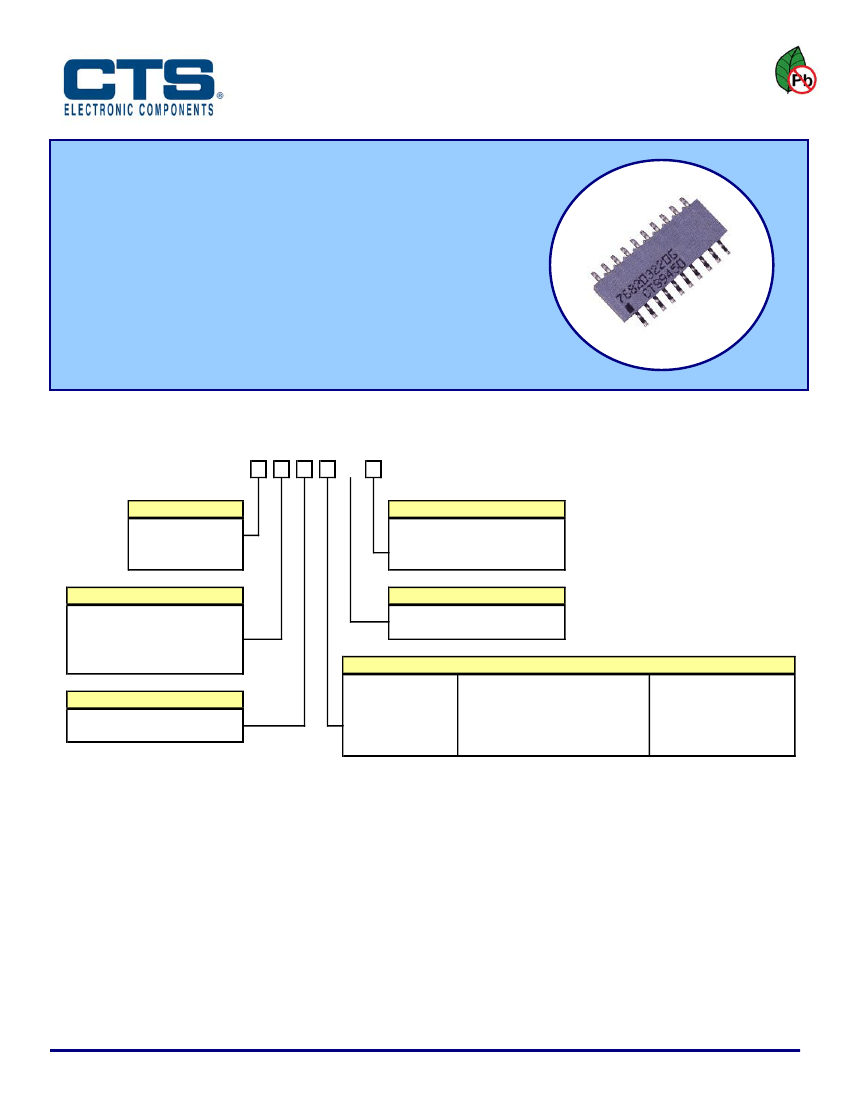

ORDERING INFORMATION
768
NUMBER OF PINS
14 = 14 pins
16 = 16 pins
20 = 20 pins
SCHEMATIC
1
3
5
7
-
-
-
-
Bussed Circuit
Isolated Circuit
Dual Terminator Circuit
Ladder
RESISTOR CODE
Refer to tables on Page 2.
[Codes are 3 - 4 characters.]
P
PACKAGING
Blank = Slide Pack
TR13 = Tape & Reel, 13" reel
RoHS COMPLIANT
Lead Finish: SnAgCu over Ni
barrier on Cu lead wire.
TOLERANCE
Schematic 1 & 3
J = ±5%
G = ±2% [Std]
F = ±1%
D = ±1/2%
Schematic 5
Tolerance code is not added for
dual terminator configuration.
Standard tolerance is ±2%.
Schematic 7
F = ±1 LSB
D = ±1/2 LSB
[LSB = Least Significant Bit]
Notes:
1. No dashes or spaces to appear in part number.
2. Example Part Numbers;
Tape & Reel, 768141103GPTR13.
Slide Pack, 768141103GP.
Not all performance combinations and resistor values may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
Document No. 008-0350-0
Page 1 - 4
Rev. B
www.ctscorp.com
Surface Mount Resistor Network
ORDERING INFORMATION
AVAILABLE RESISTOR VALUES & EIA CODES
Ohms Code Ohms Code Ohms Code Ohms
0
000X
68
680
470
471
3.3K
10
100
75
750
510
511
3.9K
12
120
82
820
560
561
4.7K
15
150
100
101
680
681
5.1K
18
180
110
111
820
821
5.6K
22
220
120
121
1K
102
6.8K
27
270
150
151
1.2K
122
8.2K
33
330
180
181
1.5K
152
10K
39
390
220
221
1.8K
182
12K
47
470
270
271
2.0K
202
15K
51
510
330
331
2.2K
222
18K
56
560
390
391
2.7K
272
22K
Code
332
392
472
512
562
682
822
103
123
153
183
223
Ohms
27K
33K
39K
47K
51K
56K
68K
82K
100K
120K
150K
180K
Code
273
333
393
473
513
563
683
823
104
124
154
184
Ohms
220K
270K
330K
390K
470K
510K
560K
680K
820K
1M
Code
224
274
334
394
474
514
564
684
824
105
Series 768
DUAL TERMINATOR RESISTOR VALUES – Schematic 5
The Series 766 part number includes the EIA Code value of the Thevenin equivalent resistances of R
1
and R
2
. The Thevenin equivalent resistance is
calculated in the following way. [The suffix letter relates only to the sequence of variations that equal the same equivalent resistance.]
R
EQ
= R
1
*R
2
/(R
1
+ R
2
)
Example
768205131C
R
1
= 180 Ohms
R
2
= 470 Ohms
R
EQ
= 130 Ohms
[Pin N/2 is common to R
2
and Pin N is common to R
1
.]
R1
R2
Ohms
25
50
30
50
30
620
33
4.7K
36
620
43
620
68
189
75
620
80
220
81
130
81
2.2K
100 200
100 430
100 150
106 169
200 1.5K
220 330
220 270
220 220
240 170
240 620
250 250
270 470
270 180
271 131
330 470
Thevenin
Equivalent
17 ohms
19 ohms
29 ohms
33 ohms
34 ohms
40 ohms
50 ohms
67 ohms
59 ohms
50 ohms
78 ohms
67 ohms
81 ohms
60 ohms
65 ohms
176 ohms
132 ohms
121 ohms
110 ohms
100 ohms
173 ohms
125 ohms
171 ohms
108 ohms
88 ohms
194 ohms
CTS Code
150A
190A
290A
330A
340A
400A
500B
670A
590A
500A
780A
670B
810A
600A
650A
171D
131A
121B
111D
101C
171C
131B
171A
111C
880A
191A
R1
R2
Ohms
330 680
330 390
330 220
330 330
360 720
360 600
390 620
470
1K
470 680
470 940
500 500
560 910
110 220
118 178
120 200
120 180
120 120
150 150
160 260
160 240
160 270
162 260
180 300
180 470
180 390
180 270
Thevenin
Equivalent
222 ohms
179 ohms
132 ohms
165 ohms
240 ohms
225 ohms
239 ohms
320 ohms
278 ohms
313 ohms
250 ohms
347 ohms
73 ohms
71 ohms
75 ohms
72 ohms
60 ohms
75 ohms
99 ohms
96 ohms
100 ohms
100 ohms
113 ohms
130 ohms
123 ohms
108 ohms
CTS Code
221A
181A
131D
171B
241B
231A
241A
321A
281A
311A
251A
351A
730A
710A
750B
720A
600B
750A
990A
960A
101D
101B
111B
131C
121A
111A
Thevenin
R3
R4
Ohms
Equivalent
180 220
99 ohms
560
1K
359 ohms
680
1K
405 ohms
750 750
375 ohms
750 2.3K
566 ohms
1K
3.3K
767 ohms
1K
2K
667 ohms
1.1K 2.2K
733 ohms
1.2K 1.2K
600 ohms
1.5K 1.5K
750 ohms
1.5K 3.3K
1031 ohms
2K
2K
1000 ohms
2.2K 5.6K
1579 ohms
2.2K 4.4K
1467 ohms
2.2K 3.3K
1320 ohms
3K
6.2K
2022 ohms
3K
2K
1200 ohms
3.3K 4.7K
1939 ohms
3.9K 3.3K
1788 ohms
4.7K 22K
3873 ohms
5K
5K
2500 ohms
6.8K 22K
5194 ohms
10K 51K
8361 ohms
50K 100K 33,333 ohms
CTS Code
101A
361A
401A
381A
571A
771A
671A
731A
601A
751A
102A
102B
162A
152A
132A
202A
122A
192A
182A
392A
252A
522A
842A
333A
1. All tolerances +/-2%.
2. Other values available on request.
3. Suffix letter has no significance - assigned in sequential order.
Document No. 008-0350-0
Page 2 - 4
Rev. B
Surface Mount Resistor Network

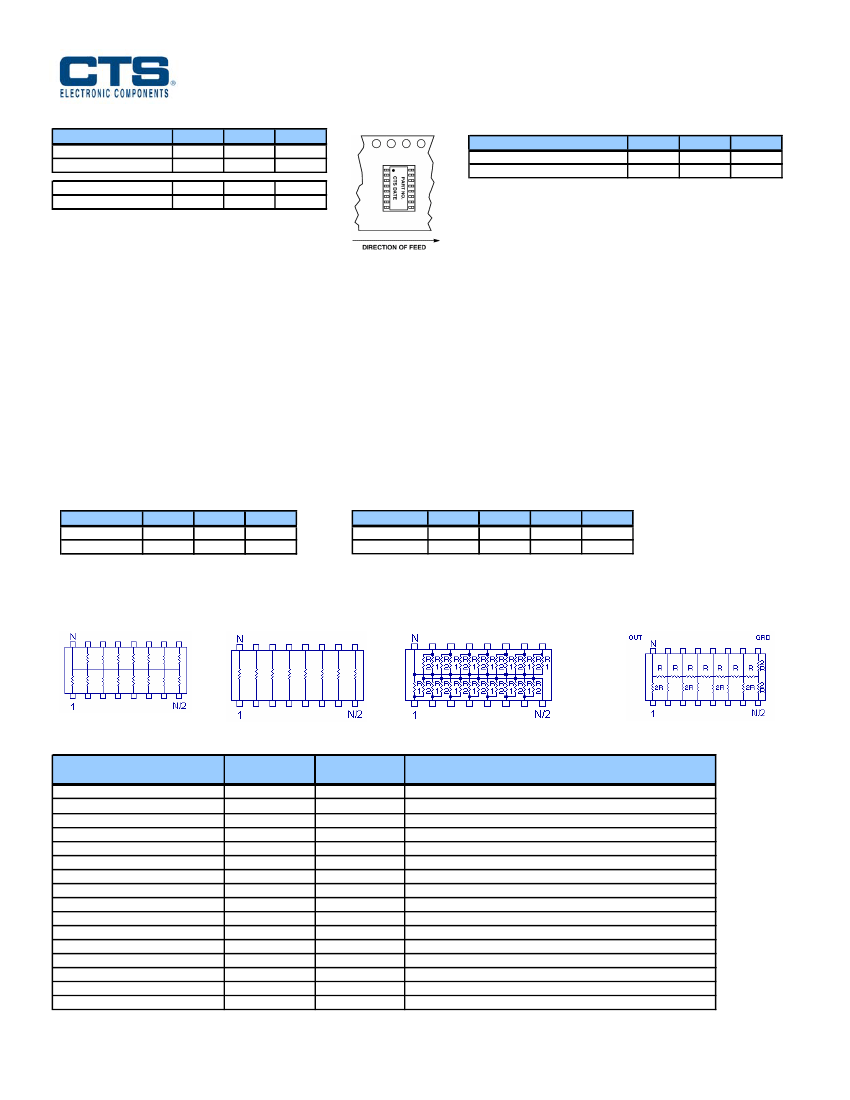

PACKAGING INFORMATION
Tape & Reel
14 Pin
Tape Width
24mm
Tape Pitch
12mm
Reel Diameter
No. Parts/Reel
13"
2,000
16 Pin
24mm
12mm
13"
2,000
20 Pin
24mm
12mm
13"
2,000
Series 768
Slide Packs
Tube Length
No. Parts/Slide Pack
14 Pin
20"
48
16 Pin
20"
43
20 Pin
20"
35
ELECTRICAL & ENVIRONMENTAL CHARACTERISTICS
GENERAL REQUIREMENTS
Resistance Range:
Standard: 10 Ohms to 1M Ohms
Operating Temperature Range:
-55°C to +125°C
Temperature Coefficient:
10 Ohms to 99 Ohms - ±200ppm/°C typical
100 Ohms to 1M Ohms - ±100ppm/°C typical
Resistance Tolerance:
Standard: ±2% or 0.5 Ohms [whichever is greater]
Special: ±0.25% or 0.3 Ohms [whichever is greater]
Dielectric Strength:
100 V
AC
Maximum Operating Voltage:
50 V, not to exceed rated power
POWER RATING
Temperature
@25°C
@70°C
[Total Network Power]
MAXIMUM RESISTOR POWER
[Not to exceed total network power]
14 Pin
2.0W
1.3W
16 Pin
2.3W
1.5W
20 Pin
3.0W
2.0W
Schematic
@25°C
@70°C
1
0.15W
0.10W
3
0.30W
0.20W
5
0.15W
0.10W
7
0.15W
0.10W
CIRCUIT TYPES
BUSSED [Schematic 1]
ISOLATED [Schematic 3]
DUAL TERMINATOR [Schematic 5]
R/2R LADDER [Schematic 7]
ENVIRONMENTAL
TEST
Temperature Cycling
Short Time Overload
Moisture Resistance
Load Humidity
High Temperature Exposure
Load Life
Resistance to Solder Heat
Mechanical Shock
Vibration
Terminal Strength
Low Temperature Storage
Low Temperature Operation
Flammability
Non-Fungus
Resistance to Solvents
Solderability
MAXIMUM %
DELTA R
0.25%
0.25%
0.50%
1.00%
1.00%
1.00%
0.25%
0.25%
0.25%
0.25%
0.25%
0.25%
N/A
Pass
Pass
Pass
MIL-STD 202
METHOD
107
106
TEST CONDITION/DESCRIPTION
Condition B; 5 cycles, -65°C to +125°C
2 1/2 times rated voltage, 5 seconds [100V maximum]
240 hours, -10°C to +65°C, 90% RH, 0.1 rated load
1000 hours, +70°C, 85-92% RH, 0.1 rated load
240 hours @ +125°C, no load
Condition F; 2000 hours @ +70°C, rated load
30 seconds @ +218°C, dwell
Condition I; 100g, 1m second, 3 shocks each plane
Condition D; 20g, 10-2000Hz, 4 hours/plane
24 hours @ -65°C, no load
45 minutes @ -65°C, no load
94V-0
20g, 10-2000Hz, 4 hours/plane
MIL-STD 810C
Isopropyl alcohol
RMA Flux, +230°C, 5 seconds dip, 95% coverage
108
213
204
Document No. 008-0350-0
Page 3 - 4
Rev. B
Surface Mount Resistor Network

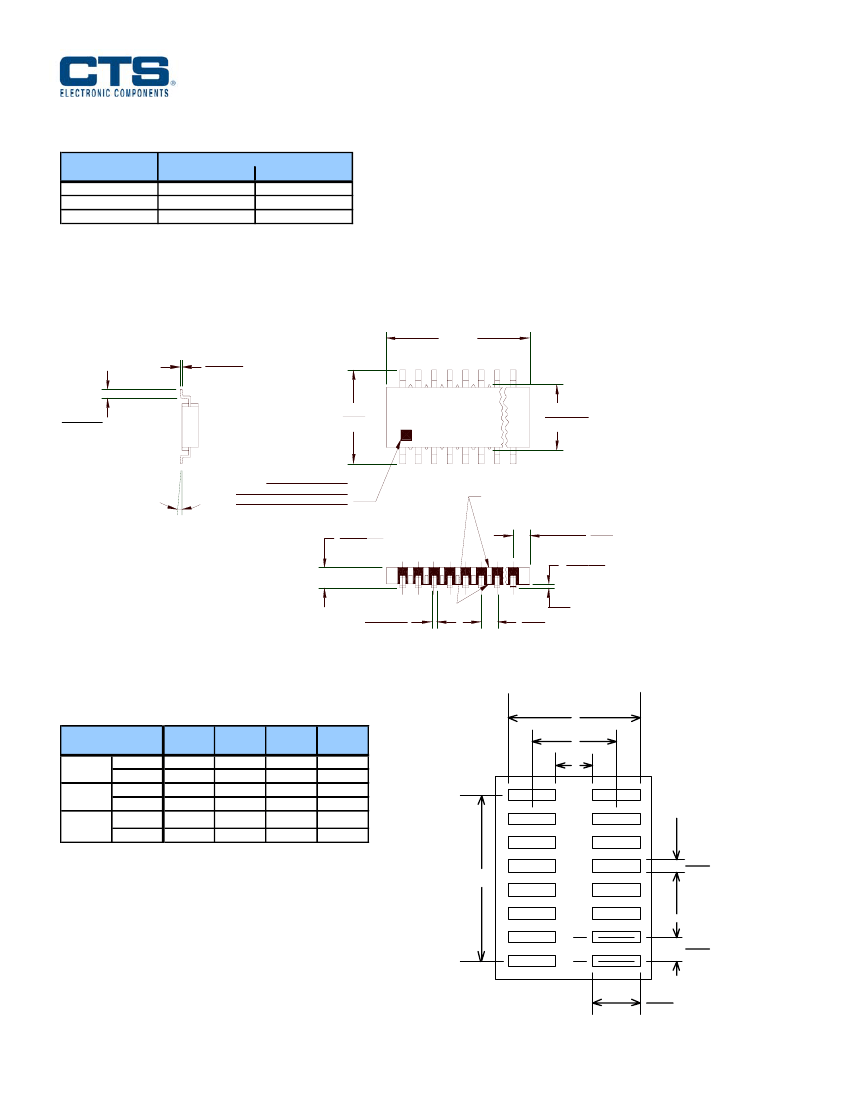

MECHANICAL SPECIFICATION
PACKAGE DRAWING
No. of Pins
14
16
20
"A" Dimension
mm
inch
9.91 ±0.25
0.390 ±0.010
11.18 ±0.24
0.440 ±0.009
13.70 ±0.25
0.540 ±0.010
3. Lead termination (e1). Barrier plating is nickel (Ni) with tin/silver/copper (Sn Ag Cu) finish.
4. Reflow conditions per JEDEC-J-STD-020, +260°C maximum.
Series 768
Notes:
1. Lead Co-Planarity - 0.10mm maximum [0.039in.]
2. General Tolerances - ±0.25mm [±0.010in.]
A DIM.
.200
+.050
-.030
+.002
.00 8
-.001
.810
-.300
.032
+.013
-.012
+.330
7.62 0
.300
PART
NO.
5.5 90
-.250
.220
+.005
-.010
+.130
DATE CODE
0°- 8°
BELOW
SEATING
PLANE
MODULES WILL B E
MARKED WITH A SQUARE
AT PIN #1 (TOP MARKING)
INSULA TION COATING
APPLIED O N TWO SURFACES
1.350 MAX. TYP.
.053
.190 ±.060
.0075±.005
1.600 ±.200
.063±.008
NOTE #1
.430±.050
.017±.002
1.270
TYP.
.050
RECOMMENDED LAND PATTERN
LEAD COUNT
14 Pin
16 Pin
20 Pin
mm
in.
mm
in.
mm
in.
A
5.34
0.21
5.34
0.21
5.34
0.21
B
7.37
0.29
7.37
0.29
7.37
0.29
C
9.40
0.37
9.40
0.37
9.40
0.37
D
7.60
0.30
8.90
0.35
11.40
0.45
C
B
A
D
0.63
TYP.
.025
1.27
.050 TYP.
2.03
.080 TYP.
Document No. 008-0350-0
Page 4 - 4
Rev. B
