DTSF-2R-Q-T/R: DescriptionSwitch, SPST, Vertical, 0.05A, 12VDC, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size276KB，6 Pages; ManufacturerDIPTRONICS MANUFACTURING INC

Download Datasheet Parametric View All

DTSF-2R-Q-T/R Overview

Switch, SPST, Vertical, 0.05A, 12VDC, Surface Mount-straight

Parameter Name	Attribute value
Maker	DIPTRONICS MANUFACTURING INC
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	RED
Actuator length	0.043 inch
Actuator material	THERMOPLASTIC
Actuator type	PUSHBUTTON
Other features	UL
body width	6.4008 mm
body height	2.0066 mm
Body length or diameter	6.1976 mm
Casing diameter	0.13 inch
center contact material	STAINLESS STEEL
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	500000 Cycle(s)
End contact material	STAINLESS STEEL
Shell material	STEEL
Insulation resistance	100000000 Ω
Manufacturer's serial number	DTS
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count
Solderability	HAND
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Terminal material	BRASS
Termination type	SOLDER

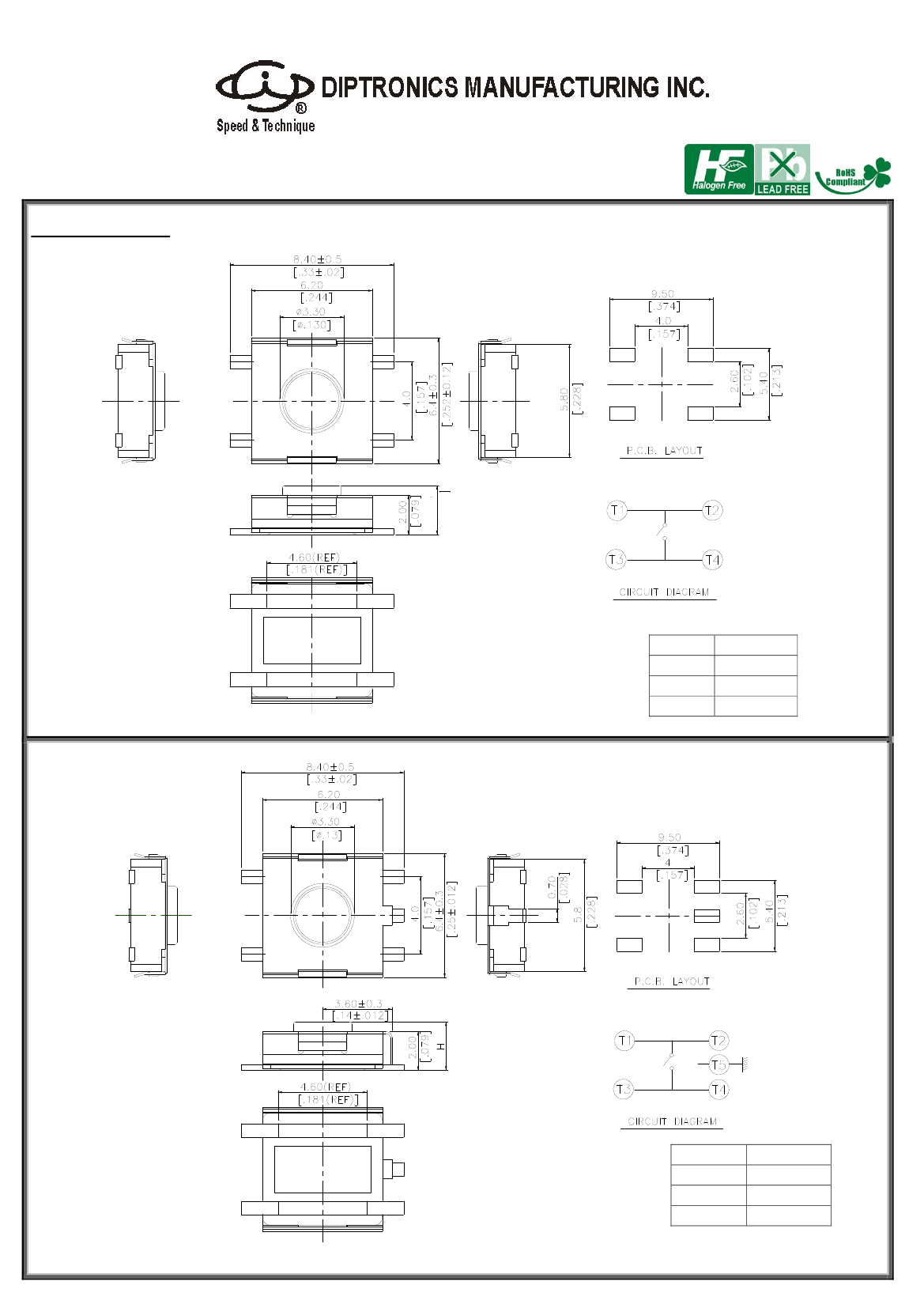

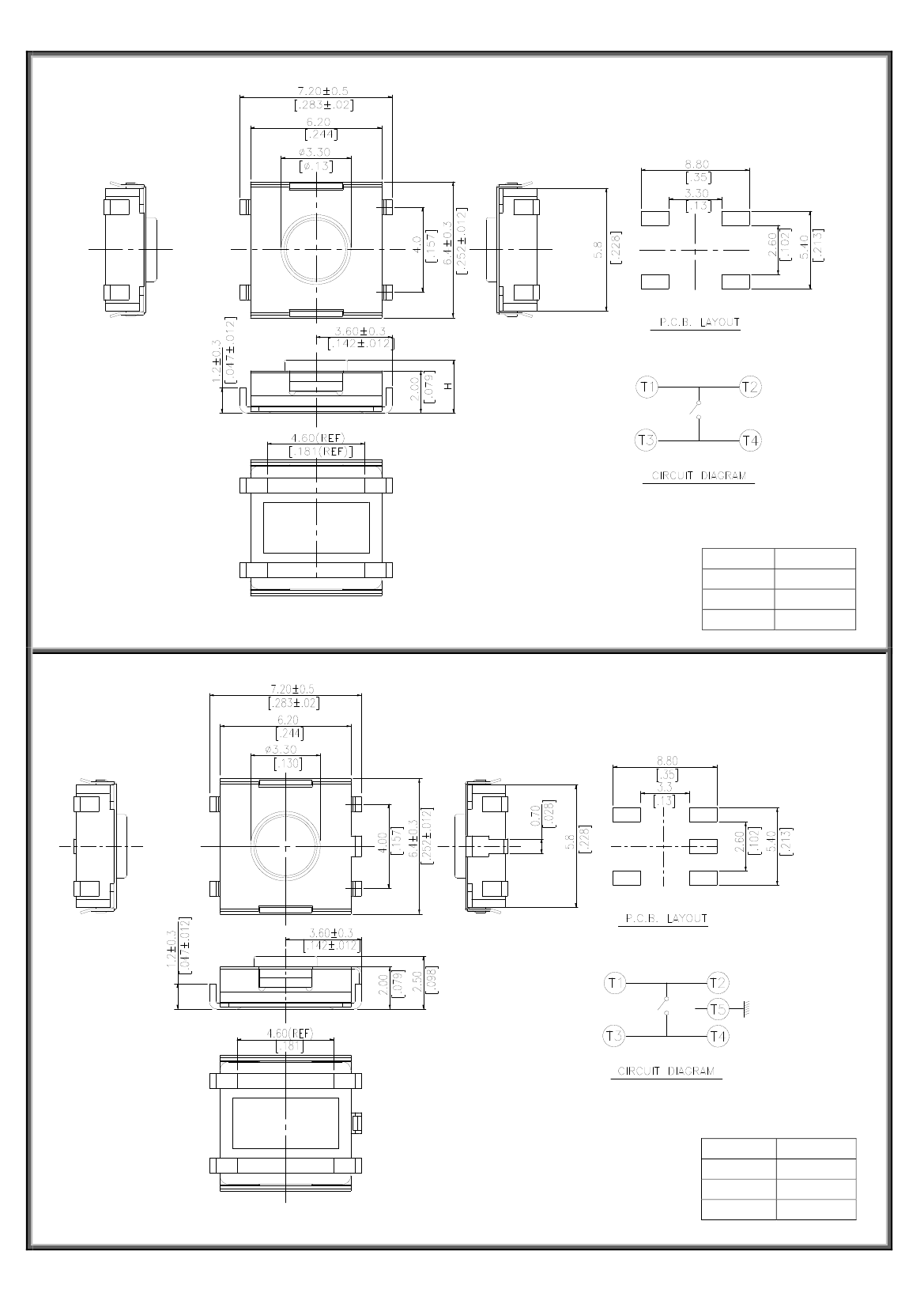

DTS(G)L-6,DTS(G)F-6 SERIES

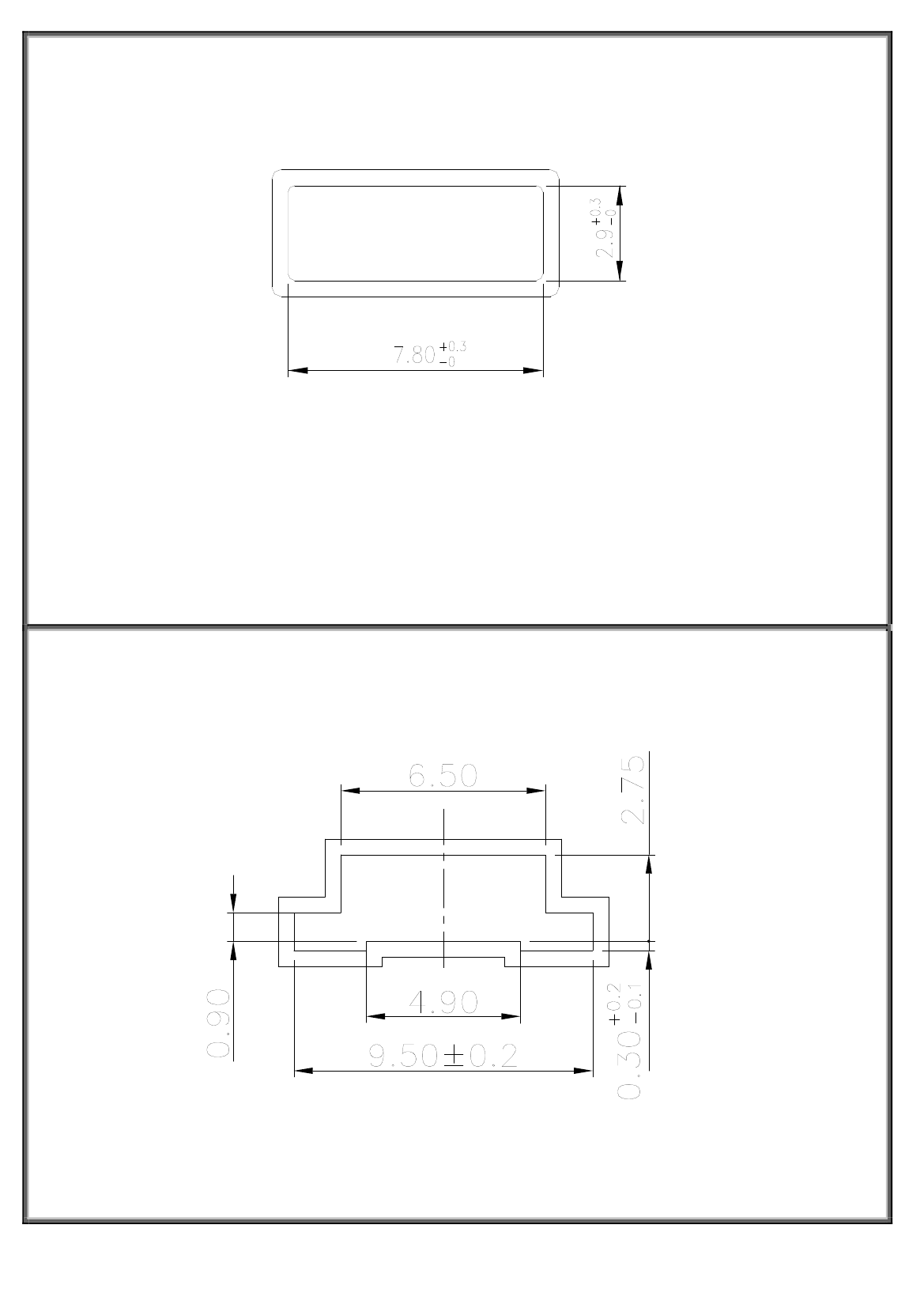

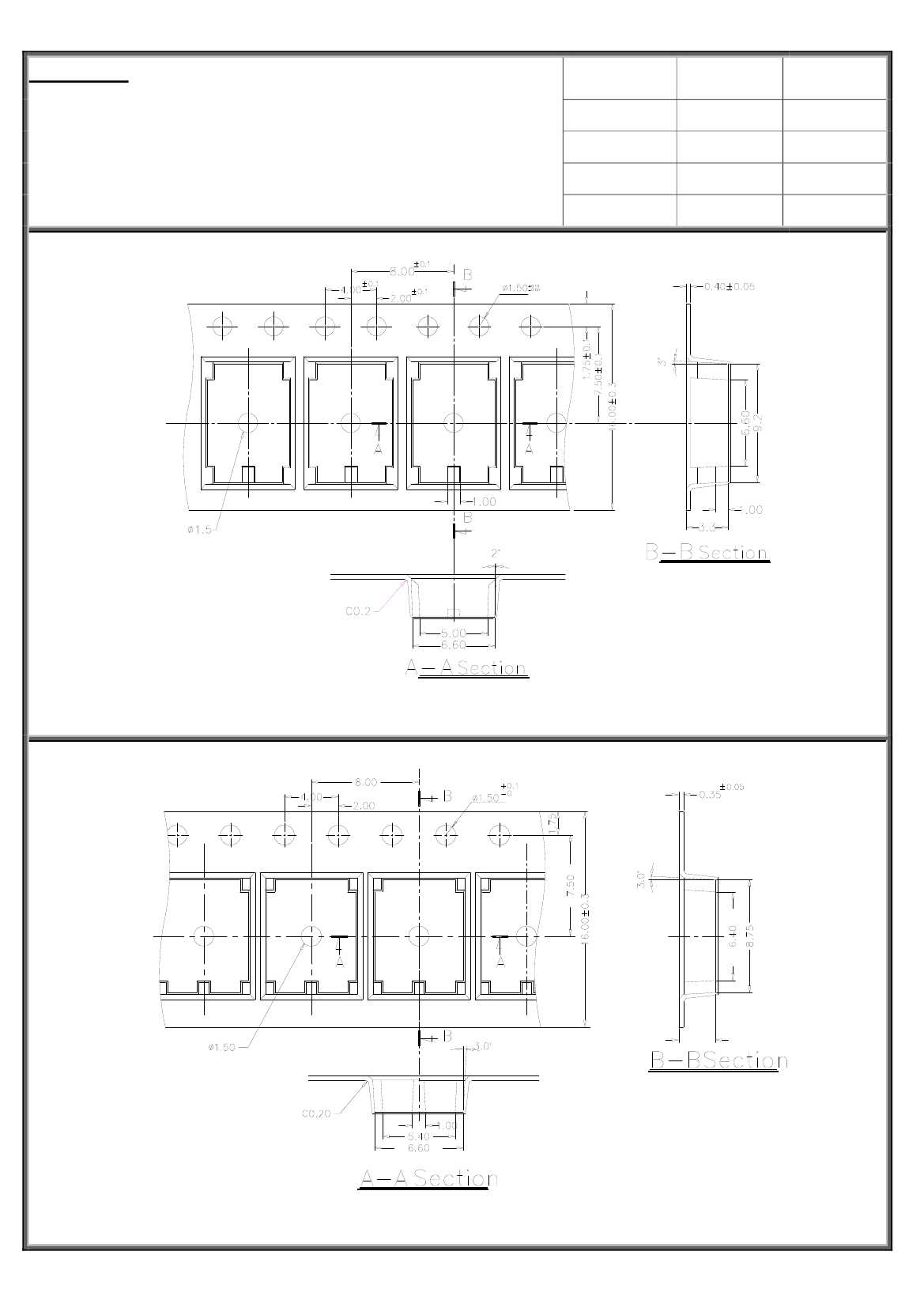

DIMENSIONS

DTSF-6

DTSF-62 3.1﹝.122﹞

DTSF-61 2.5﹝.098﹞

DTSF-60 2.0﹝.079﹞

PART NO.

General Tolerance：±0.2mm

DTSGF-6

DTSGF-62 3.1﹝.122﹞

DTSGF-61 2.5﹝.098﹞

DTSGF-60 2.0﹝.079﹞

PART NO.

General Tolerance：±0.2mm
