PCL1D-C32-JDB504L datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PCL1D-C32-JDB504L

PCL1D-C32-JDB504L: DescriptionPotentiometer, Conductive Plastic, 0.75W, 500000ohm, 20% +/-Tol, -1000,1000ppm/Cel, 8787,; CategoryPassive components The resistor; File Size311KB，4 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

PCL1D-C32-JDB504L Overview

Potentiometer, Conductive Plastic, 0.75W, 500000ohm, 20% +/-Tol, -1000,1000ppm/Cel, 8787,

PCL1D-C32-JDB504L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
Reach Compliance Code	not_compliant
structure	Square
Lead length	6.25 mm
Maximum operating temperature	125 °C
Minimum operating temperature	1 °C
Package height	7.42 mm
Package length	22.2 mm
Package form	PCB Mount
Package width	22.2 mm
Rated power dissipation(P)	0.75 W
resistance	500000 Ω
Resistor type	POTENTIOMETER
rotation angle	270 deg
series	PC
size code	8787
technology	CONDUCTIVE PLASTIC
Temperature Coefficient	-1000,1000 ppm/°C
Tolerance	20%

PCL1D-C32-JDB504L Preview

Features

■

RoHS compliant*

Space saving design

Wide range of resistance values

PC pin or solder lug terminals

Metric shaft and bushing option

Mounting brackets available

■

Linear or audio taper versions

PC - “Slimline” 22 mm Square Single Turn Panel Control

Electrical Characteristics

Standard Resistance Range

Linear Tapers.....................................................................................................................................................................................500 ohms to 1 megohm

Audio Tapers....................................................................................................................................................................................1 K ohms to 500 K ohms

Total Resistance Tolerance ...............................................................................................................................................................................................±20 %

Independent Linearity .........................................................................................................................................................................................................±5 %

Absolute Minimum Resistance........................................................................................................................................................................5 ohms maximum

Effective Electrical Angle ............................................................................................................................................................................................270 ° ± 5 °

Contact Resistance Variation ..................................................................................................................................................................7 % of total resistance

Dielectric Withstanding Voltage (MIL-STD-202, Method 301)

Sea Level ................................................................................................................................................................................................1,000 VAC minimum

70,000 Feet ................................................................................................................................................................................................500 VAC minimum

Insulation Resistance (500 V) ....................................................................................................................................................................1,000 ohms minimum

Power Rating @ 70 ºC (Voltage Limited by Power Dissipation or 350 VAC, Whichever is Less)

Linear ........................................................................................................................................................................................................................ .75 watt

Audio ........................................................................................................................................................................................................................ .25 watt

Theoretical Resolution.....................................................................................................................................................................................Essentially infinite

Environmental Characteristics

Operating Temperature Range .........................................................................................................................................................................+1 °C to +125 °C

Storage Temperature Range ...........................................................................................................................................................................-40 °C to +125 °C

Temperature Coefficient Over Storage Temperature Range ................................................................................................................................±1000 ppm/°C

Vibration ...............................................................................................................................................................................................................................20 G

Total Resistance Shift.....................................................................................................................................................................................±1 % maximum

Voltage Ratio Shift .......................................................................................................................................................................................±20 % maximum

Shock ...................................................................................................................................................................................................................................50 G

Load Life .............................................................................................................................................................1,000 Hours @ Rated Power, 20 % RH, 70 ºC

Rotational Life (No Load) .......................................................................................................................................................................................50,000 cycles

Total Resistance Shift (Linear taper)........................................................................................................................±10 ohms or 12 %, whichever is greater

Total Resistance Shift (Audio taper) .............................................................................................................................................................±20 % maximum

Moisture Resistance ....................................................................................................................................................MIL-STD-202, Method 103, Condition B

IP Rating ..............................................................................................................................................................................................................................IP 40

Mechanical Characteristics

Stop Strength (1/4 ” and 6 mm Shaft Diameters) ......................................................................................................................................79.09 N-cm (7 lb.-in.)

Mechanical Angle .......................................................................................................................................................................................................300 ° ± 5 °

Torque

Starting (Detented) ................................................................................................................................................................0.5-1.5 N-cm (0.75-2.25 oz.-in.)

Starting (Undetented)..........................................................................................................................................................1.5 N-cm (2.25 oz.-in.) maximum

Running (Undetented) ................................................................................................................................................ 0.18 to 1.06 N-cm (0.25 to 1.5 oz.-in.)

Mounting...............................................................................................................................................................................79.09 N-cm (7 lb.-in.) maximum

Weight (Single Section) .....................................................................................................................................................................21 gm (0.75 oz.) maximum

Terminals ......................................................................................................................................................................................................PC pin or solder lug

Soldering Condition

Manual Soldering......................................................................................................................96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire

370 °C (700 °F) max. for 3 seconds

Wave Soldering ..............................................................................................................................................96.5Sn/3.0Ag/0.5Cu solder with no-clean flux

260 °C (500 °F) max. for 5 seconds

Wash processes ........................................................................................................................................................................................Not recommended

Marking ....................................................................................................................Manufacturer’s trademark, resistance value, part number, and date code

Ganging..............................................................................................................................................................................................................1 cup maximum

Hardware .............................................One lockwasher and one mounting nut is shipped with each potentiometer, except where noted in the part number.

Detents ..................................................................................................................................................................................................Center, 10, 20, 30, none

For additional features or specifications not shown, consult factory.

FOR ORDERING INFORMATION SEE PAGE 4.

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

PC - “Slimline” 22 mm Square Single Turn Panel Control

Product Dimensions

Axial PC Pins

7.42

(.292)

"F"

"L"

14.7

0.5

DIA.

(.578

.020)

22.2

0.25

(.874

.010)

11.1

(.437)

PANEL HOLE DIMENSIONS

9.53

(.375)

1 2 3

9.0

DIA.

(.354)

M9 X 0.75-6g SPL

1.52

(.060)

"F" =

.320

(8.13)

11.1

(.437)

2.54

5.08

(.100)

(.200)

0.79

3 PLCS.

(.031)

"E" 2 PLCS.

3.18

DIA.

(.125)

9.14

DIA.

(.360)

6.25

(.246)

6.35

9.53

(.250)

(.375)

"E" =

"L" = SEE SHAFT LENGTH TABLE

Radial PC Pins

"L"

"F"

14.7

0.5

(.578

.020)

DIA.

22.2

0.25

(.874

.010)

.320

(8.13)

11.1

(.437)

PANEL HOLE DIMENSIONS

9.53

(.375)

8.36

(.329)

11.1

(.437)

.28

(.011)

3 PLCS.

6.25

(.246)

0.79

(.031) 3 PLCS.

1 2 3

3.18

DIA.

(.125)

9.14

DIA.

(.360)

"E" 2 PLCS.

"F" =

6.35

9.53

(.250)

(.375)

"E" =

2.54

5.08

(.100)

(.200)

"L" = SEE SHAFT LENGTH TABLE

TOLERANCES EXCEPT WHERE NOTED:

.25

.XX =

(.010)

.13

.XXX =

(.005)

DIMENSIONS ARE:

(INCHES)

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

PC - “Slimline” 22 mm Square Single Turn Panel Control

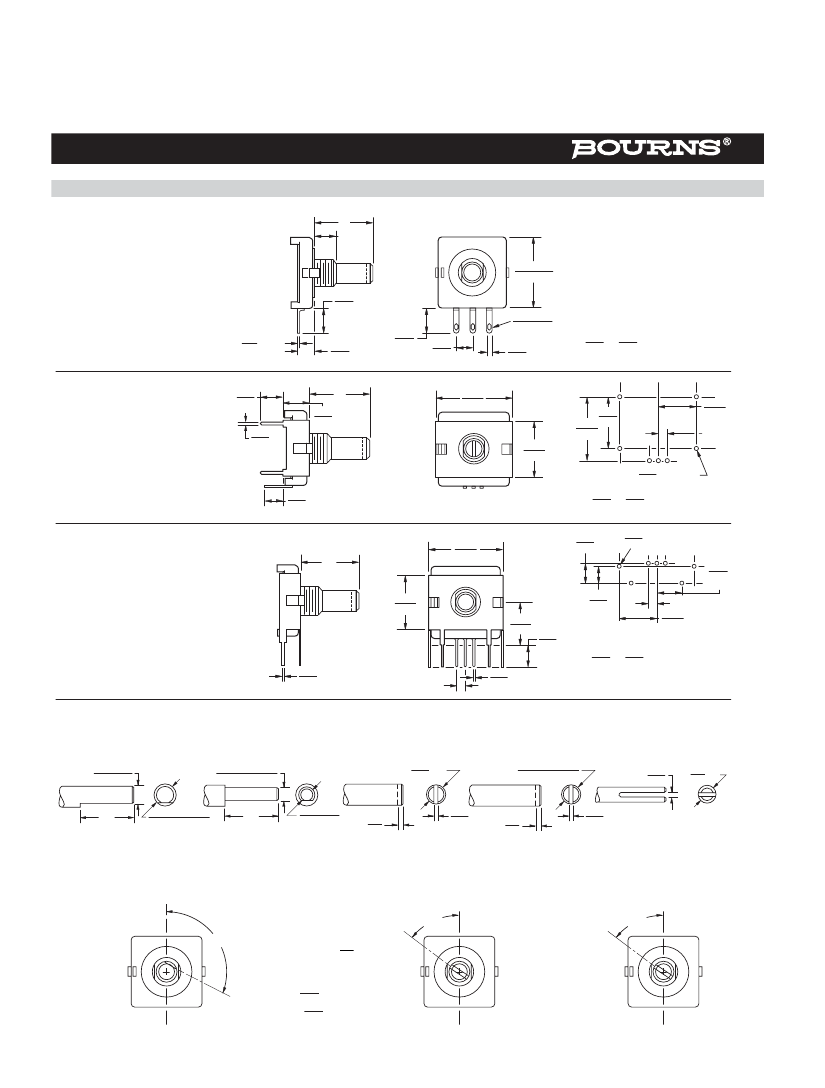

Product Dimensions

SOLDER LUGS

(Dimensions not given are the same as

Axial PC pins.

"L"

"F"

22.2

0.25

(.874

.010)

8.36

(.329)

7.75

(.305)

1.02 X 2.29

3 PLCS.

(.040 X .090)

5.08

(.200)

2 PLCS.

2.03

3 PLCS.

(.080)

"F" =

6.35

9.53

(.250)

(.375)

.28

3 PLCS.

(.011)

6.25

(.246)

Axial PC PINS

With Rear Mounting Bracket

6.83

(.269)

8.31

(.327)

0.76

(.030)

4 PLCS.

"L"

23.37

(.92)

15.2

18.87 (.600)

(.743)

17.07

(.672)

1.19

DIA. 7 PLCS.

(.047)

11.43

(.450)

2 PLCS.

"E" 2 PLCS.

5.87

(.231)

"E" =

5.08

2.54

(.200)

(.100)

Radial PC PINS

With Side Mounting Bracket

"L"

23.37

(.92)

5.48

(.216)

1.19

DIA. 7 PLCS.

(.047)

7.62

(.300)

2 PLCS.

17.07

(.672)

12.62

(.497)

6.83

(.269)

5.08

(.200)

"E" 2 PLCS.

11.43

2 PLCS.

(.450)

"E" =

0.76

4 PLCS.

(.030)

0.79

(.031) 3 PLCS.

5.08

2.54

(.200)

(.100)

"E" 2 PLCS.

SHAFT STYLES AND ORIENTATION (Full CCW Rotation)

Shaft Style

5.54

.076

(.218

.003)

Shaft Style

3.94 + .051/ - .025

(.155 + .002/ - .001)

Shaft Style

6.00

DIA.

(.236)

Shaft Style

6.32 + 0.03/ - 0.08

(.249 + .001/ - .003)

DIA.

1.19

(.047)

1.19

(.047)

Shaft Style

1.57

(.062)

4.7

DIA.

(.185)

"D"

6.32 + 0.03/ - 0.08

(.249 + .001/ - .003)

DIA.

"D"

4.75

.051

DIA.

(.187

.002)

1.6

(.063)

1.6

(.063)

"D" dimensions extend from shaft end to bushing face

"D" = (shaft length, FMS) – (bushing length)

Shaft Orientations

Shaft Styles

C, J

Shaft Styles

B, R

° ±

120

° ±

Slot depth (Y shaft) 9.65 (.380)

for shafts <1 " (2.54) length;

14.7 (.520) for shafts

≥1

(2.54) length

Shaft Style

° ±

DIMENSIONS:

(IN.)

TOLERANCES EXCEPT WHERE NOTED:

.25

(.010)

.13

.XXX =

(.005)

.XX =

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

How to Order PC “Slimline” Panel Controls

RoHS IDENTIFIER

Code Description

Compliant

SHAFT LENGTH (FMS)

Available Shaft

Code Description

Styles

1/2 ” (12.7 mm) Length

5/8 ” (15.9 mm) Length

3/4 ” (19 mm) Length

B, C, J, Y

7/8 ” (22.2 mm) Length

B, C, J, Y

1 ” (25.4 mm) Length

B, C, J, Y

1-1/8 ” (28.6 mm) Length

B, C, J, Y

Metric

19 mm Length

22 mm Length

24 mm Length

Code

501

102

252

502

RESISTANCE VALUES

Code

500 Ω

103

10 KΩ

104 100 KΩ

1 KΩ

203

20 KΩ

254 250 KΩ

2.5 KΩ

253

25 KΩ

504 500 KΩ

5 KΩ

503

50 KΩ

105

1 MΩ

ELEMENT TAPER VERSIONS

Code Taper Description

Lin. CP ±20 %

CW Audio CP ±20 %

CCW Audio CP ±20 %

SHAFT STYLES (See Outline Drawing)

Code Description

1/4 ” (6.35 mm) Dia. Slotted

1/4 ” (6.35 mm) Dia. Flatted

3/16 ” (4.76 mm) Dia. Flatted

6 mm Dia. Slotted

(Use Metric Lengths Only)

3/16 ” (4.76 mm) Dia. Split Shaft

DETENT CONFIGURATIONS

Code Taper Description

No Detents

10 Detents

Center Detent Only

20 Detents

30 Detents

CCW Detent Only

ANTI-ROTATION LUG

Code Description

9:00 Position

None

NO. SECTIONS

Single

BUSHING CONFIGURATION

Available Shaft

Code Description

Styles

9 mm x .250 ” (6.35 mm) Length

All

Threaded M9 x 0.75 6g 5 Pl

9 mm x .375 ” (9.53 mm) Length

B, C, R

Threaded M9 x 0.75 6g 5 Pl

HOUSING TERMINAL CONFIGURATION

Code

Features

A B C D E F

Rear Mounting Bracket

Side Mounting Bracket

Axial Terminals .100 ” (2.54 mm) Centers

Radial Terminals .100 ” (2.54 mm) Centers

X X

Radial Terminals .200 ” (5.08 mm) Centers

Solder Lugs .200” (5.08 mm) Centers

Axial Terminals .200 ” (5.08 mm) Centers

Hardware Included

X X

Panel mount hardware not included as standard on bracketed versions.

The sample part number demonstrates the identification code for Bourns

Slimline Potentiometers. The part number shown is a commonly used model,

typically available from stock.

Boldface features are Bourns standard options. All others are available with

higher minimum order quantities.

Asia-Pacific:

Tel: +886-2 2562-4117 • Fax: +886-2 2562-4116

Europe:

Tel: +41-41 768 5555 • Fax: +41-41 768 5510

The Americas:

Tel: +1-951 781-5500 • Fax: +1-951 781-5700

www.bourns.com

REV. 08/09

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Humidity detector circuit diagram

Simple and practical charger circuit diagram

AD7520 double buffer interface through 8031P0 port

Fire alarm 2

Single-phase motor thyristor electronic stepless speed regulation circuit

TPMS (Tire Pressure Monitoring System) Project Report: TPMS (Tire Pressure Monitoring System) Project Report--------On Self-Development and Outsourcing Development 1. Project Development 1. Selecting a Solution The selection of a solution for a TPMS proje...; qiaoxiang613 Automotive Electronics

I made a translation robot using WeChat, it's quite fun: The Youdao Dictionary on mobile phone is already over 20M, how can I bear it? I can’t stand the useless functions. I remembered that the WeChat public platform is quite interesting. I applied for one ...; astwyg Robotics Development

Solving VCNL4020-GS08: I would like to ask an expert to know why the VCNL4020-GS08 sensor is not stable after welding. The light is sometimes on and sometimes not. It cannot be triggered. Why? If anyone knows, please help m...; 许大大 Sensor

Help, about s2005 socket simulator: I can set up the simulator in vs2005, and the simulator can access the Internet (using DMA transmission), but when programming sockets (TCP transmission), when the client runs in ppc 2003, they cannot...; hh305 Embedded System

A fully automatic multi-purpose emergency light: [size=4] The emergency light introduced this time is usually connected to the mains and is in a fully charged standby state. Only when the mains suddenly fails and the ambient light suddenly changes f...; qwqwqw2088 DIY/Open Source Hardware

The role of AFIO in stm32: When debugging the OC output of the stm32 timer, I did not use the pin remap function, so I think it is not necessary to turn on the AFIO clock, but many forum users think it is necessary to turn it o...; sb576763418 stm32/stm8

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
