ARS-01-L3-15-GD15 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> ARS-01-L3-15-GD15

Preview

ARS-01-L3-15-GD15: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size109KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

ARS-01-L3-15-GD15 Overview

Board Connector, 15 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

ARS-01-L3-15-GD15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.222 inch
body length	1.52 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	ARS-01-L3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

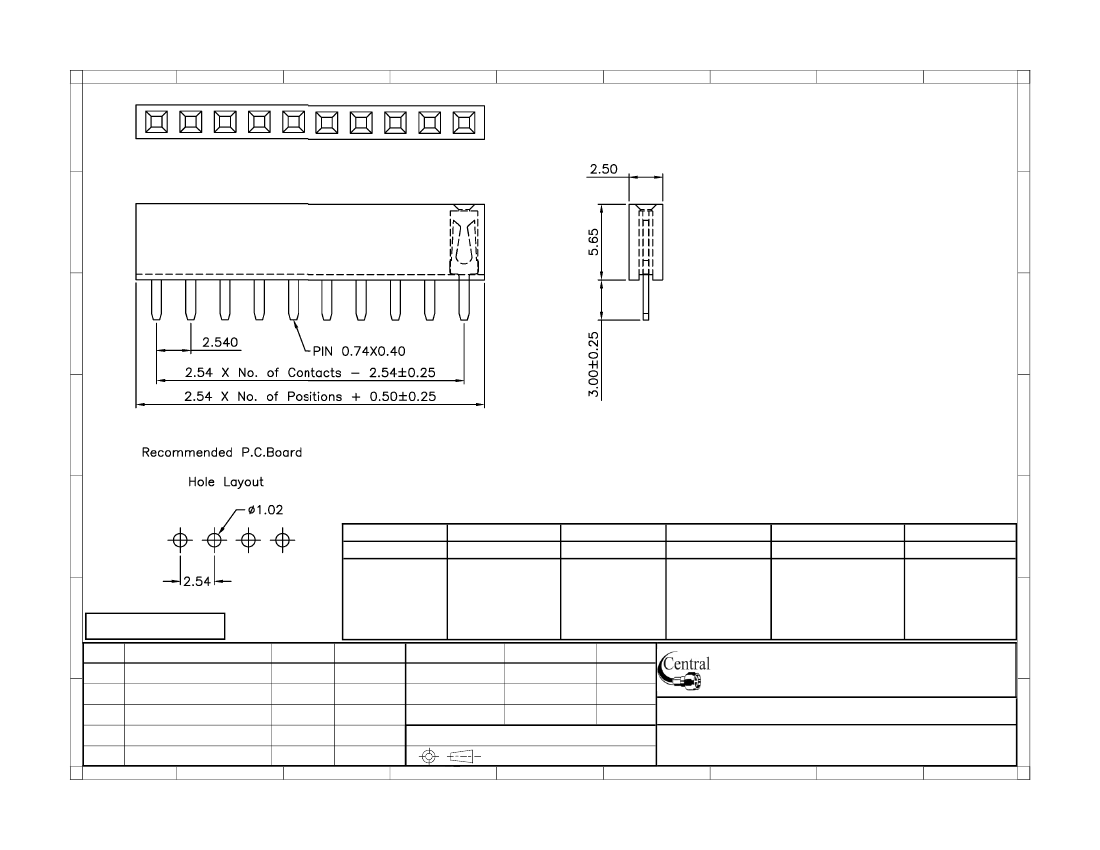

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Resistance:

Insulation Material:

Insulation Resistance:

Withstanding:

Operating Temperature:

3Amp

Phosphor Bronze

20mΩ Max.

Polyester, UL94V-0

1000MΩ Min.

600V AC/DC

-40C to +105C

C

D

E

Series

ARS

.100 Receptacle

Strip

F

RoHS compliant

Rev.

Description

Date

Approved

Rows

XX

01=Single Row

02=Dual Row

03=Single Row R/A

04=Dual Row R/A

Profile

L3

L3=5.65mm

Others available

Positions

XX

Single Row 02-40

Dual Row 04-80

Plating

XX

TN=Tin

SGXX=Selective Gold

GDXX=Gold

XX=Flash if blank,

15,30,50u”

Options

XX

Blank=None

SM=Surface Mount

E

F

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

09/20/05

09/20/05 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

ARS-01-L3-XX-XX-XX

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: .100 Receptacle Strip, Single Row, 5.65mm Profile

1

2

3

4
