CFPC-080-SAZB-28-RUS-GD1-TB Overview

Headers and Edge Type Connector,

CFPC-080-SAZB-28-RUS-GD1-TB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99

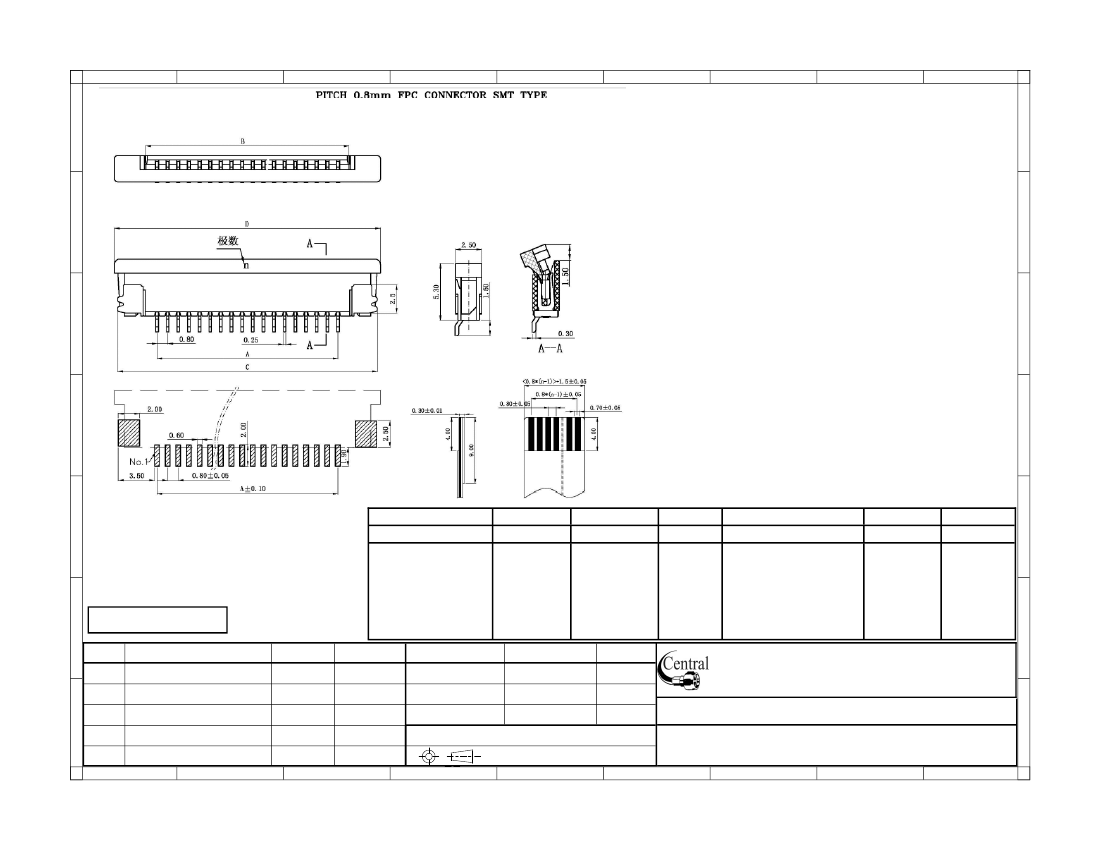

Preview

Download Datasheet

View All

A = 0.8 x (P-1)

B = 0.8 x (P+1)

C = 6.4 + 0.8 x P

D = 7.1 + 0.8 x P

SPECIFICATIONS

Current Rating:

Voltage Rating:

Withstanding:

Contact Resistance:

Insulation Resistance:

Plastic Material:

Lock Material:

Plug Spring:

Operating Temp:

0.4A

50V

200V

≤20m

500M

LCP, UL94V-0

Tinned Phosphor Bronze

Phosphor Bronze, Tin Gold

-20C to +85C

Series

CFPC

FPC/FFC connector

(Flat Printed Circuit/

Flat Flex Cable)

Zero insertion Force

Pitch (mm)

080

0.8mm

Style

SAZB

(see diagram)

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Positions

Type

XXX

04-60

VX=Vertical

RUX=Upper Contact R/A

RBX=Bottom Contact R/A

RDX=Dual Contact R/A

X: S=SMT

T=Thru Hole

Plating

TN=Tin

GDX=Gold

X=Flash if

blank, 1, 3u”

Option

TXX

TRX=Tape

& Reel

TBX=Tube

X=Blank

(None) C for

Pick Cap

Date

09/28/’11

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

09/28/’11

09/28/’11 Part No.:

CFPC-080-SAZB-XX-RUS-XX-TXX

Description: FPC/FFC connector, 0.8mm pitch

Central Components Manufacturing

0.00 ± 0.20 Angles ± 3’

UNIT: mm
