Z110-1001-104-Z: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size667KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

Z110-1001-104-Z Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

Z110-1001-104-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.211 inch
subject depth	0.256 inch
body length	0.368 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	.556 N
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	Z11
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.112 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

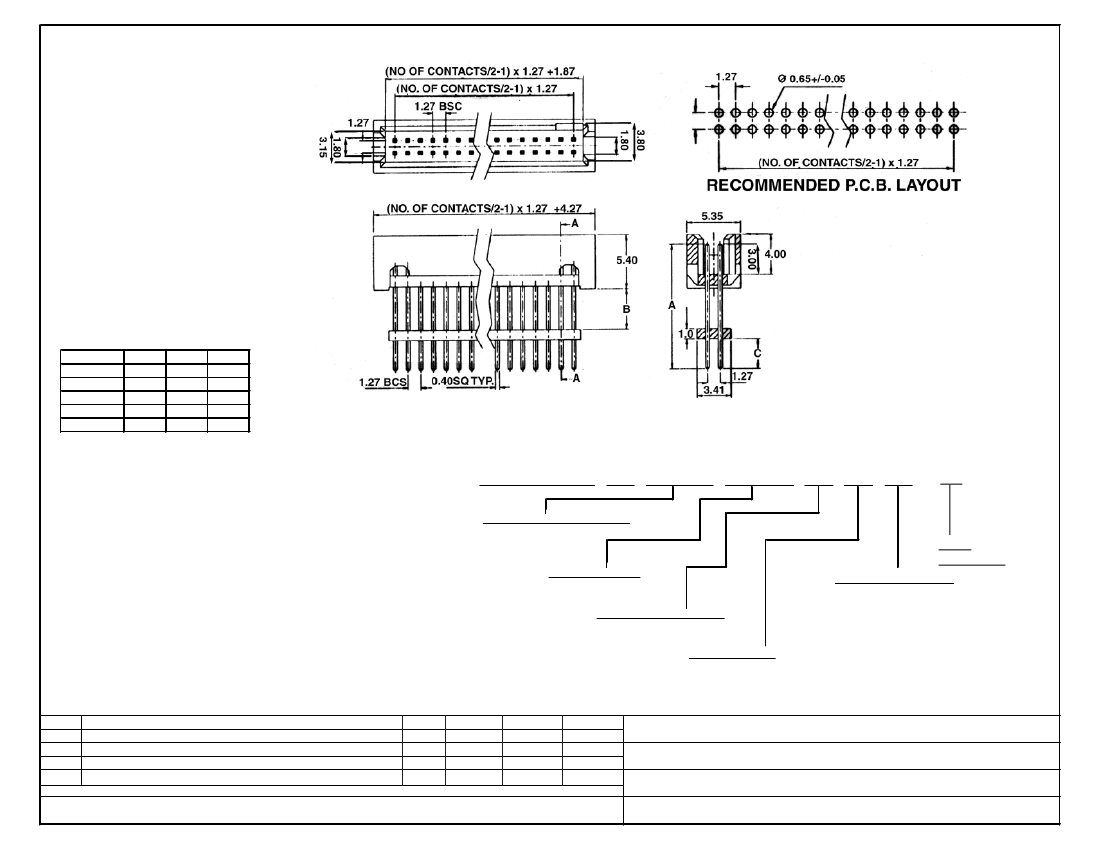

TYPE NUMBER: 01

DIMENSION NUMBER(mm)

DIM NO.

1

2

3

4

5

A

8.35

17.65

22.60

25.00

22.60

B

0.10

9.40

14.20

16.60

13.40

C

2.85

3.00

3.80

HOW TO ORDER:

1

Z

1

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE:

< 30 Milliohm Max.

INSULATION RESISTANCE:

> 5000 Megaohm Min.

DIELECTRIC WITHSTANDING VOLTAGE:

600V (rms) AC for 1 Minute

OPERATING TEMPERATURE: -55C to +105C

MA TERIA L :

INSULATOR: High Temperature Thermoplastic UL94V-0

CONTACT: High Strength Copper Alloys

MA TERIA L :

DURABILITY: 50 Cycles

RETENTION FORCE: 300g Min.

INSERTION FORCE: 56g

SOLDERABILITY: Per MIL-STD-202F Method 208D

Rev

0

A

Issued

Revised for RoHS Compliance

Drawn

S.E.

B.S.

0

-

X

-

X

-

Z

NUMBER OF CONTACTS:

01 thru 98 (A0=100)

TYPE NUMBER:

SEE TYPE NUMBER

DI MENSI ON NUMBER:

SEEDI MENSI ON NUMBER

POST OPTI ON:

0 - N/ AFORSTRAIGHT(TH)

1 - W POST

/

2 - W OUT POST

/

Checked

S.M.

Approved

S.M.

Date

4/1/98

7/09/08

RoHS

COMPLIANT

CONTACT PLATI NG:

0- TIN

1 - GOLD FLASH

3 - 10u" GOLD

4 - 15u" GOLD

5 - 30u" GOLD

6 - FLASH ON CONTACT AR

E A

7 - 10u" ON CONTACT AREA

8 - 15u" ON CONTACT AREA

9 - 30u" ON CONTACT AREA

SMP TECHNOLOGY, INC.

Stacking Box Header, 1.27mm Pitch, Single Polarization

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: Z 1 1

Pg: 1
