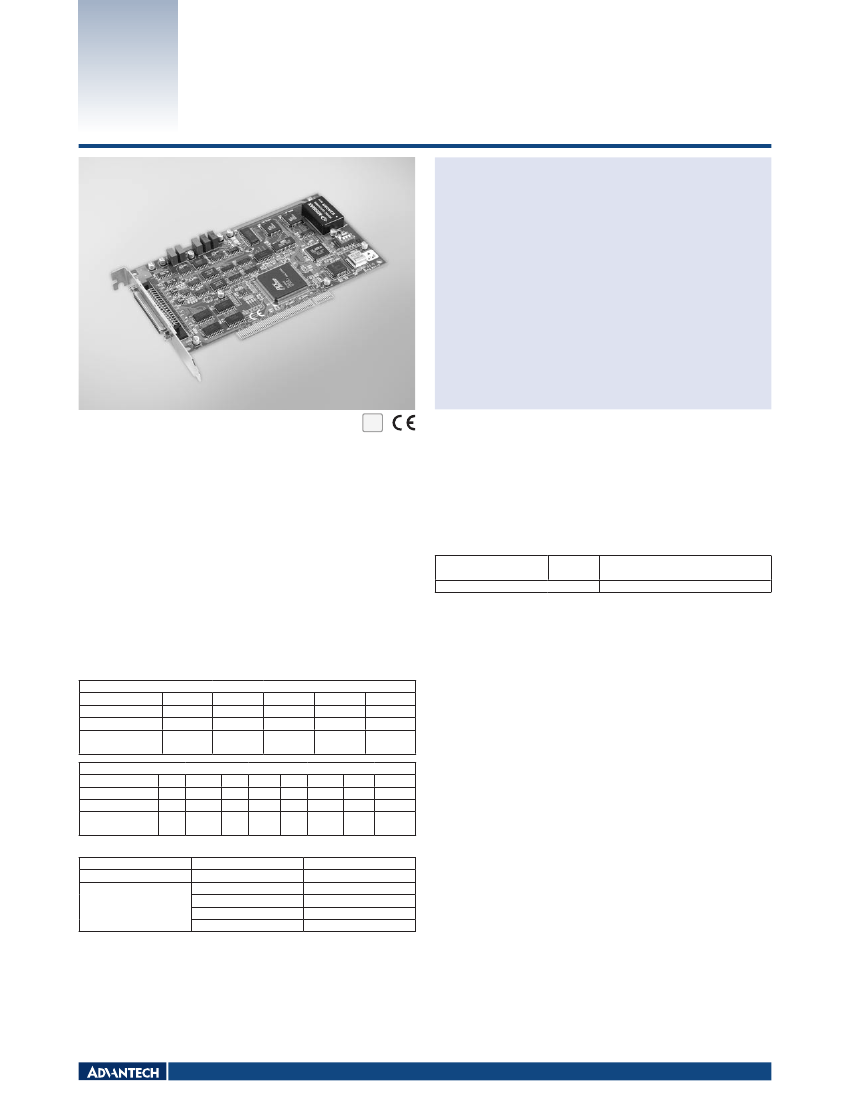

PCI-1710/L
PCI-1710HG/HGL
100 kS/s, 12-bit, 16-ch PCI
Multifunction Card
100 kS/s, 12-bit, 16-ch PCI
Multifunction Card with High Gain
Features
16-ch single-ended or 8-ch differential or a combination of analog input
12-bit A/D converter, with up to 100 kHz sampling rate
Programmable gain
Automatic channel/gain scanning
Onboard FIFO memory (4,096 samples)
Two 12-bit analog output channels (PCI-1710/1710HG only)
16-ch digital input and 16-ch digital output
Onboard programmable counter
BoardID™ switch
RoHS
2002/95/EC
COMPLIANT
Introduction
The PCI-1710 Series are multifunction cards for the PCI bus. Their advanced circuit design provides higher quality and more functions, including the five most desired measurement
and control functions: 12-bit A/D conversion, D/A conversion, digital input, digital output, and counter/timer.
Specifications
Analog Input
Channels
Resolution
FIFO Size
Overvoltage Protection
Input Impedance
Sampling Modes
Input Range
PCI-1710/1710L
Gain
Bipolar
Unipolar
Accuracy
(% of FSR ±1LSB)
PCI-1710HG/1710HGL
Gain
0.5
Bipolar
±10
Unipolar
N/A
Accuracy
0.1
(% of FSR ±1LSB)
Model
PCI-1710/1710L
PCI-1710HG/1710HGL
0.5
±10
N/A
0.1
16 single-ended/ 8 differential (software programmable)
12 bits
4,096 samples
30Vp-p
1 GW
Software, onboard programmable pacer and external
(V, software programmable)
1
±5
0 ~ 10
0.1
2
±2.5
0~5
0.2
4
±1.25
0 ~ 2.5
0.2
8
±0.625
0 ~ 1.25
0.4
Internal Reference
External Reference
Unipolar
0 ~ +5
0 ~ +10 V
0 ~ +x V @ -x V (-10
≤
x
≤
10)
Slew Rate
Driving Capability
Operation Mode
Accuracy
10 V/µs
3 mA
Software polling
INLE: ±1 LSB, DNLE: ±1 LSB
Digital Input
Channels
Compatibility
Input Voltage
16
5 V/TTL
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Digital Output
1
±5
0 ~ 10
0.1
5
±1
N/A
0.2
10
±0.5
0~1
0.2
50
±0.1
N/A
0.4
100
±0.05
0 ~ 0.1
0.4
500
±0.01
N/A
0.8
1000
±0.005
0 ~ 0.01
0.8
Channels
Compatibility
Output Voltage
Output Capability
Maximum Sampling Rate
(S/s, depending on PGIA setting time)
Gain
0.5, 1, 2, 4, 8
0.5, 1
5, 10
20, 100
500, 1000
Max. Sampling Rate
100 kS/s
100 kS/s
35 kS/s
7 kS/s
770 S/s
16
5 V/TTL
Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Sink: 8.0 mA @ 0.8 V
Source: -0.4 mA @ 2.0 V
Pacer/Counter
Channels
Resolution
Compatibility
Max. Input Frequency
1
16 bits
5 V/TTL
1 MHz
Analog Output (PCI-1710/1710HG only)
Channels
Resolution
Output Rate
Output Range
2
12 bits
Static update
(V, software programmable)
Data Acquisition Boards
PCI-1710/L
PCI-1710HG/HGL
Specifications Continued
General
PCI V2.2
1 x 68-pin SCSI female connector
175 x 100 mm (6.9" x 3.9")
Typical: 5 V @ 850 mA
Max: 5 V @ 1.0 A
Operating Temperature
0 ~ 60° C (32 ~ 140° F) (refer to IEC 68-2-1, 2)
Storage Temperature
-20 ~ 70° C (-4 ~ 158° F)
Storage Humidity
5 ~ 95% RH non-condensing (refer to IEC 68-2-3)
Bus Type
I/O Connector
Dimensions (L x H)
Power Consumption

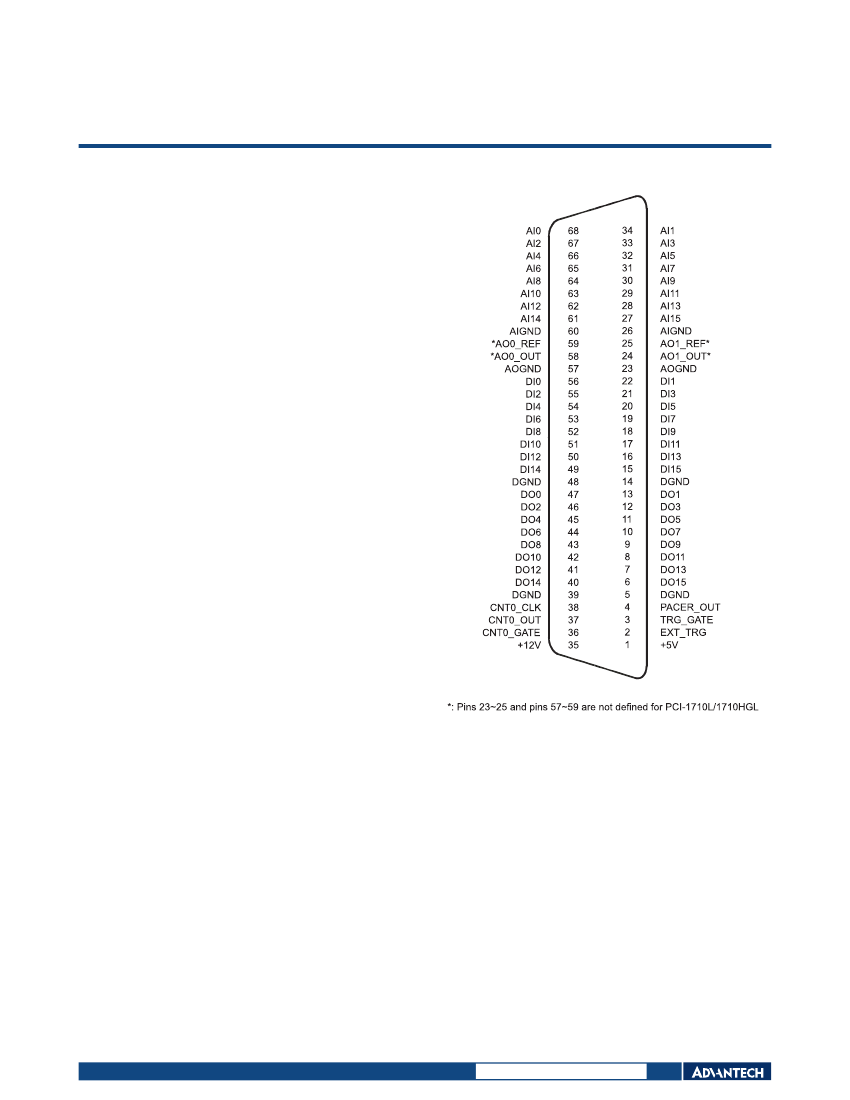

Pin Assignments
Ordering Information
PCI-1710
PCI-1710L
PCI-1710HG
PCI-1710HGL
PCLD-8710
PCL-10168-1
PCL-10168-2
ADAM-3968
100 kS/s, 12-bit Multifunction Card
100 kS/s, 12-bit Multifunction Card w/o AO
100 kS/s, 12-bit High-gain Multifunction Card
100 kS/s, 12-bit High-gain Multi. Card w/o AO
DIN-rail Wiring Board w/ CJC
68-pin SCSI Shielded Cable, 1 m
68-pin SCSI Shielded Cable, 2 m
68-pin DIN-rail SCSI Wiring Board
Online Download
www.advantech.com/products
