PCI 350
Features
350 Watt CompactPCI Power Supply
Tracewell
Power
• 350 Watts in 6U x 8HP (two slots) x 160mm
• Wide-range AC or 48 Volt DC input
• Standard PCI voltages: 5V, 3.3V, ±12V
• Four output-current options:
5V/40A
5V/50A
3.3V/50A
3.3V/60A
3.3V/25A
3.3V/25A
5V/20A
5V/20A
12V/9A
12V/9A
12V/9A
12V/9A
-12V/2A
-12V/2A
-12V/2A
-12V/2A
• Power factor correction (PFC)
• N+1 redundant and hot swap
• Internal OR-ing diodes
• Single-wire current sharing on
5V, 3.3V, +12V outputs
• Fully shielded
• IEEE1101.10 compliant front panels
• Ruggedized mechanical design
• Optional high-profile cooling fins
available on 48V input version
• UL, cUL approved
• CE mark
• EMC approved
• Two year warranty

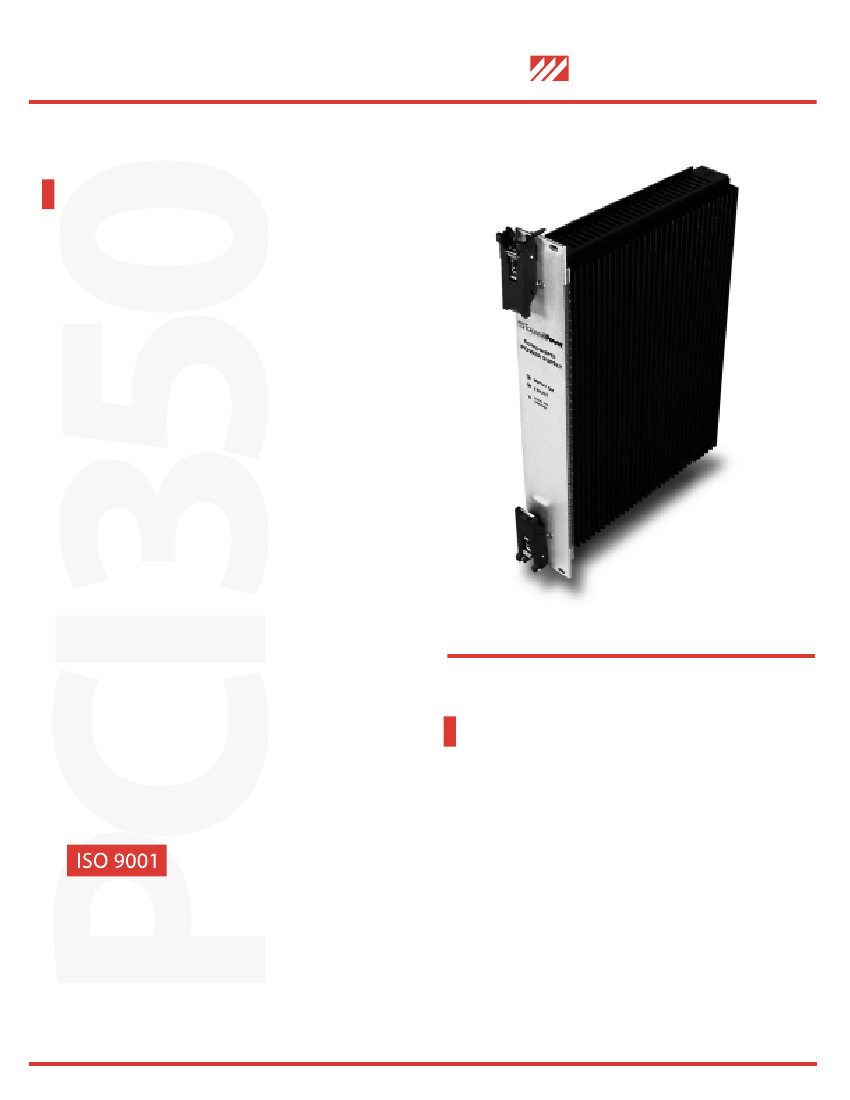

PCI 350 AC input power supply shown
with optional low-profile handles
Description
The PCI 350 is a high-performance power supply
for use in 6U CompactPCI computer, test and telecom
systems. The PCI 350 meets all of the requirements
of the PICMG CompactPCI specification plus N+1
redundant and hot swap. High-density cooling fins
are positioned directly in the airstream. All input
and output connections are through the
backplane. LED status indicators are located on
the front panel.
www.tracewellpower.com
1.800.811.1480
phone
614.847.9336
fax
614.847.9316
567 Enterprise Drive
Westerville, Ohio 43081
PCI 350
Specifications
350 Watt CompactPCI Power Supply
Tracewell
Power
Over-Voltage
............................................ Shutdown at 130% of nominal Vout. Recycle power to
reset
Over-Temperature.................................
Shutdown upon internal heatsink temperatures
exceeding limits. Recycle power to reset
Current Limiting
..................................... All outputs protected against overload and short circuit.
Straight-line current limiting, does not fold-back or latch-
up during startup or load transients. Automatic recovery
Safety.
.......................................................... UL, cUL, and CB report UL1950 and EN60950
EMC
............................................................... Emissions below EN55022 class A and EN61000-3-2, 3.
Immunity to EN61000-4-2, 4, 5
Input Fuse.
................................................. Internal fusing included
Output Isolation......................................
All outputs and control signals are SELV circuits
referenced to GND with reinforced insulation to the AC
primary. GND should be connected to chassis ground
in the system.
Leakage Current
..................................... 1.0 mA max. at 240 Vac
Dielectric Strength.................................
AC: 2200 Vdc from input to chassis ground
DC: 500 Vdc from input to chassis ground
Indicators
................................................... Green LED indicating INPUT OK
Red LED indicating a power supply FAULT
Connector
.................................................. Positronic part no. PCI38M400A1
Mating connector part no. PCI38F300A1
Cooling
........................................................ 15 cfm/400 lfm forced air required through power
supply cooling fins and enclosure
Operating Temperature......................
-20°C to 50°C operating temperature with specified air
flow. Derate output power with reduced airflow
conditions (consult factory)
Storage Temperature...........................
-40°C to 85°C
Shock/Vibration......................................
Ruggedized construction
Output Voltage/Current Options
... 5V/40A, 3.3V/25A, +12V/9A, -12V/2A
5V/50A, 3.3V/25A, +12V/9A, -12V/2A
3.3V/50A, 5V/20A, +12V/9A, -12V/2A
3.3V/60A, 5V/20A, +12V/9A, -12V/2A
Output Power...........................................
DC Input:
AC Input:
350 Watts max
350 Watts max 105-264 Vac
300 Watts max 90-105 Vac
Input Voltage/Current
......................... AC: 100-240 Vac (90-264 Vac tolerant range), 47-63Hz,
6 A max, single phase
DC: 48 Vdc (40-72 Vdc tolerant range), 12 A max
Power Factor.............................................
0.99 typical
Inrush Current..........................................
AC: 40A max
DC: 15A max
Efficiency
.................................................... DC input: 75% min
AC input: 65% min
Efficiency increases with line voltage
Holdup Time
............................................. 20 msec min. from input power failure until FAIL# signal
drops, at full load and 90-264 Vac
AC Fail Warning.......................................
5 msec min. continued operation after FAIL# signal drops
Paralleling..................................................
Any number of power supplies can be operated in
parallel and will share 3.3V/5V/+12V current to within
10%. Remote Sense must be used when paralleling
with current sharing
Redundant/Hot Swap...........................
Full power N+1 redundant and hot-swap
Remote Sense...........................................
Compensates for up to 0.25V total distribution voltage
drop on the 3.3V/5V/+12V outputs
Line/Load Regulation...........................
1% max. over input range and 0-100% load except
-12V output which is ±10%
Minimum Load.........................................
None required
Ripple/Noise
............................................. 50 mV max. for all outputs, peak-to-peak, DC to 20 MHz
with coaxial probe and 0.1uF/22uF capacitors at the
connector
Overshoot/Undershoot
....................... None at turn-on or turn-off
Turn-on Time
............................................ 1 sec max. from power up. All output voltages come
up within 10 msec of each other.
Note: Specifications subject to change without notice
PCI 350 Status Indications
Condition
Power Supply
On/Off
ON
OFF
OFF
OFF
OFF
OFF
OFF**
OFF**
OFF**
Input OK LED
Fault LED
FAIL #
EN# low, Inputs/Outputs OK
INH# signal low
INH# high, EN# high
Inhibit switch depressed
Low AC or DC input
Internal over-temperature
Output under-voltage
Output over-voltage
Ouput short circuit
ON
ON
ON
ON
OFF
ON
ON
ON
ON
OFF
ON
ON
ON
ON*
ON
ON
ON
ON
OPEN
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
* If the input is below approx. 20 V, the FAULT LED will not illuminate
** Typically, only the ouptut exhibiting the fault conditions will be off
www.tracewellpower.com
1.800.811.1480
phone
614.847.9336
fax
614.847.9316
567 Enterprise Drive
Westerville, Ohio 43081
350 Watt CompactPCI Power Supply
PCI 350
350
300
250
Ouput Power
(Watts)
200
150
100
50
0
20
Tracewell
Power
Output Power vs Temperature and Airflow
400 LFM
300 LFM
200 LFM
100 LFM
30
40
50
60
70
Ambient Temp (°C)
Note: LFM is the airflow in feet per minute through the power supply fins and enclosure
Connector Pinout
Pin #
Signal
Pin #
Signal
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
+5V
+5V
+5V
+5V
GND
GND
GND
GND
GND
GND
GND
GND
+3.3V
+3.3V
+3.3V
+3.3V
GND
+12V
RSVD
RSVD
-12V
GND
GND
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
+5S
EN#
-SENSE
+3.3S
RSVD
DEG#
+12S
INH#
+5l
+3.3I
+12I
FAIL#
CGND
N
L
Remote sense for +5V oputput
Connect to GND to enable power supply
Remote sense return for +3.3V, + 5V, +12V outputs
Remote sense for +3.3V output
RESERVED
Open collector, low output when power supply is within
10° C of shutting down due to over-temperature
Remote sense for +12V output
Connect to GND to inhibit power supply
Connect to paralleled power supply for +5V current sharing
Connect to paralleled power supply for +3.3V current sharing
Connect to paralleled power supply for +12V current sharing
Open collector, low output when power supply has failed
Chassis ground
Neutral (AC) or 48V return (DC)
Line (AC) or -48V (DC)
38
37
36
34
35
33
32
31
30
28
29
27
25
26
24
22
23
21
19 20
17
15
13
11
9
7
5
3
1
18
16
14
12
10
8
6
4
2
www.tracewellpower.com
1.800.811.1480
phone
614.847.9336
fax
614.847.9316
567 Enterprise Drive
Westerville, Ohio 43081
PCI 350
350 Watt CompactPCI Power Supply
Tracewell
Power

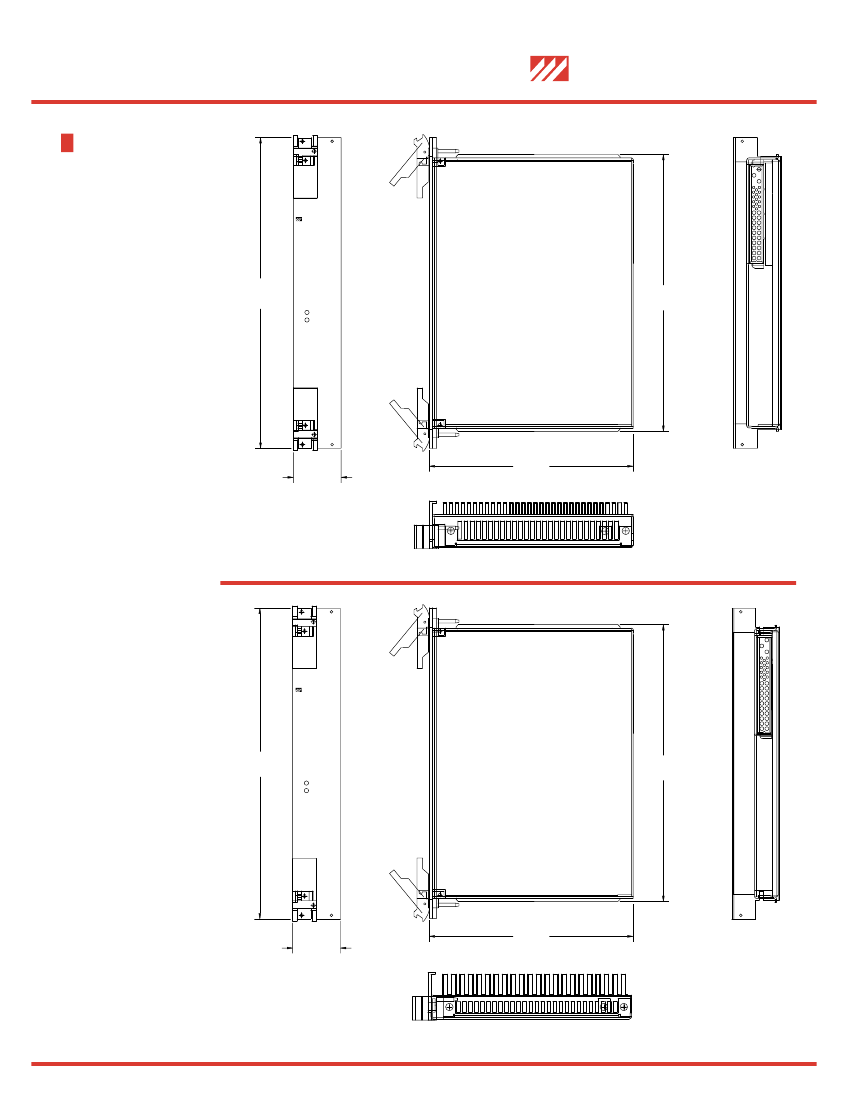

Backplane Connector Location
Power backplanes are available for both the AC and 48V power supplies: 2-slot (for one power supply)
and 4-slot (for two power supplies). Consult factory for details.
AC and 48V
Input Versions
BACKPLANE POWER
CONNECTOR LOCATION
VIEWED FROM THE
FRONT OF THE CAGE
0.517
13.14mm
0.680
17.27mm
Optional High-Profile
Cooling Fin Version
(48V input only)
BACKPLANE POWER
CONNECTOR LOCATION
VIEWED FROM THE
FRONT OF THE CAGE
0.204
5.18mm
0.680
17.27mm
0.688
17.48mm
0.375
9.53mm
5.485
139.32mm
5.485
139.32mm
Note: Please reference Section 4 (Mechanical Requirements) of the CompactPCI Specification PICMG 2.0 R2.1
Configuration
PCI350 - __ __ __ __
S
L
T
N
S
N
01
02
03
04
AC
48
48H
Example:
PCI350-AC01SL
Standard handles
Low-profile handles
Mounting screws only (no handles)
No handles or mounting screws
Standard front panel
No front panel
5V/40A, 3.3V/25A, 12V/9A, -12V/2A
5V/50A, 3.3V/25A, 12V/9A, -12V/2A
3.3V/50A, 5V/20A, 12V/9A, -12V/2A
3.3V/60A, 5V/20A, 12V/9A, -12V/2A
Wide range AC input
48V DC input
48V DC input with high-profile cooling fins
AC version with 01 output configuration, standard front panel and low profile handles
