WorldPower ™ Series
- INTERNATIONAL CLASS
2
POWER TRANSFORMER
1.
Electrical Specifications
A. Maximum Power: 20VA
B. Input Voltage and Frequency: 115/230V, 50/60Hz
C. Voltage Regulation: 15% TYP @ full load to no load
D.
E.
F.
Temperature Rise: 50 C TYP
Insulation Resistance: > 1 MEG ohm
Hi-Pot: 4000Vrms 1 minute @ Pri to Sec
4000Vrms 1 minute @ Pri to Core
4000Vrms 1 minute @ Sec to Core
2.
3.
Marking: Powervolt, part number (see table), date code, safety Logos,
input and output ratings
Safety:
UL/cUL 5085-3 Class 2 Recognized (File 246690)
UL 1446 Recognized Insulation System (File 95662)
CLASS 2
Part Number
115/230V
PCL2-20-24
Secondary Connection
24V @ 0.833A
Secondary Fuse
Inherently Limited - Not Required

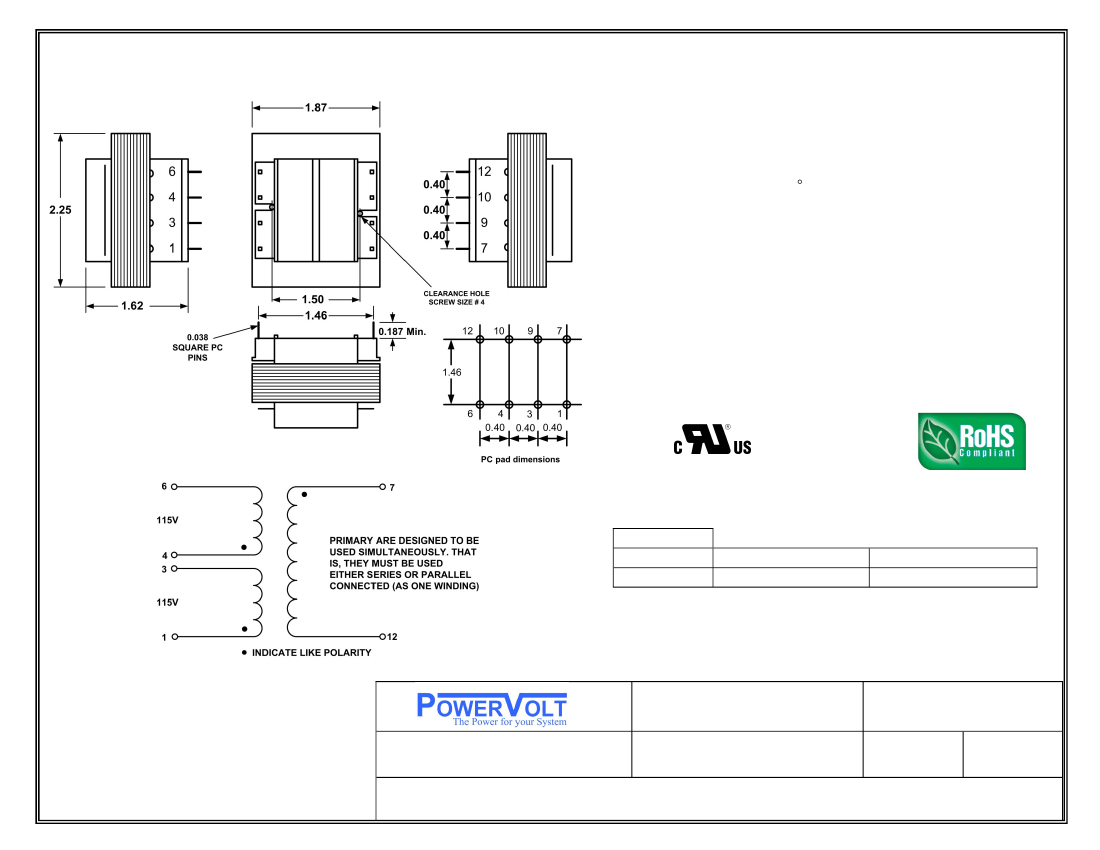

POWER TRANSFORMER
WorldPower Series - Class
2
CONTENTS OF THIS DRAWING ARE SUBJECT TO
CHANGE WITHOUT PRIOR NOTICE
PCL2-20-24
Dim: Inches
Sheet 1 of 1
Powervolt, Inc.
300 W. Factory Rd., Addison, IL 60101
PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH POWERVOLT
RETAINS THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN CONFIDENCE FOR
CONSIDERATION BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
