PCM-4386F-S0A2E: DescriptionIntel CeleronÂ® M EPIC SBC with VGA/ LVDS/ Dual LAN/ PC104 Plus; File Size285KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Compare View All

PCM-4386F-S0A2E Overview

Intel CeleronÂ® M EPIC SBC with VGA/ LVDS/ Dual LAN/ PC104 Plus

Preview

Download Datasheet

View All

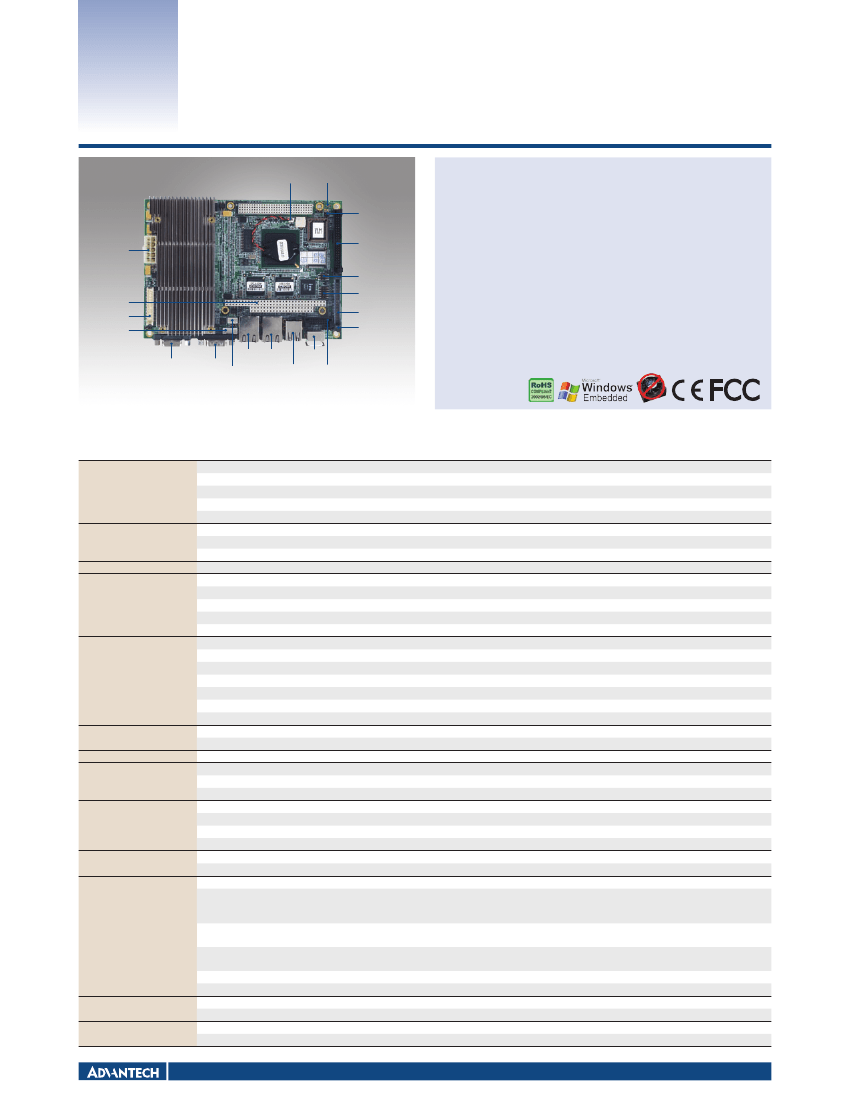

PCM-4386

Battery connector Power Switch

RS422/485

ATX/AT

power

IDE

COM2/RS232

422/485 selection

GPIO

ISA

LVDS Connector

Inverter Power

LAN1 LAN2

KB_MS

COM1

USB0/1

USB2/3/AC97

System FAN

COM2/3/4/LPT

HD & Power LED

Intel Celeron

M EPIC SBC with

VGA/ LVDS/ Dual LAN/ PC104 Plus

Features



Intel

Celeron

M processor on board



SODIMM socket supports up to 1 GB DDR 200/266 SDRAM



Display Combination: CRT + 36-bit LVDS display support



Supports 4 COM ports, 6 USB 2.0 ports, an 8-bit GPIO port



Dual 10/100 Mbps Ethernet



Supports CompactFlash/uDOC (option)



Supports ATX/ AT power



PC/104-Plus bus (Fully 8/16 bit ISA bus)

VGA

Specifications

Processor System

CPU

Front Side Bus

L2 Cache

Chipset

BIOS

Technology

Max. Capacity

Socket

CompactFlash

VGA

COM

LAN

USB

KB/MS

LPT

RS-232

RS-232/422/485

USB

Audio

GPIO

SMBus

Mode

Channel

PC/104-Plus

Speed

Controller

Interface

Controller

VRAM

LVDS LCD

Dual Independent Display

Operating Temperature

Operating Humidity

Power Type

Power Supply Voltage

Power

Power Consumption: Typical

(XP)

Power Consumption:

Max, Test in HCT

Power Management

Battery

Output

Interval

Dimensions (L x W)

Weight

Intel ULV Celeron M 600 MHz

Celeron M 1.0 GHz

400 MHz

512 KB/ 0 KB

0 KB

Intel 852GM + ICH4

Award 4-Mbit

DDR 200/266

1 GB

1 x 200-pin SODIMM

Card Type I, USB-DOM

4 x USB 2.0 (2 via USB DOM connector)

AC97, Line-in, Line-out, Mic-in (optional with PCM-410)

8-bit general purpose input/output

Supported

UDMA 33

10/100 Mbps

2 x Intel 82551ER, 82541PI (optional)

2 x RJ-45

Intel 852GM

Optimized Shared Memory Architecture up to 32 MB system memory

1 x 36-bit LVDS

CRT + LVDS

0 ~ 60° C (32 ~ 140° F), Z : -20 ~ 80° C (-4 ~ 176° F) (Optional)

0% ~ 90% relative humidity, non-condensing

AT / ATX

ATX, +5 V ± 5%, ±12 V ± 5%

AT, 5 V only to boot up, 12 V for LCD inverter and PC/104 module (12 V optional for PC/104 add on card and LCD

inverter)

2.62 A @ 5 V, 0.03 A @ 12 V, 0.49 A @ 3.3 V, 1.08 A @ 5 VSB (Celeron M 600 with 256 MB DDR266)

2.63 A @ 5 V, 0.03 A @ 12 V (Celeron M 600 with 256 MB DDR266)

APM, ACPI

Lithium 3 V / 196 mAH

System reset

Programmable 1 ~ 255 sec

115 x 165 mm (4.5" x 6.5")

0.35 kg (0.77 lb)(with Heatsink)

Memory

SSD

Coastline I/O

I/O Interface

EIDE

Expansion Slot

Ethernet

Display

Environment

Watchdog Timer

Physical Characteristics

Embedded Single Board Computers

All product specifications are subject to change without notice

Last updated : 24-Mar-2009
