PCM-P50N-AC Overview

50W Output, 6V to 40V DC Input Range

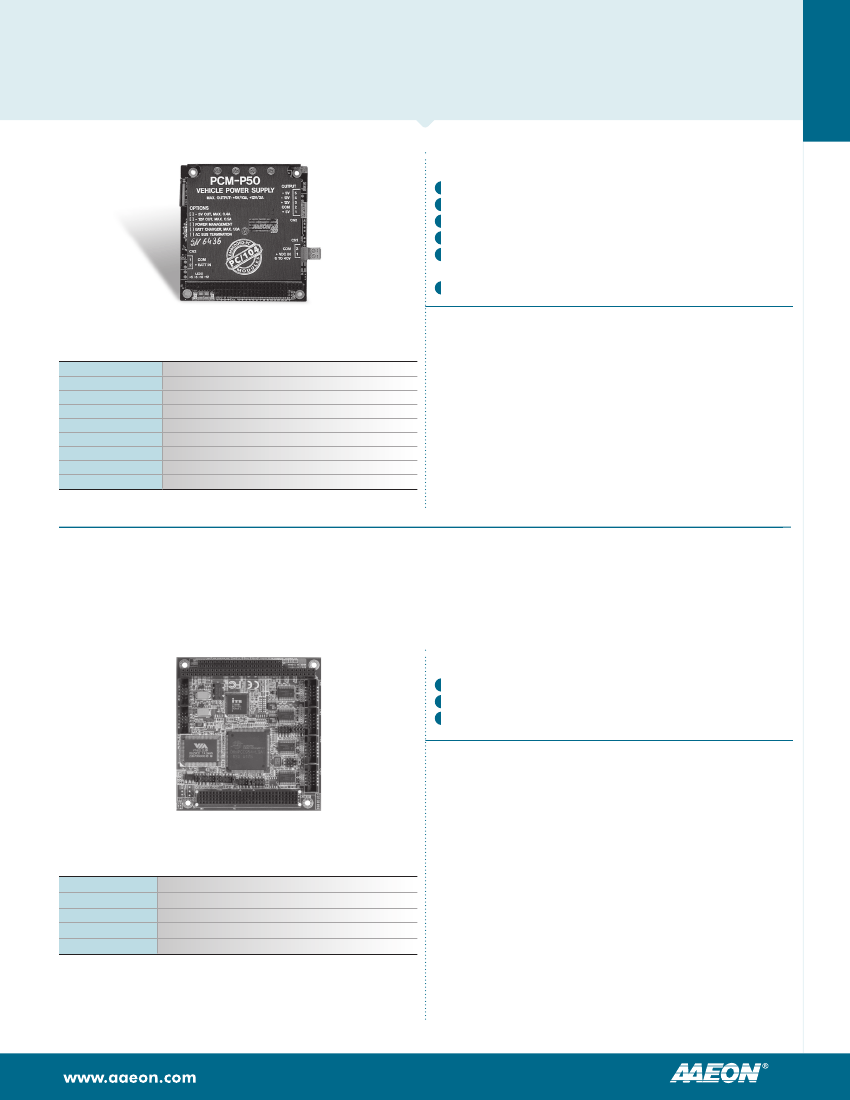

PCM-P50
Power Modules
PC/104 Vehicle Power Supply
Features
50W Output
+6V to +40V DC Input Range
PCM-P50: +5V & +12V Output
PCM-P50N: ±5V & ±12V Output
PCM-P50N-AC: ±5V & ±12V Output with AC Bus
Termination
PC/104 Compliant
Specifications
Input Voltage
Output Voltage
Peak to Peak Ripple
Load Regulation
Line Regulation
Output Ripple
Quiescent Current
Efficiency
Operating Temperature
+6 to +40V DC input range
10.0A@+5V, 2.0A@+12V, 0.4A@-5V, 0.5A@-12V
<20mV
<60mV
<40mV
20mV
2mA
up to 95%
-40ºF ~ 185ºF (-40ºC ~ 85ºC )
Ordering Information
PCM-P50
PC/104 Vehicle Power Supply with +5V & +12V Output
PCM-P50N
PC/104 Vehicle Power Supply with ±5V & ±12V Output
PCM-P50N-AC
PC/104 Vehicle Power Supply with ±5V & ±12V Output and AC Bus Termination
PFM-T800
PC/104 Board
Communication Modules
Features
ISA Bridge (PCI-104 to PC/104) for PFM-800P
USB 2.0 x 4
COM x 4
Packing List
9681T80000
Cable kit
1709100201
1701100206
USB Cable x 2
RS-232 Cable x 4
Quick Installation Guide
Utility CD
PFM-T800
Specifications
I/O chip
PCI/ISA Bridge
USB
Serial Port
Operating Temperature
VIA VT6212 + OXFORD OXmPCI954
ITE IT8888
USB 2.0 port x 4
RS-232 x 3, RS-232/422/485 x 1
32ºF ~ 140ºF (0ºC ~ 60ºC )
Ordering Information
TF-PFM-T800-A10 (For PFM-800P only)
PC/104 Board, 4 COM, 4 USB 2.0, ISA Bridge, PC/104+, Rev A1.0
TF-PFM-T800-A10-01
PC/104 Board, 4 COM, 4 USB 2.0, PCI-104, Rev A1.0
11-2

PCM-P50N-AC Related Products

PCM-P50N-AC PCM-P50 PCM-P50N
Description 50W Output, 6V to 40V DC Input Range 50W Output, 6V to 40V DC Input Range 50W Output, 6V to 40V DC Input Range
