3918-2-08-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3918-2-08-1

3918-2-08-1: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3918-2-08-1 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle

3918-2-08-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.25 inch
subject depth	0.78 inch
body length	1.247 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	3918
Plug contact pitch	0.156 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

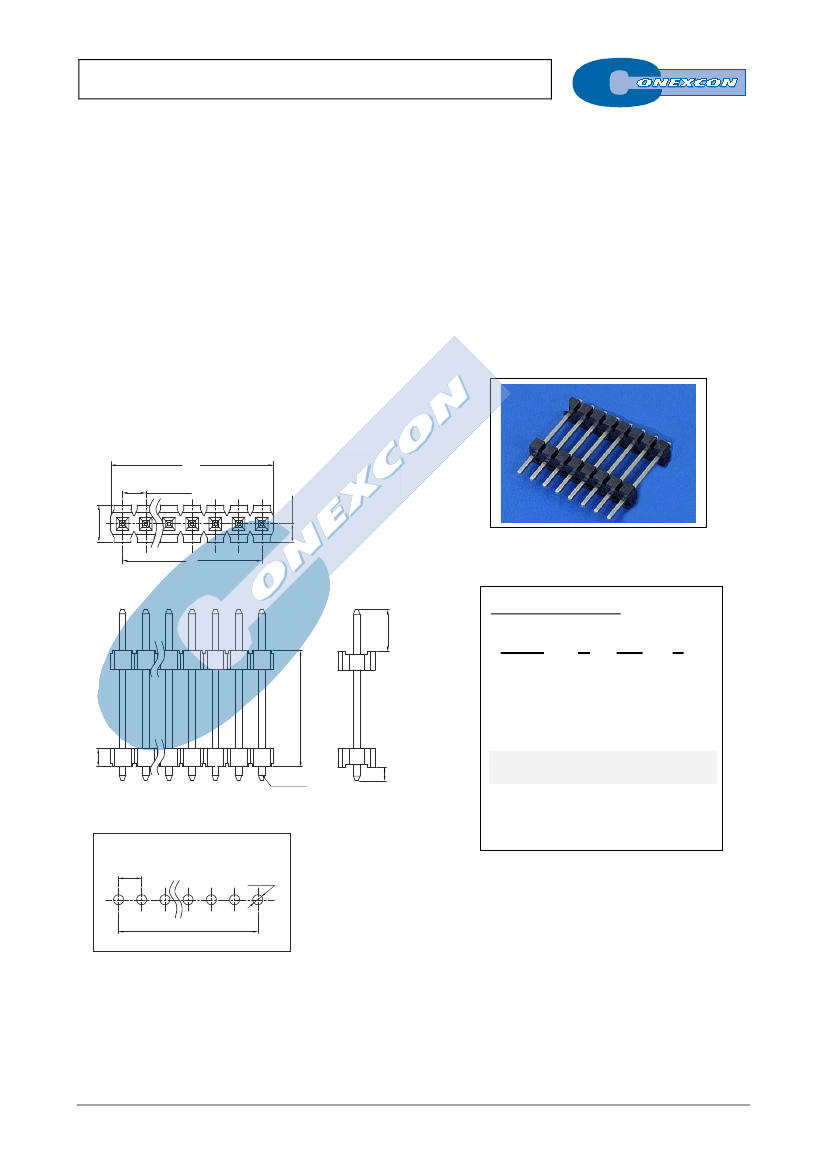

S/ ROW DUAL BODY VERTICAL PIN HEADER

3918 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2 through 24 circuits



Mates with PCB sockets 3.96mm pitch 3970, 3971, 3972,



3915, 3916 series and Wire housing 3940, 3930, 2631 and

3950 series



1.14 mm. square pin



With standoff to minimise flux retention

Materials



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: 2 pF at 1 KHz

Mechanical Features



Insulator: High temperature thermoplastic UL 94 V-0

Contact: brass

Operating temperature: -40ºC to +105ºC

RoHS compliant



Pin retention force to insulator: > 1.00 Kgf



Durability: 25 cycles

Dimensional Information

3.96±0.10

6.35

3.175

7.10±0.20

Ordering Information:

3918 -

T-

XX-

19.80±0.20

1. Connector Series

2.30±0.25

2. (T) Contact Plating

3.18



T =

Tin plated

Recommended Finish

3. (XX) Number of circuits

1.14



Available in 2 through 24 circuits

RECOMMEDED HOLE PATTERN

3.96

ø1.70

Dimensions:

(In mm.)

= 3.96 x (XX*-1)

= 3.96 x (XX*)

* XX

(Number of circuits)

E-XX

FULL LINE CATALOGUE
