1.85mm MALE
2.4mm MALE
PE-LL095P
COMPONENTS
IMPEDANCE
50 OHM
50 OHM
50 OHM
Standard Lengths
-6
-12
-18
-24
-30
-36
-48
-60
-72
XXX
6"
12"
18"
24"
30"
36"
48"
60"
72"
Custom Length in inches
1.85mm
MALE
2.4mm
MALE
”
”
”
”
PE36676-XX
REV. A

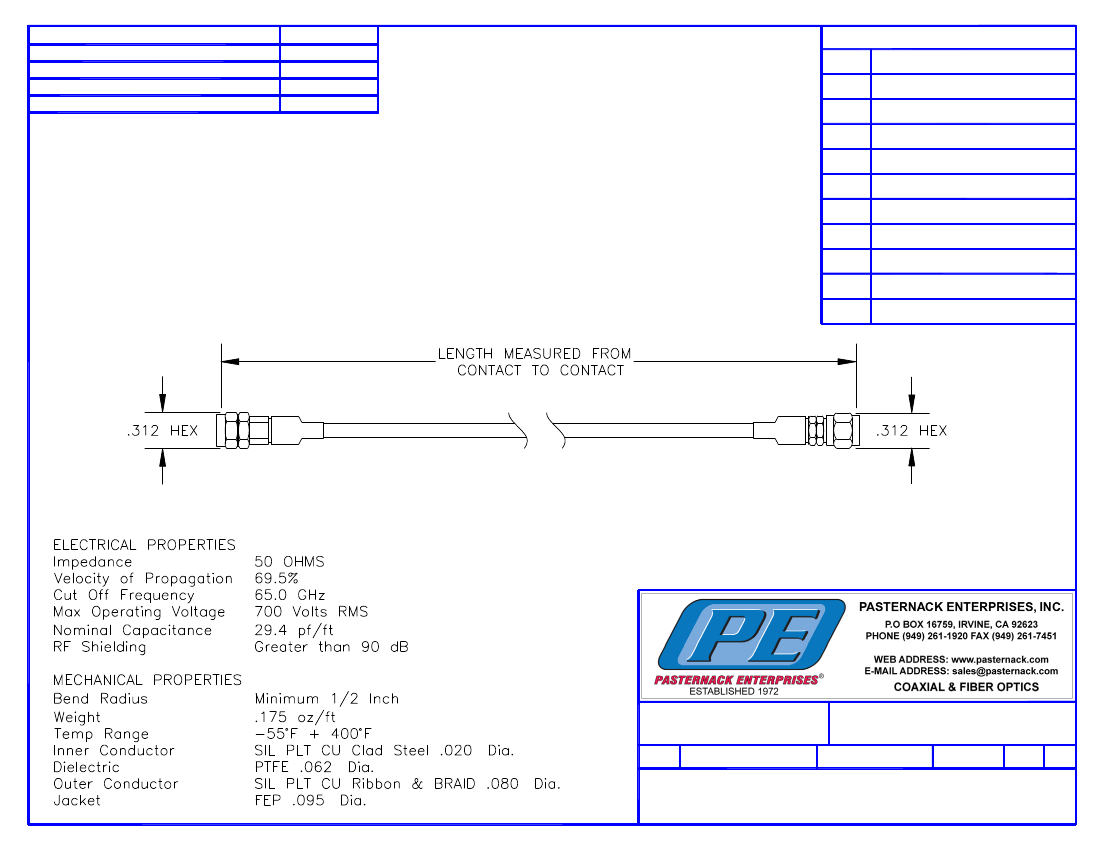

DWG TITLE
DES.
50 GHz FLEXIBLE CABLE ASSEMBLY,
PE-LL095P, 1.85mm MALE TO 2.4mm MALE
030308
SCALE N/A
SIZE A
147
FSCM NO. 53919
CAD FILE
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES.
4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER.
