SMA Female Connector Field Replaceable Attachment
4 Hole Flange 0.015 inch Pin, .500 inch Flange Size
TECHNICAL DATA SHEET
PE44011
SMA Female Connector Field Replaceable Attachment 4 Hole Flange 0.015 inch Pin, .500 inch Flange
Size
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMA Female
0.015 inch Pin
Field Replaceable
Straight
4 Hole Flange
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.375 [9.53]
0.5 [12.70]
0.5 [12.7]
0.006 [2.72]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
SMA Female
Gold
Passivated Stainless Steel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Female Connector Field Replaceable Attachment 4 Hole Flange 0.015 inch Pin,
.500 inch Flange Size PE44011
PE44011 REV 01
1
SMA Female Connector Field Replaceable Attachment
4 Hole Flange 0.015 inch Pin, .500 inch Flange Size
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44011
SMA Female Connector Field Replaceable Attachment 4 Hole Flange 0.015 inch Pin, .500 inch Flange Size from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female Connector Field Replaceable Attachment 4 Hole Flange 0.015 inch Pin, .500 inch
Flange Size PE44011
URL:
http://www.pasternack.com/sma-female-standard-0.015-pin-connector-pe44011-p.aspx
PE44011 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44011

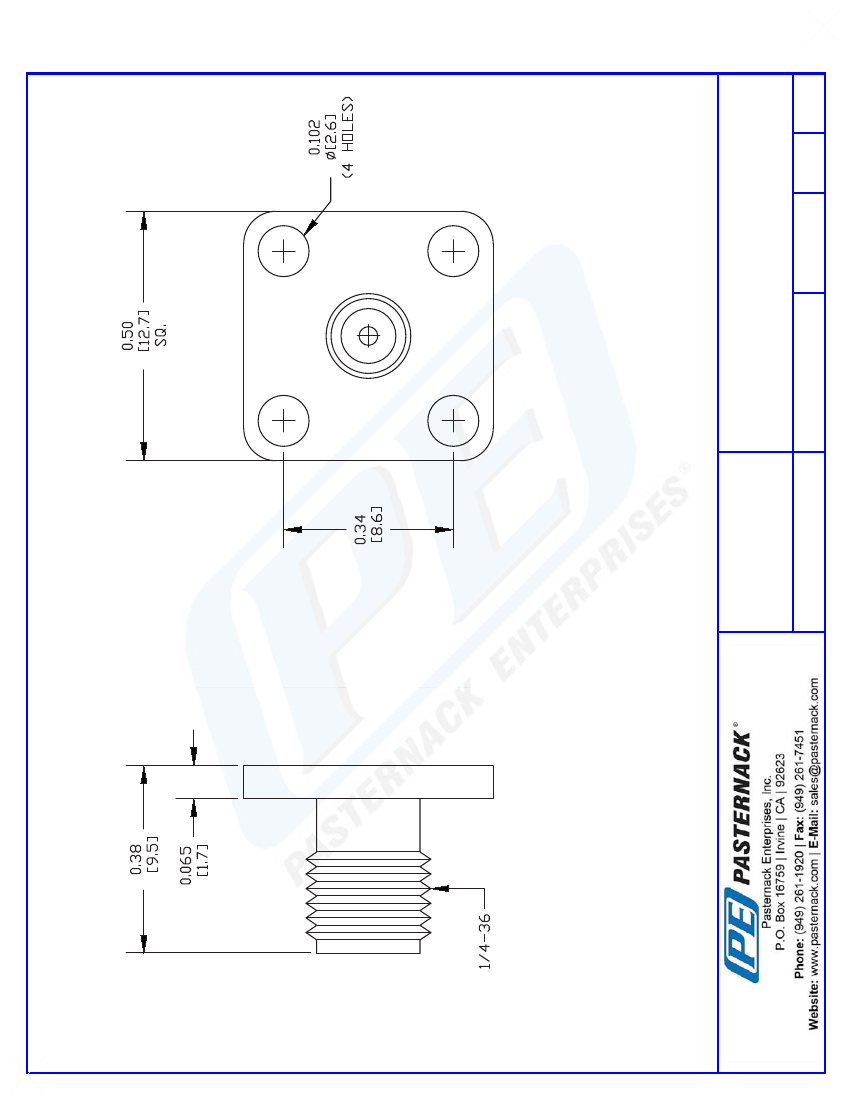

CAD Drawing
SMA Female Connector Field Replaceable Attachment 4 Hole
Flange 0.015 inch Pin, .500 inch Flange Size
PE44011 REV 01
PE44011
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
061902
SCALE N/A
SIZE A
127
3
