N Female Connector Solder Attachment 2 Hole
Flange Tab Terminal, 1.0 inch Hole Spacing
TECHNICAL DATA SHEET
N Female Connector Solder Attachment 2 Hole Flange Tab Terminal, 1.0 inch Hole Spacing
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
N Female
MIL-C-39012
Tab
Solder
Straight
2 Hole Flange
PE44078
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
0.84 [21.34]
0.64 [16.26]
1.3 [33.02]
0.068 [30.84]
N Female
Silver
QQ-S-365
Brass, Nickel
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Connector Solder Attachment 2 Hole Flange Tab Terminal, 1.0 inch Hole Spacing
PE44078
PE44078 REV
1
N Female Connector Solder Attachment 2 Hole
Flange Tab Terminal, 1.0 inch Hole Spacing
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44078
N Female Connector Solder Attachment 2 Hole Flange Tab Terminal, 1.0 inch Hole Spacing from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Connector Solder Attachment 2 Hole Flange Tab Terminal, 1.0 inch Hole Spacing
PE44078
URL:
http://www.pasternack.com/n-female-standard-tab-terminal-connector-pe44078-p.aspx
PE44078 REV
2
© 2013 Pasternack Enterprises All Rights Reserved

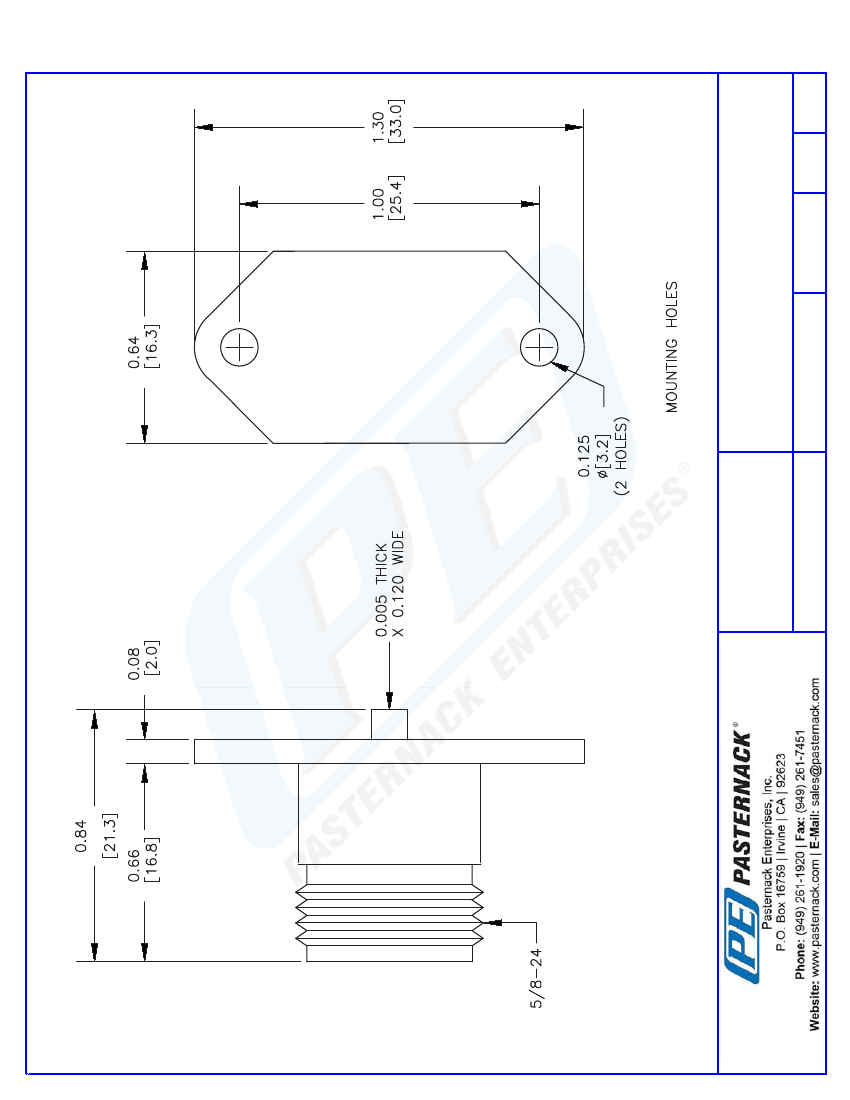

DWG TITLE
N Female Connector Solder Attachment 2 Hole Flange
Tab Terminal, 1.0 inch Hole Spacing
PE44078
CAD Drawing
PE44078 REV
PE44078
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
062303
SCALE N/A
SIZE A
127
3
