PRODUCT: PESD1206Q-140
ESD Protector
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
www.circuitprotection.com
Overvoltage Protection Device
Raychem Circuit Protection Products
DOCUMENT: SCD 26108
REV LETTER: I
REV DATE: DECEMBER 7, 2007
PAGE NO.: 1 OF 6
Specification Status: Released
Not to be used for new designs. For new design please contact Tyco Electronics Sales

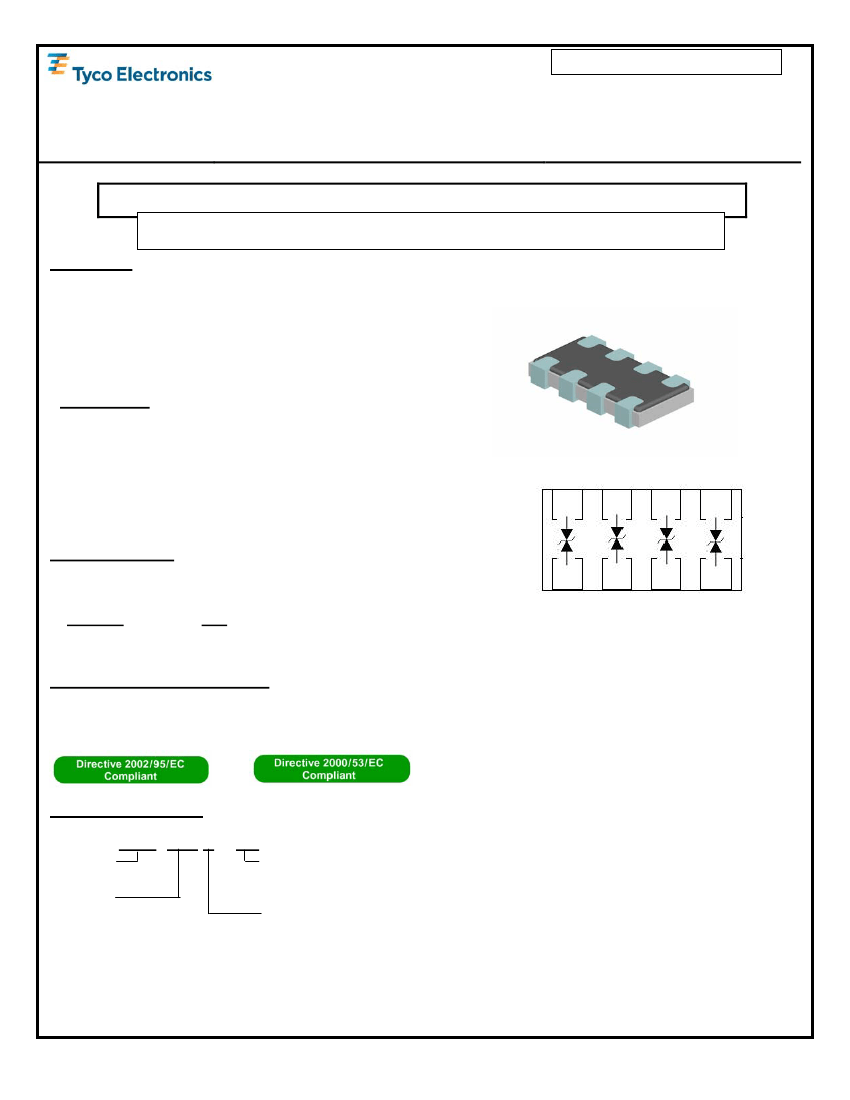

BENEFITS
•
Suitable for high speed data transmission applications
•
Board space savings
•
Help to protect sensitive electronic circuits against damage from
electrostatic discharge (ESD) events
•
Assist equipment to pass IEC 61000-4-2, level 4 testing
FEATURES
•
•
•
•
•
•
Thick film technology
Low capacitance (0.25 pF typical)
Low clamping voltage
Capable of withstanding numerous ESD strikes
Compatible with standard reflow installation procedures
Bi-directional protection
APPLICATIONS
•
Cellular Phones
Caution: This part is not intended to be used under bias, nor for application with a power bus.
MATERIALS INFORMATION
ROHS Compliant
ELV Compliant
PART NUMBERING
PESD 1206 Q - 140
Series
EIA Size
Q:
Array of 4 elements
The operating voltage is used to measure leakage current @ 1s
Operating Voltage Designator
0
14 x 10 = 14V
DC
PRODUCT: PESD1206Q-140
ESD Protector
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
www.circuitprotection.com
Overvoltage Protection Device
Raychem Circuit Protection Products
DOCUMENT: SCD 26108
REV LETTER: I
REV DATE: DECEMBER 7, 2007
PAGE NO.: 2 OF 6
TYPICAL DEVICE RATINGS AND CHARACTERISTICS
Typical
Typical
Typical
IEC
TLP
Clamping
IEC
1
Trigger
Trigger Voltage
1
Voltage
2
Voltage
after
30ns
V
T(IEC)
V
C(IEC)
V
T(TLP)
V
V
V
350
30
320
Typical
Typical TLP
TLP
Clamping
Clamping
Voltage
2
2
Voltage
after 60ns
after 30ns
V
C(TLP 30)
V
75
V
C(TLP 60)
V
65
Typical
Capacitance
@ 1 MHz,
1V
rms
Cp
pF
0.25
Symbol
Unit
Value
Note 1: IEC61000-4-2, level 4, 8kV contact test method
Note 2: TLP test method at 1000V (refer to graph on next page)
Note 3: PESD0603-140 can be used only in application without DC bias
GENERAL CHARACTERISTICS
Storage temperature:
Storage temperature:
-55°C … +110°C
-40°C … + 85°C
ESD voltage capability (tested per IEC 61000-4-2)
o
o
Contact discharge mode: typical 8kV, max 15kV
Air discharge mode: typical 15kV, max 25kV
ESD pulse withstand: Minimum 1,000 pulses (tested per IEC 61000-4-2, level 4, contact method)
Environmental Specifications
Thermal
Shock
-55 C to
125ºC
30min
dwell
1000
cycles
I
L
≤10µA
o
Heat
Storage
Test
Solderability
Solder
Heat
Vibration
10 to
50Hz,60s
cycle,
2hrs
each in
X-Y-Z
axis
I
L
≤10µA
Mechanical
Shock
1500G,
0.5ms, X-Y-
Z axis, 3
times
I
L
≤10µA
Solvent
Resistance
Test
Conditions
110 C,
1000hours
o
230 C±5 C
3±1s,
95%
coverage
I
L
≤10µA
o
o
260 C,
10s
o
IPA
ultrasonic
300s
Pass/Fail
Criteria
I
L
≤10µA
I
L
≤10µA
I
L
≤10µA
PRODUCT: PESD1206Q-140
ESD Protector
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
www.circuitprotection.com
Overvoltage Protection Device
Raychem Circuit Protection Products
DOCUMENT: SCD 26108
REV LETTER: I
REV DATE: DECEMBER 7, 2007
PAGE NO.: 3 OF 6

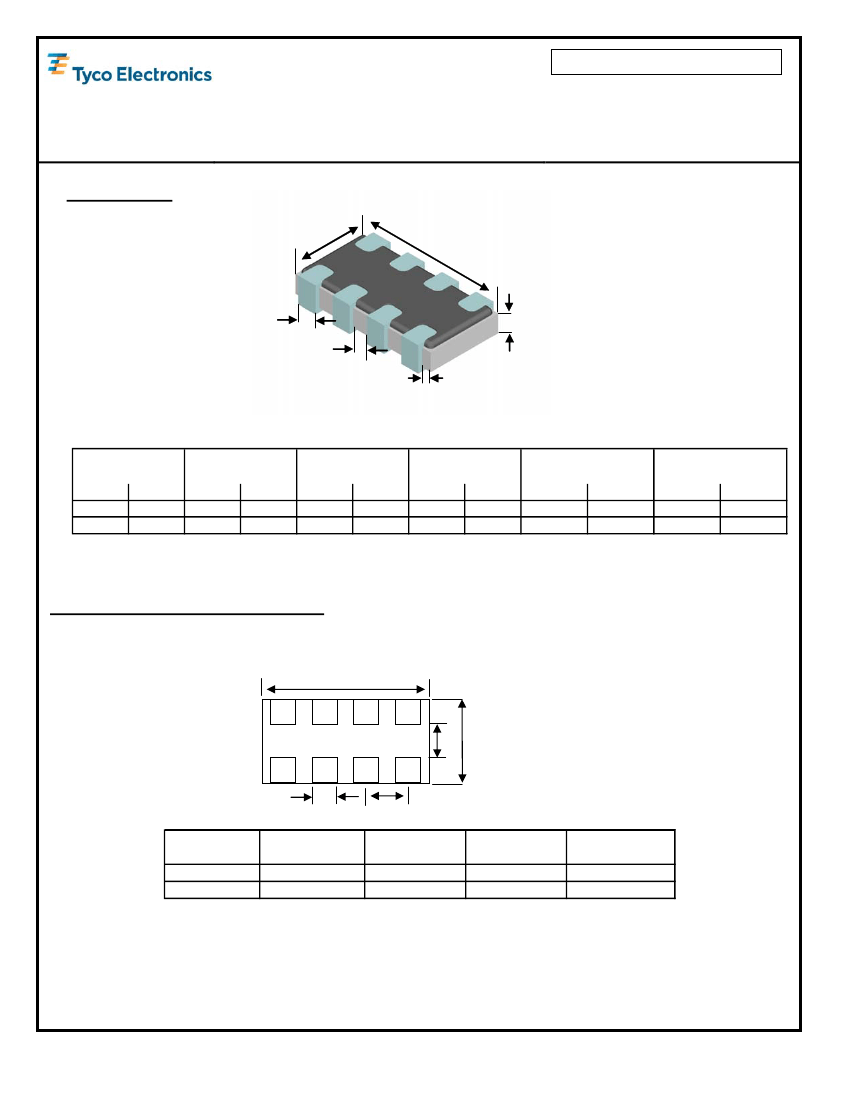

DIMENSIONS
D
A
F
E
C
Drawing Not To Scale
Length A
mm:
in*:
MIN
3.0
(0.118)
MAX
3.4
(0.134)
Height B
MIN
0.4
(0.016)
MAX
0.6
(0.024)
End Terminal Width
C
MIN
0.1
(0.004)
MAX
0.3
(0.012)
Width D
MIN
1.4
(0.055)
B
Width E
MIN
MAX
Width F
MIN
MAX
MAX
1.8
(0.071)
0.2
(0.008)
0.6
(0.024)
0.2
(0.008)
0.6
(0.024)
*Rounded off approximation
RECOMMENDED LAND PATTERN:
Solder thickness 0.15 to 0.2mm
V
Z
W
x
Y
V
W
X
Y
Ref
Ref
Ref
Ref
mm:
3.2 ± 0.2
2.2 ± 0.2
0.50 ± 0.1
0.8 ± 0.2
in*:
(0.13 ± 0.008) ( 0.10 ± 0.008) (0.02 ± 0.004) (0.03 ± 0.008)
*Rounded off approximation.
Z
Ref
1.0 ± 0.1
(0.04 ± 0.004)
PRODUCT: PESD1206Q-140
ESD Protector
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
www.circuitprotection.com
Overvoltage Protection Device
Raychem Circuit Protection Products
DOCUMENT: SCD 26108
REV LETTER: I
REV DATE: DECEMBER 7, 2007
PAGE NO.: 4 OF 6

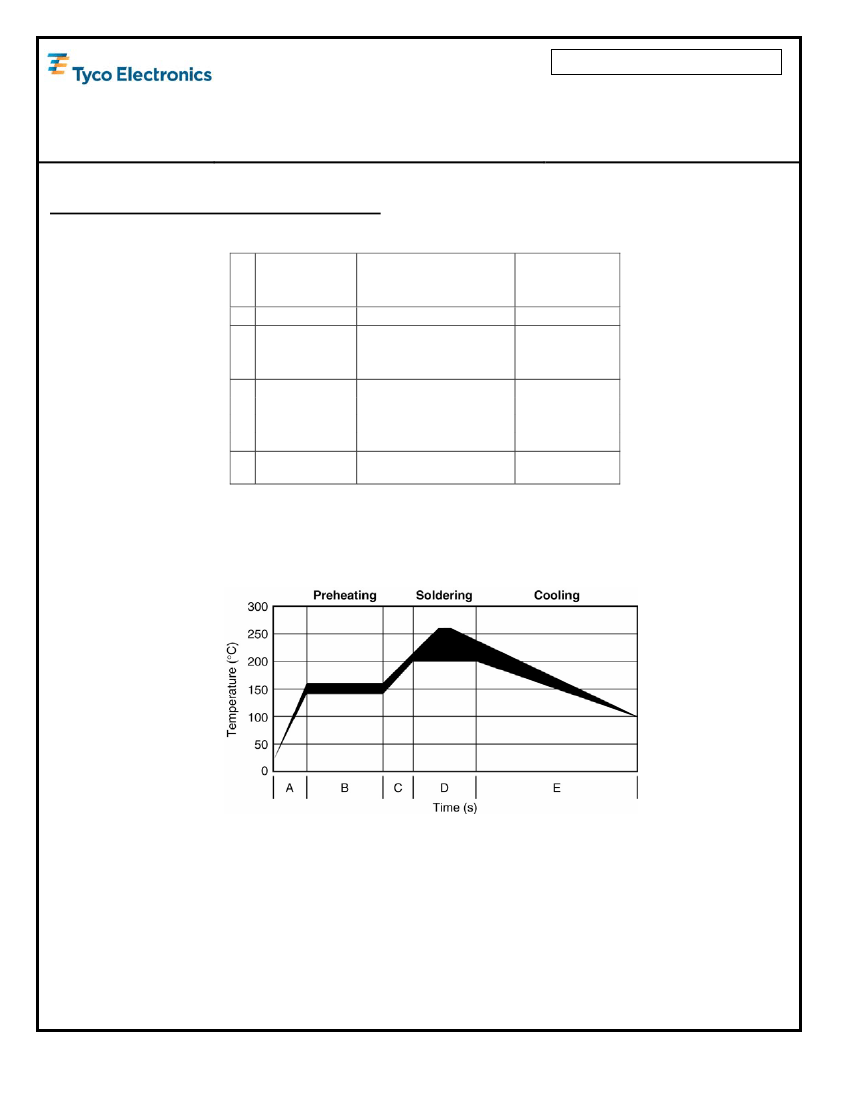

SOLDER REFLOW RECOMMENDATIONS:
A
B
C
Temperature
ramp up 1
Preheating
Temperature
ramp up 2
Main
heating
Cooling
D
E
From ambient to
Preheating
temperature
140°C - 160°C
From Preheating to
Main heating
temperature
at 200°C
at 220°C
at 240°C
at 260°C
From main heating
temperature to 100°C
30s to 60s
60s to 120s
20s to 40s
60s ~ 70s
50s ~ 60s
30s ~ 40s
5s ~ 10s
max 4°C/s
PRODUCT: PESD1206Q-140
ESD Protector
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
www.circuitprotection.com
Overvoltage Protection Device
Raychem Circuit Protection Products
DOCUMENT: SCD 26108
REV LETTER: I
REV DATE: DECEMBER 7, 2007
PAGE NO.: 5 OF 6
PACKAGING
Packaging
PESD1206Q-140
Tape & Reel
5,000
Standard Box
25,000

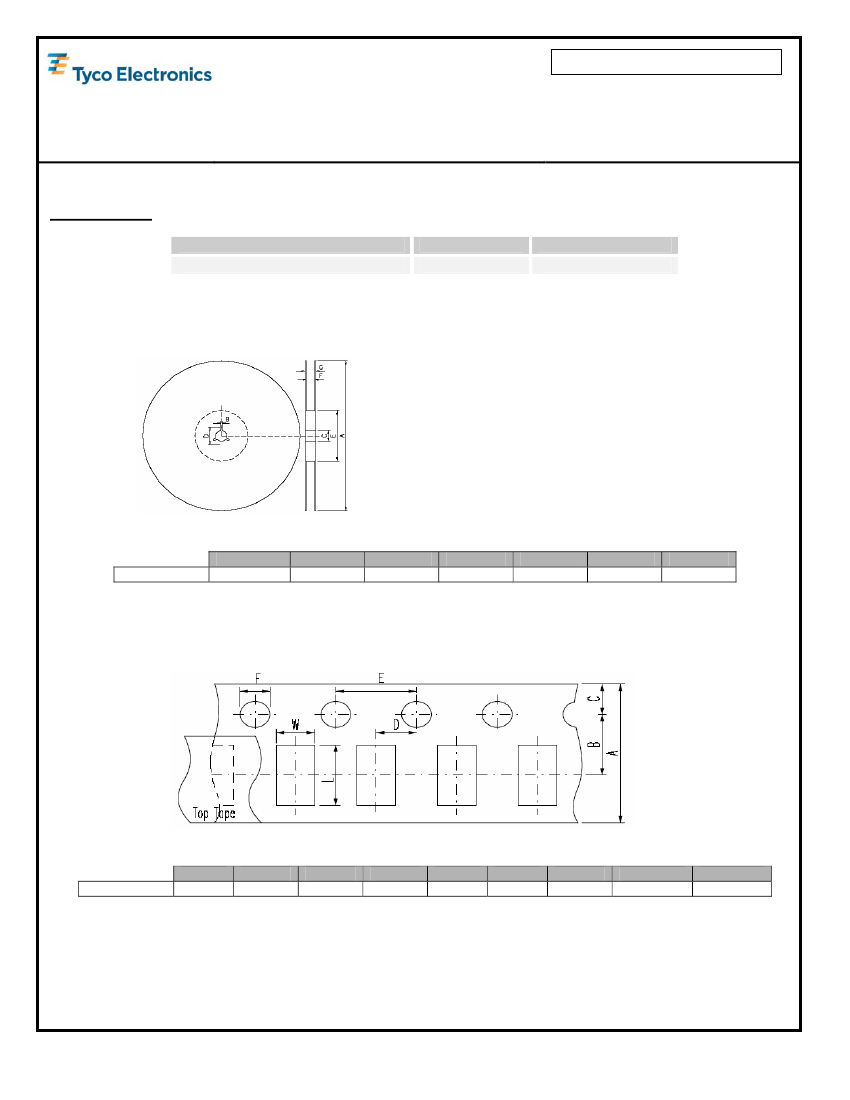

EIA referenced Reel Dimensions for PESD Devices
Reel Dimensions (mm):
1206 Devices
A
178.0 ±2.0
B
2.0 ±0.5
C
13.0±0.5
D
21.0±0.8
E
62.0±1.5
F
9.0±0.5
G
13.0±1.0
Carrier Dimensions (mm):
1206 Devices
A
8.0±0.3
B
3.5±0.05
C
1.75±0.1
D
2.0±0.05
E
4.0±0.1
F
1.5±0.1
L
3.5±0.2
W
1.9±0.20
T
1
0.75±0.05
Product Orientation
– always face up (meaning the substrate is at the bottom), but parts do not have
polarity mark.
