SPHB1010-P3002GF-0340-0440 datasheet, PDF

SPHB1010-P3002GF-0340-0440: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

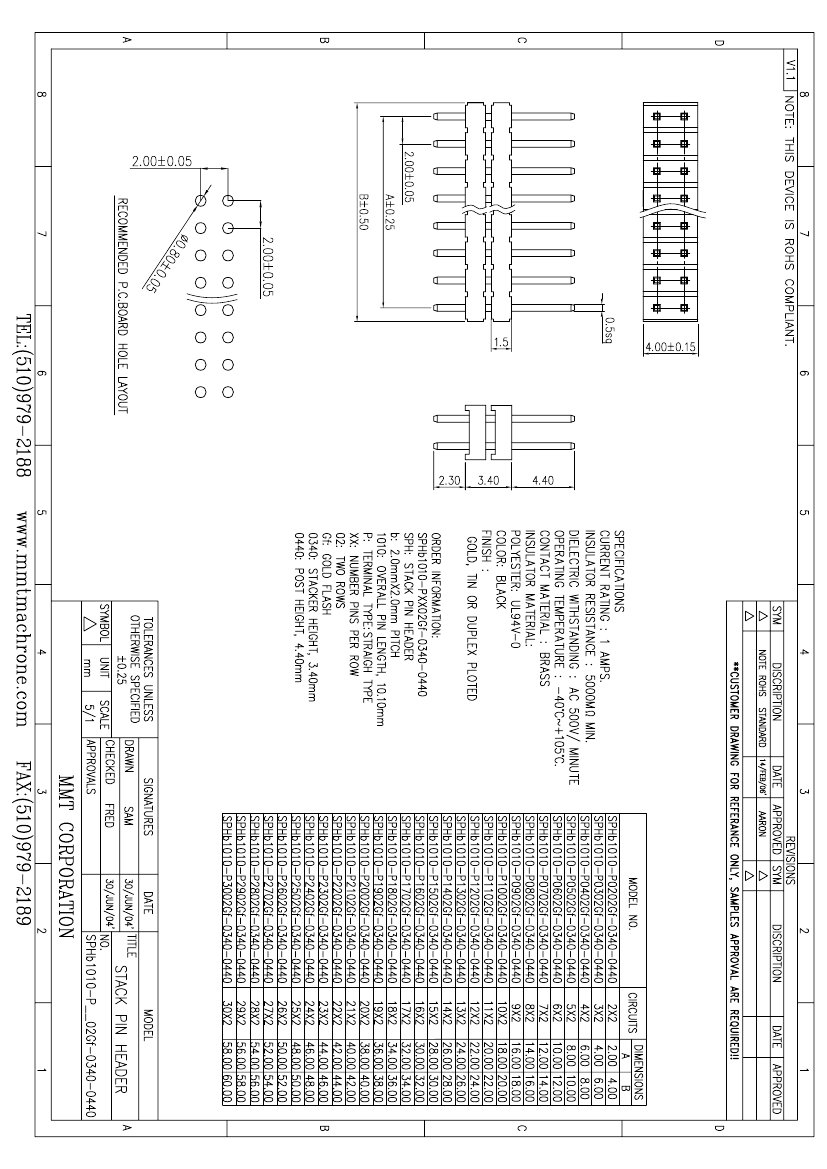

Download Datasheet Parametric View All

SPHB1010-P3002GF-0340-0440 Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	MMT Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.134 inch
body length	2.362 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Manufacturer's serial number	SPHB1010
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	60
