RDN3W750KOHMGBULK datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RDN3W750KOHMGBULK

RDN3W750KOHMGBULK: DescriptionRES,AXIAL,CARBON FILM,750K OHMS,500WV,2% +/-TOL,700PPM TC; CategoryPassive components The resistor; File Size173KB，4 Pages; ManufacturerTY-OHM Electronic Works Co., Ltd.

Download Datasheet Parametric Compare View All

RDN3W750KOHMGBULK Overview

RES,AXIAL,CARBON FILM,750K OHMS,500WV,2% +/-TOL,700PPM TC

RDN3W750KOHMGBULK Parametric

Parameter Name	Attribute value
Maker	TY-OHM Electronic Works Co., Ltd.
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Flameproof
Lead diameter	0.8 mm
Lead length	30 mm
Manufacturer's serial number	RDN(3W,GJTOL)
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	8.5 mm
Package length	24 mm
Package form	Axial
method of packing	Bulk
Rated power dissipation(P)	3 W
resistance	750000 Ω
Resistor type	FIXED RESISTOR
series	RDN ( 3W, G J TOL )
technology	CARBON FILM
Temperature Coefficient	700 ppm/°C
Tolerance	2%
Operating Voltage	500 V

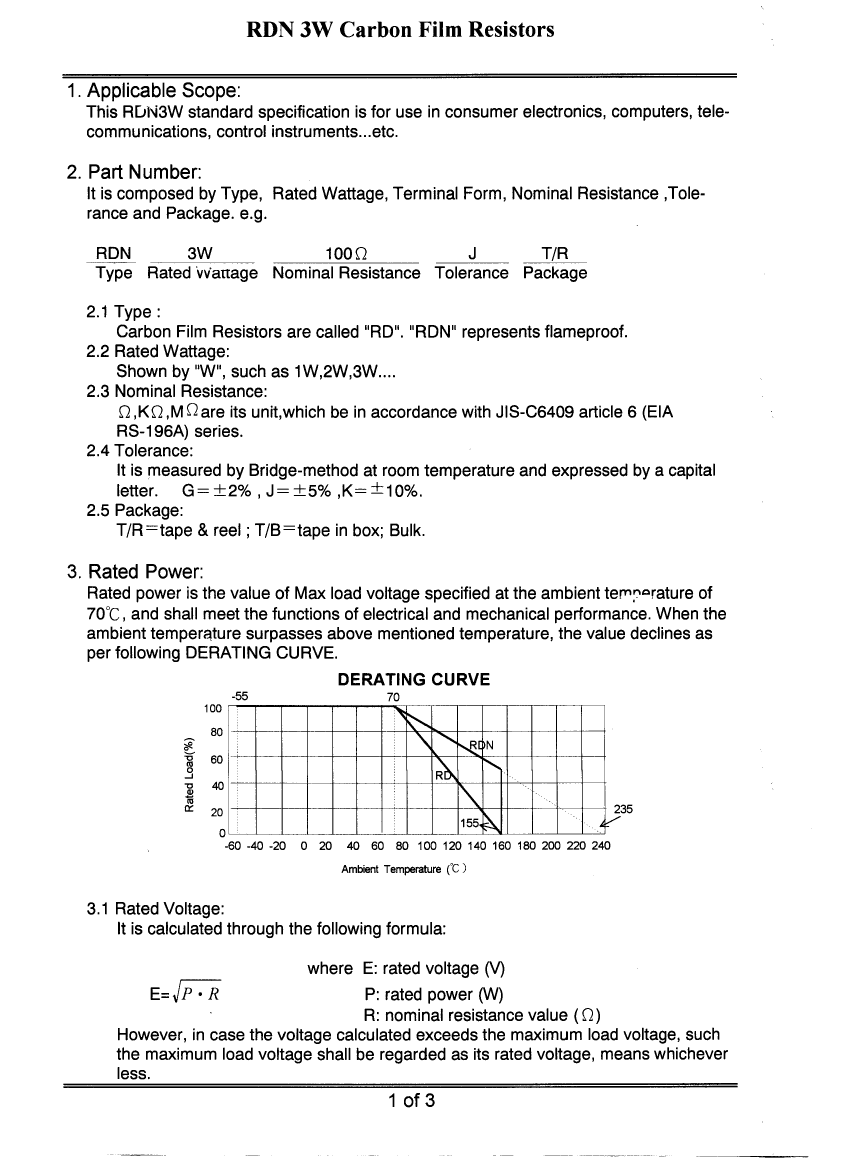

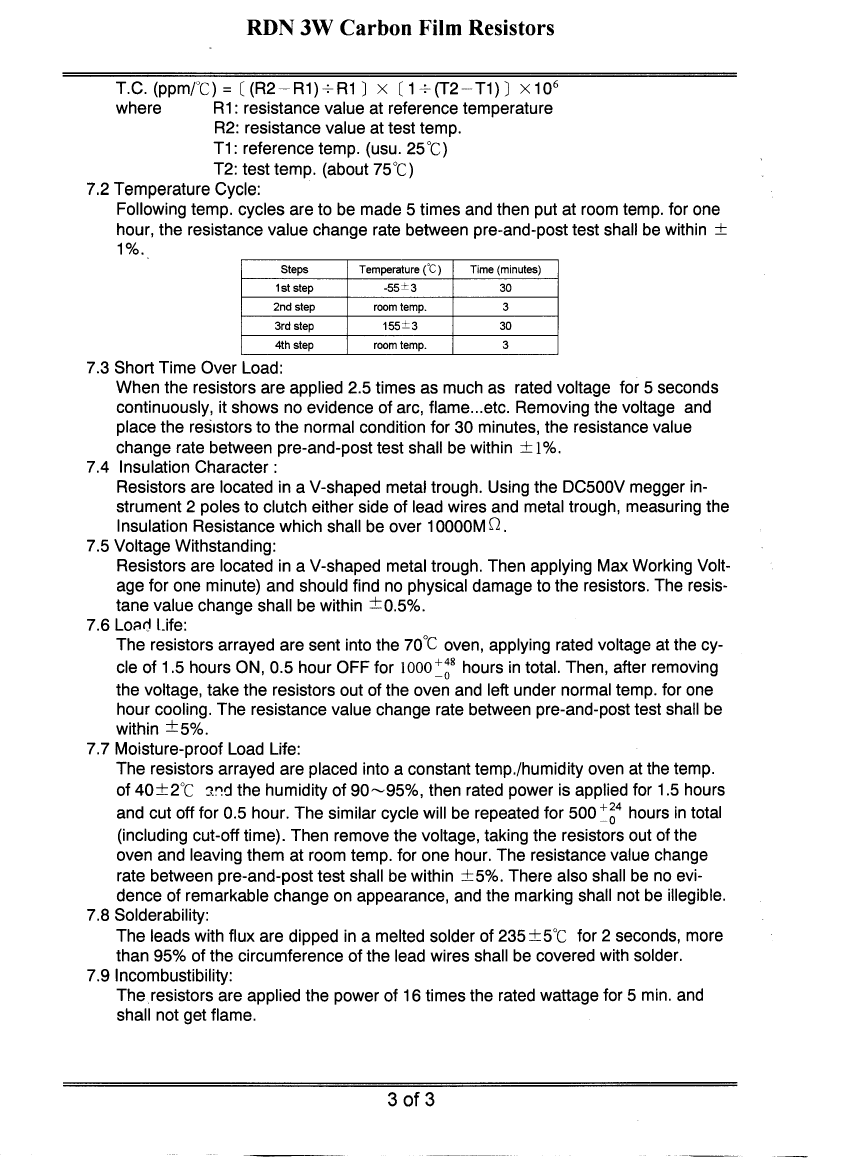

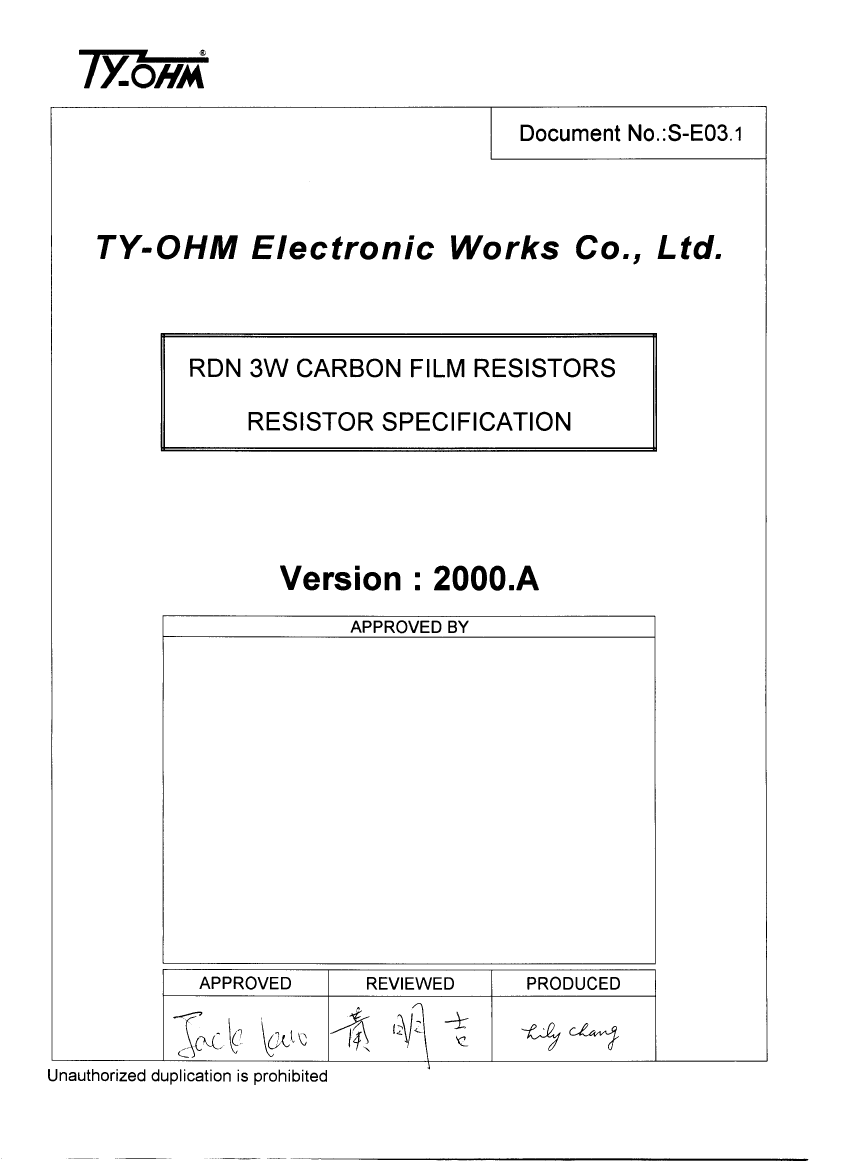

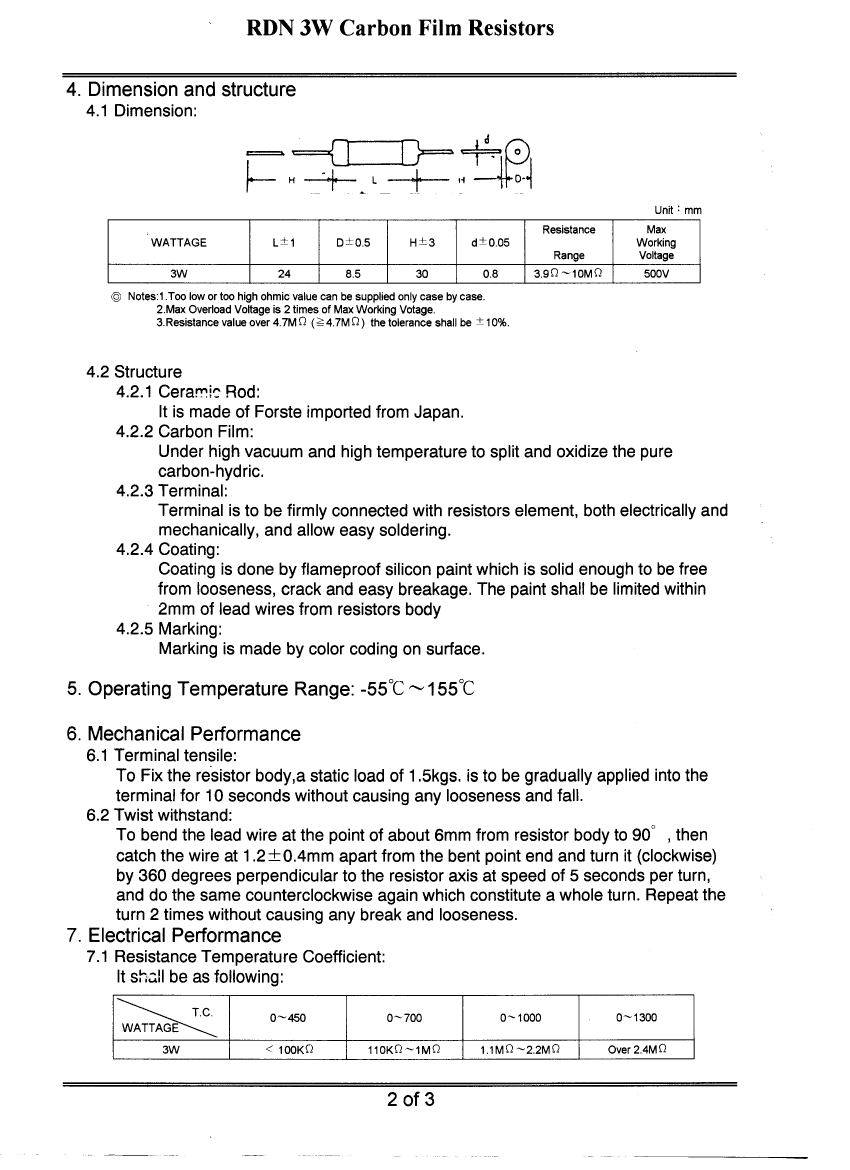

Preview

Download Datasheet

View All

RDN3W750KOHMGBULK Related Products

	RDN3W750KOHMGBULK	RDN3W20OHMGT/R	RDN3W10KOHMGBULK	RDN3W10KOHMGT/B	RDN3W10KOHMGT/R	RDN3W20OHMGBULK	RDN3W20OHMGT/B	RDN3W750KOHMGT/R	RDN3W750KOHMGT/B	RDN3W24OHMGT/R
Description	RES,AXIAL,CARBON FILM,750K OHMS,500WV,2% +/-TOL,700PPM TC	RES,AXIAL,CARBON FILM,20 OHMS,500WV,2% +/-TOL,450PPM TC	RES,AXIAL,CARBON FILM,10K OHMS,500WV,2% +/-TOL,450PPM TC	RES,AXIAL,CARBON FILM,10K OHMS,500WV,2% +/-TOL,450PPM TC	RES,AXIAL,CARBON FILM,10K OHMS,500WV,2% +/-TOL,450PPM TC	RES,AXIAL,CARBON FILM,20 OHMS,500WV,2% +/-TOL,450PPM TC	RES,AXIAL,CARBON FILM,20 OHMS,500WV,2% +/-TOL,450PPM TC	RES,AXIAL,CARBON FILM,750K OHMS,500WV,2% +/-TOL,700PPM TC	RES,AXIAL,CARBON FILM,750K OHMS,500WV,2% +/-TOL,700PPM TC	RES,AXIAL,CARBON FILM,24 OHMS,500WV,2% +/-TOL,450PPM TC
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Flameproof	Flameproof	Flameproof	Flameproof	Flameproof	Flameproof	Flameproof	Flameproof	Flameproof	Flameproof
Lead diameter	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Lead length	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm
Manufacturer's serial number	RDN(3W,GJTOL)	RDN(3W,GJTOL)	RDN(3W,GJTOL)	RDN(3W,GJTOL)	RDN(3W,GJTOL)	RDN(3W,GJTOL)	RDN(3W,GJTOL)	RDN(3W,GJTOL)	RDN(3W,GJTOL)	RDN(3W,GJTOL)
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package diameter	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm
Package length	24 mm	24 mm	24 mm	24 mm	24 mm	24 mm	24 mm	24 mm	24 mm	24 mm
Package form	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
method of packing	Bulk	TR	Bulk	Tape	TR	Bulk	Tape	TR	Tape	TR
Rated power dissipation(P)	3 W	3 W	3 W	3 W	3 W	3 W	3 W	3 W	3 W	3 W
resistance	750000 Ω	20 Ω	10000 Ω	10000 Ω	10000 Ω	20 Ω	20 Ω	750000 Ω	750000 Ω	24 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	RDN ( 3W, G J TOL )	RDN ( 3W, G J TOL )	RDN ( 3W, G J TOL )	RDN ( 3W, G J TOL )	RDN ( 3W, G J TOL )	RDN ( 3W, G J TOL )	RDN ( 3W, G J TOL )	RDN ( 3W, G J TOL )	RDN ( 3W, G J TOL )	RDN ( 3W, G J TOL )
technology	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM
Temperature Coefficient	700 ppm/°C	450 ppm/°C	450 ppm/°C	450 ppm/°C	450 ppm/°C	450 ppm/°C	450 ppm/°C	700 ppm/°C	700 ppm/°C	450 ppm/°C
Tolerance	2%	2%	2%	2%	2%	2%	2%	2%	2%	2%
Operating Voltage	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V
Maker	TY-OHM Electronic Works Co., Ltd.	TY-OHM Electronic Works Co., Ltd.	TY-OHM Electronic Works Co., Ltd.	TY-OHM Electronic Works Co., Ltd.	TY-OHM Electronic Works Co., Ltd.	TY-OHM Electronic Works Co., Ltd.	TY-OHM Electronic Works Co., Ltd.	TY-OHM Electronic Works Co., Ltd.	TY-OHM Electronic Works Co., Ltd.	-
