51915-096GLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51915-096GLF

51915-096GLF: DescriptionBoard Connector, 46 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size247KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51915-096GLF Overview

Board Connector, 46 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51915-096GLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
body width	0.47 inch
subject depth	0.82 inch
body length	6.175 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51915
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	46
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

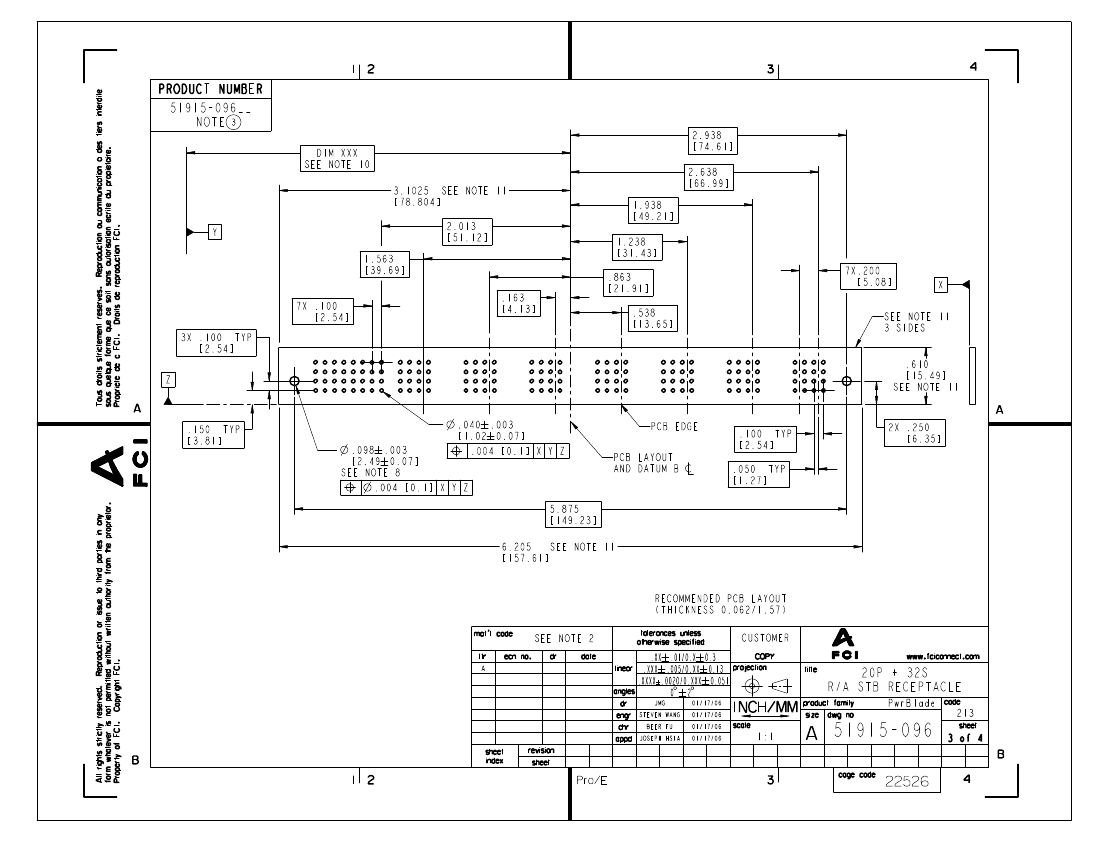

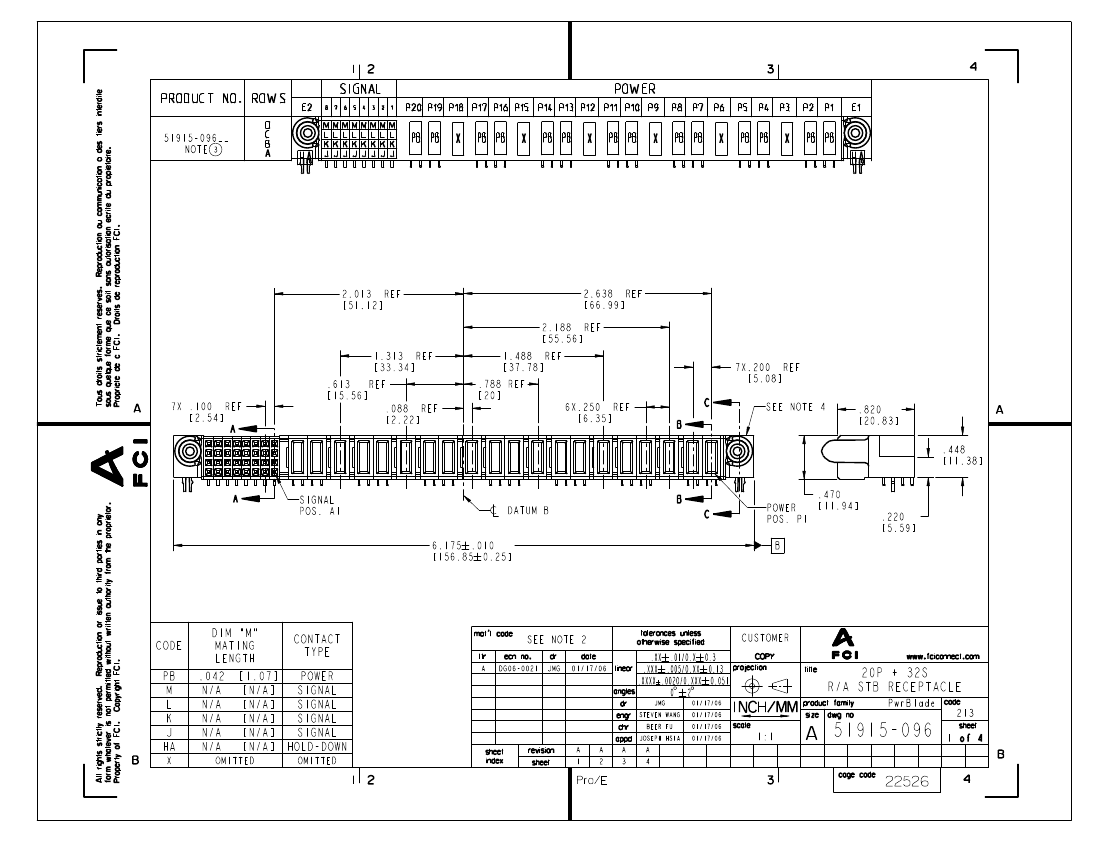

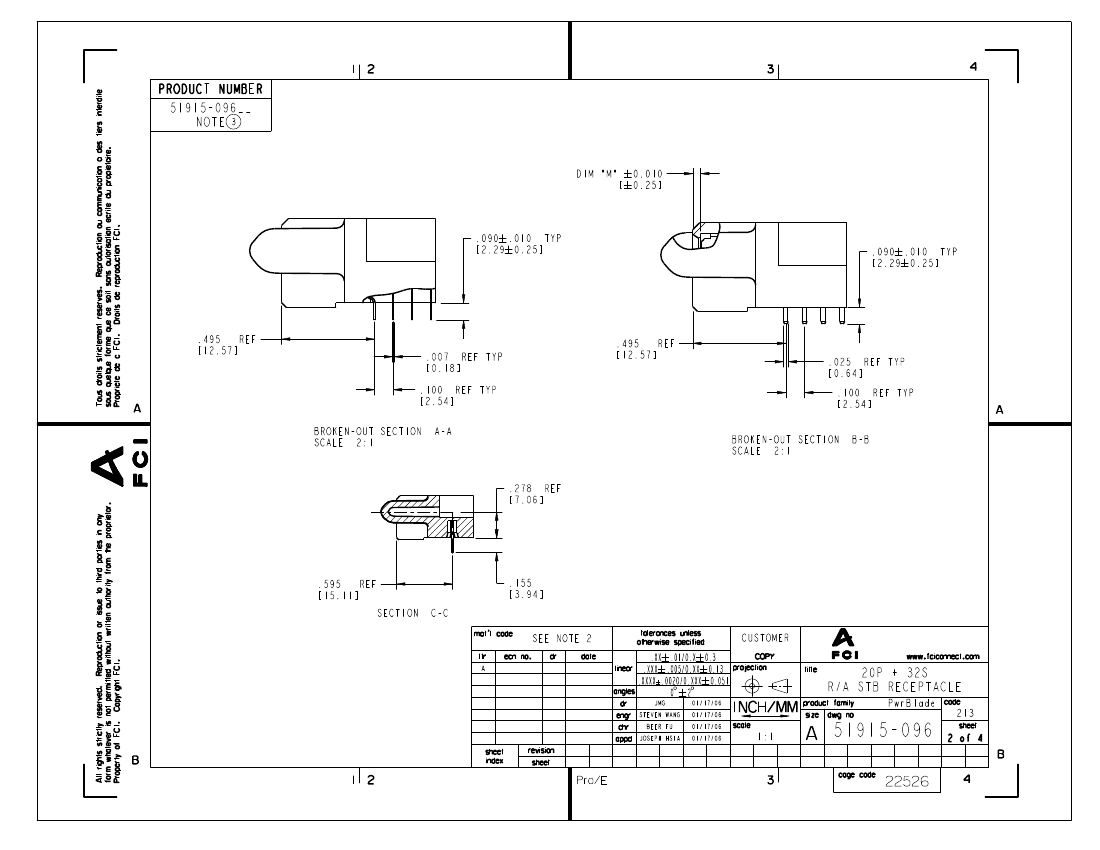

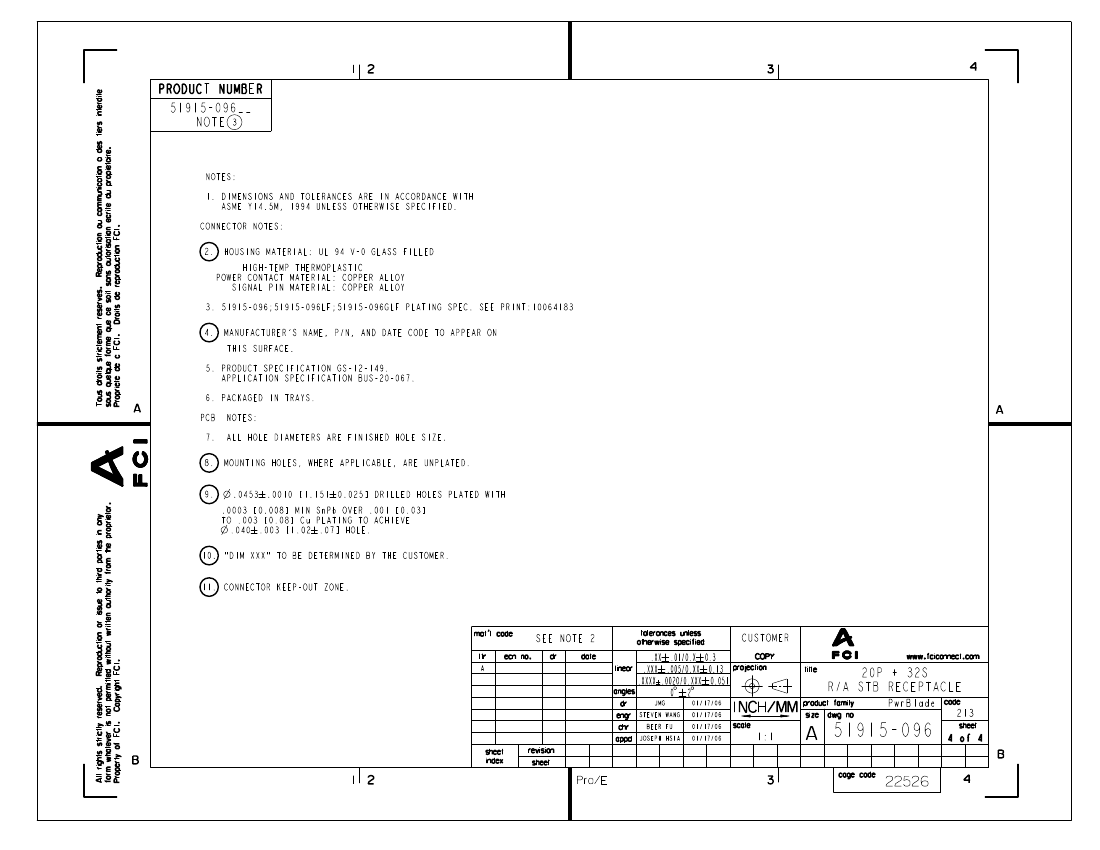

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

51915-096GLF Related Products

	51915-096GLF	51915-096	51915-096LF
Description	Board Connector, 46 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 46 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle	Board Connector, 46 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
body width	0.47 inch	0.47 inch	0.47 inch
subject depth	0.82 inch	0.82 inch	0.82 inch
body length	6.175 inch	6.175 inch	6.175 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD OVER NICKEL	TIN/LEAD OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID
DIN compliance	NO	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles	200 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	.973 N	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO
Mixed contacts	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Number of rows loaded	4	4	4
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.09 inch	0.09 inch	0.09 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	46	46	46
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N	.1668 N
Is it Rohs certified?	conform to	-	conform to
package instruction	LEAD FREE	-	LEAD FREE
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Manufacturer's serial number	51915	51915	-
ECCN code	-	EAR99	EAR99
