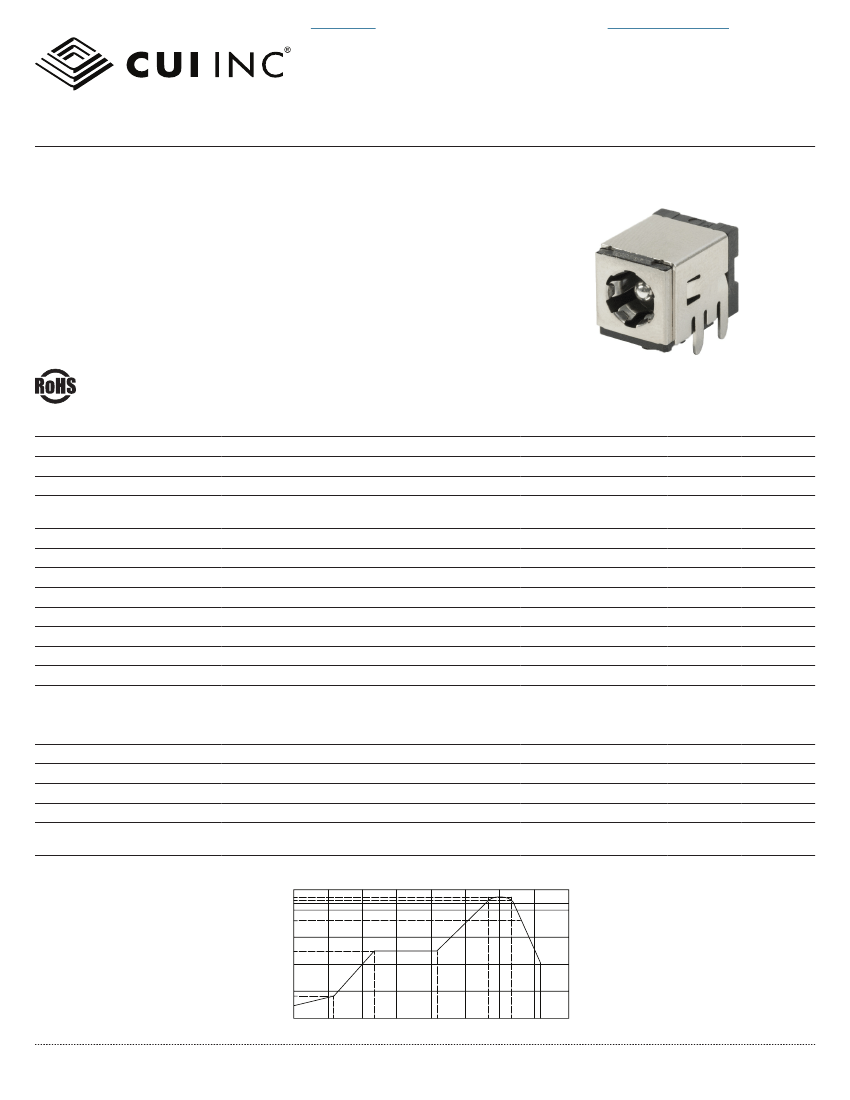

1. When measured at a current of less than 100 mA/1 kHz
2. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
SOLDERABILITY
parameter
wave soldering
reel storage
reflow soldering
3
drying conditions
4
Note:
conditions/description
dipped in solder pot for 5 ±0.5 seconds at
at relative humidity <80%
see reflow profile
min
255
255
typ
260
260
max
265
40
265
units
°C
°C
°C
parts in reel: bake at 40°C ±5°C for 72 hours
parts removed from reel: bake at 40°C ±5°C for 10 hours
3. Must reflow solder within 72 hours from opening vacuum packaging at a temperature <30°C & relative humidity <60%.
4. When exceeding floor life by >72 hours.
270
260
250
240
Temperature (°C)
217
180
150
120
60
50
70
60
120
140
180
240
250
300
340
360
380
420
430
480
Time (sec)
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-082BH
│
DESCRIPTION:
DC POWER JACK
date
10/06/2017
│
page
2 of 4

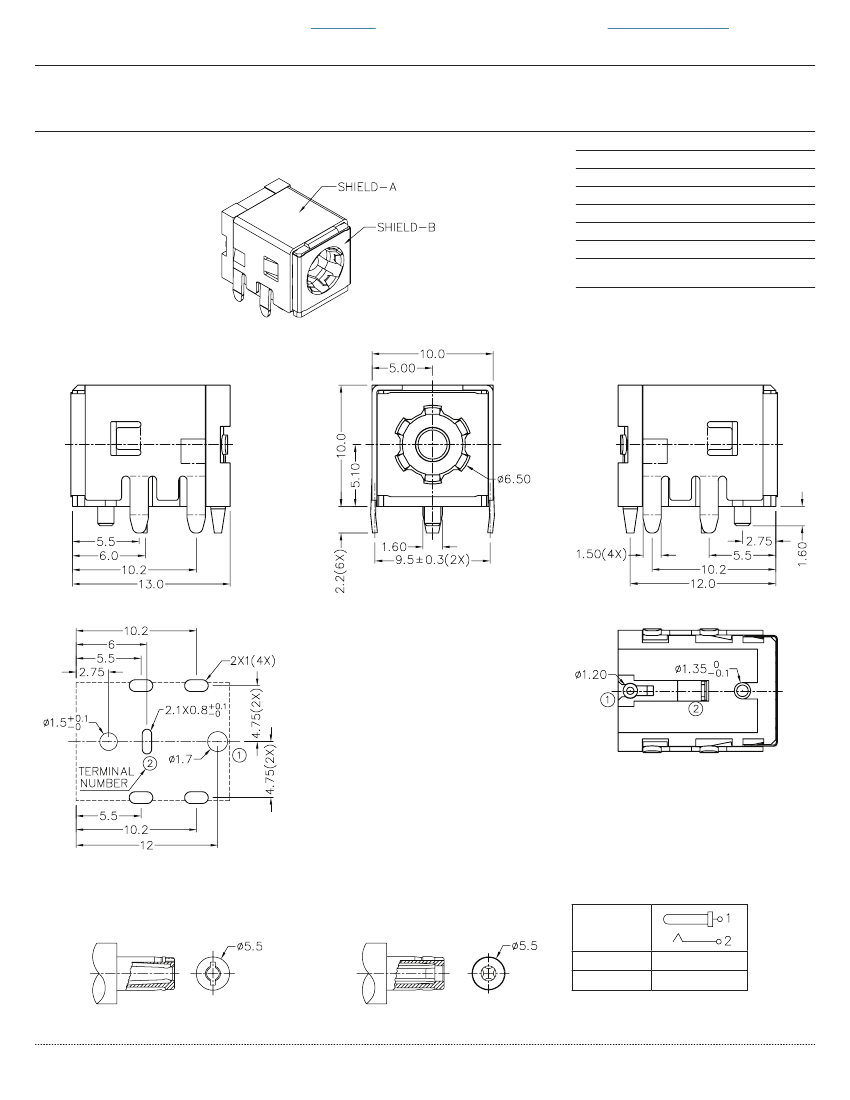

MECHANICAL DRAWING
units: mm
TOLERANCE:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
PCB: ±0.05 mm
terminal 1
terminal 2
stopper
shield A
shield B
plastic
MATERIAL
brass
copper alloy
cold rolled steel
cold rolled steel
stainless steel
PA6T or
equivalent
PLATING
silver
silver
nickel
nickel
Recommended PCB Layout
Top View
Schematic
Model
PJ-082BH
MATING PLUG
MATING PLUG
Rating: 36 Vdc, 7 A
Rating: 36 Vdc, 10 A
Jack Insertion Depth: 8.23mm
cui.com
Center Pin
Ø2.5 mm
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-082BH
│
DESCRIPTION:
DC POWER JACK
date
10/06/2017
│
page
3 of 4

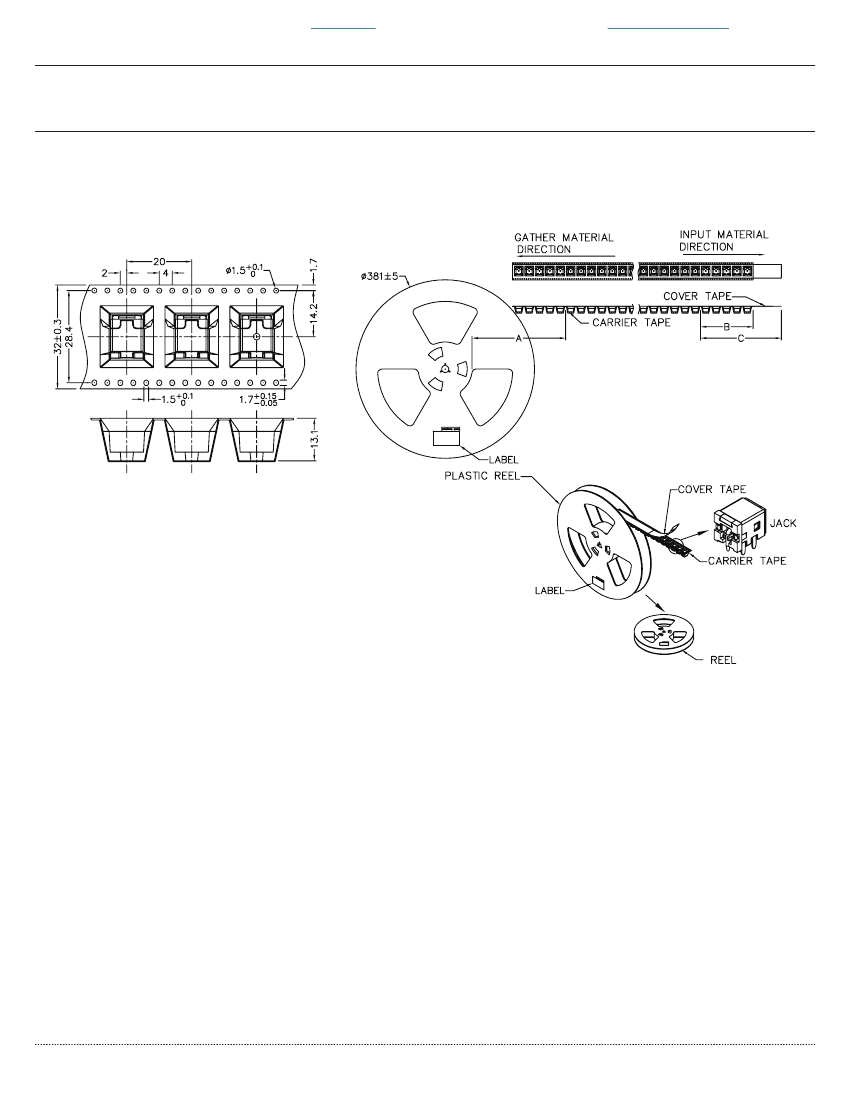

PACKAGING
units: mm
Reel Size: Ø381 mm
Reel QTY: 350 pcs per reel
A: Empty 160 mm min.
B: Empty 100 mm min.
C: Cover 400 mm min.
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-082BH
│
DESCRIPTION:
DC POWER JACK
date
10/06/2017
│
page
4 of 4
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
increased voltage rating
increased voltage rating, added storage and drying conditions, and
tape and reel packaging details
date
03/23/2012
05/18/2016
10/06/2017
The revision history provided is for informational purposes only and is believed to be accurate.
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
Fax 503.612.2383
cui.com
techsupport@cui.com
CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is
assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical
component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to
