SP3485EN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> SP3485EN

SP3485EN: DescriptionCermet Potentiometer; Resistance Max:10kohm; Resistance Tolerance:+/- 10 %; Power Rating:1W; Voltage Rating:350V; Series:149; Temperature Coefficient:+/-150 ppm; Resistor Element Material:Cermet; Leaded Process Compatible:Yes; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size124KB，9 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

SP3485EN Overview

Cermet Potentiometer; Resistance Max:10kohm; Resistance Tolerance:+/- 10 %; Power Rating:1W; Voltage Rating:350V; Series:149; Temperature Coefficient:+/-150 ppm; Resistor Element Material:Cermet; Leaded Process Compatible:Yes

SP3485EN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP8,.25
Reach Compliance Code	unknow
Is Samacsys	N
Other features	CAN ALSO OPERATE WITH A 5V SUPPLY
Differential output	YES
Number of drives	1
High level input current maximum value	0.000001 A
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-422; EIA-485
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	1.5 V
Maximum output low current	0.25 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	3.3 V
Certification status	Not Qualified
Maximum receive delay	100 ns
Number of receiver bits	1
Maximum seat height	1.748 mm
Maximum slew rate	2 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
maximum transmission delay	60 ns
width	3.895 mm
Base Number Matches	1

Preview

Download Datasheet

View All

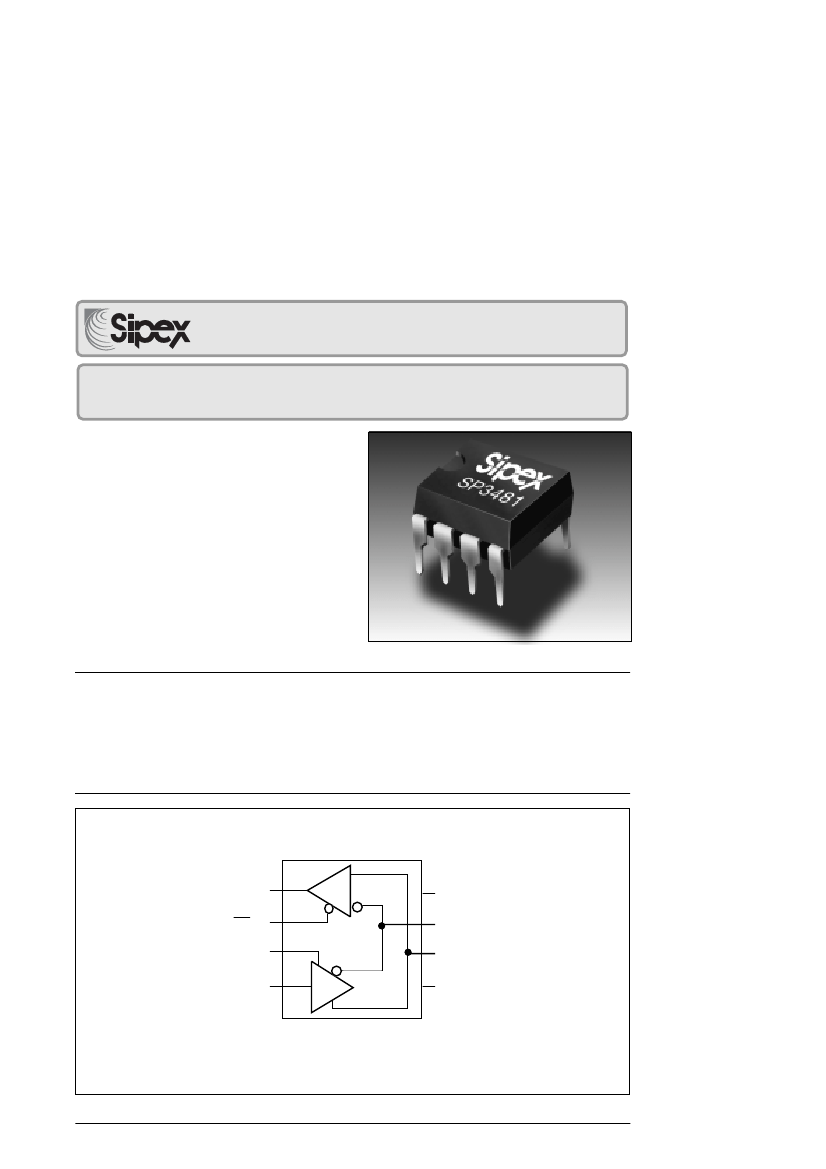

SP3481/SP3485

+3.3V Low Power Half-Duplex RS-485

Transceivers with 10Mbps Data Rate

■

RS-485 and RS-422 Transceivers

Operates from a single +3.3V supply

Interoperable with +5.0V logic

Driver/Receiver Enable

Low Power Shutdown Mode (SP3481)

-7V to +12V Common-Mode Input

Voltage Range

■

Allows up to 32 transceivers on

the serial bus

■

Compatibility with the industry

standard 75176 pinout

■

Driver Output Short-Circuit Protection

DESCRIPTION

The

SP3481

and the

SP3485

are a family of +3.3V low power half-duplex transceivers that

meet the specifications of the RS-485 and RS-422 serial protocols. These devices are pin-to-

pin compatible with the Sipex SP481, SP483, and SP485 devices as well as popular industry

standards. The

SP3481

and the

SP3485

feature Sipex's BiCMOS process, allowing low power

operation without sacrificing performance. The

SP3481

and

SP3485

meet the electrical

specifications of RS-485 and RS-422 serial protocols up to 10Mbps under load. The

SP3481

is equipped with a low power Shutdown mode.

RO 1

RE 2

DE 3

DI 4

8 Vcc

7 B

6 A

SP3481 and SP3485

5 GND

10/15/02

SP3481/3485 Low Power Half-Duplex RS485 Transceivers

SP3485EN Related Products

	SP3485EN	SP3485EP	SP3485CP	SP3485CN	SP3481	SP3481EP	SP3481EN	SP3481CP	SP3481CN
Description	Cermet Potentiometer; Resistance Max:10kohm; Resistance Tolerance:+/- 10 %; Power Rating:1W; Voltage Rating:350V; Series:149; Temperature Coefficient:+/-150 ppm; Resistor Element Material:Cermet; Leaded Process Compatible:Yes	Cermet Potentiometer; Resistance Max:10kohm; Resistance Tolerance:+/- 10 %; Power Rating:1W; Voltage Rating:350V; Series:149; Temperature Coefficient:+/-150 ppm; Resistor Element Material:Cermet; Leaded Process Compatible:Yes	Cermet Potentiometer; Resistance Max:10kohm; Resistance Tolerance:+/- 10 %; Power Rating:1W; Voltage Rating:350V; Series:149; Temperature Coefficient:+/-150 ppm; Resistor Element Material:Cermet; Leaded Process Compatible:Yes	Cermet Potentiometer; Resistance Max:10kohm; Resistance Tolerance:+/- 10 %; Power Rating:1W; Voltage Rating:350V; Series:149; Temperature Coefficient:+/-150 ppm; Resistor Element Material:Cermet; Leaded Process Compatible:Yes	Cermet Potentiometer; Resistance Max:10kohm; Resistance Tolerance:+/- 10 %; Power Rating:1W; Voltage Rating:350V; Series:149; Temperature Coefficient:+/-150 ppm; Resistor Element Material:Cermet; Leaded Process Compatible:Yes	Cermet Potentiometer; Resistance Max:10kohm; Resistance Tolerance:+/- 10 %; Power Rating:1W; Voltage Rating:350V; Series:149; Temperature Coefficient:+/-150 ppm; Resistor Element Material:Cermet; Leaded Process Compatible:Yes	Cermet Potentiometer; Resistance Max:10kohm; Resistance Tolerance:+/- 10 %; Power Rating:1W; Voltage Rating:350V; Series:149; Temperature Coefficient:+/-150 ppm; Resistor Element Material:Cermet; Leaded Process Compatible:Yes	+3.3V Low Power Half-Duplex RS-485 Transceivers with 10Mbps Data Rate	+3.3V Low Power Half-Duplex RS-485 Transceivers with 10Mbps Data Rate
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP8,.25	DIP, DIP8,.3	DIP, DIP8,.3	SOP, SOP8,.25	-	DIP, DIP8,.3	SOP, SOP8,.25	DIP, DIP8,.3	SOP, SOP8,.25
Reach Compliance Code	unknow	unknow	unknow	unknow	-	unknow	unknow	unknow	unknow
Other features	CAN ALSO OPERATE WITH A 5V SUPPLY	CAN ALSO OPERATE WITH A 5V SUPPLY	CAN ALSO OPERATE WITH A 5V SUPPLY	CAN ALSO OPERATE WITH A 5V SUPPLY	-	CAN ALSO OPERATE WITH A 5V SUPPLY	CAN ALSO OPERATE WITH A 5V SUPPLY	CAN ALSO OPERATE WITH A 5V SUPPLY	CAN ALSO OPERATE WITH A 5V SUPPLY
Differential output	YES	YES	YES	YES	-	YES	YES	YES	YES
Number of drives	1	1	1	1	-	1	1	1	1
High level input current maximum value	0.000001 A	0.000001 A	0.000001 A	0.000001 A	-	0.000001 A	0.000001 A	0.000001 A	0.000001 A
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	-	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	-	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	EIA-422; EIA-485	EIA-422; EIA-485	EIA-422; EIA-485	EIA-422; EIA-485	-	EIA-422; EIA-485	EIA-422; EIA-485	EIA-422; EIA-485	EIA-422; EIA-485
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	-	R-PDIP-T8	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	-	e0	e0	e0	e0
length	4.9 mm	9.5885 mm	9.5885 mm	4.9 mm	-	9.5885 mm	4.9 mm	9.5885 mm	4.9 mm
Number of functions	1	1	1	1	-	1	1	1	1
Number of terminals	8	8	8	8	-	8	8	8	8
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	-	85 °C	85 °C	70 °C	70 °C
Minimum output swing	1.5 V	1.5 V	1.5 V	1.5 V	-	1.5 V	1.5 V	1.5 V	1.5 V
Maximum output low current	0.25 A	0.25 A	0.25 A	0.25 A	-	0.25 A	0.25 A	0.25 A	0.25 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	-	DIP	SOP	DIP	SOP
Encapsulate equivalent code	SOP8,.25	DIP8,.3	DIP8,.3	SOP8,.25	-	DIP8,.3	SOP8,.25	DIP8,.3	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	-	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	NOT APPLICABLE	NOT APPLICABLE	240	-	NOT APPLICABLE	240	NOT APPLICABLE	240
power supply	3.3 V	3.3 V	3.3 V	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	100 ns	100 ns	100 ns	100 ns	-	100 ns	100 ns	100 ns	100 ns
Number of receiver bits	1	1	1	1	-	1	1	1	1
Maximum seat height	1.748 mm	5.334 mm	5.334 mm	1.748 mm	-	5.334 mm	1.748 mm	5.334 mm	1.748 mm
Maximum slew rate	2 mA	2 mA	2 mA	2 mA	-	2 mA	2 mA	2 mA	2 mA
Maximum supply voltage	3.465 V	3.465 V	3.465 V	3.465 V	-	3.465 V	3.465 V	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V	3.135 V	3.135 V	-	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	NO	NO	YES	-	NO	YES	NO	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	-	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	-	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	-	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	-	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	NOT APPLICABLE	NOT APPLICABLE	30	-	NOT APPLICABLE	30	NOT APPLICABLE	30
maximum transmission delay	60 ns	60 ns	60 ns	60 ns	-	60 ns	60 ns	60 ns	60 ns
width	3.895 mm	7.62 mm	7.62 mm	3.895 mm	-	7.62 mm	3.895 mm	7.62 mm	3.895 mm
