(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
C49E.pdf
May.10,2011

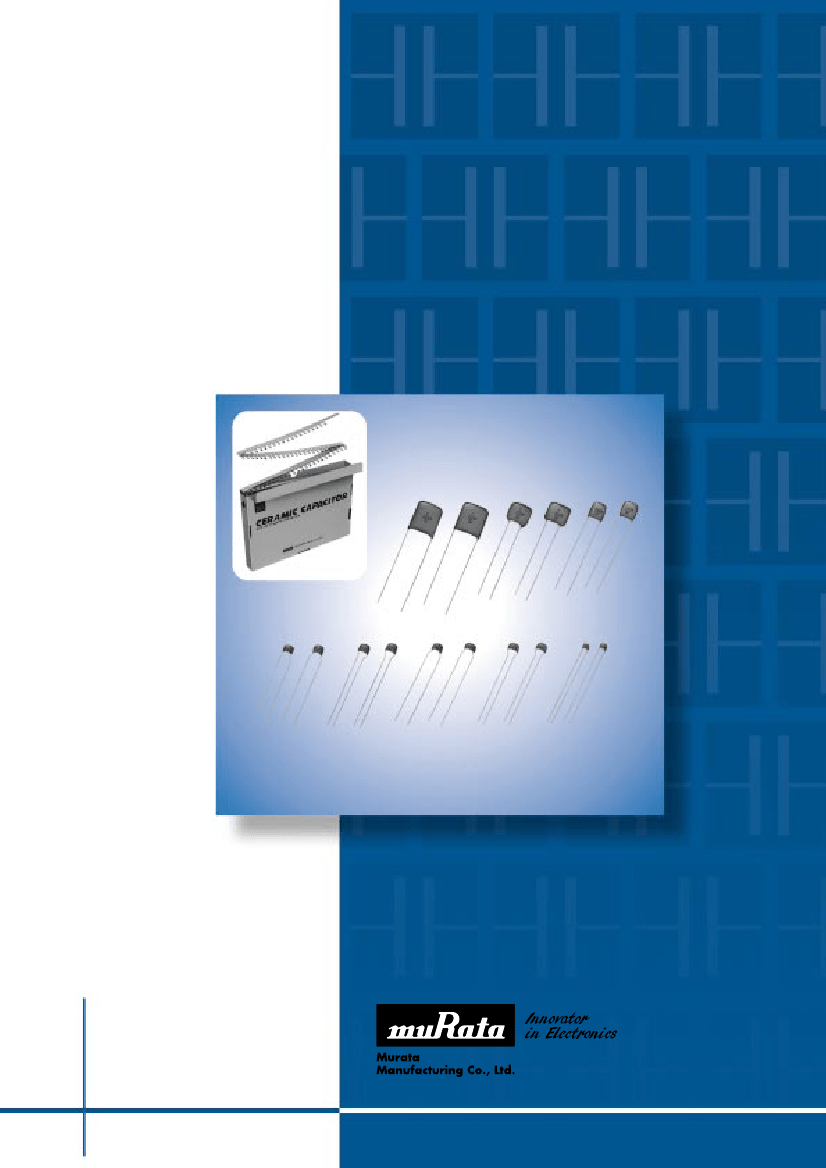

Radial Lead Type
Monolithic Ceramic
Capacitors
Cat.No.C49E-21
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
C49E.pdf
May.10,2011
EU RoHS Compliant
•
•
•
All the products in this catalog comply with EU RoHS.
EU RoHS is "the European Directive 2002/95/EC on the Restriction of the Use
of Certain Hazardous Substances in Electrical and Electronic Equipment."
For more details, please refer to our website 'Murata's Approach for EU RoHS'
(http://www.murata.com/info/rohs.html).
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
C49E.pdf
May.10,2011
CONTENTS
Part Numbering
1
RPE Series (DC25V-DC100V)
Marking
1
2
4
5
6
9
10
12
15
16
16
17
19
20
20
21
24
27
28
28
30
33
34
37
38
38
40
42
42
43
44
45
46
48
51
2
Temperature Compensating Type, C0G Characteristics
High Dielectric Constant Type, X7R Characteristics
High Dielectric Constant Type, Y5V Characteristics
Specifications and Test Methods
3
2
RPE Series Small Size, Large Capacitance (DC50V)
Marking
High Dielectric Constant Type, X7R Characteristics
Specifications and Test Methods
4
3
RH Series 150°C max. (for Automotive) (DC50V-DC100V)
Marking
Temperature Compensating Type, X8G Characteristics
High Dielectric Constant Type, X8L Characteristics
Specifications and Test Methods
5
4
RDE Series (For Commercial Use Only) (DC25V-DC630V)
Marking
Temperature Compensating Type, C0G Characteristics
High Dielectric Constant Type, X7R/X7S Characteristics
High Dielectric Constant Type, F/Y5V Characteristics
Specifications and Test Methods
5
RDE Series Large Capacitance and High Allowable Ripple Current (For Commercial Use Only) (DC250V-DC630V)
Marking
High Dielectric Constant Type, X7T Characteristics
Specifications and Test Methods
Reference Data (Typical Example)
RPE Series
RPE Series Small Size, Large Capacitance
RH Series
RDE Series
Packaging
!Caution
Notice
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
C49E.pdf
May.10,2011
o
Part Numbering
Radial Lead Type Monolithic Ceramic Capacitors
(Part Number)
qProduct
ID
wSeries/Terminal
Product ID
RP
RH
RD
Series/Terminal
E
E/D
E
Radial Lead Type Monolithic Ceramic Capacitors (DC25V-DC100V)
Radial Lead Type Monolithic Ceramic Capacitors 150°C max. (for Automotive) (DC50V-DC100V)
Radial Lead Type Monolithic Ceramic Capacitors (For Commercial Use Only) (DC25V-DC630V)
RP
q
E
w
R7 1H
e
r
104
t
K
2
M1
i
A03 A
o
!0
y u
eTemperature
Characteristics
Code
5C
5G
C7
D7
F1
F5
L8
R7
Temperature
Characteristics
C0G*
X8G*
X7S
X7T
F
Y5V
X8L
X7R
Reference
Temperature
25°C
25°C
25°C
25°C
20°C
25°C
25°C
25°C
Temperature
Range
25 to 125°C
25 to 150°C
-55 to 125°C
-55 to 125°C
-25 to 85°C
-30 to 85°C
-55 to 125°C
125 to 150°C
-55 to 125°C
Capacitance Change or
Temperature Coefficient
0±30ppm/°C
0±30ppm/°C
±22%
+22, -33%
+30, -80%
+22, -82%
±15%
+15, -40%
±15%
Operating
Temperature Range
-55 to 125°C
-55 to 150°C
-55 to 125°C
-55 to 125°C
-25 to 85°C
-30 to 85°C
-55 to 150°C
-55 to 125°C
* Please refer to table for Capacitance change under reference temperature.
• Capacitance change from each temperature
Capacitance Change from 25˚C (%)
Char.
C0G
X8G
Nominal Values (ppm/˚C) *1
Max.
0±30
0.58
-55˚C
Min.
-0.24
Max.
0.40
-30˚C
Min.
-0.17
Max.
0.25
-10˚C
Min.
-0.11
*1: Nominal values denote the temperature coefficient within a range of 25 to 125˚C.
rRated
Voltage
Code
1E
1H
2A
2E
2W
2J
tCapacitance
Expressed by three-digit alphanumerics. The unit is pico-farad
(pF). The first and second figures are significant digits, and the
third figure expresses the number of zeros that follow the two
numbers.
If there is a decimal point, it is expressed by the capital letter "R."
In this case, all figures are significant digits.
Rated Voltage
DC25V
DC50V
DC100V
DC250V
DC450V
DC630V
yCapacitance
Tolerance
Code
C
D
J
K
M
Z
Capacitance Temperature
Tolerance Characteristics
±0.25pF
±0.5pF
±5%
±10%
±20%
+80%, -20%
C0G
C0G/X8G
X7S/X7T/X7R/
X8L
X7S/X7T/X7R/
X8L
F/Y5V
Capacitance
Step
V5pF
: 1pF Step
6 to 9pF : 1pF Step
U10
: E12 Series
E6 Series
E3 Series
E3 Series
Continued on the following page.
2
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
C49E.pdf
May.10,2011
Continued from the preceding page.
uDimensions
(LxW)
Code
0
1
2
3
5
6
7
8
U
W
* DC630V: W+0.5mm
iLead
Style
Code
A2
B1
C1
DB
E1/E2
K1
M1/M2
P1
S1/S2
Lead Style
Straight Long
Straight Long
Straight Long
Straight Taping
Straight Taping
Inside Crimp
Inside Crimp Taping
Outside Crimp
Outside Crimp Taping
Lead Spacing
2.5mm
5.0mm
10.0mm
2.5mm
5.0mm
5.0mm
5.0mm
2.5mm
2.5mm
Dimensions (LxW)
4.0g3.5mm or 5.0g3.5mm (Depends on Part Number List)
4.0g3.5mm or 4.5g3.5mm or 5.0g3.5mm (Depends on Part Number List)
5.0g3.5mm or 5.5g4.0mm or 5.7g4.5mm (Depends on Part Number List)
5.0g4.5mm or 5.5g5.0mm or 6.0g5.5mm (Depends on Part Number List)
7.5g7.5mm*
10.0g10.0mm
12.5g12.5mm
7.5g5.5mm
7.7g12.5mm*
5.5g7.5mm
oIndividual
Specification Code
Expressed by three-digit alphanumerics
!0
Packaging
Code
A
B
Packaging
Ammo Pack
Bulk
Lead distance between reference and bottom planes.
