BL2-022-S430-55/2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BL2-022-S430-55/2

BL2-022-S430-55/2: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BL2-022-S430-55/2 Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug, ROHS COMPLIANT

BL2-022-S430-55/2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	E-tec Interconnect Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
body width	0.181 inch
subject depth	0.169 inch
body length	0.89 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BL
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

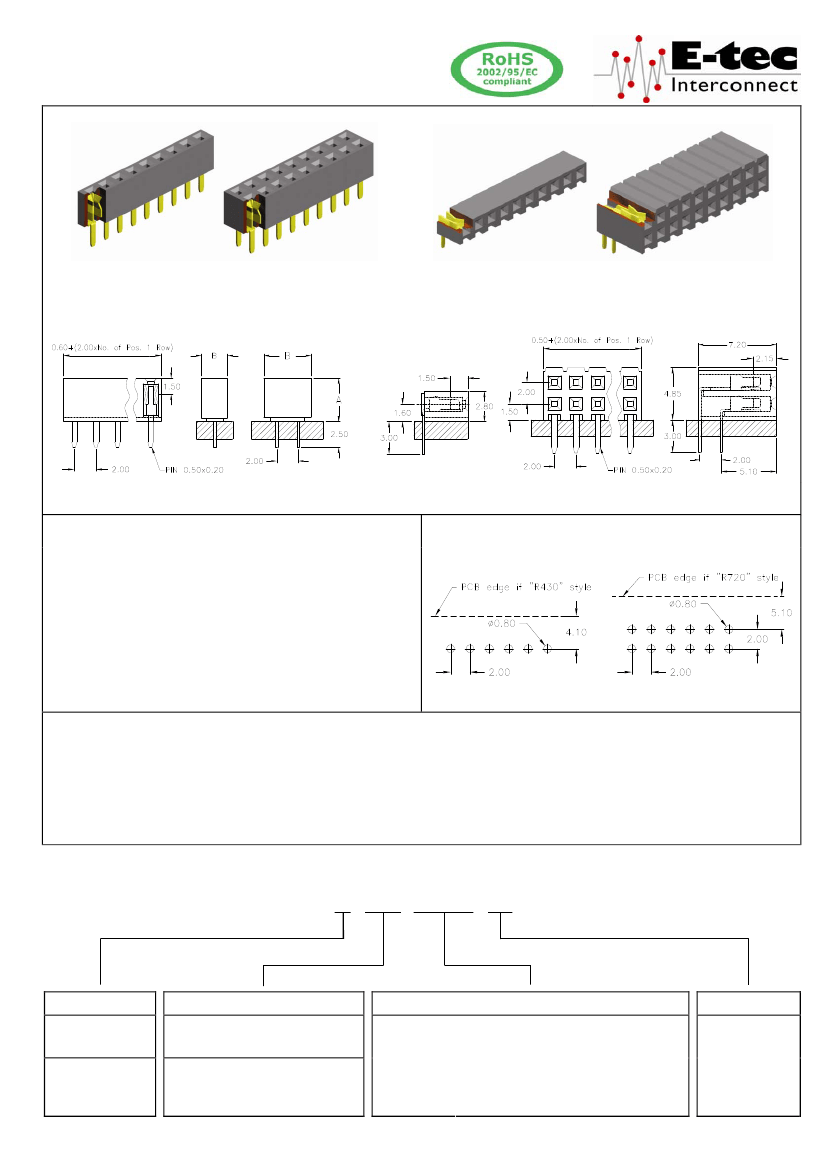

2.00mm pitch

- THT -

Female Header

low profile

S 4xx

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

Operating temperature

Contact material

(RoHS compliant)

Insulator material

(RoHS compliant)

1000 MΩ min.

20 mΩ max.

500 V AC

- 40°C to +105°C

Phosphor Bronze

Nylon UL 94 V-0

R 430

PCB

R 720

Hole Layout

APPLICATION AND FEATURES

Low profile, 4.00mm and 4.30mm height single & dual row straight.

Designed for board to board small spacing interconnection.

High quality dual beam contacs mating with 0.50 x 0.50mm Pin Header.

How to order

BL x - xxx - X xxx -

Rows

single row

dual row

Nbr of contacts

S400 & S430

002

R430

003

S400 & S430

004

R720

004

Version

040

025

080

S 400

S 430

R 430

R 720

straight – single row : “A”=4.00 mm

straight – dual row : “A”=4.00 mm

straight – single row : “A”=4.30 mm

straight – dual row : “A”=4.30 mm

right angle – single row

right angle – dual row

“B”=2.20 mm

“B”=4.20 mm

“B”=2.40 mm

“B”=4.60 mm

Plating

= gold

Other platings on

request
