5393-2161 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5393-2161

5393-2161: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5393-2161 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

5393-2161 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.429 inch
subject depth	0.406 inch
body length	1.102 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5393
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	SHORT LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

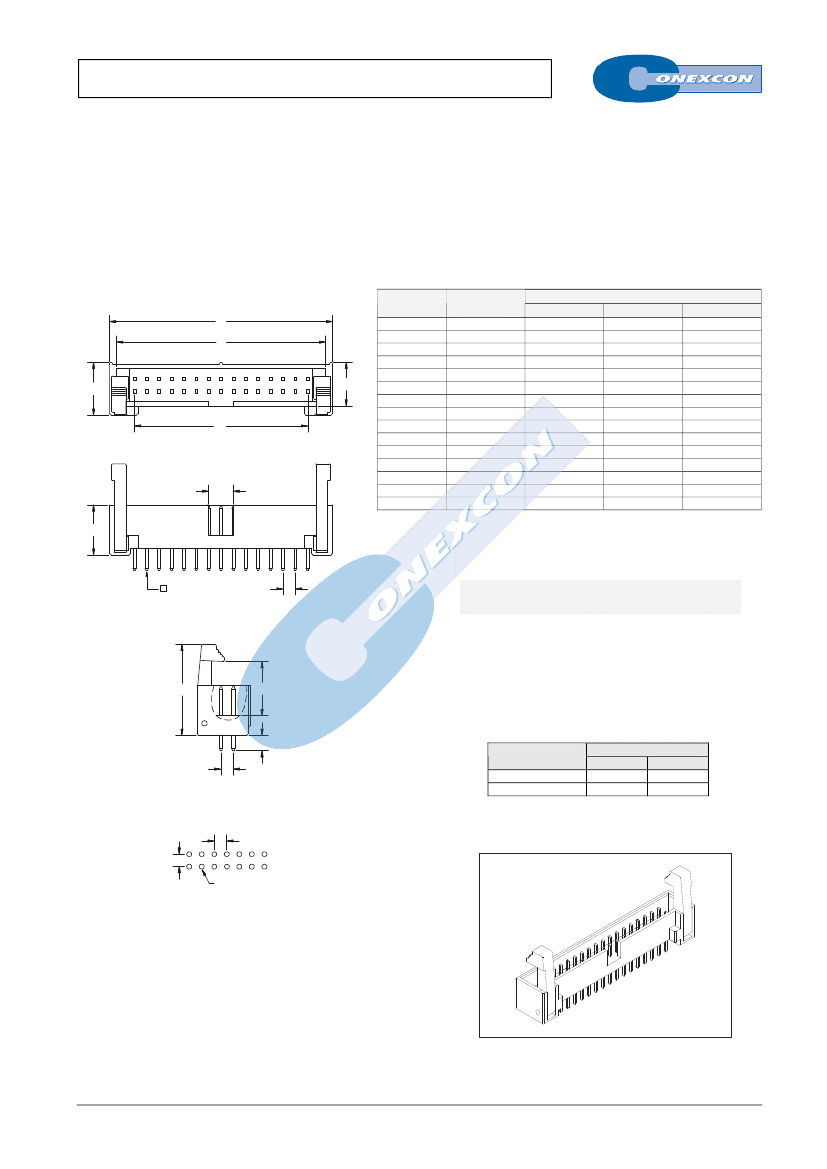

2.54mm STRAIGHT SHROUDED HEADER

5393 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”). With Eject Latch Levers

Features





Available in 6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 34, 40, 50,

60 and 64 circuits

Insulator Material: P.B.T UL 94V-0

Contact Material: 0.50 mm square pin in copper alloy



Mates with 2039 and 2040 series I.D.C connector

Short and long latches available

Fully shrouded. Provides fast connection / disconnection of

Flat cable assembly

Ordering and Dimensional Information

Dimensional Information

Circuit Size

Part Number

5393-T06X

5393-T08X

5393-T10X

5393-T12X

5393-T14X

5393-T16X

5393-T20X

5393-T24X

5393-T26X

5393-T30X

5393-T34X

5393-T40X

5393-T50X

5393-T60X

5393-T64X

Dimensions

15.28 (0.602)

17.82 (0.702)

20.36 (0.802)

22.90 (0.902)

25.44 (1.002)

27.98 (1.102)

33.06 (1.302)

38.14 (1.502)

40.68 (1.602)

45.76 (1.802)

50.84 (2.002)

58.46 (2.302)

71.16 (2.802)

83.86 (3.302)

88.94 (3.502)

12.42 (0.489)

14.96 (0.589)

17.50 (0.688)

20.04 (0.789)

22.58 (0.889)

25.12 (0.989)

30.20 (1.189)

35.28 (1.389)

37.82 (1.489)

42.90 (1.689)

47.98 (1.889)

55.60 (2.189)

68.30 (2.689)

81.00 (3.189)

86.08 (3.389)

5.08(0.200)

7.62(0.300)

10,16(0,400)

12.70(0.500)

15,24(0,600)

17,78(0,700)

22,86(0,900)

27.94(1.100)

30,48(1,200)

35,56(1,400)

40,64(1,600)

48,26(1,900)

60,96(2,400)

73,66(2,900)

78,74(3,100)

10.9

9.0

5.0

10.3

T = Contact Plating

0.64x0.64

2.54



T =

Tin plated.

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

X = Latch type

X =

Short. For use without strain relief

X =

Long. For use with strain relief

Dimensions

26.30

22.90

14.60

10.60

3.2

Match Type

2.54

Long

Short

2.54

ø1.02±0.05

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

H-XX

Recommended Resources
