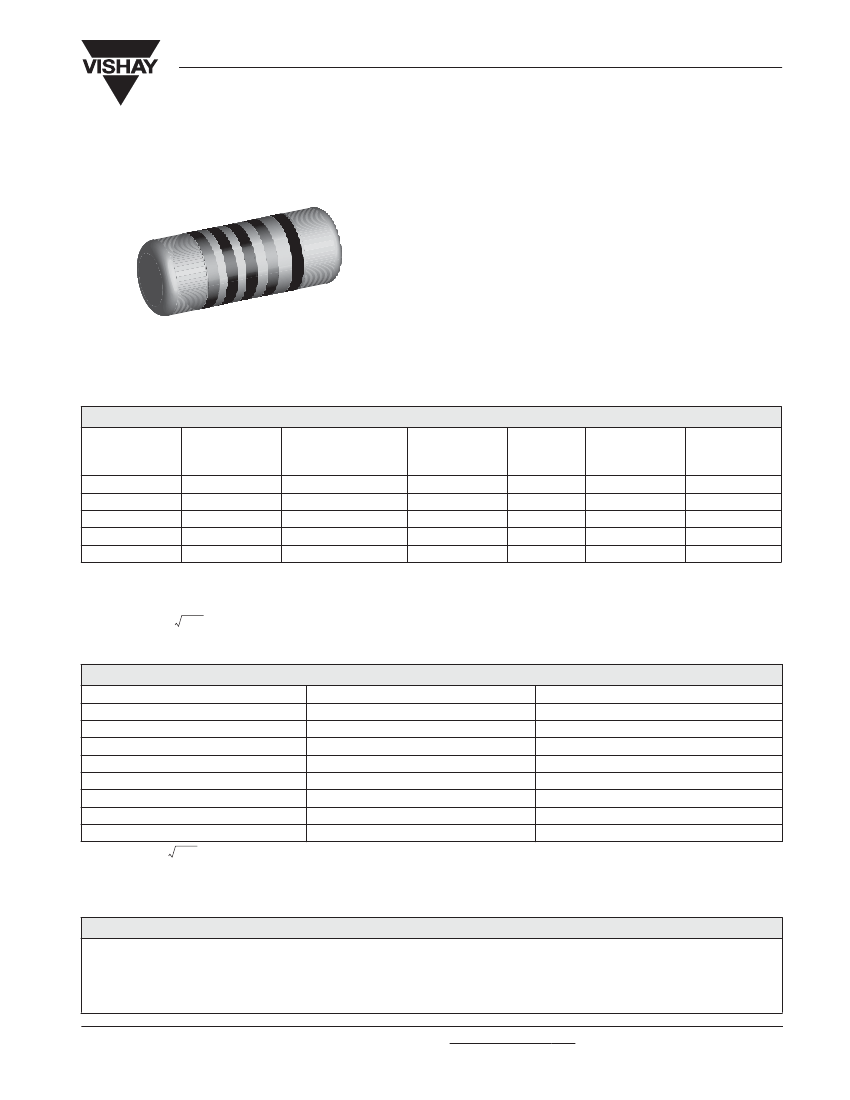

PMM0204
Vishay Draloric
Metal Film, Cylindrical Resistors
FEATURES
∑
Stable metal film on high quality ceramic
∑
Very low TC and tight tolerances
∑
Excellent stability at different environmental conditions
∑
Force fitted steel caps, tin plated on nickel barrier
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
PMM0204
PMM0204
PMM0204
PMM0204
PMM0204
1)
POWER RATING
P
70°C1)
W
0.125
0.125
0.125
0.125
0.125
LIMITING ELEMENT
VOLTAGE MAX
2)
V
100
100
100
100
100
TEMPERATURE
COEFFICIENT
ppm/K
5
10
15
25
50
TOLERANCE
%
0.1, 0.25
0.1, 0.25
0.1, 0.25
0.1, 0.25
0.1, 0.25
RESISTANCE
RANGE
W
100R - 100K
100R – 221K
100R – 221K
100R – 221K
100R – 221K
E-SERIES
96 - 192
96 – 192
96 – 192
96 – 192
96 – 192
Power rating depends on the maximum temperature at the
solder point, the component placement density and the
substrate material
Rated voltage:
PxR
TC
£
10ppm/°C: temperature range is - 10°C to + 85°C
• Coating: green
• Without TC-band
• Marking :see appropriate catalog or web page
2)
•
TECHNICAL SPECIFICATIONS
PARAMETER
Rated Dissipation at 70°C
Limiting Element Voltage
2)
Insulation Voltage (1 min)
Thermal
Resistance
3)
Insulation Resistance
Category Temperature Range
Failure Rate
Weight / 1000pcs
2)
3)
UNIT
W
V
V
dc/ac peak
K/W
W
°C
10
–9
/h
g
PxR
PMM0204
0.125
100
200
£
220
≥
10
10
- 10 / + 100
<1
18
Rated voltage:
Based on measurements on test board acc. to EN 140000
PACKAGING:
see SMM0204
ORDERING INFORMATION
PMM0204
MODEL
25
TC
ppm / K
562R
RESISTANCE VALUE
W
0.1%
TOLERANCE
± %
B1
PACKAGING
B1-Blistertape 1000 pcs
Document Number: 20006
Revision: 20-Oct-03
For Technical questions contact: ff1aresistors@vishay.com
www.vishay.com
1
PMM0204
Vishay Draloric
DIMENSIONS
MODEL
PMM0204
DIMENSIONS
[in millimeters]
D
max
1.4
d*
D -0.15
L
3.6 - 0.15
A
max
0.85
A
min
0.5
Metal Film Cylindrical Resistors
*d measured in the middle of the resistor
SOLDER PAD DIMENSIONS
[in millimeters]
MODEL
PMM0204
REFLOW SOLDERING WAVE SOLDERING
a
1.0
b
1.6
l
2.2
a
1.2
b
1.6
l
2.2
Current Noise in
mV/V
Rated Power in %
3
2
1
0.5
0.3
120
100
80
60
0.1
40
0.05
0.03
20
0.01
0
1K
Current Noise
5K
10K
50K
100K
500K
1M
-55
Current Noise
-25
0
25
50
Resistance Value in
W
75
100
70
Ambient Temperature in
∞C
PERFORMANCE
TEST
Endurance Test at 70°C
IEC 60115-1 4.25.1
Endurance at UCT
IEC 60115-1 4.25.3
Overload Test
IEC 60115-1 4.13
Thermal Shock
IEC 60115-1 4.19 IEC 60068-2-14
Damp Heat Steady State
IEC 60115-1 4.24 IEC 60068-2-3
Resistance to Soldering Heat
IEC 60115-1 4.18 IEC 60068-2-20
CONDITIONS OF TEST
1000 hours at 70°C, 1.5 hours "ON", 0.5 hours "OFF"
1000 hours at 125°C without load
Short time overload for 2 seconds
2.5 x rated voltage or
£
2 x limiting element voltage
Rapid change between upper and lower category
temperature
56 days at 40°C and 93% relative humidity
10 seconds at 260°C solder bath temperature
TEST RESULTS
£
± 0.1%
£
± 0.1%
£
± 0.02%
£
± 0.02%
£
± 0.2%
£
± 0.05%
APPLICABLE SPECIFICATIONS
• CECC40000 / 40400 / 40401-803
• EN140400 / IEC 60115 – 1
www.vishay.com
2
For Technical questions contact: ff1aresistors@vishay.com
Document Number: 20006
Revision: 20-Oct-03
