53612350: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size304KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

53612350 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle

53612350 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.409 inch
subject depth	0.567 inch
body length	1.871 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	536
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.15 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

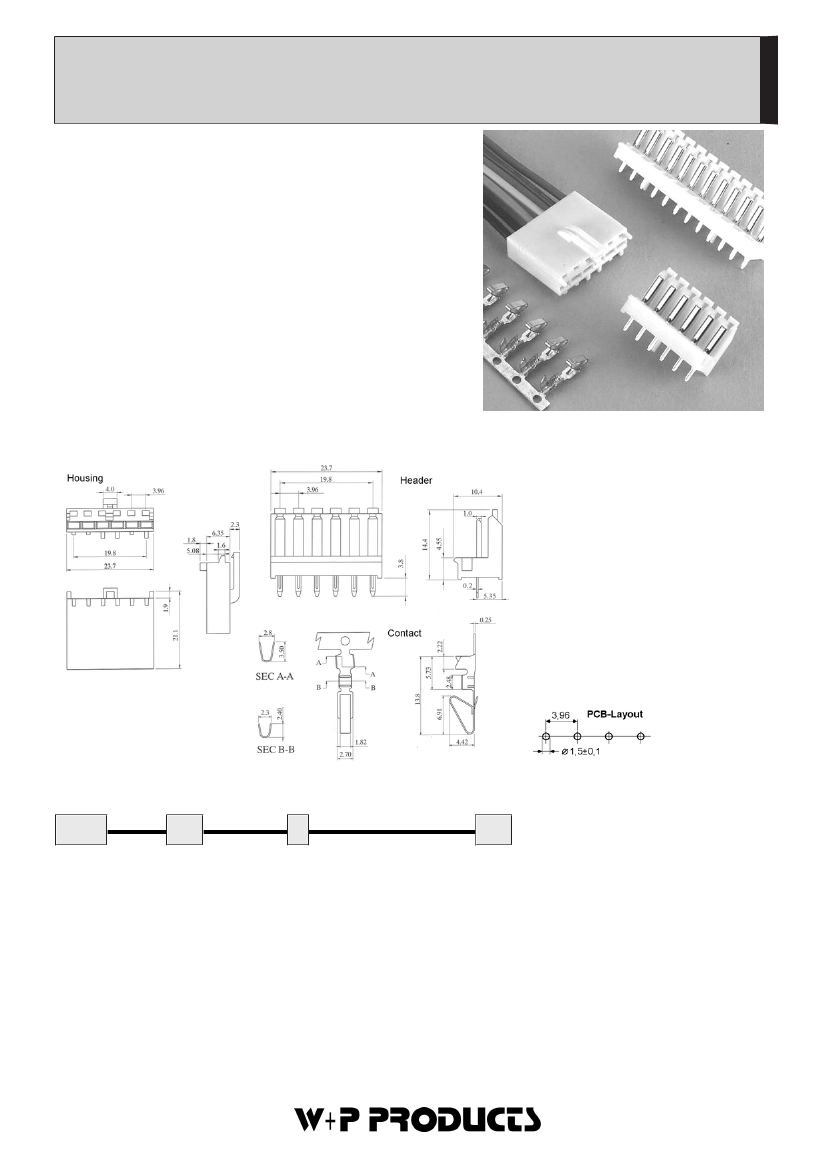

536

Stift-/Buchsenleisten - Crimp-Rast-System - RM 3,96mm

Friction Lock Header and Crimp Housing - Pitch 3,96mm

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Messing

Contact Material

Brass

Aderquerschnitt

AWG 18 ... 24

Applicable wire Gauge

AWG 18 ... 24

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1500V

Test Voltage

1500V

Nennspannung

250V

AC/DC

max.

Voltage Rating

250V

AC/DC

max.

Nennstrom

Current Rating

Temperaturbereich

-25°C ... +85°C

Temperature Range

-25°C ... +85°C

Verarbeitung

Wellenlötverfahren; weitere Informationen in Kapitel T

Processing

Wave soldering, detailed information in ch. T

Series

Contacts

Type

Plating

536

06/12

Buchsengehäuse

Housing

Buchsenkontakte

Crimp contacts

Stiftleiste gerade

Straight pin header

Verzinnt (für Gehäuse nicht erforderlich)

Tin plated (not used for housings)

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

53612350 Related Products

	53612350	53606350
Description	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
body width	0.409 inch	0.409 inch
subject depth	0.567 inch	0.567 inch
body length	1.871 inch	0.935 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN
Contact completed and terminated	TIN	TIN
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	536	536
Plug contact pitch	0.156 inch	0.156 inch
Installation option 1	LOCKING	LOCKING
Installation option 2	FRICTION LOCK	FRICTION LOCK
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of rows loaded	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
Rated current (signal)	5 A	5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.15 inch	0.15 inch
Terminal pitch	3.9624 mm	3.9624 mm
Termination type	SOLDER	SOLDER
Total number of contacts	12	6
