PGA-106W-75+ (RoHS compliant) is an advanced wideband amplifier fabricated using E-PHEMT technol-
ogy and offers extremely high dynamic range over a broad frequency range with low noise figure and flat
gain. Lead finish is SnAgNi. It has repeatable performance from lot to lot and is enclosed in a SOT-89
package for very good thermal performance.
Key Features
Feature
Broad Band: 0.95 to 2.15 GHz
Covers satellite IF band
Advantages
High IP3
Versus DC power Consumption:
36 dBm typical
The PGA-106W-75+ matches industry leading IP3 performance relative to device size
and power consumption. The combination of the design and E-PHEMPT structure pro-
vides enhanced linearity over a broad frequency range as evidence in the IP3 being
typically 13-15 dB above the P 1dB point. This feature makes this amplifier ideal for use
in CATV applications.
High IP2
51-57 dBm
Low Noise Figure:
3.6 dB at 1.5 GHz
Suppresses second order product on wideband applications such as CATV
Low noise figure performance in combination with the high output IP3 results in high
dynamic range.
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
Page 1 of 5
75Ω
Flat Gain, High Dynamic Range
Monolithic Amplifier
Product Features
• High IP3, 36 dBm typ. at 1.5 GHz
• Gain, 15.9 dB typ. at 1.5 GHz
• High Pout, P1dB 19.5 dBm typ. at 1.5 GHz
• Low Noise Figure, 3.6 dB at 1.5 GHz
0.95 - 2.15 GHz
PGA-106W-75+
CASE STYLE: DF782
Typical Applications
• 75 ohm Satellite L-band
• DBS
General Description
PGA-106W-75+ (RoHS compliant) is an advanced wideband amplifier fabricated using E-PHEMT* tech-
nology and offers extremely high dynamic range over a broad frequency range and with low noise figure
and flat gain. Lead finish is SnAgNi. It has repeatable performance from lot to lot and is enclosed in a
SOT-89 package for very good thermal performance.
simplified schematic and pin description
Function
RF IN
Pin Number
1
Description
RF input pin. This pin requires the use of an external DC blocking capacitor chosen for
the frequency of operation.
RF output and bias pin. DC voltage is present on this pin; therefore a DC blocking
capacitor is necessary for proper operation. An RF choke is needed to feed DC bias
without loss of RF signal due to the bias connection, as shown in “Recommended Ap-
plication Circuit”, Fig. 2
Connections to ground. Use via holes as shown in “Suggested Layout for PCB Design”
to reduce ground path inductance for best performance.
RF-OUT and DC-IN
3
GND
2,4
*Enhanced mode pseudomorhic High Electron Mobility Transistor.
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
REV. A
M151107
PGA-106W-75+
TH/RS/CP
150924
Page 2 of 5
Monolithic E-PHEMT MMIC Amplifier
PGA-106W-75+
Without Ext. mat
(1)
With Ext. mat
(2)
Typ.
17.3
16.4
15.7
21.2
15.3
11.8
15.9
14.2
12.7
29.4
19.2
19.8
19.6
36.3
35.0
34.6
55.4
52.1
61.3
3.1
3.5
3.9
Electrical Specifications at 25°C, 75Ω and 5.0V, unless noted
Parameter
Frequency Range
Gain
Condition (GHz)
0.95
1.5
2.15
0.95
1.5
2.15
0.95
1.5
2.15
1.5
0.95
1.5
2.15
0.95
1.5
2.15
0.95
1.5
2.15
0.95
1.5
2.15
Min.
0.95
—
14.3
—
Typ.
16.9
15.9
14.7
12.2
9.5
7.6
14.8
10.5
7.6
25.4
18.8
19.5
21.5
35.8
35.6
35.6
57.2
53.2
50.8
3.1
3.6
3.9
5.0
116
97
0.05
76
Max.
2.15
—
17.5
—
Units
GHz
dB
Input Return Loss
dB
Output Return Loss
dB
Reverse Isolation
Output Power @1 dB compression
dB
dBm
Output IP3
dBm
Output IP2
(3)
dBm
Noise Figure
dB
Device Operating Voltage (Vd)
Device Operating Current
Device Current Variation vs. Temperature
(5)
Device Current Variation vs Voltage
Thermal Resitance
(4)
(1)
(2)
4.8
—
5.2
132
V
mA
μA/°C
mA/mV
°C/W
Measured on Mini-Circuits Characterization Test board TB-587+. See Characterization Test Circuit (Fig. 1a)
Measured on Mini-Circuits characterization Eval Board TB-696+ see characterization test circuit. (Fig. 1b)
(3)
Output IP2 measured at sum frequency of the two tones (fmeas=f1+f2).
(4)
Junction to ground lead.
(5)
(Current at 85°C - Current at -45°C)/130
Histogram
USL
Absolute Maximum Ratings
Parameter
Operating Temperature (ground lead)
Storage Temperature
Operating Current at 5.0V
Power Dissipation
Input Power (CW)
DC Voltage on Pin 3
7000
6000
Ratings
-40°C to 85°C
-65°C to 150°C
170 mA
0.85 W
+26 dBm (5 minutes)
+14 dBm (continuous)
6V
5000
4000
3000
2000
1000
0
98-102
102-106
106-110
110-114
114-118
118-122
122-126
126-130
130-134
Permanent damage may occur if any of these limits are exceeded.
Electrical maximum ratings are not intended for continuous normal operation.
mA
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
Page 3 of 5
Monolithic E-PHEMT MMIC Amplifier

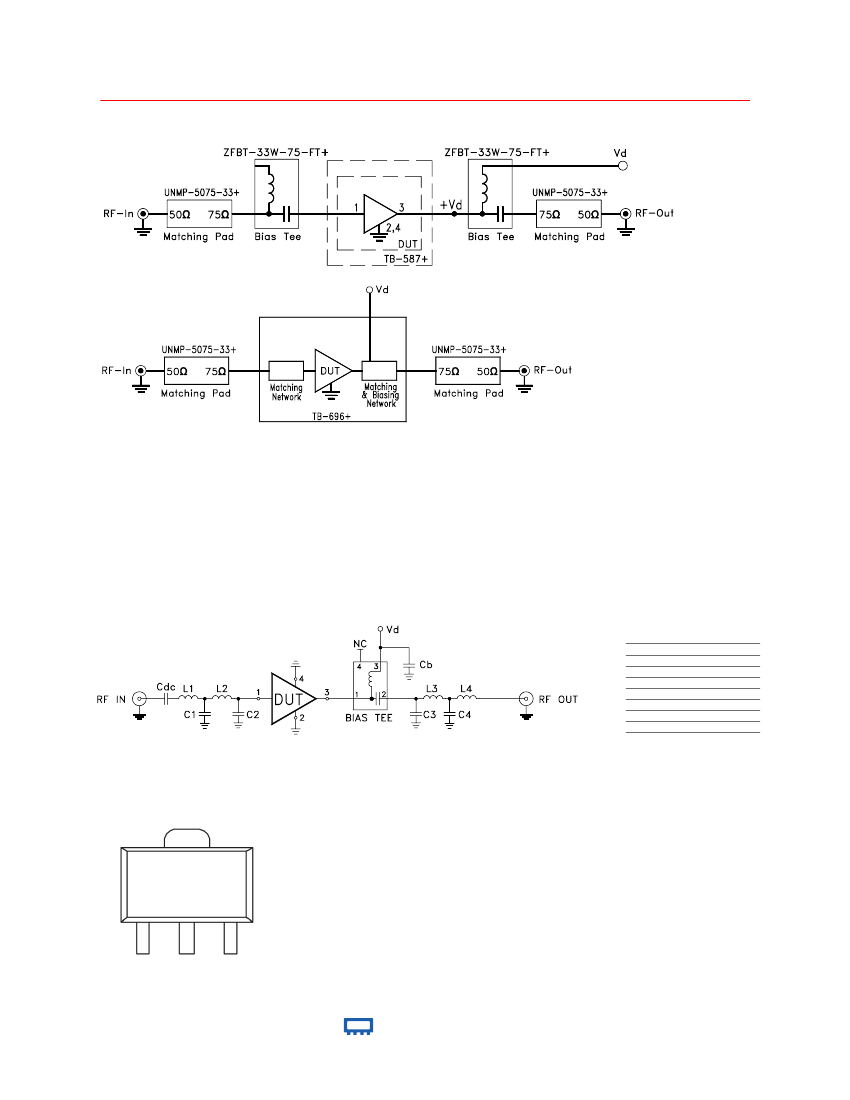

Characterization Test Circuit
PGA-106W-75+
Fig 1a
Fig 1b
Fig 1a, 1b.
Block Diagram of Test Circuit used for characterization. DUT tested on Mini-Circuits Characterization Test board TB-587+
(Fig 1a) and Eval board TB-696+ (Fig 1b).
Gain, Return loss, Output power at 1dB compression (P1 dB) , output IP3 (OIP3), output IP2 (OIP2) and noise figure measured using
2. Output IP3 (OIP3): Two tones, spaced 1 MHz apart, 5 dBm/tone at output.
3. Output IP2 (OIP2): Two tones, spaced 11 MHz apart, 5 dBm/tone at output.
Recommended Application Circuit (TB-696+)
Component
Value
DUT
PGA-106W-75+
Bias Tee Mini-Circuits TCBT-14+
Cdc
2400 pF
Cb
0.1 µF
C1
0.4 pF
C2, C3
1.0 pF
C4
0.3 pF
L1, L2, L4
6.2 nH
L3
4.7 nH
Fig 2.
Evaluation board includes case, connectors, and components soldered to PCB
Product Marking
P106
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
Page 4 of 5
Monolithic E-PHEMT MMIC Amplifier
PGA-106W-75+
Additional Detailed Technical Information
additional information is available on our dash board. To access this information
click here
Data Table
Performance Data
Swept Graphs
S-Parameter (S2P Files) Data Set
(.zip file)
Case Style
Tape & Reel
Standard quantities available on reel
DF782 (SOT 89)
Plastic package, exposed paddle
lead finish: tin-silver over nickel
F55
7” reels with 20, 50, 100, 200, 500 or 1K devices
Suggested Layout for PCB Design
Evaluation Board
Environmental Ratings
PL-379
TB-696+
ENV08T1
ESD Rating
Human Body Model (HBM): Class 1B (500<1000) in accordance with ANSI/ESD STM 5.1 - 2001
Machine Model (MM): Class class M1 (50V) in accordance with ANSI/ESD STM5.2-1999
MSL Rating
Moisture Sensitivity: MSL1 in accordance with IPC/JEDEC J-STD-020D
MSL Test Flow Chart
Start
Visual
Inspection
Electrical Test
SAM Analysis
Reflow 3 cycles,
260°C
Soak
85°C/85RH
168 hours
Bake at 125°C,
24 hours
Visual
Inspection
Electrical Test
SAM Analysis
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
