D-SUB-205AJ15BDNBBF1 datasheet, PDF

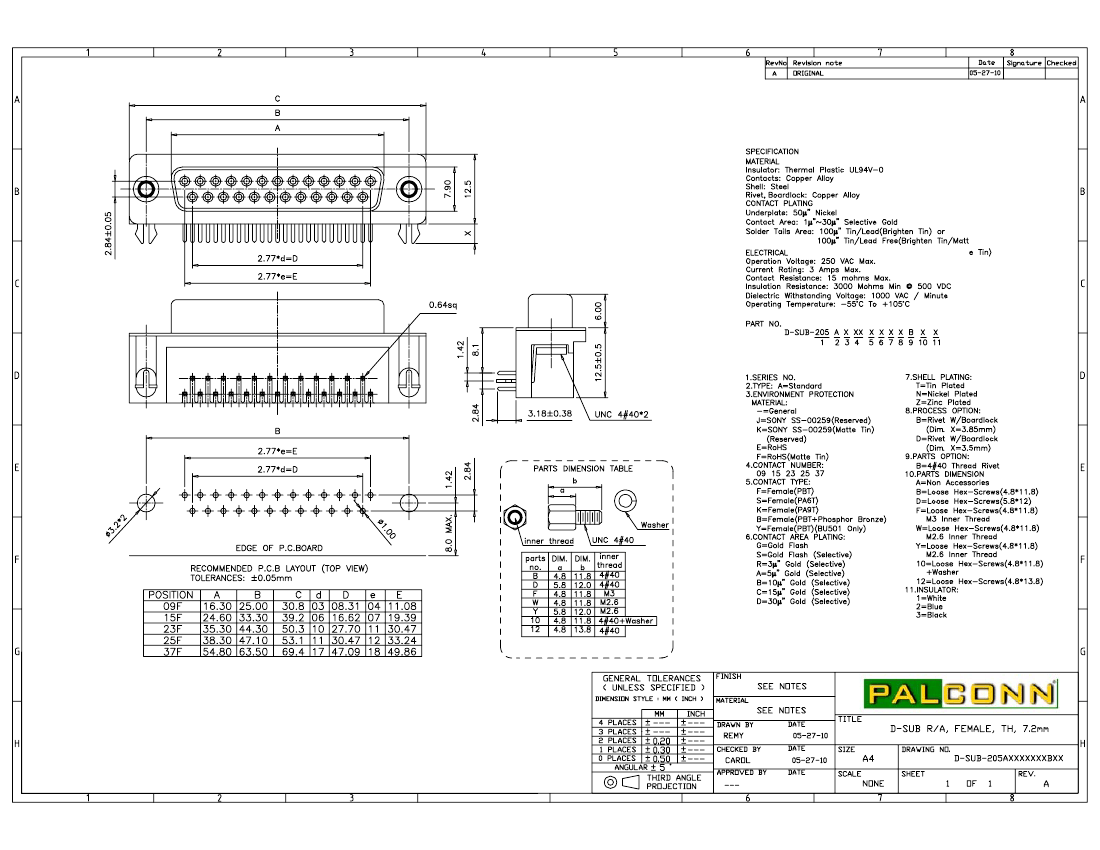

D-SUB-205AJ15BDNBBF1: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, Plug; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerPalPilot

Download Datasheet Parametric View All

D-SUB-205AJ15BDNBBF1 Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, Plug

Parameter Name	Attribute value
Maker	PalPilot
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.492 inch
subject depth	0.492 inch
body length	1.543 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	3000000000 Ω
Insulator color	WHITE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	205
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	M3
Installation option 2	RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15
