V16PH5-C6.8KL-20KC datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> V16PH5-C6.8KL-20KC

V16PH5-C6.8KL-20KC: DescriptionPotentiometer, Carbon, 0.05W, 6800ohm, 50V, 20% +/-Tol, 8352; CategoryPassive components The resistor; File Size370KB，3 Pages; ManufacturerSong Huei Electric Co., Ltd.; Websitehttp://www.song-huei.com.tw

Download Datasheet Parametric View All

V16PH5-C6.8KL-20KC Overview

Potentiometer, Carbon, 0.05W, 6800ohm, 50V, 20% +/-Tol, 8352

V16PH5-C6.8KL-20KC Parametric

Parameter Name	Attribute value
Maker	Song Huei Electric Co., Ltd.
package instruction	Quick Connect, 8352
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Snap-In
Lead diameter	1.2 mm
Lead length	4.1 mm
Manufacturer's serial number	V16(PH)5
Package length	21 mm
Package form	Quick Connect
Package width	13.3 mm
Rated power dissipation(P)	0.05 W
resistance	6800 Ω
Resistor type	POTENTIOMETER
rotation angle	300 deg
series	V16(PH)5
size code	8352
technology	CARBON
Terminal shape	SNAP-IN
Tolerance	20%
Operating Voltage	50 V

V16PH5-C6.8KL-20KC Preview

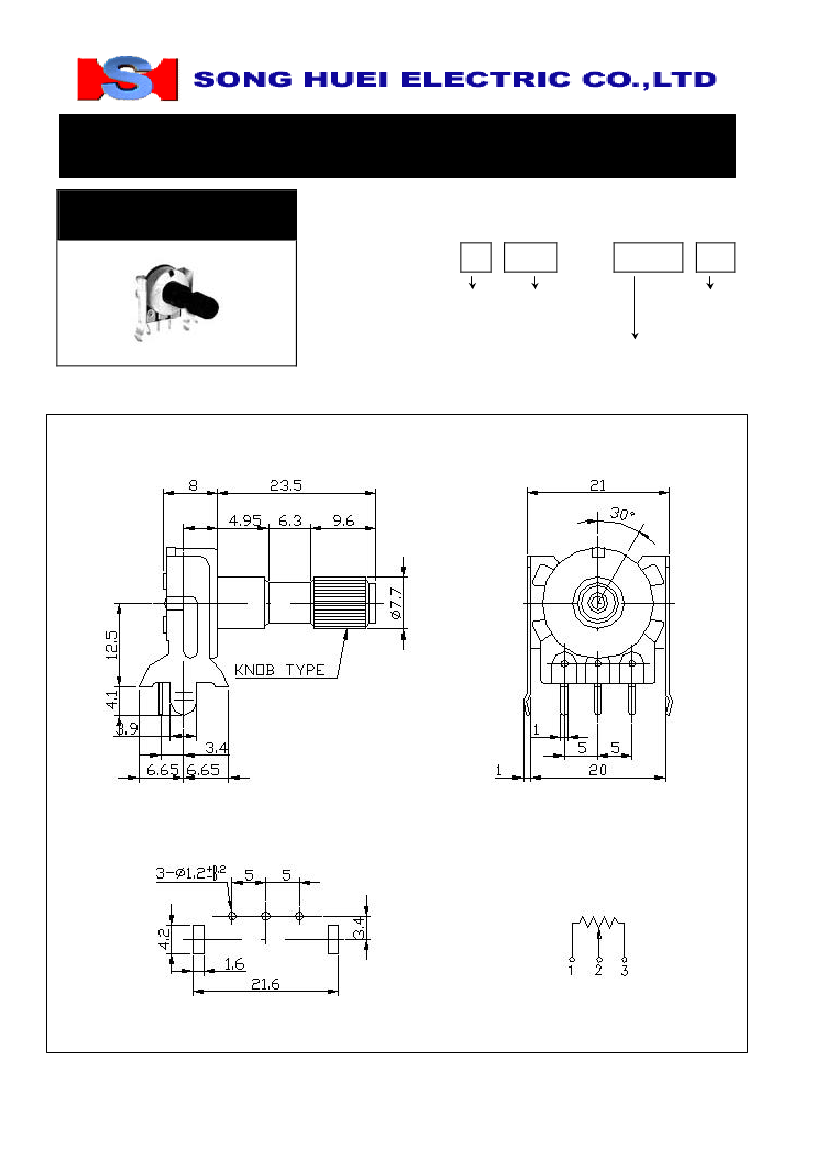

16mm Snap-in Insulated Shaft Potentiometers (16mm

塑膠軸旋½電½器)

V16(PH)5

Part Number

V16(PH)5 - B

50K , L -

23.5

Shaft Type

軸型

Taper Resistance Value

線性

阻值

Shaft Length

軸長

Dimensions

規格尺寸

http://www.song-huei.com.tw

16mm Snap-in Insulated Shaft Potentiometers

Shaft Dimensions

軸心尺寸

(16mm

塑膠軸旋½電½器

)

http://www.song-huei.com.tw

9mm Metal Shaft Rotary

Shaft Potentiometers (16mm

屬軸旋 ½ 電 ½ 器)

16mm Snap-in Insulated

Potentiometer (9mm

金

塑膠軸旋½電½器)

Electrical Characteristics

電氣特性

Total Resistance

½阻值

5K ~ 2MΩ

Total Resistance Tolerance

½阻值誤差

20%

Resistance Taper

線性

Resistance Taper Characteristics

阻值變化特性範圍

Rated Power

定格電力

Residual Resistance

殘留阻值

Noise

雜音

Insulation Resistance

絕緣阻抗

Withstand Voltage

耐電壓

Rotational Life

旋½½½

A. B. C. D. W. Taper

A50%

15-25%

B50%

40-60%

C50%

75-85%

D50%

2-15%

W50%

45-55%

B Taper : 50V 0.1W; Other Tapers: 50V 0.05W

≥

250KΩ 0.1%

250KΩ> R

10KΩ

10KΩ≥ R

47 mV Max.

DC250V 100MΩ

1 minute at AC250V

10,000 Cycles

20ΩMax. ( between Term. 1, 2)

20ΩMax. ( between Term. 2, 3)

Mechanical Characteristics

機械特性

Total Rotational Angle

全迴 ½ 角度

Stopper Strength

全迴 ½ 止強度

Rotational Torque

迴 ½ 力距

Shaft Pull-Push Strength

軸心壓入拉起強度

Shaft Lever Wobble

軸心搖動接受力

Center Click Torque

中心卡點力距

Shaft Bending

軸心瞬間 ½ 曲

Soldering Heat

焊錫耐熱性

Remark

備註

300°

5°

6kgf.cm max./3sec.

30 ~ 250 gf.cm

8kgf.cm max./3 minute.

Without bushing 0.7 x L / 20 mmp-p max.

60 ~ 300 g.cm

0.3mm max.

300℃, 3s. (Only for Hand-Soldering)

♣

Insulated shaft of black .

http://www.song-huei.com.tw
