MJ-05-01-A2: DescriptionShunts/Jumper Connector; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

MJ-05-01-A2 Overview

Shunts/Jumper Connector

MJ-05-01-A2 Parametric

Parameter Name	Attribute value
Maker	South Sea Terminal Co., Ltd.
Objectid	303811117
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	OPEN TYPE
body width	0.098 inch
subject depth	0.315 inch
body length	0.197 inch
Body/casing type	PLUG
Connector type	SHUNTS / JUMPER CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJ-05
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Plating thickness	3u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
reliability	COMMERCIAL
Total number of contacts	2

Preview

Download Datasheet

View All

MJ CONNECTOR SYSTEM

MINI JUMPER type

CURRENT RATING : (01-1A)(OTHERS-3A

WITHSTANDING VOLTAGE : 500VAC(1 MIN)

INSULATION RESISTANCE : 1000 MEGOHMS MIN.

CONTACT RESISTANCE : 20 MILLIOHMS MAX

OPERATION TEMPERATURE : -40ºC TO+85ºC

RETENTION FORCE: (01-400G)(05-1000G)

(OTHERS-540G)MIN

CONTACT: (01-PHOSPHOR BRONZE)

(OTHERS-BRASS)

INSULATOR. (06-NYLON 66)

(OTHER-PBT & 30% G.F.)

PLATING: GOLD OR TIN

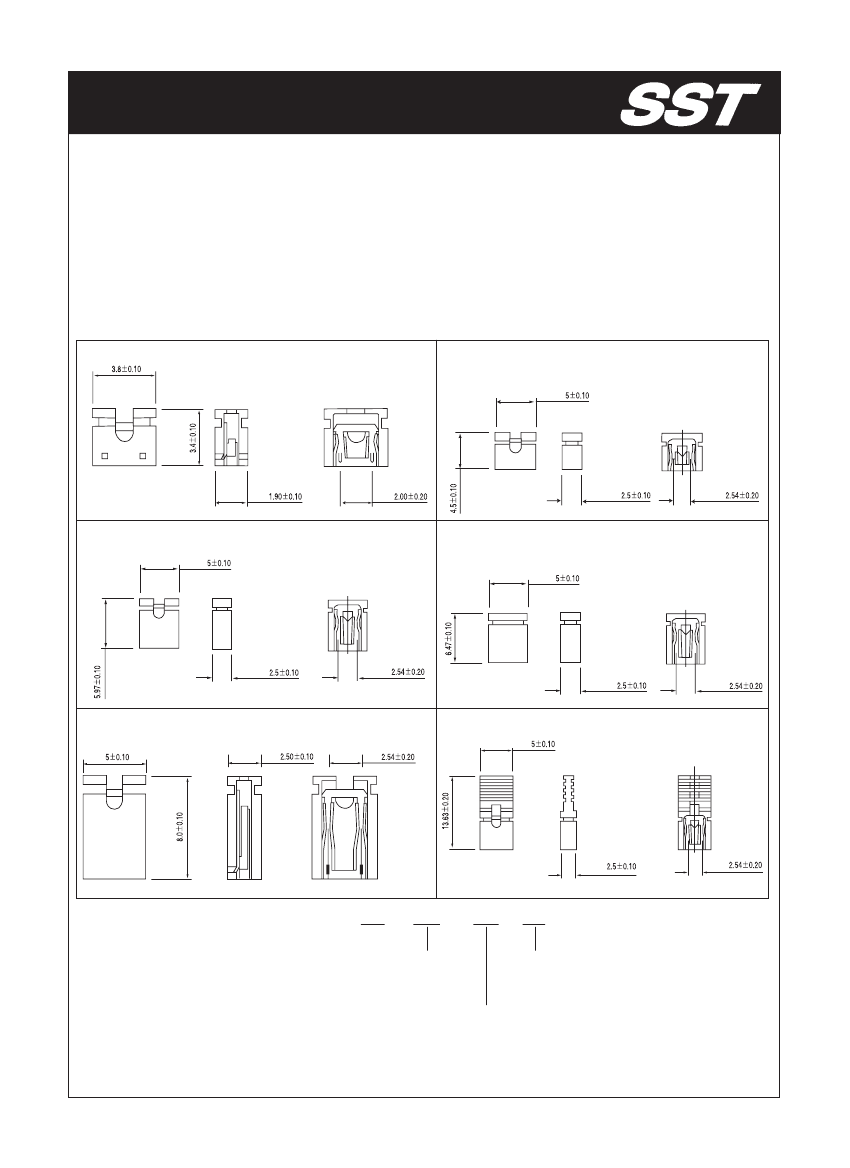

MJ-01 (2.0mm open. H: 3.4mm)

MJ-02 (2.54mm open. H: 4.5mm)

MJ-03 (2.54mm open. H: 6.0mm)

MJ-04 (2.54mm close. H: 6.5mm)

MJ-05 (2.54mm open. H: 8.0mm)

MJ-06 (2.54mm open)

MJ - XX - XX - XX

Series

Plating

T1: Tin

A1: Gold Flash

A2: 3u” Gold

A3: 6u” Gold

A4: 15u”Gold

A5: 30” Gold

A6: 50u” Gold

Color

01: Black

02: Red

03: Blue
