302A11309X

Description
D Type Connector
CategoryThe connector    The connector
File Size83KB,1 Pages
ManufacturerCONEC
Websitehttp://www.conec.com
Download Datasheet Parametric View All

302A11309X Online Shopping

Suppliers Part Number Price MOQ In stock
302A11309X - - View Buy Now

302A11309X Overview

D Type Connector

302A11309X Parametric

Parameter NameAttribute value
MakerCONEC
Reach Compliance Codecompliant
Manufacturer's serial number30

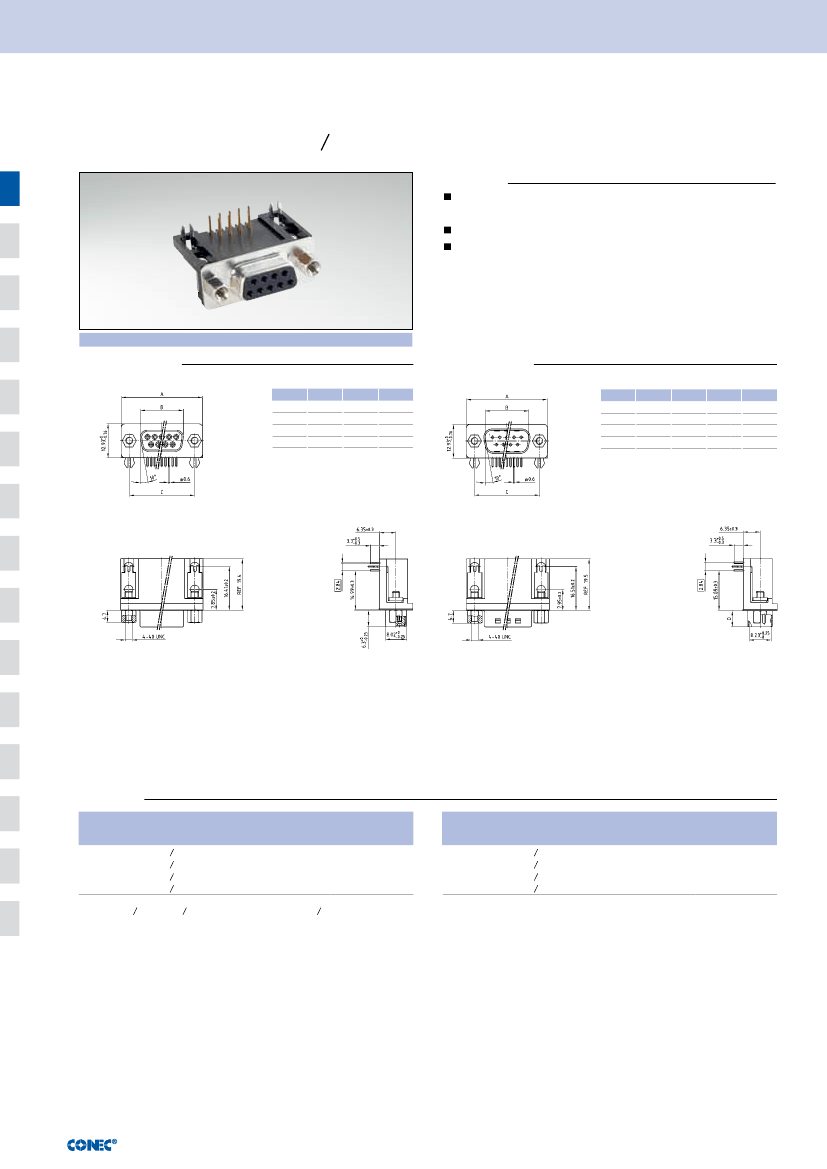

D -S U B Co n n ec to rs
D-SUB Standard
Solder pin – Angled – .590“ 14.19 mm – Stamped contacts – Plastic bracket
Description
Mounting style:
with mounting bracket, PCB clip and 4-40 UNC hex bolt
Quality class 3 (other quality classes on request)
Shell: Steel tin plated
RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
Socket connector
No. of pos.
09
15
25
37
Plug connector
A
-0.76
31.19
39.52
53.42
69.70
B
-0.25
16.46
24.79
38.50
54.96
C
25.00
33.30
47.04
63.50
+ 0.12
+ 0.15
- 0.10
± 0.13
± 0.13
No. of pos.
09
15
25
37
A
-0.76
31.19
39.52
53.42
69.70
B
+0.25
16.79
25.12
38.84
55.30
C
25.00
33.30
47.04
63.50
+ 0.12
+ 0.15
- 0.10
± 0.13
± 0.13
D
-0.3
6.12
6.12
5.99
5.99
Mounting style: PCB clip, front spacer
Mounting style: PCB clip, front spacer
Order data
Socket connector
No. of pos. Mounting style 4-40 UNC
09
15
25
37
PCB clip
PCB clip
PCB clip
PCB clip
Hex bolt
Hex bolt
Hex bolt
Hex bolt
Plug connector
Part Number
302 A 11289
302 A 11299
302 A 11309
302 A 11319
X
X
X
X
No. of pos. Mounting style 4-40 UNC
09
15
25
37
PCB clip
PCB clip
PCB clip
PCB clip
Hex bolt
Hex bolt
Hex bolt
Hex bolt
Part Number
301 A 10979
301 A 10989
301 A 10999
301 A 11009
X
X
X
X
PCB clip .122” 3.1 ± .004” 0.10 mm hole diameter and .063” 1.6 mm circuit board thickness
