REV.
A
DESCRIPTION
NEW DRAWING
DATE
5/15/2006
0.7 0.028
9.5 0.374
34.0 1.339
8.0 0.315
9.1 0.358
1.5 0.059
1.5 0.059
1.05 0.041
2.35 0.093
4.0 0.157
For more information, please visit the
product page.
TOLERANCE:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
RoHS
SPECIFICATIONS:
RATING: 16V DC @ 3A
OPERATING TEMP: 0°
~ +
40°C
MATERIAL
PLATING
TITLE:
20050 SW 112th Ave.
Tualatin, OR 97062
Phone: 503-612-2300
800-275-4899
Fax: 503-612-2383
Website: www.cui.com

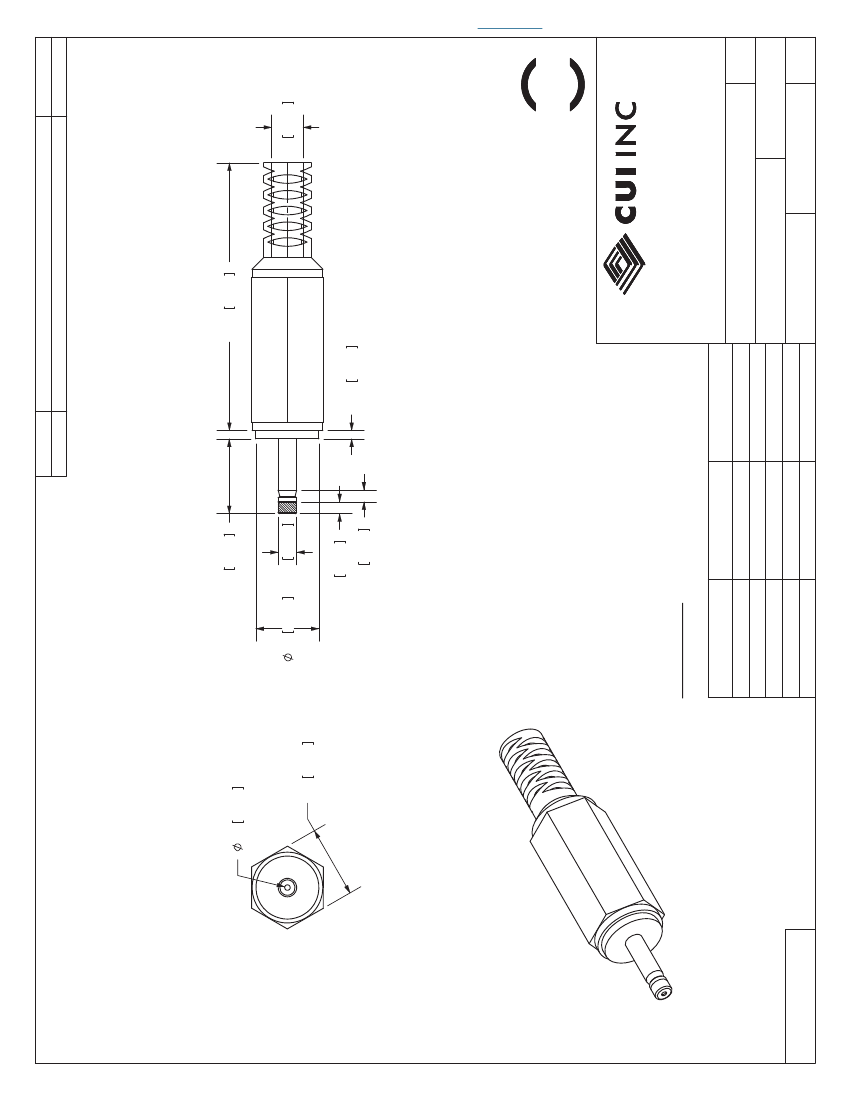

DC POWER PLUG
COVER
PIN
BARREL
TERMINALS
TIP INSULATOR
PART NO.
REV:
UNITS:
A
PP-012
DRAWN BY:
MM [INCHES]
ZRJ
APPROVED BY:
SCALE:
PC FILE NAME:
PP-012
COPYRIGHT 2007 BY CUI INC.
PVC
Phosphor Bronze
Brass
Brass
POM
Black Color
Nickel
Nickel
Nickel
Yellow Color
2:1
