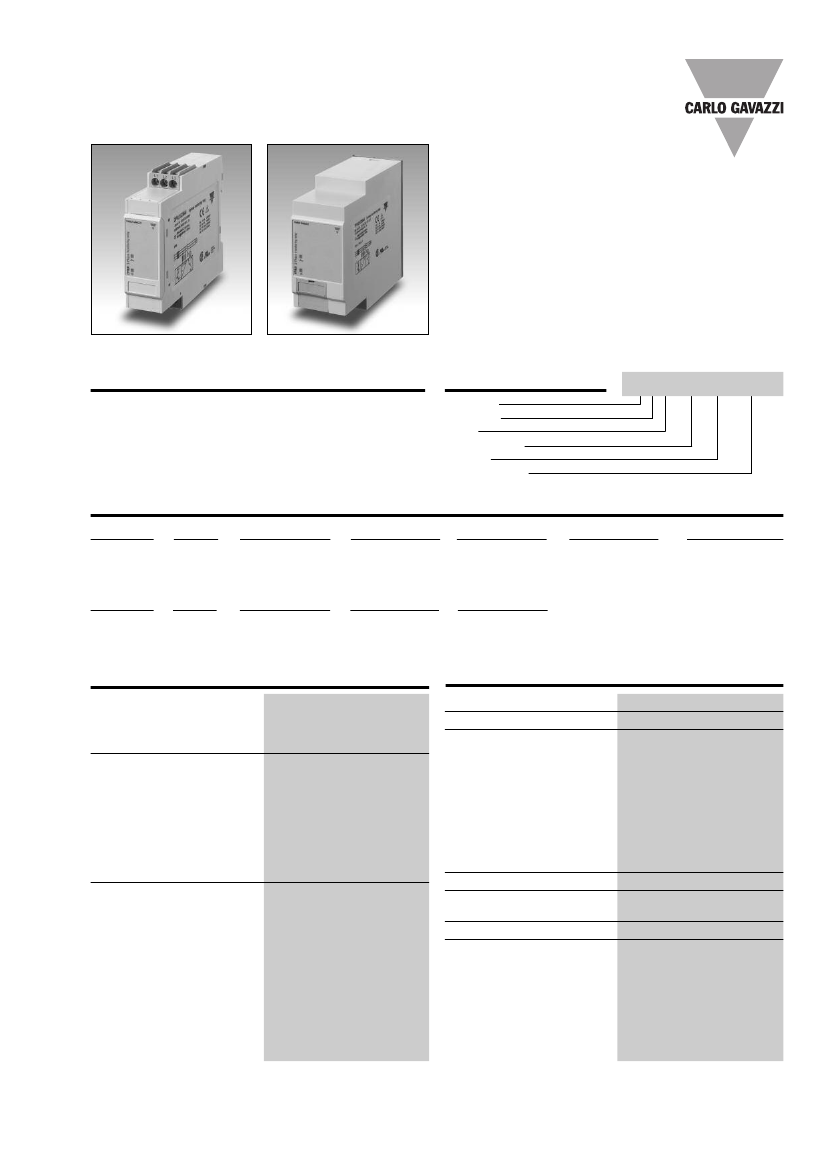

Monitoring Relays
3-Phase Sequence and Phase Loss
Types DPA01, PPA01
• 3-phase monitoring relays for phase
sequence and phase loss
• Detect when all 3 phases are present and have the
correct sequence
• Measure on own power supply
• Power supply range: 208 to 690 VAC (+10 -15%)
• Output: 8 A SPDT relay or 8 A DPDT normally energized
• For mounting on DIN-rail in accordance with DIN/EN
50 022 (DPA01) or plug-in module (PPA01)
• 22.5 mm Euronorm housing (DPA01) or 36 mm plug-in
module (PPA01)
• LED indication for relay and power supply ON
DPA01
PPA01
Product Description
3-phase relay for detection of
incorrect phase sequence,
total and partial phase loss.
Supply range from 208 to 690
VAC covered by two multi-
voltage relays.
For mounting on DIN-rail or
plug-in module. The device
detects regenerated voltages
up to 85% of the nominal
voltage (phase-phase).
Ordering Key
Housing
Function
Type
Item number
Output
Power supply
DPA 01 C M44
Type Selection
Mounting
DIN-rail
DIN-rail
Mounting
Plug-in
Plug-in
Output
SPDT
DPDT
Output
SPDT
DPDT
208 to 480 VAC
DPA 01 C M44
DPA 01 D M23
208 to 415 VAC
PPA 01 C M44
PPA 01 D M23
PPA 01 D M48
208 to 240 VAC
DPA 01 D M48
380 to 415 VAC
208 to 240 VAC
380 to 480 VAC
380 to 600 VAC
DPA 01 C M60
600 to 690 VAC
DPA 01 C M69
Input Specifications
Input
L1, L2, L3
DPA01: Terminals L1, L2, L3
PPA01: Terminals 5, 6, 7
Measures on own supply
177 to 550 VAC
323 to 690 VAC
510 to 760 VAC
177 to 475 VAC
177 to 275 VAC
323 to 550 VAC
177 to 275 VAC
323 to 475 VAC
> 85% of the mains phase-
phase voltage
Output Specifications
Output
Rated insulation voltage
Contact ratings
(AgSnO
2
)
DPA01C, PPA01C (SPDT):
Resistive loads
AC 1
DC 12
Small inductive loads AC 15
DC 13
DPA01D, PPA01D (DPDT):
Resistive loads
AC 1
Small inductive loads AC 15
DC 13
Mechanical life
Electrical life
SPDT or DPDT relay, N.E.
250 VAC
µ
8 A @ 250 VAC
5 A @ 24 VDC
2.5 A @ 250 VAC
2.5 A @ 24 VDC
8 A @ 250 VAC
3 A @ 250 VAC
2 A @ 24 VDC
≥
30 x 10
6
operations
≥
10
5
operations
(at 8 A, 250 V, cos
ϕ
= 1)
≤
7200 operations/h
Measuring ranges
208 to 480 VAC (DPA01CM44)
380 to 600 VAC (DPA01CM60)
600 to 690 VAC (DPA01CM69)
208 to 415 VAC (PPA01CM44)
208 to 240 VAC (DPA01DM23)
380 to 480 VAC (DPA01DM48)
208 to 240 VAC (PPA01DM23)
380 to 415 VAC (PPA01DM48)
ON-level
Operating frequency
Dielectric strength
Dielectric voltage
≥
2 kVAC (rms)
Rated impulse withstand volt. 4 kV (1.2/50 µs)
Specifications are subject to change without notice (17.07.06)
1
DPA01, PPA01
Supply Specifications
Power supply
Rated operational voltage
through terminals:
(DPA01)
(PPA01)
DPA01CM44
DPA01CM60
PPA01CM44
DPA01CM69
DPA01DM23
DPA01DM48
PPA01DM23
PPA01DM48
Rated operational power
M23
M44, M48
M60
M69
Overvoltage cat. III
(IEC 60664, IEC 60038)
L1, L2, L3
5, 6, 7
208 to 480 VAC ± 15%,
45 to 65 Hz
380 to 600 VAC±15%,
45 to 65 Hz
208 to 415 VAC ± 15%,
45 to 65 Hz
600 to 690 VAC +10 -15%,
45 to 65 Hz
208 to 240 VAC ± 15%,
45 to 65 Hz
380 to 480 VAC ± 15%,
45 to 65 Hz
208 to 240 VAC ± 15%,
45 to 65 Hz
380 to 415 VAC ± 15%,
45 to 65 Hz
6 VA @ 230 VAC, 50 Hz
10 VA @ 400 VAC, 50 Hz
15VA @ 600 VAC, 50Hz
15VA @ 690 VAC, 50Hz
Supplied by L2 and L3
General Specifications
Reaction time
Alarm ON delay
Alarm OFF delay
Accuracy
Temperature drift
Repeatability
Indication for
Power supply ON
Relay ON
Environment
Degree of protection
Pollution degree
Operating temperature
@ Max. voltage, 50 Hz
@ Max. voltage, 60 Hz
Storage temperature
Housing
Dimensions
DPA01
PPA01
Weight
Screw terminals
Tightening torque
Approval
CE Marking
EMC
Immunity
Emissions
< 100 ms
< 350 ms
(15 min warm-up time)
± 1000 ppm/°C
± 0.5% on full scale
LED, green
LED, yellow
(EN 60529)
IP 20
3 (DPA01), 2 (PPA01)
-20 to +60°C, R.H. < 95%
-20 to +50°C, R.H. < 95%
-30 to +80°C, R.H. < 95%
22.5 x 80 x 99.5 mm
36 x 80 x 94 mm
Approx. 100 g
(DPA01)
Max. 0.5 Nm
acc. to IEC 60947
UL - CSA (except PPA01D,
DPA01CM69)
Yes
Electromagnetic Compatibility
According to EN 61000-6-2
According to EN 61000-6-3
Mode of Operation
DPA01 and PPA01 monitor
their own 3-phase power
supply. The relay operates
when all the phases are pre-
sent
and
the
phase
sequence is correct. The
relay releases when one
phase-phase voltage drops
below 85% of the other
phase-phase voltages.
Example 1
The relay monitors that the
power supply has the correct
phase sequence and that all
phase voltages are present.
Example 2
The relay releases in case of
interruption of one or more
phases, provided that the
regenerated voltage does
not exceed 85% of the
phase-phase voltage.
Operation Diagram
L1
L2
L1
L2
L3
L2
L1
L3
L3
L2
L1
L1
L2
L3
L3
Relay(s) ON
2
Specifications are subject to change without notice (17.07.06)
