Compact Technology
PR1501 thru PR1507
REVERSE VOLTAGE
- 50
to
1000
Volts
FORWARD CURRENT
- 1.5
Amperes
FAST RECOVERY RECTIFIERS
FEATURES
Fast switching for high efficiency
Low cost
Diffused junction
Low reverse leakage current
Low forward voltage drop
High current capability
The plastic material carries UL recognition 94V-0
A
DO-41
B
A
C
D
MECHANICAL DATA
Case : JEDEC DO-41 molded plastic
Polarity : Color band denotes cathode
Weight : 0.012 ounces, 0.34 grams
Mounting position : Any
DO-41
Dim.
A
B
C
Min.
25.4
4.10
0.70
Max.
-
5.20
0.90
2.00
2.70
D
All Dimensions in millimeter
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
PR
1501
50
35
50
PR
1502
100
70
100
PR
1503
200
140
200
PR
1504
400
280
400
1.5
35
1.3
5
100
150
30
50
-55 to +150
-55 to +150
250
20
500
PR
1505
600
420
600
PR
1506
800
560
800
PR
1507
1000
700
1000
UNIT
V
V
V
A
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current
SYMBOL
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
T
RR
C
J
R
0JA
@T
A
=
50 C
Peak Forward Surge Current
8.3ms single half sine-wave
super imposed on rated load (JEDEC Method)
Maximum forward Voltage at 1.5A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
A
V
uA
uA
ns
pF
C/W
@T
J
=25 C
@T
J
=100 C
Maximum Reverse Recovery Time (Note 1)
Typical Junction
Capacitance (Note 2)
Typical Thermal Resistance (Note 3)
Operating Temperature Range
Storage Temperature Range
T
J
C
C
T
STG
NOTES : 1.Measured with I
F
=0.5A,I
R
=1A,I
RR
=0.25A.
2.Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3.Thermal Resistance Junction to Ambient.
CTC0124
Ver.
2.0
1
of 2
PR1501 thru PR1507
Compact Technology
PR1501 thru PR1507

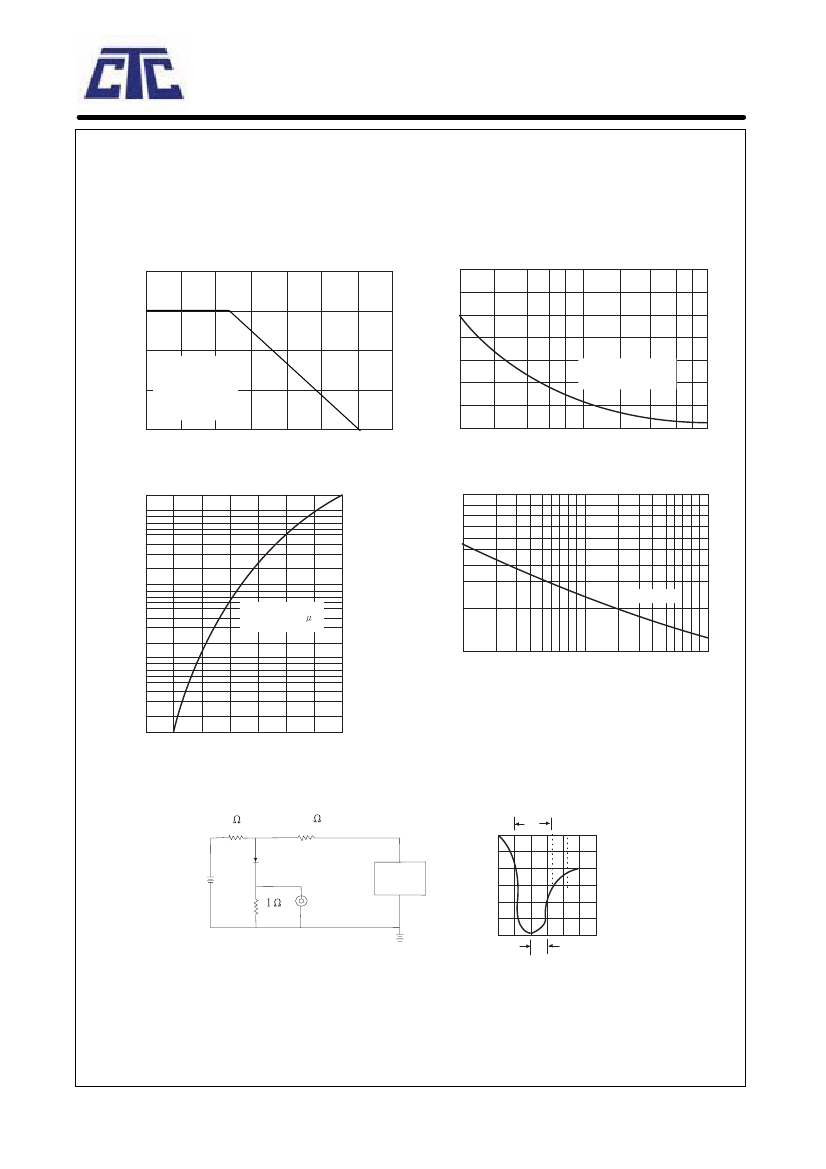

RATINGS AND CHARACTERISTIC CURVES
AVERAGE FORWARD CURRENT. ( A )
2.0
PEAK FORWARD SURGE CURRENT . ( A )
FIG . 1 - MAXIMUM FORWARD CURRENT DERATING
CURVE
FIG . 2 - MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
60
50
40
30
20
10
0
2
4
6
10
40
NUMBER OF CYCLES AT 60Hz
10 0
1.5
1.0
SINGLE PHASE
HALF WAVE 60Hz
RESISTIVE OR
INDUCTIVE LOAD
0.375" (9.5 mm)
LEAD LENGTH
0
25
50
75
100
125
O
0.5
8.3ms Single Half Sine
Wave JEDEC Method
0
150
175
AMBIENT TEMPERATURE . ( C )
20
INSTANTANEOUS FORWARD CURRENT . ( A )
10
FIG 3 . - TYPICAL FORWARD
CHARACTERISTICS
HUNCTION CAPACITANCE . (pF)
FIG . 4 - TYPICAL HUNCTION CAPACITANCE
100
60
3.0
1.0
Tj=25 C
0.3
0.1
Pulse Width=300
1% Duty Cycle
s
O
40
Tj=25
O
C
20
10
1
2
4
6
10
20
40
60
100
REVERSE VOLTAGE . ( V )
.03
.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
FORWARD VOLTAGE . (V )
FIG . 5 -REVERSE RECOVERY TIME CHARACTERISTIC
NONINDUCTIVE
AND TEST CIRCUIT DIAGRAM
50
NONINDUCTIVE
+0.5A
10
trr
(+ )
50Vdc
(approx)
(-)
DUT
PULSE
GENERATOR
( NOTE 2 )
0
-0.25A
NONINDUCTIVE
OSCILLOSCOPE
(NOTE 2 )
-1.0A
1cm
SET TIME BASE FOR
5/ 10ns / cm
NOTES: 1 . RISE TIME = 7nsmax. INPUT
IMPEDANCE= 1 MEGOHM 22pf
2 . RISE
TIME = 10ns max.SOURSE
IMPEDANCE = 50ohmsf
CTC0124
Ver.
2.0
2
of 2
PR1501 thru PR1507
