PR3200 DIFFERENTIAL PRESSURE TRANSMITTER
ACCURATE AT VERY WIDE DP RANGE
HIGH STABILITY and REPEATABILITY
WET / WET OPERATION
4-20mA TWO-WIRE OUTPUT
ZERO + SPAN ADJUSTMENT ON-SITE
RANGES 250mbarDP to 200barDP
UNI + BI-DIRECTIONAL OPERATION
DESCRIPTION

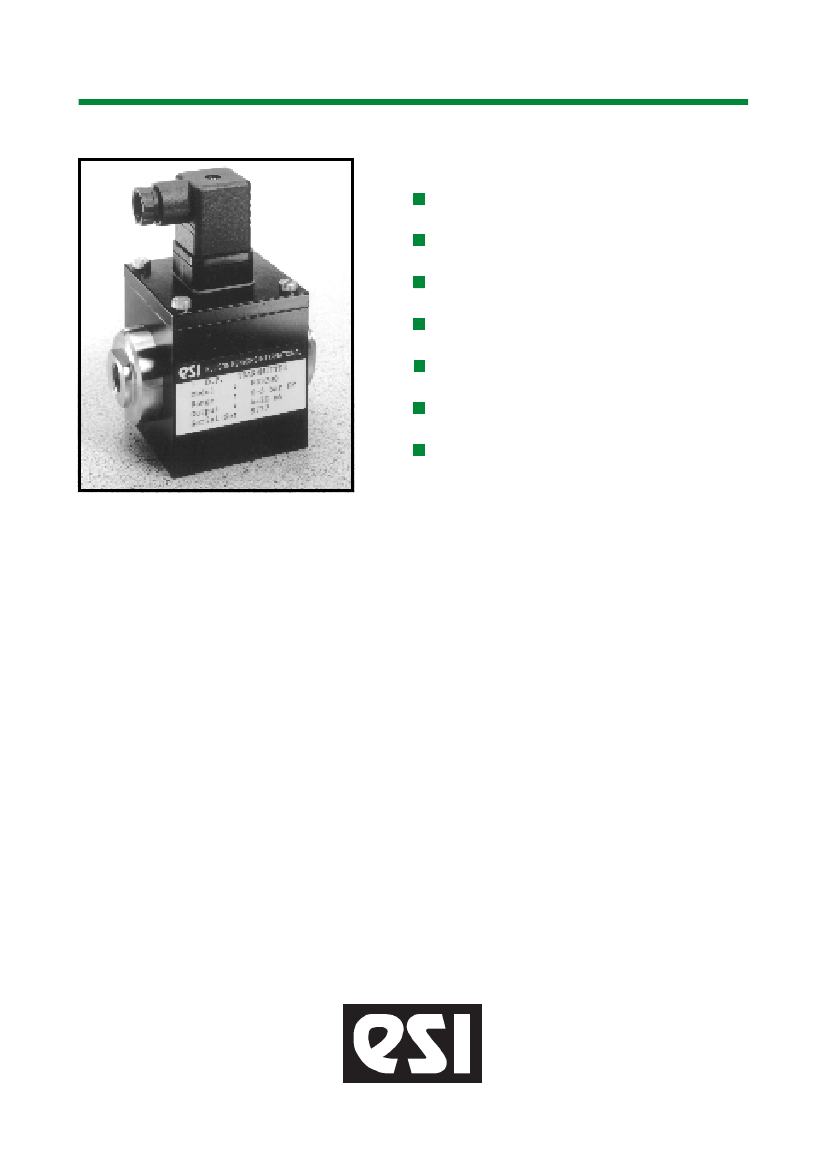

The PR3200 Differential Pressure Transmitter uses two matched ceramic pressure diaphragms, offering high
stability and performance with true wet/wet operation, suitable for use with all liquids and gasses compatible with
stainless steel and alumina. Flush diaphragm models are available with integral or remote pressure diaphragms for
hygienic applications.
Applications include flow measurement with pitot tubes, orifice plates and mass flow meters, plus static differential
pressure measurement and control in combustion chambers and clean rooms, also condition monitoring and filter
monitoring in high pressure hydraulic systems or any application on liquid or gas requiring reliable differential
pressure measurement.
Electrical connection is DIN plug and socket, access to zero and span adjustment is made by removing top plate
for easy on-site adjustment.
Pressure connection as standard is via two ¼"BSP female connections.
Mounting Plate available for stand-pipe or bulk-head mounting.
Ranges available from 0-250mbarDP to 0-200barDP.
Tel: 01978 262255
Fax: 01978 262233
PROTRAN
SPECIFICATION
©
PR3200 DIFFERENTIAL PRESSURE TRANSMITTER
INPUT
Pressure ranges...................................0-250 mbarDP
to 0-200 barDP
Pressure reference...............................Differential
Operation mode.....................................Uni or Bi-directional
Static pressure max..............................4 x range (max)
Common mode pressure......................4 x range (max)
OUTPUT
Span......................................................4-20 mA
Type...................................................... 2 wire
ACCURACY
Zero offset.............................................<±1% FSO
Span tolerance...................................... <±1% FSO
Combined non-linearity / hysteresis .... <±0.3% FSO
Repeatability..........................................<±0.1% FSO
Long term stability................................. <±0.2% FSO / 6 months
Common mode pressure error ............ <±2% / 4 x DP range
ELECTRICAL
Supply voltage.......................................13-36Vdc
Supply voltage effects...........................3µA/V
Reverse polarity....................... Protected
Load driving capability.............. 1150Ω @ 36Vdc
Output short circuit (to ground) No damage
Insulation resistance................ 100MΩ @ 100Vdc elec conn to case
Response time (63%).............. 1.5mS
Adjustment............................... ±10%FSO Zero and Span
ENVIRONMENTAL
Pressure media....................... Compatible with alumina +304 S.S
Operating temperature range.. -20 to +85 °C
Storage temperature range...... -40 to +90°C
Thermal effect Zero................. <±0.03% FSO/°C
Thermal sensistivity................. <±0.03% FSO/°C
Vibration tolerance................... 10g’s to 50Hz
Mechanical shock tolerance.... 15g@s (11mS)
Operating humidity................... 95% RH
PHYSICAL
Pressure connections.............. ¼" BSP female x 2
Electrical connection................ DIN plug + socket to DIN43650
Mounting................................... Via mounting plate (optional extra)
Enclosure rating....................... IP65
Natural frequency.................... 10 Khz (min)
Weight...................................... 780 grams
Materials................................... 300 series stain’stl body/
connector alumina diaphragm

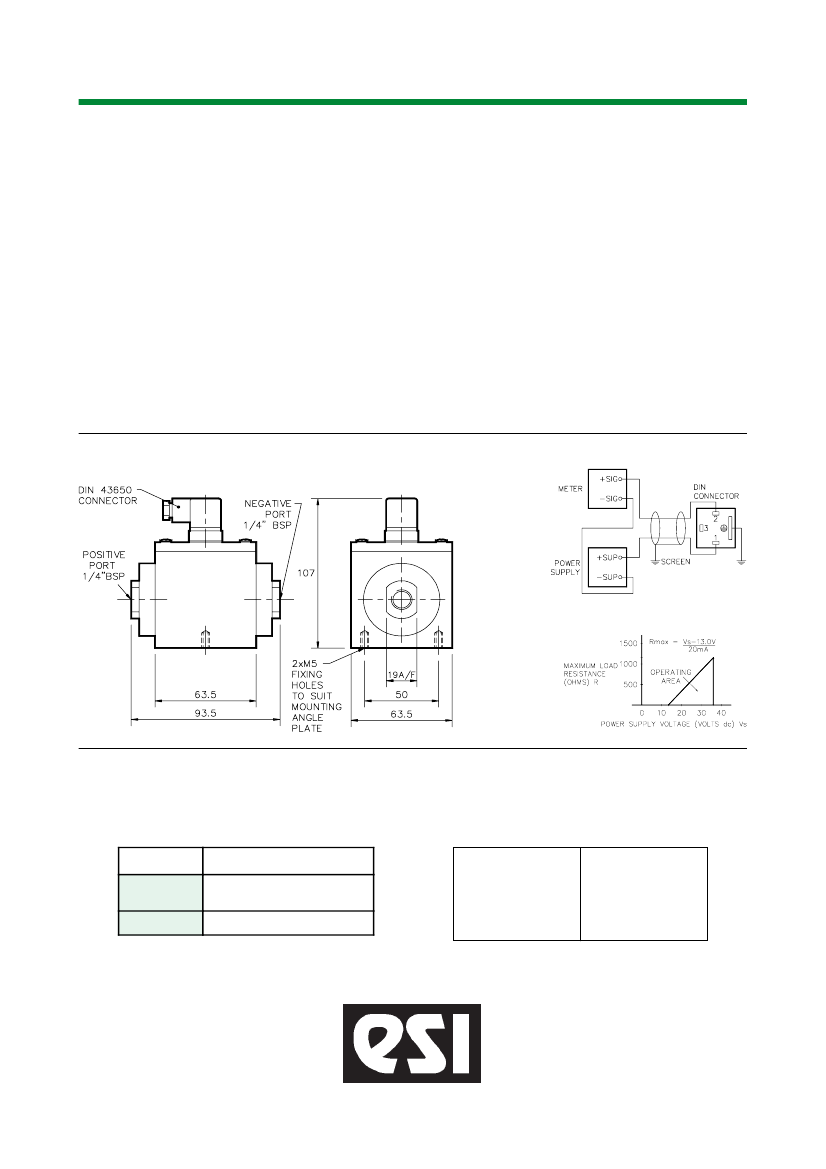

TRANSMITTER WIRING DIAGRAM
DIMENSIONS / WIRING DETAILS
LOAD DRIVING CHART
ORDERING INFORMATION
STATE MODEL NUMBER AND PRESSURE RANGE REQUIRED:-
ie: PR3200 0-10mbarDP
D.P. PRESSURE RANGES
0
0
0
0
0
0
-
-
-
-
-
-
250 mbar
500 mbar
750 mbar
1 bar
2 bar
4 bar
0
0
0
0
0
-
-
-
-
-
10 bar
20 bar
40 bar
100 bar
200 bar
MODEL NO.
PR3200
PR3200/MP
DESCRIPTION
DP Transmitter 0-250mbar to
0-200 bar
Mounting Angle Plate
Tel: 01978 262255
Fax: 01978 262233
ellison sensors international
Sensor House, Wrexham Technology Park, Wrexham, LL 13 7YP, Wales, U.K.
